CAMPAGNOLO

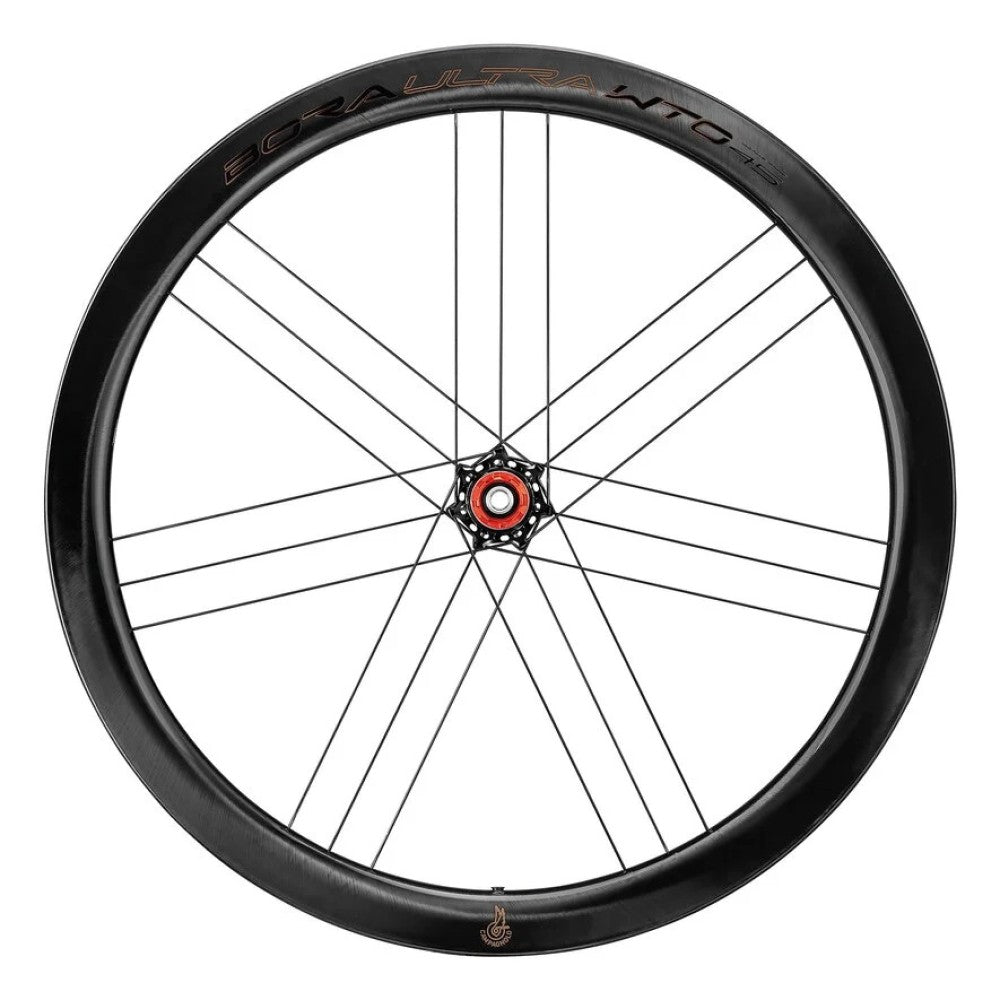

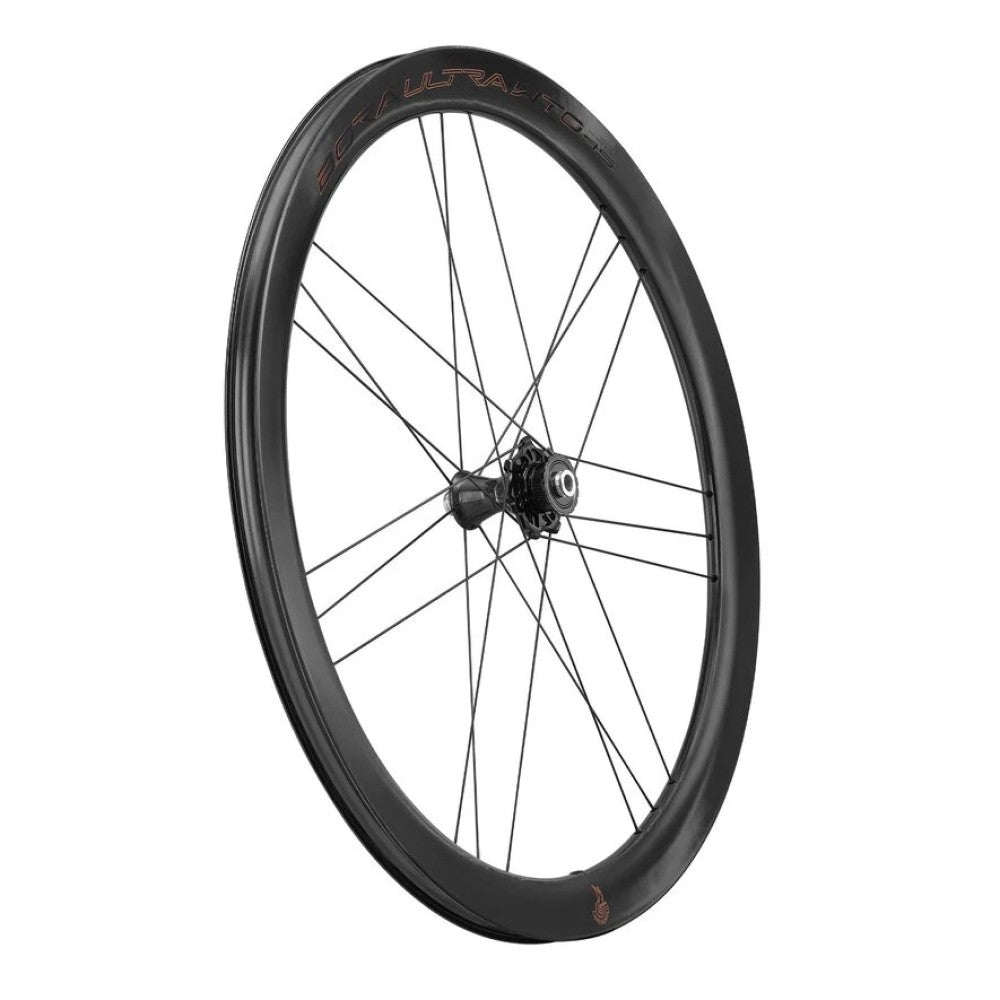

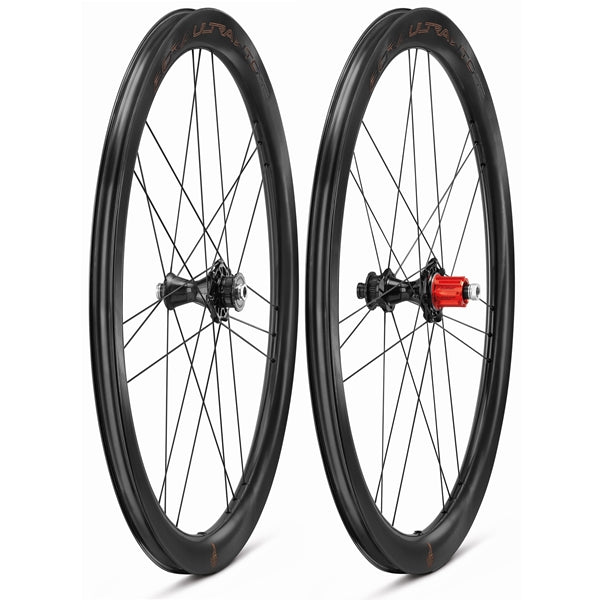

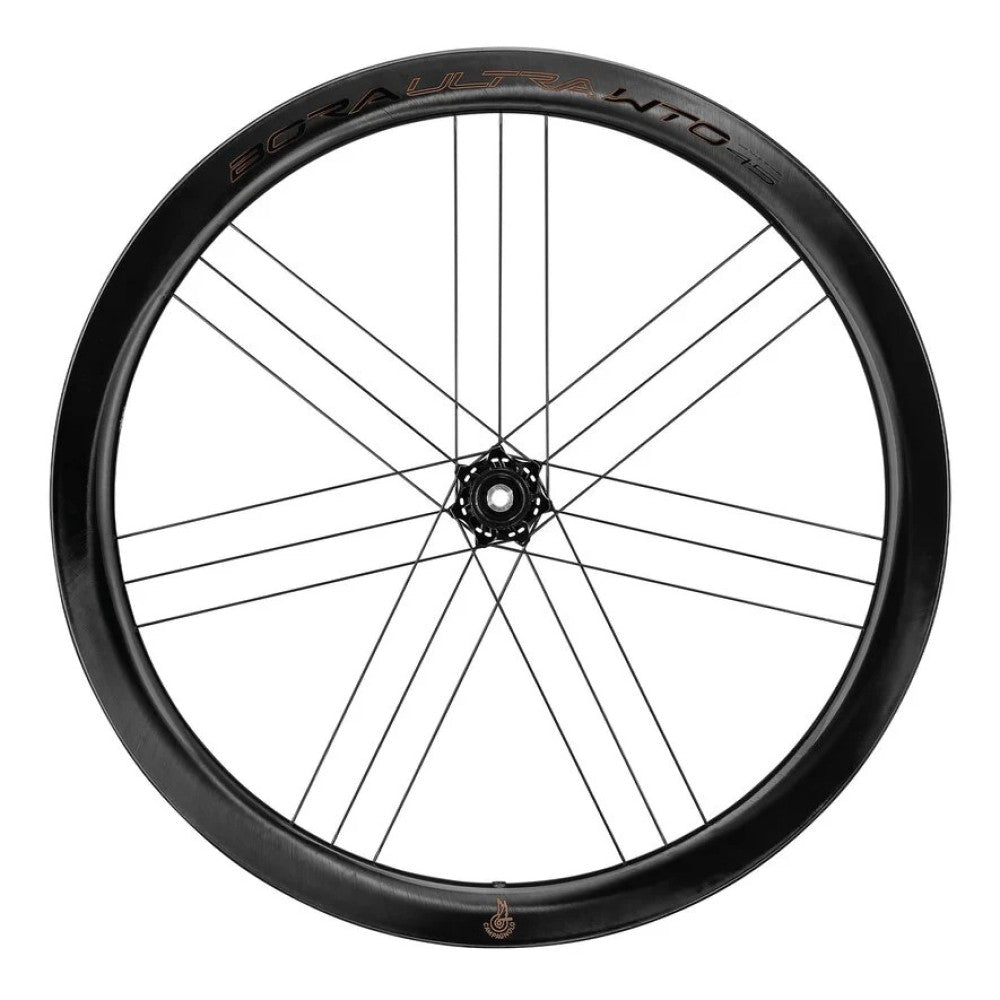

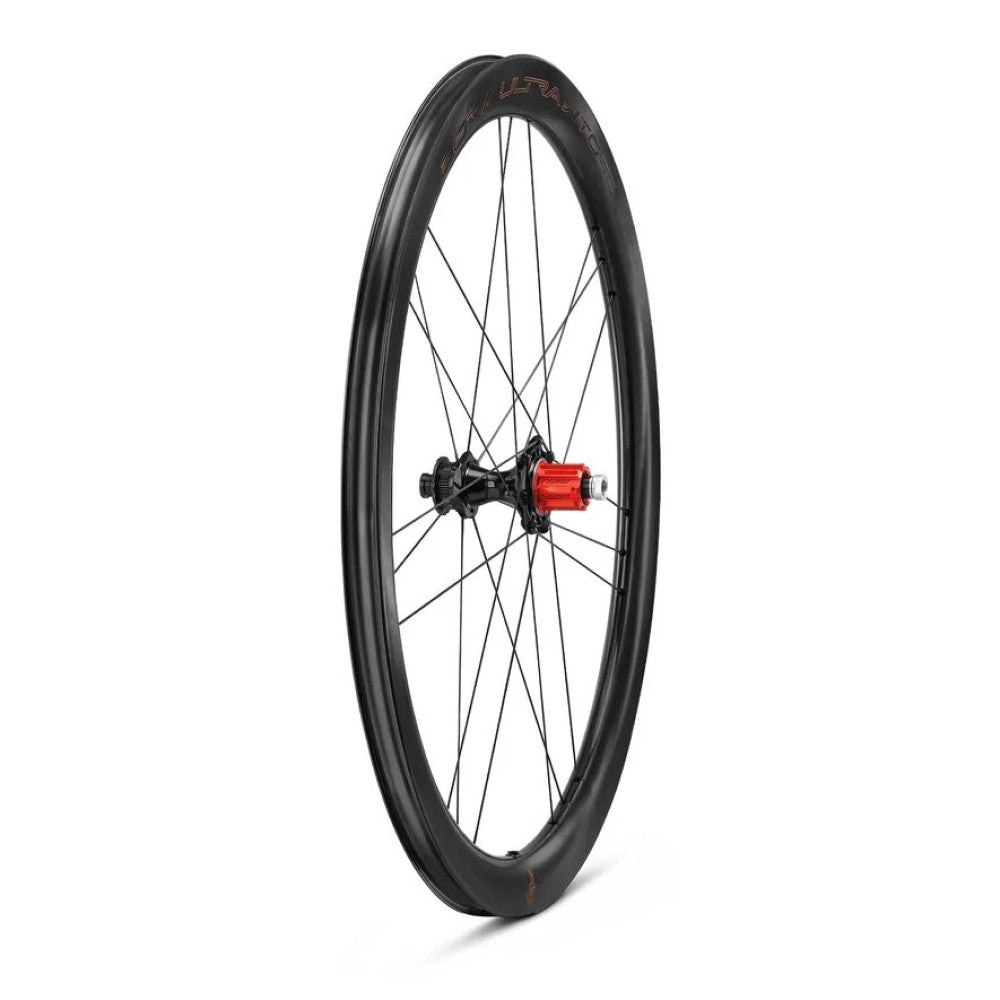

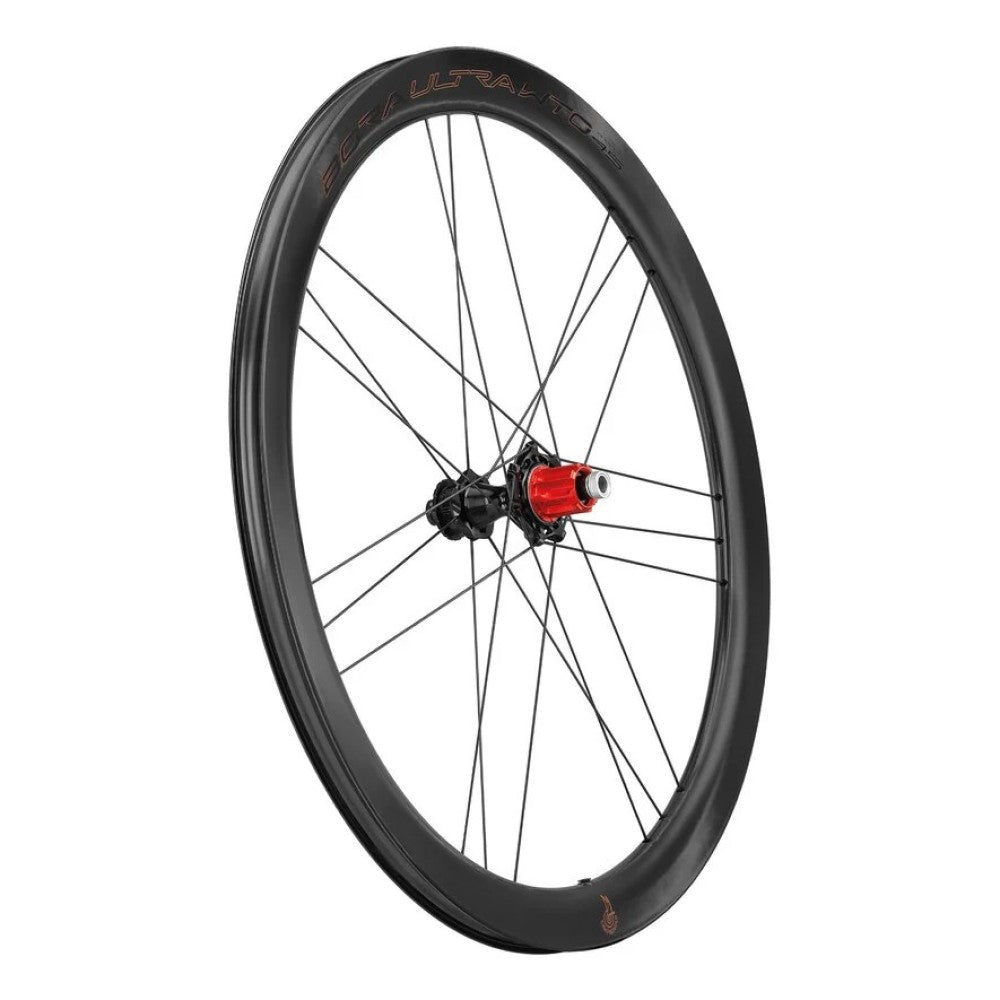

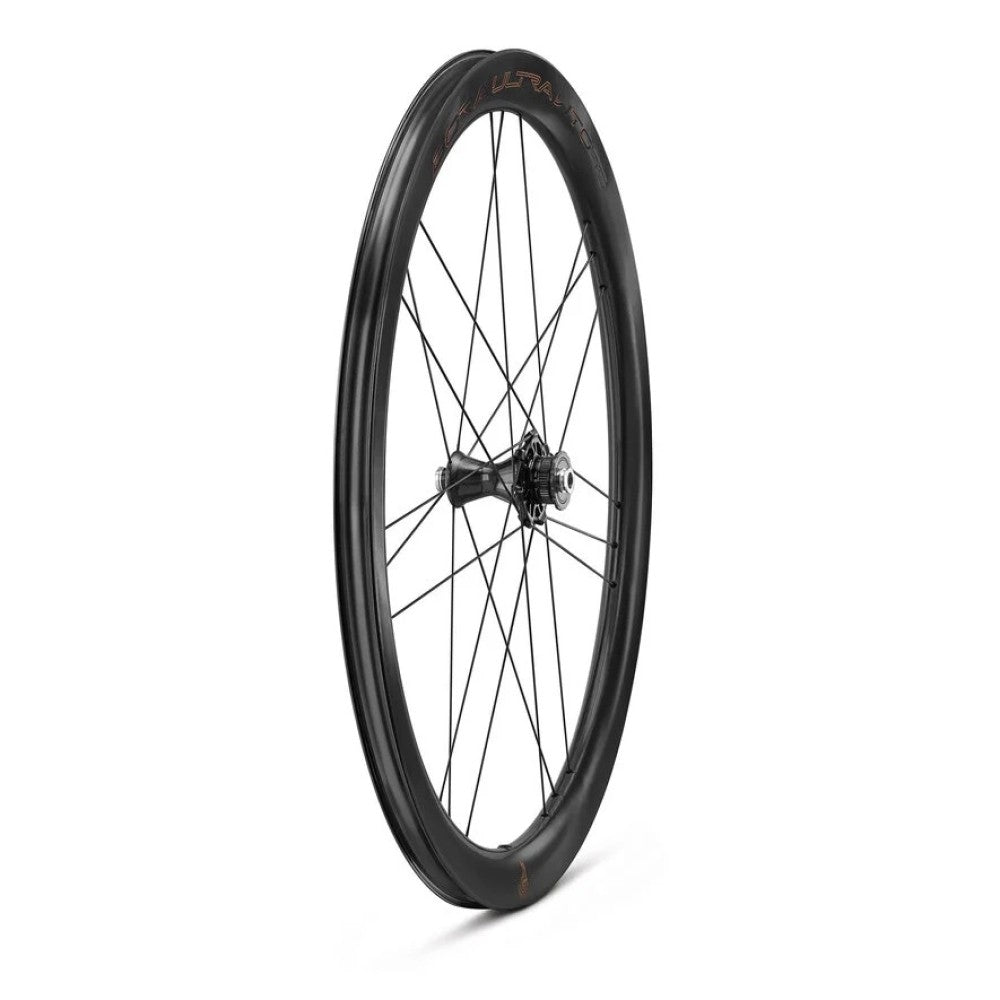

Pair of CAMPAGNOLO BORA ULTRA WTO 45 C23 DISC Tubeless Ready Wheels (Center Lock)

Visit Pair of CAMPAGNOLO BORA ULTRA WTO 45 C23 Wheels offer a perfect balance of speed, agility and stability, making them the ideal choice for all-rounders.... Read more

Recommanded price: 3.699,00 €

2.899,90 €
2.899,90 €
View full details

Description

Visit Pair of CAMPAGNOLO BORA ULTRA WTO 45 C23 Wheels offer a perfect balance of speed, agility and stability, making them the ideal choice for all-rounders. This new, enlarged version improves aerodynamic performance and enhances efficiency with wider tires.

This model has been fine-tuned through rigorous testing and craftsmanship. With improved aerodynamic performance, unrivalled lightness and exceptional handling, it surpasses its predecessors in every respect.

Now even lighter, thanks to its Handcrafted Ultra-Light Unidirectional Carbon (H.U.L.C.)the Bora Ultra WTO 45 features slimmer aerodynamic elliptical spokes and hidden nipples for better air penetration.

The ceramic ball bearings CULT ceramic ball bearings from Campagnolo rotate smoothly inside the aerodynamic carbon front disc hub, while the Campagnolo 2-Way Fit rims are immediately compatible with tubeless tires, without the need for rim tape.

Manufacturer's manual

Compatibility Campagnolo Rim-Tires-Pressure

Ref: 9307215724893

Informations techniques

┘GENERAL
Front axle dimension: 12x100mm
Rear axle dimension: 12x142mm
Internal width: 23mm
Height: 45mm
Disc: Center Lock
Freewheel body: Shimano HG or SRAM XDR or Campagnolo N3W
Weight: 1325 g
Part number :
- WC435AAP1A110 - Shimano HG
- WC435AAP5A110 - SRAM XDR
- WC435AAP8A110 - Campagnolo N3W

┘JANTES
Rim height: 45 mm
Rim material : Carbon (H.U.L.C.)
Rim section (height/width): 45/28.4 mm
Internal rim width: 23 mm
Recommended tire size: 700x28 to 700x35
Details: Water transfer DCS graphics (Dark Copper Shaded effect) / C-LUX finish
Tires: Tubeless and Tubetype (2-WAY-FIT)

┘RAYONS
Spokes: 21, aeroelliptical cross-section, straight-head, swaged, 1.5 mm
Lacing: G3
Nipples: Aero Mo-Mag aluminum, self-locking, internal

┘MOYEU

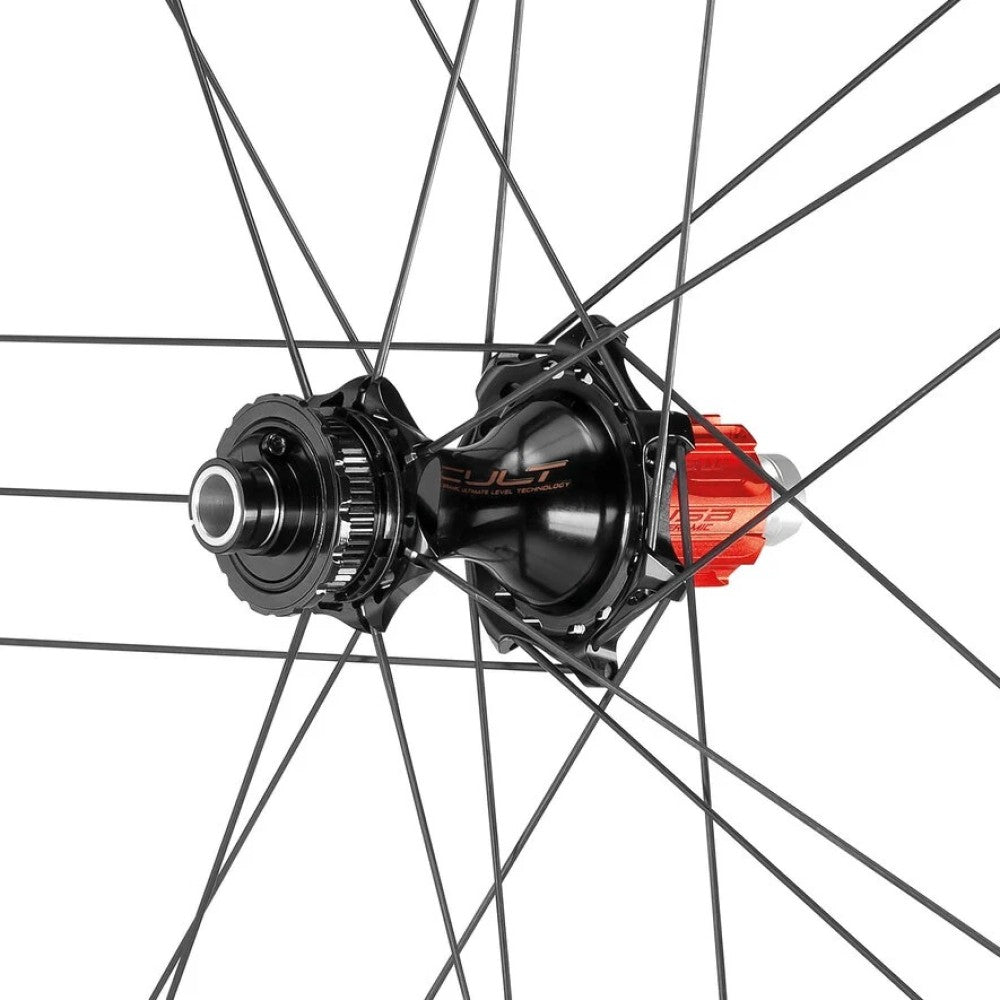

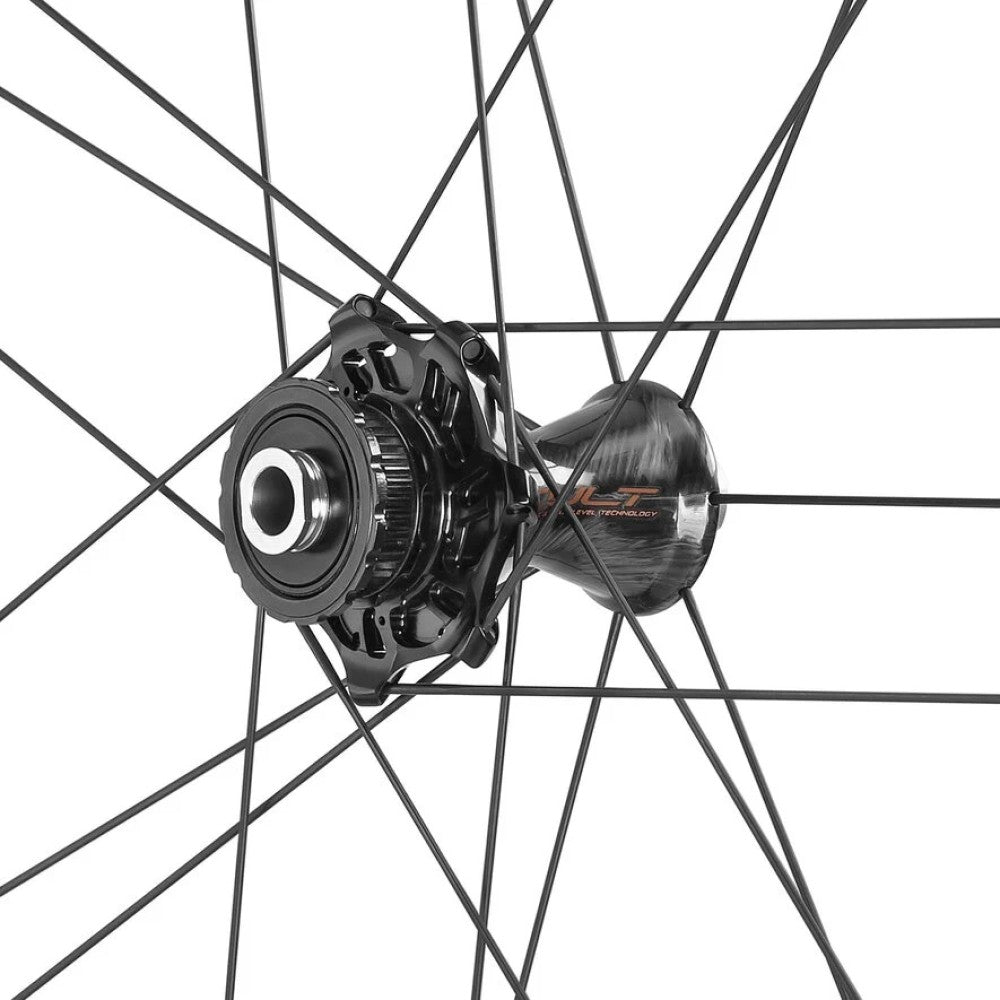

Hub type: Bora Ultra, carbon front body
Hub width:100-142 mm
Axle type: 12 mm aluminum thru axle
Bearings : CULT ceramic, cone/cuvette

┘ ASSEMBLY & TECHNOLOGIES
► The Bora™ Ultra WTO™ 45 Disc Brake wheel is assembled entirely by hand by a specialized Campagnolo® operator and 100% checked using electronic control instruments. This procedure guarantees the maximum precision and reliability of every Campagnolo® brand wheel;
► G3 spoking: Campagnolo's G3 geometry, with its groups of three parallel straight-head spokes arranged in a 2:1 ratio, provides perfect stress balancing, increased stiffness and improved power transfer ;
► Ultra-light design thanks to high-strength H.U.L.C unidirectional carbon and paint-free C-LUX finish;
► Campagnolo's CULT ceramic bearing technology reduces friction, increases durability and offers exceptional smoothness for optimum performance;
► The Aerodynamics/Stability compromise of "teardrop" profiling;

┘INCLUDED
Aero Mo-Mag nut maintenance kit
tubeless valves
AFS bushings
Campagnolo wheel covers
Campagnolo accessories bag
tire levers
Campagnolo N3W adapter for Z11 (in version with Campagnolo freewheel body)

Informations prix

Recommended retail price February 2024
