FAVERO ELECTRONICS

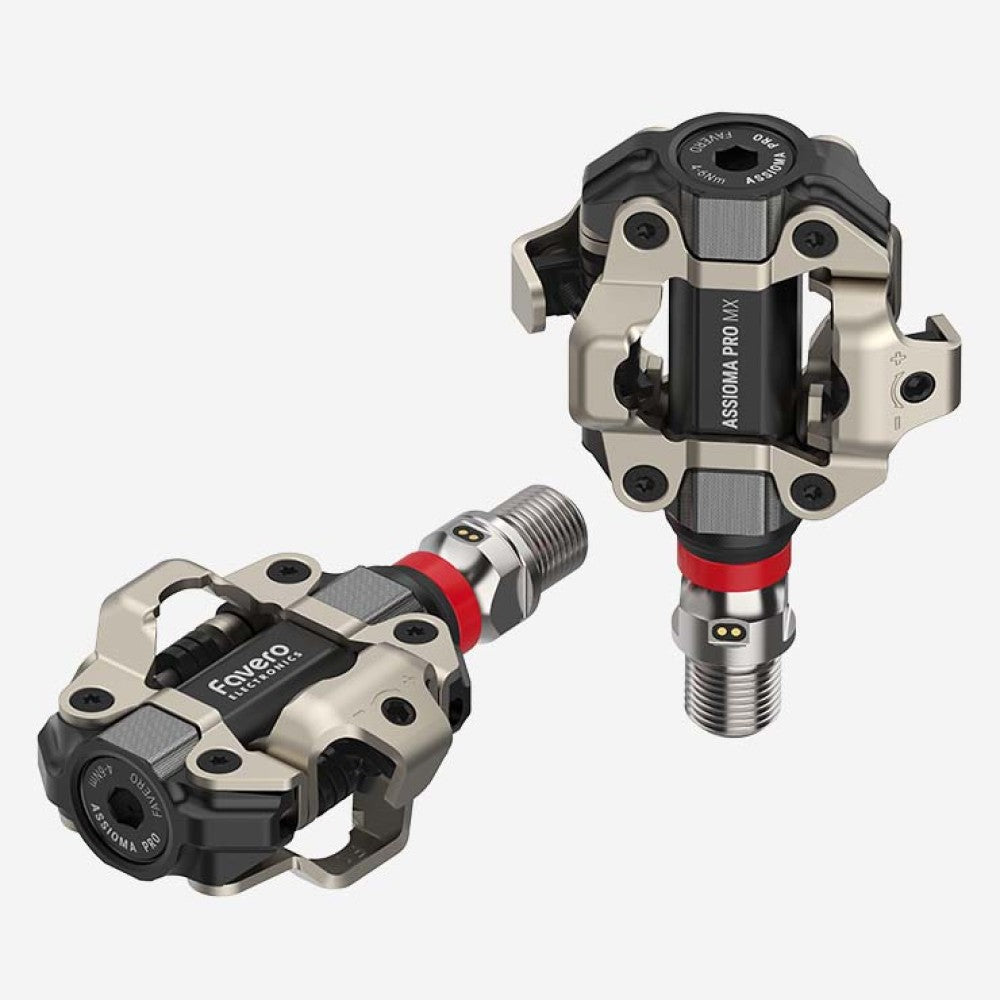

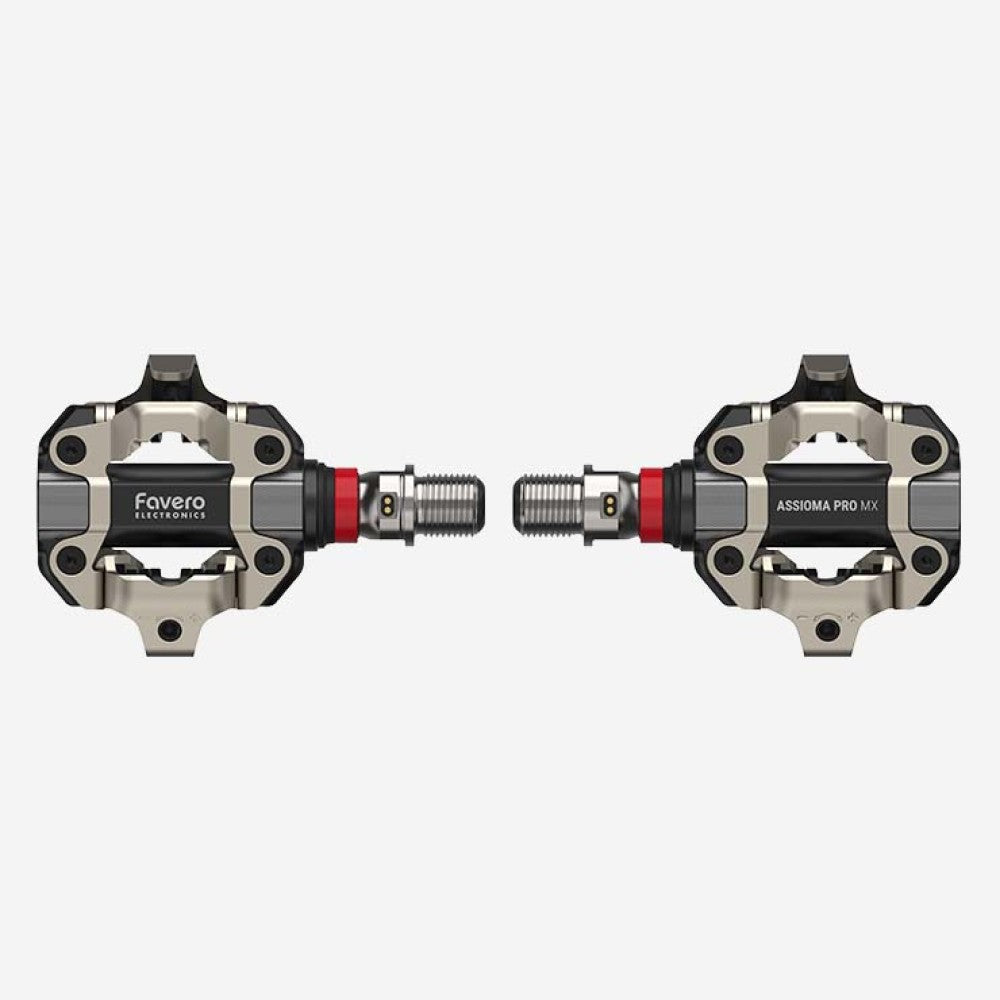

Pedals Power Meter FAVERO ASSIOMA PRO MX2

Visit FAVERO ASSIOMA PRO MX2 Power Sensor pedals pedals revolutionize training for MOUNTAIN BIKING XCthe Cyclocross and Gravelwith full SPD compatibility. Easy to install... Read more

Recommanded price: 739,90 €

Regular price 759,90 €
Regular price Sale price 759,90 €
View full details

Description

Visit FAVERO ASSIOMA PRO MX2 Power Sensor pedals pedals revolutionize training for MOUNTAIN BIKING XCthe Cyclocross and Gravelwith full SPD compatibility. Easy to install like conventional pedals, they transfer quickly from one bike to another. Connect them instantly to your computer or smartphone via Bluetooth and ANT+ to start recording your performance.

The MX2 version version incorporates power sensors in each pedal, enabling independent right/left measurement for detailed analysis. Positioned directly on the pedals, the sensors Assioma sensors provide precise information on power in watts to within ±1%, thanks to the exclusive IAV Power system and gyroscope gyroscope. This system guarantees consistent precision, regardless of pedaling style or the use of oval chainrings.

The sensors also provide advanced parameters such as cadence, torque efficiency, pedal smoothness, energy consumption, power-to-weight ratio and threshold power. Factory-calibrated, they ensure reliable measurements in a wide range of weather conditions, from -10°C to 60°C, thanks to automatic temperature compensation.

The 6061-T6 aluminum pedal body is robust and ultra-light, ready to take on the toughest trails. With a surface hardness of up to 800 HV, it offers exceptional shock resistance. The application Assioma application allows you to update the software, make adjustments and check the battery level, optimizing every bike outing.

Manufacturer's manual

Technical details and exploded view

Ref: 9223750943069

Informations techniques

╝FEATURES
► Total compatibility: 100% SPD® compatible, can be used with shims included or Shimano® SM-SH51
► Reliability and Precision: Inherits the performance of Favero road pedals, with added strength for mountain biking and gravel.
► Easy Installation: Quick assembly and transfer between bikes, without special tools or mechanical assistance
► Universal connectivity: Bluetooth and ANT+ compatible with most bike computers and training apps
► Compact and Waterproof Axis: Electronic components and battery protected in a sturdy, IP67-certified axis.
► Shock-resistant: Robust, ultralight 6061-T6 aluminum body with 800 HV surface hardness
► IAV Power accuracy: precise measurements to ±1% even with irregular pedaling or oval chainrings
► 60-hour autonomy: built-in rechargeable batteries, with magnetic recharging to prevent accidental disconnection
► Complete Data: Displays power, cadence, L/R balance, and other advanced parameters for detailed analysis
► Made in Italy╔

┘GENERAL
- Part Number : 773-10-02
- Total weight pedal with sensor : 191,4g
- Water resistance: IP67
- Maximum rider weight: 120kg
- Shims: Shims supplied (art. 773-00-62), Shimano® Shims SM-SH51┌

┘DIMENSIONS & FEATURES
- Pedal axle thread: 9/16"-20 tpi
- Bearings: 2x needle bearings (Dynamic load > 400 kg per
bearing, 1x technopolymer thrust washer
- Pedal axle material: AINSI 630 stainless steel
- Support height:
Pedal stack height: 11.2 mm
Shimano cleat height: 6.0 mm
_Total stack height: 17.2 mm


┘POWER SENSOR
- Power sensor on left and right pedals for mountain bikes and gravel.
- Pedal weight with power sensor: 191.4 g
- Cadence sensor: internal, integrated
- Gyroscope: internal, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- Pedaling analysis: yes
- Battery: lithium-ion, rechargeable
- Operating time: at least 60 hours
- Communication: ANT+, Bluetooth
- Data available via ANT+ or Favero Assioma App:
_Power
_Cadence
L/R balance
_PCO (Platform Center Offset)
_TE (Torque Efficiency)
_PP (Power Phase)
_PS (Pedaling smoothness)
_RP (Sitting/dancing position) not on the Favero Assioma Appliance
- Data available via Bluetooth :
_Power
_Cadence
L/R balance
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 55°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum speed: 10 - 250 rpm
- L/R balance: 0 - 100%┌

┘INCLUS
- Left pedal with power sensor
- Right pedal with power sensor
- SPD®-compatible MTB cleat kit
- 4 washers
- Magnetic connector (2x MX-2 | 1x MX-1)
- 1 Y-shaped charging cable with two micro-USBs
- 1 Lubrication kit
- 1 Warranty and safety manual┌

┘COMPATIBLE ACCESSORIES
- Assioma PRO MX Left pedal body: 772-60
- Assioma PRO MX Right pedal body: 772-61
- Assioma PRO MX Washer set: 773-00-36
- Assioma PRO MX Repair kit: 773-00-50
- Assioma PRO MX Set rings: 773-00-38
- Assioma PRO MX Lubrication kit: 773-00-37
- Assioma PRO MX Left sensor: 773-00-20
- Assioma PRO MX Right sensor: 773-00-21
- Assioma Magnetic connector: 773-00-60
- Assioma USB cable (2m): 773-00-56
- Assioma Battery charger : 771-85
- Assioma PRO MX SPD shims: 773-00-62┌

Informations prix

Recommended retail price February 2024
