FAVERO ELECTRONICS

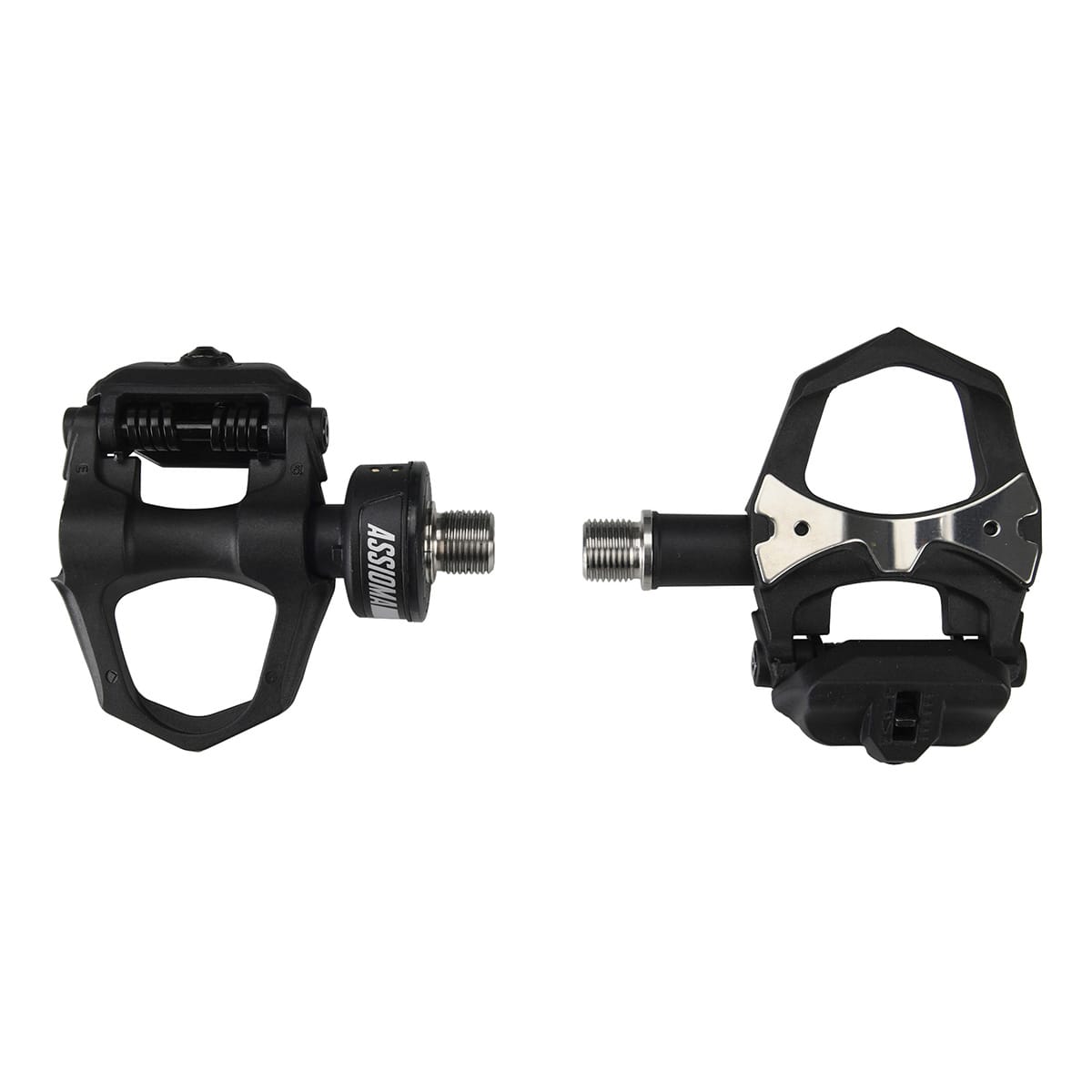

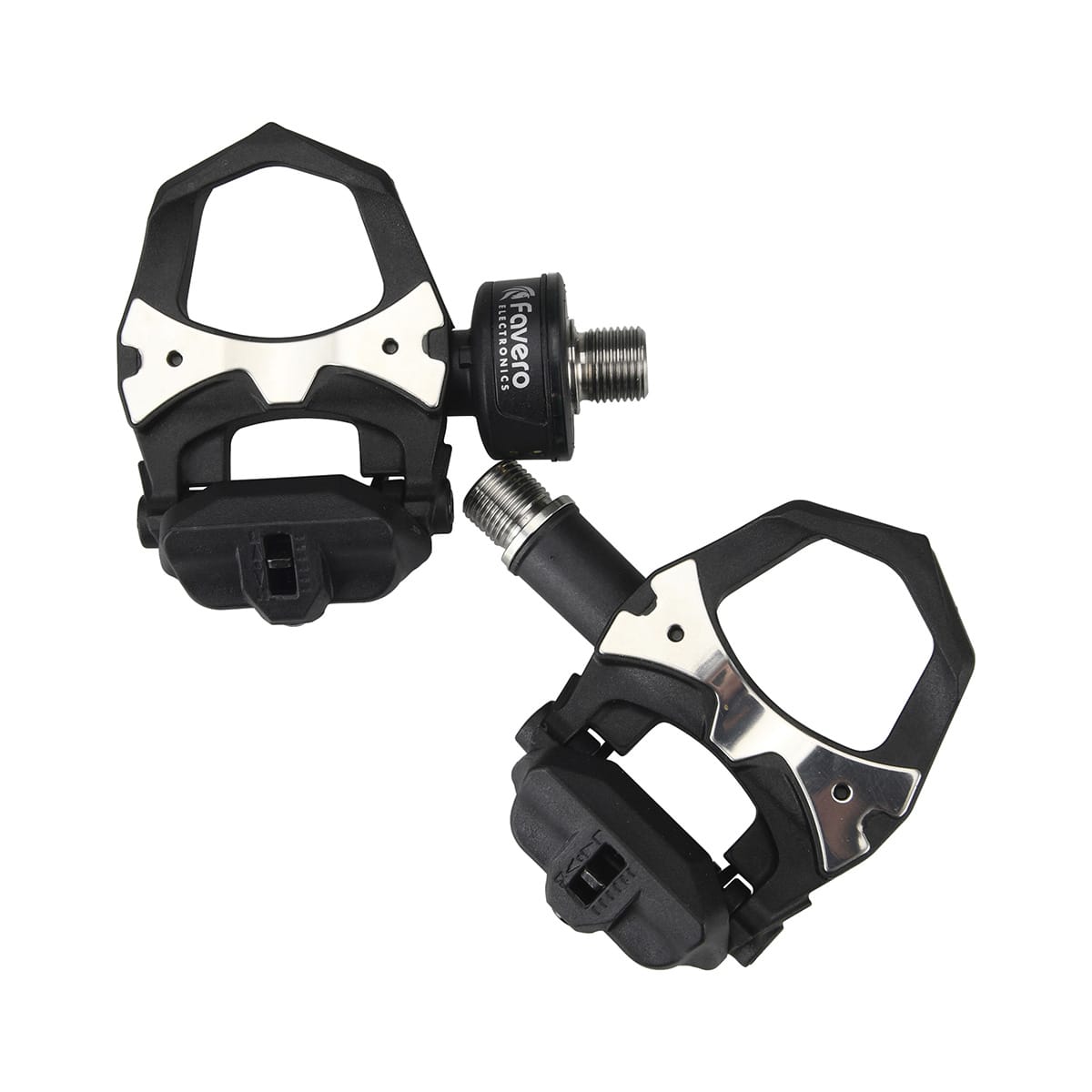

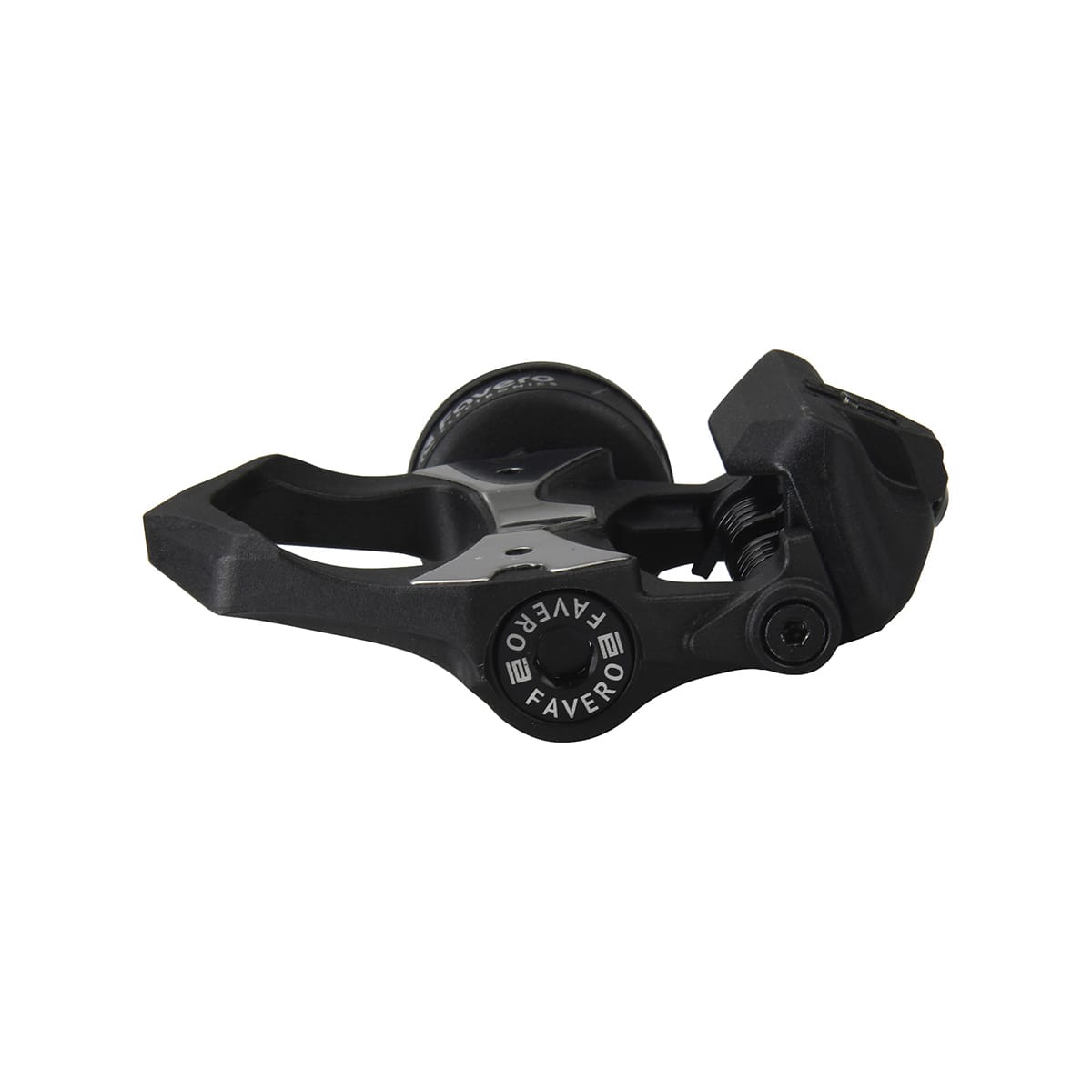

Pedals Power Meter FAVERO ASSIOMA UNO

Visit FAVERO ASSIOMA UNO Power Sensor Pedals pedals revolutionize your training by providing precise, reliable data. Easy to install like conventional pedals, they transfer... Read more

Recommanded price: 437,70 €

Regular price 399,90 €
Regular price Sale price 399,90 €
View full details

Description

Visit FAVERO ASSIOMA UNO Power Sensor Pedals pedals revolutionize your training by providing precise, reliable data. Easy to install like conventional pedals, they transfer quickly from one bike to another. Connect them instantly to your computer or smartphone via Bluetooth and ANT+ to start recording your performance.

The Uno version uses the forces detected on the left pedal to estimate total power. Positioned directly on the pedal, the Assioma sensor measures power in watts with an accuracy of ±1%, thanks to its exclusive system. IAV Power system and its integrated gyroscope. This system guarantees consistent precision, regardless of pedaling style or the use of oval chainrings.

The sensors also provide advanced parameters such as cadence, torque efficiency, pedal smoothness, energy consumption, power-to-weight ratio and threshold power. Factory-calibrated, they ensure reliable measurements in a wide range of weather conditions, from -10°C to 60°C, thanks to automatic temperature compensation.

With the Assioma applicationapplication, you can easily update the software, make adjustments and check the battery level, optimizing every ride.

Manufacturer's manual

Technical details and exploded view

Ref: 7967868387494

Informations techniques

╝FEATURES
► Easy installation: quick assembly and transfer between bikes, without special tools or mechanical assistance
► IAV Cycling Dynamics: detailed analysis of pedaling technique and the influence of rider position
► IAV Power Accuracy: precise measurements to ±1% even with irregular pedaling or oval chainrings
► Connectivity: Bluetooth and ANT+ compatible for easy connection with computers and smartphones
► Thermal stability: consistent accuracy thanks to automatic temperature compensation (ATC)
► Resistance and Waterproofing: Electronics protected in robust, shockproof resin
► Autonomy: Rechargeable batteries offering 50 hours of use per charge
► Tested and Guaranteed: Each sensor is individually tested to meet regulatory standards
► Made in Italy╔

┘GENERAL
- Part Number : 772-01
- Weight
Pedal without sensor: 130.3g
Total pedal weight with sensor: 151.5g
- Water resistance: IP67
- Maximum rider weight: 120kg

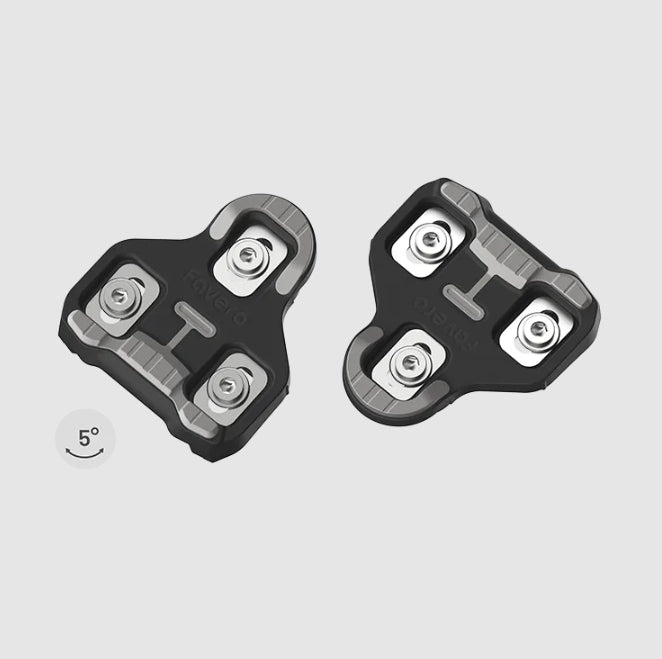

- Cleats: original Look® Kéo Cleats or Favero cleats (red and black)┌

┘DIMENSIONS & FEATURES
- Q Factor : 54 mm
- Pedal axle thread: 9/16"-20 tpi
- Bearings: 3, sealed cartridge
- Pedal axle material: Stainless steel
- Oval chainring compatibility: yes┌

┘POWER SENSOR
- Left-side power sensor for racing bikes
- Cadence sensor: included, integrated
- Gyroscope: included, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- IAV Cycling Dynamics: yes
- Battery: lithium-ion, rechargeable
- Operating time: at least 50 hours
- Communication: Bluetooth v4.0, ANT+ profile PWR (CT + PO)
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 60°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum adence: 30 - 190 rpm┌

┘INCLUDED

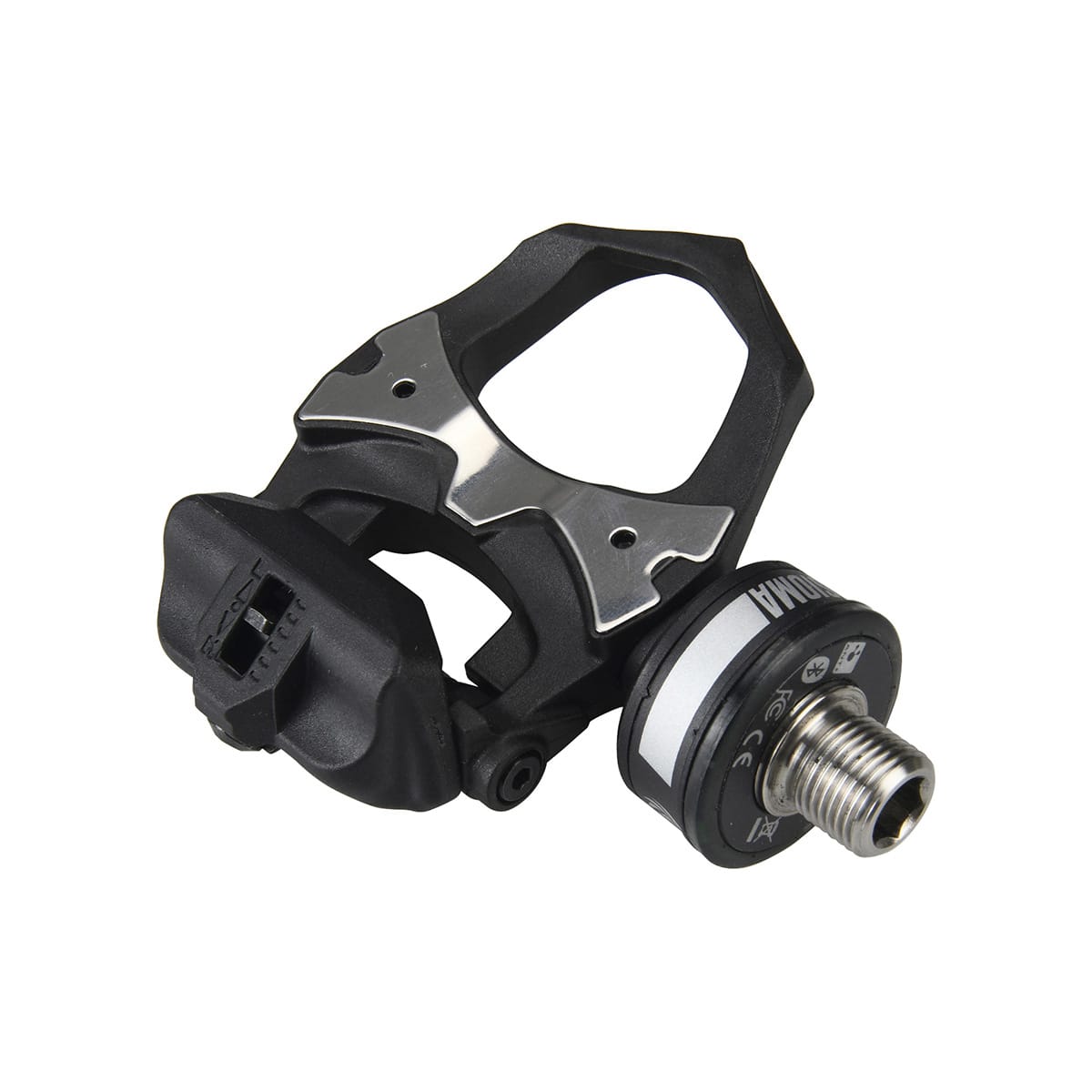

- Left pedal with power sensor
- right pedal without power sensor
- Battery charger and adapters (EU, US, UK, AU)
- two-meter micro-USB / USB cable with 1 magnetic connector

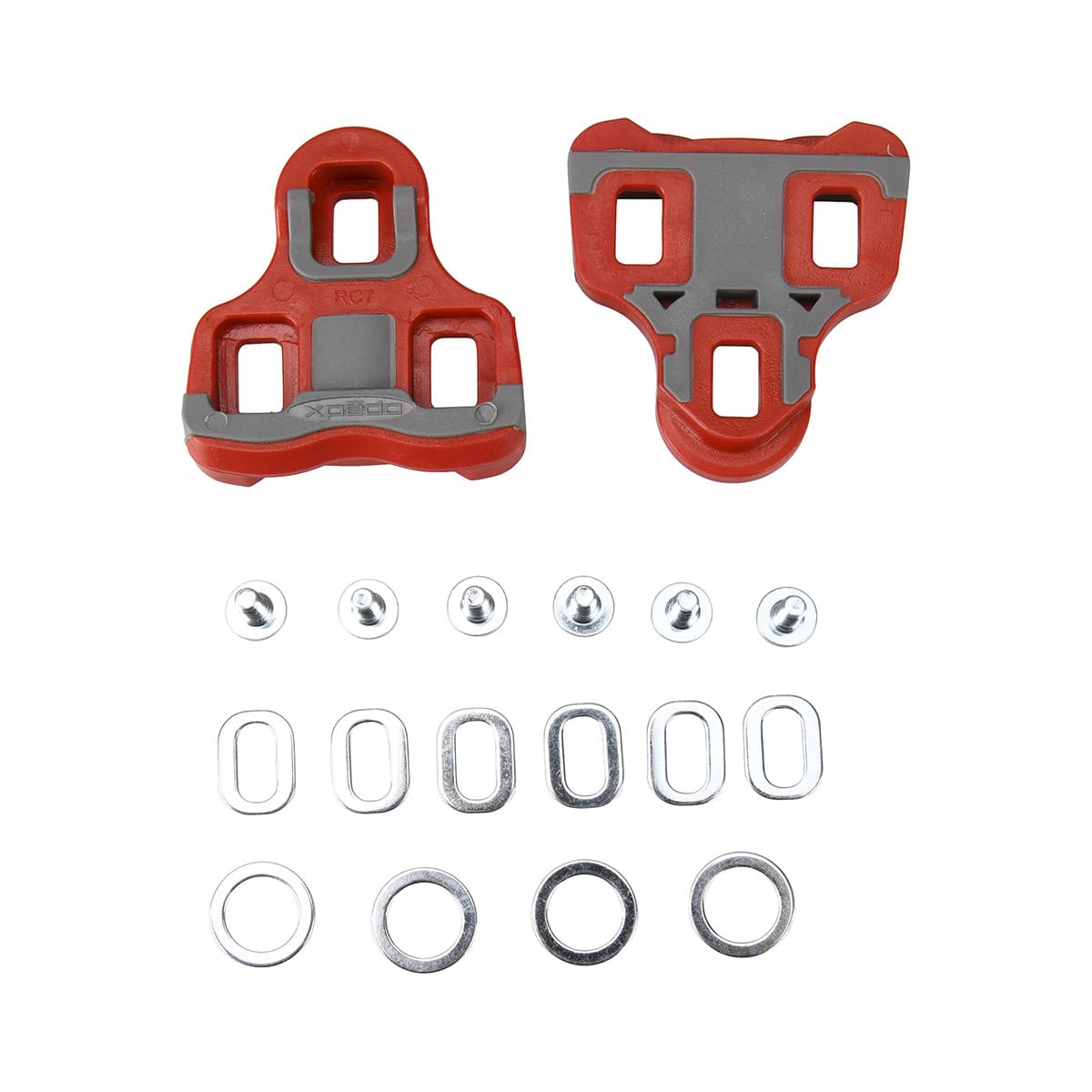

- red shims with 6° angular freedom (compatible with Look Kéo)
- hexagonal key and 4 washers for installation
- User manual┌

┘COMPATIBLE ACCESSORIES
- Assioma DUO/UNO Left pedal body: 772-60
- Assioma DUO/UNO Right pedal body: 772-61
- Assioma DUO/UNO Bearing set: 772-72
- Assioma DUO/UNO Left sensor: 772-64
- Assioma DUO/UNO Adhesive label set: 772-94
- Assioma Magnetic connector: 772-80
- Assioma USB/Micro-USB cable (2m) : 771-87
- Assioma Battery charger : 771-85
- Assioma DUO/UNO Red wedges (Angular freedom 6°) : 771-42
- Assioma DUO/UNO Black wedges (Angular freedom 0°) : 771-40┌

Informations prix

Recommended retail price February 2024
