PRAXIS
PRAXIS M30 BB386 86.5x46 mm crankset
Strictly compatible with PRAXIS M30 crank axles, the PRAXIS M30 bottom bracket bottom bracket features a high-quality design, including 7075-T6 aluminum cups. It incorporates...
Read more
Recommanded price: 65,00 €
Regular price
59,90 €
Regular price
Sale price
59,90 €
Unit price
per
Couldn't load pickup availability
Description

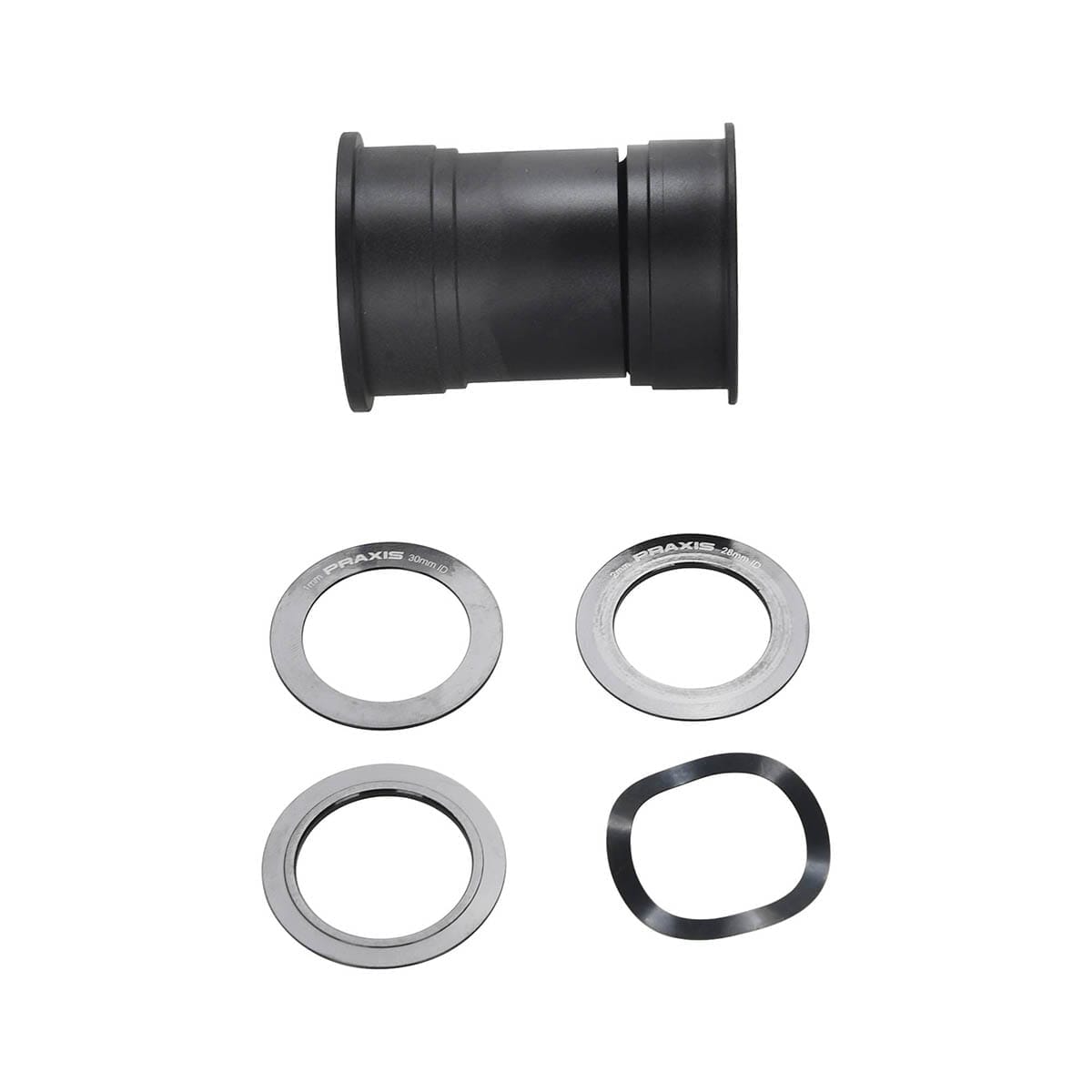

Strictly compatible with PRAXIS M30 crank axles, the PRAXIS M30 bottom bracket bottom bracket features a high-quality design, including 7075-T6 aluminum cups. It incorporates steel bearings.
It is designed for installation of a Praxis M30 crank in an 86.5 mm BB386 road bike frame. The diameter of the axle is specific: 30mm on the left side, reduced to 28mm on the right.
It is designed for installation of a Praxis M30 crank in an 86.5 mm BB386 road bike frame. The diameter of the axle is specific: 30mm on the left side, reduced to 28mm on the right.
Compatibility chart
| A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
| 34,8 | 68 | screw-on | BSC / BSA |
| 34,8 | 73 | screw-in | BSC / BSA |
| 34,8 | 83 | screw-in | BSC / BSA |
| 34,8 | 100 | screw-in | BSC / BSA |
| 27 | 95,5 | insert | BB 96 (Trek) |
| 41 | 92 | insert | PF 92 |
| 42 | 68 | insert | BB 30 |
| 42 | 73 | insert | BB 30 |
| 46 | 68 | insert | PF 30 |
| 46 | 73 | insert | PF 30 |
 |
|||
Ref: 9254626066781
