SHIMANO

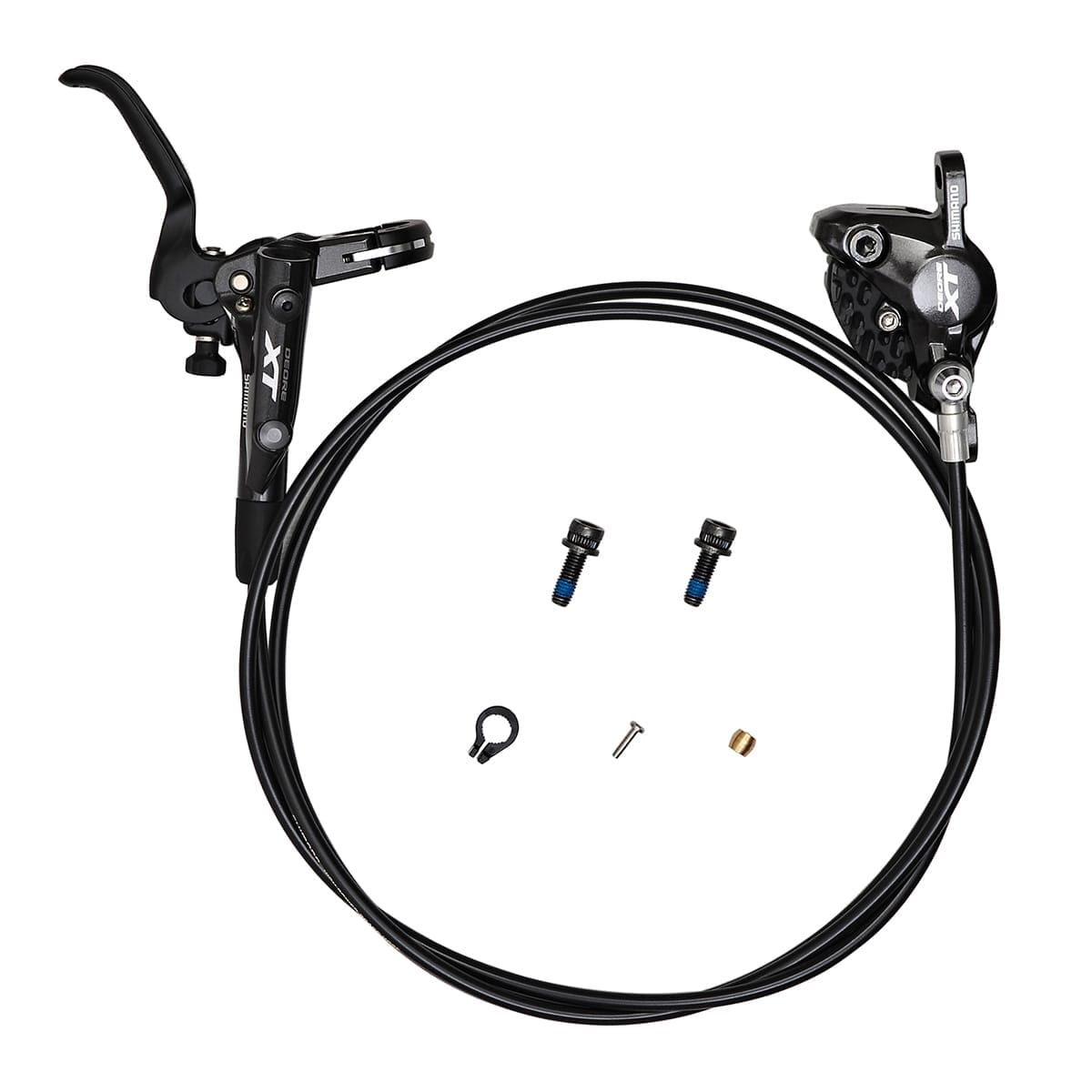

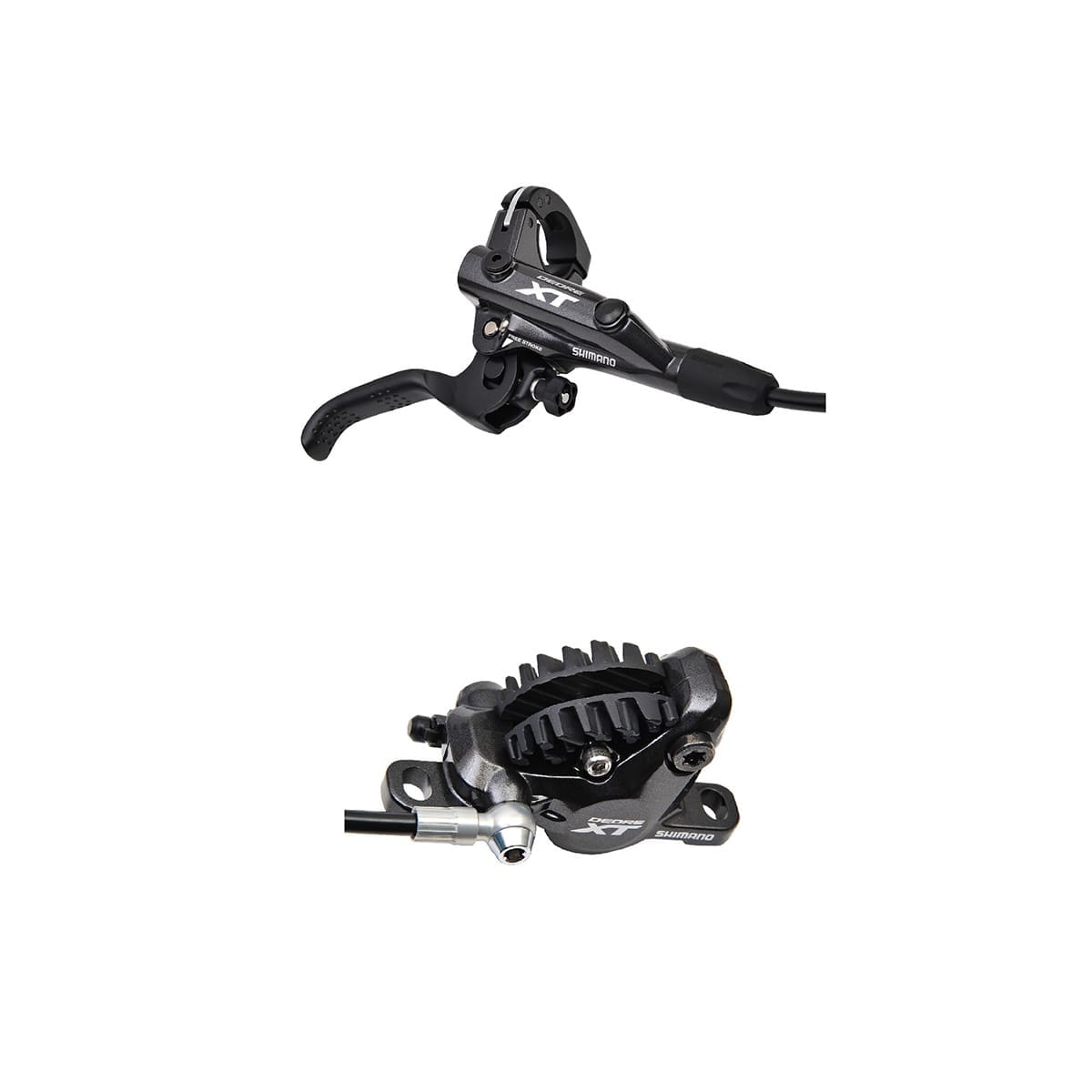

SHIMANO XT M8000 Rear Brake J-KIT

Réf. fabricant : IM8000RRXSA170
The SHIMANO XT M8000 Rear Brake offers exceptional value for a high-end, high-performance product, guaranteeing stable and effective braking regardless of weather conditions. The... Read more
Regular price 139,90 €
Regular price Sale price 139,90 €
View full details

Description

The SHIMANO XT M8000 Rear Brake offers exceptional value for a high-end, high-performance product, guaranteeing stable and effective braking regardless of weather conditions.

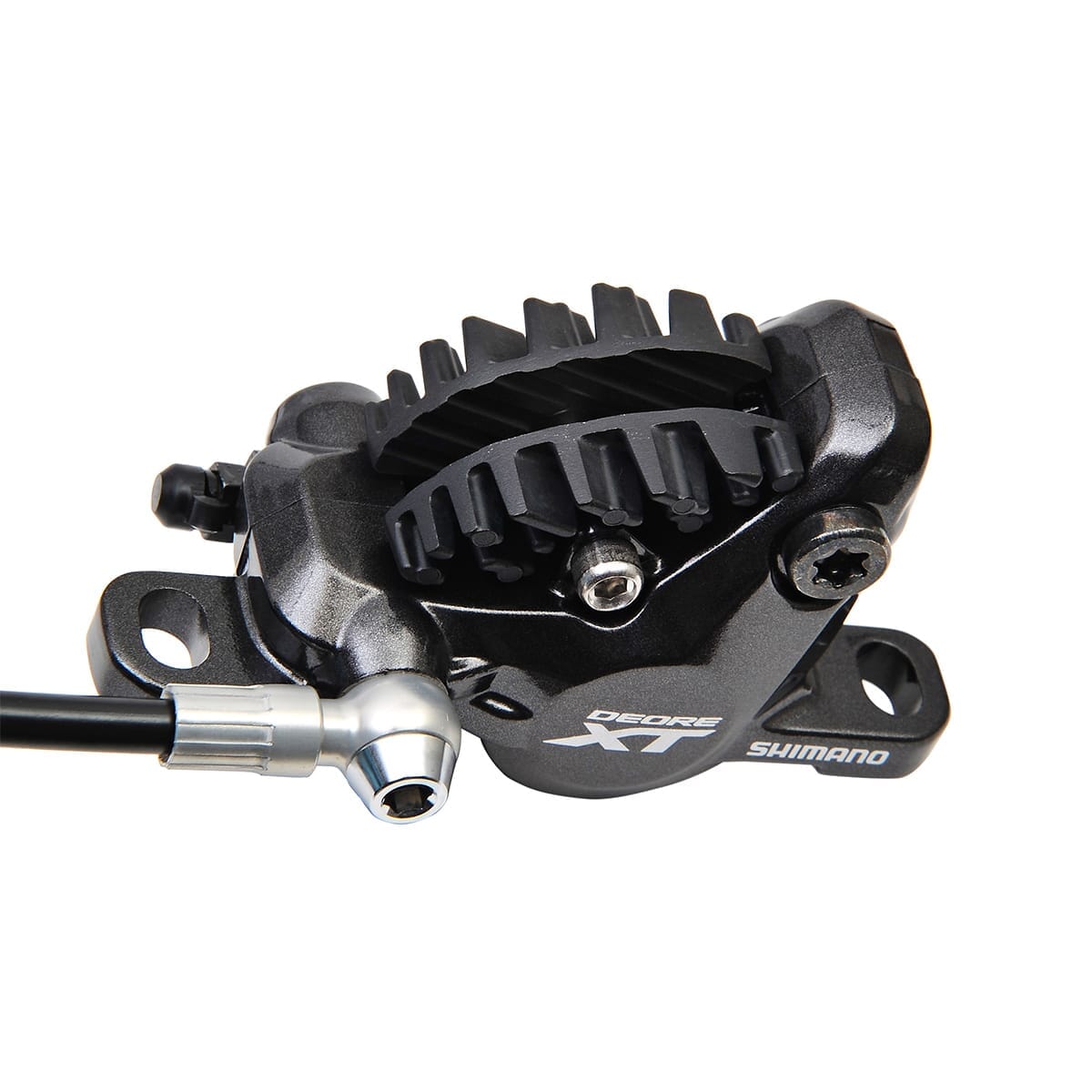

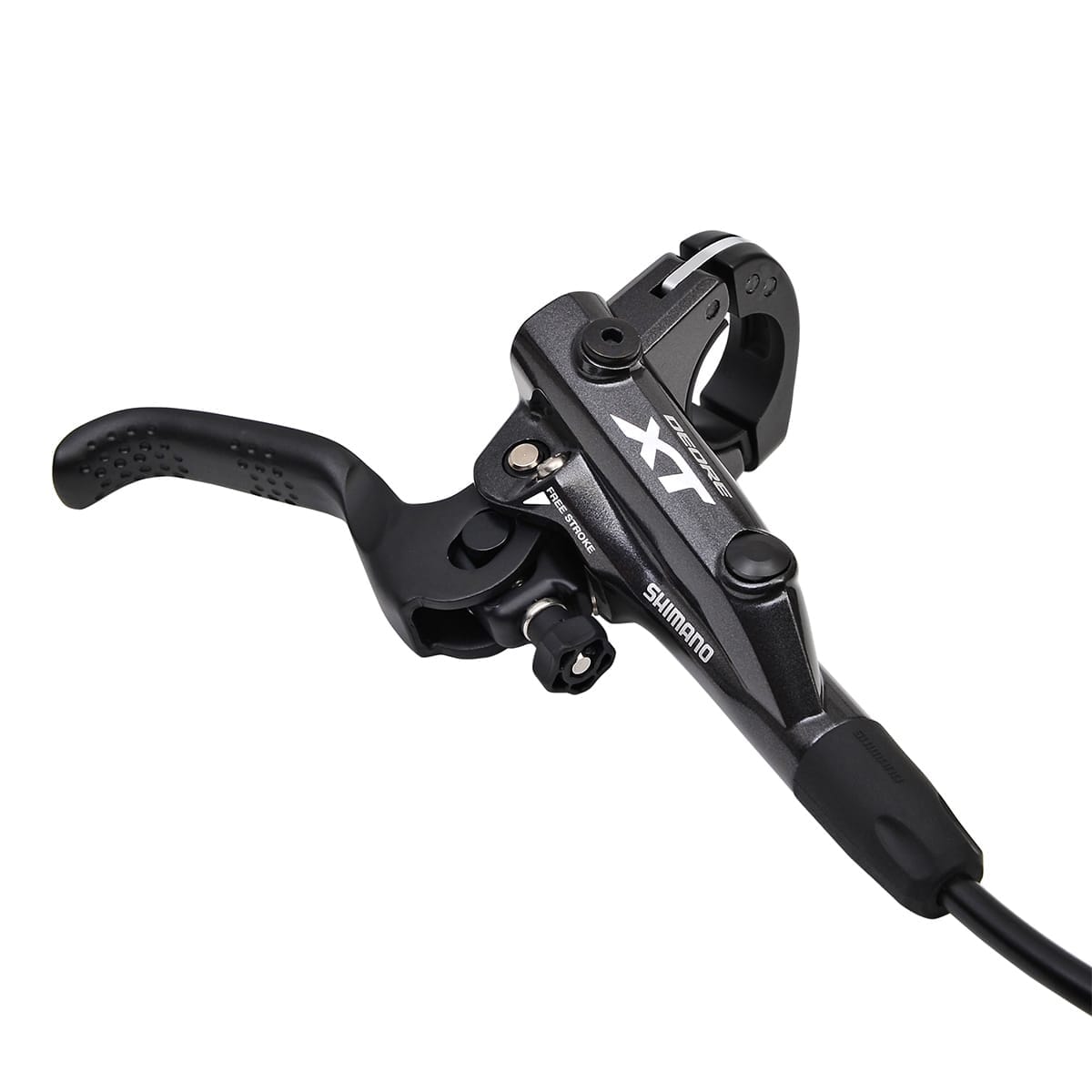

The calliper benefits from a solid and well-ventilated design that prevents overheating. The ceramic pistons are formidable and the ONE WAY BLEEDING bleed system is very convenient. The master cylinder features an ergonomic aluminium lever with an adjustable stroke, while the ServoWave technology ensures a short stroke for a close contact point and excellent responsiveness.

An excellent choice for versatile riding.

Manufacturer Manual

Ref: 7977571516582

Informations techniques

╝KEY FEATURES
► Lightweight and Powerful: Suited for cross-country with intuitive modulation
► Intuitive Braking: Optimised lever position and refined ergonomics
► Easy Installation: Banjo connection and internal routing for quick setup
► J-KIT: The J-Kit system facilitates routing the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation

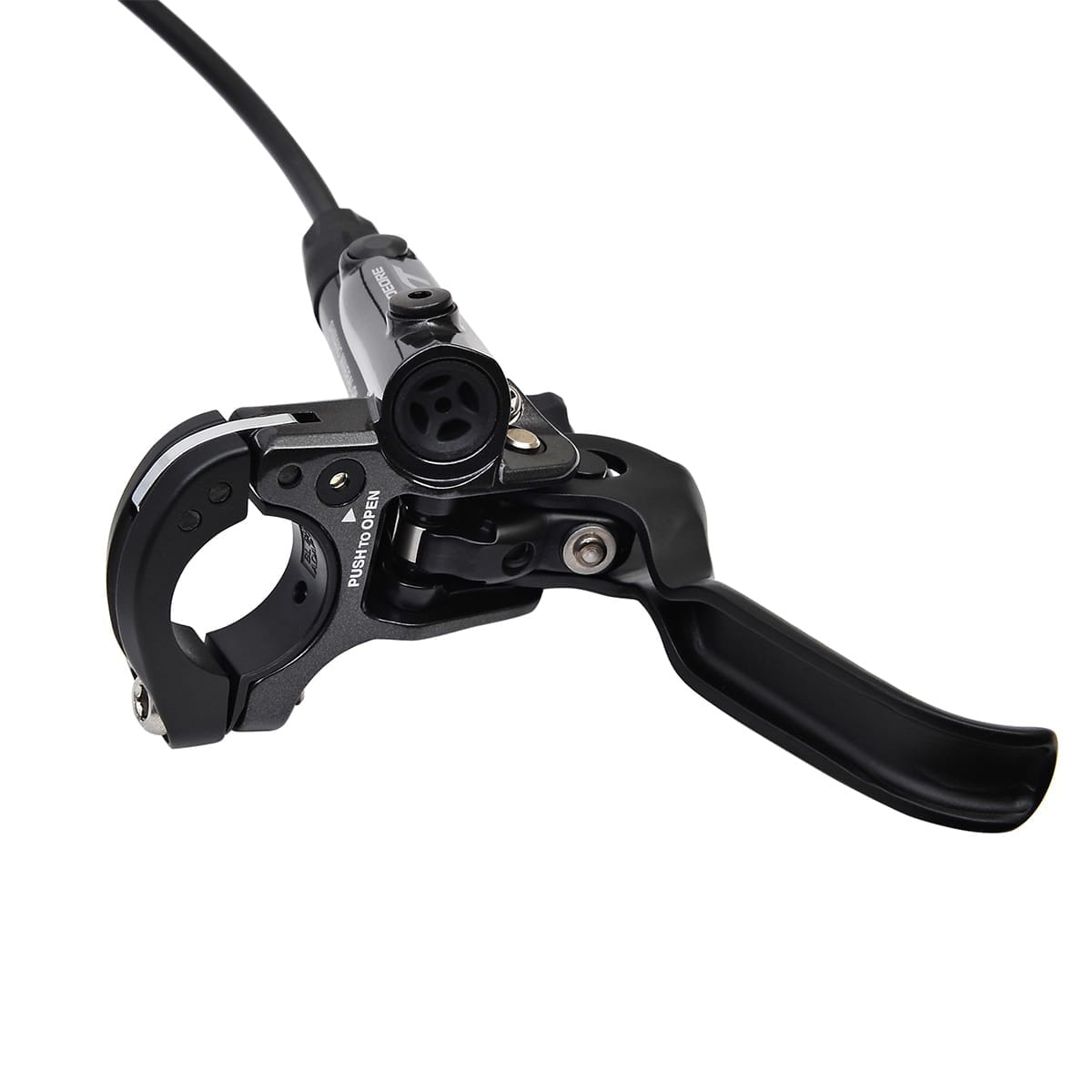

► I-SPEC II: Simple structure with a narrow clamp band for the brake lever, offering more handlebar space and a clean look
► Reach Adjust: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and shifting
► SERVOWAVE Action: The SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool
► FREE STROKE: Adjust the gap between the initial lever position and the pad contact point according to hand size, riding style and personal preferences╔

┘GENERAL
• Series: Groupset Independent
• Manufacturer Reference:
_Lever: BL-M8000
_Calliper: BR-M8000
• Weight:
_Lever: 104g
_Calliper: 118g
_Lever/Calliper/Hose Assembly: 370g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Shifter Integration: I-SPEC II
• Lever Length: 2 Fingers
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Brake Pads: G05A-RX, G04S-MX, J05A-RF, J04C-MF
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1700mm - SM-BH90-SBM - Banjo Fitting
• Min./Max. Rotor Diameter: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: RT-MT800, SM-RT86 (not included)
• J-Kit Pre-bleed: Yes┌

Informations prix

*Supplier recommended retail price in February 2024

Overall rating: 4.5454545 out of 5 based on 33 reviews.

AI-Generated Review Summary

The SHIMANO XT M8000 Rear Brake offers exceptional value for high-quality, performance-driven braking. It provides stable and effective braking in all weather conditions, with a well-ventilated design that prevents overheating. The ceramic pistons are powerful, and the ONE WAY BLEEDING system is convenient. The ergonomic aluminum lever with adjustable reach and ServoWave technology ensures a short lever stroke for a close contact point and excellent responsiveness. Ideal for versatile use.

Summary topics

  • Braking Performance: 33%
  • Value for Money: 39%

Review topics: ["quality", "delivery", "assembly", "value", "setup", "braking", "brakes", "bleeding", "attack", "progression", "Shimano"].

Review highlights

  • "Effective brakes that provide progressive stopping power with good bite when descending."Titeuf92
  • "Very quick break-in, strong and progressive braking with XT discs."Camber
  • "Very good brakes, excellent value for money (although they may not be the most attractive ones on the market)."Zborlfk

Reviews

Completely satisfied

"Excellent value for the money. This is my second pair. They've never let me down. Consistent, durable, responsive, and powerful braking."

Coco2b (5/5)

Battery dead!!!

"I bought this in a hurry to replace a faulty Elixir X9 rear brake. It arrived in a timely manner, the price was more than reasonable, and I was able to install the brake in time for my next ride. Thanks, Probikeshop."

2minic (4/5)

smooth braking

"I just bought this product and have only used it once so far. The braking is perfectly fine and more gradual than my old Formula K18s, which were more aggressive."

Michague (4/5)

The Best of the Best!

"I've been using these all year round, including during the Alpe d'Huez Megavalanche. No complaints... I paired them with the M8020 4-piston model for the front. A great setup!"

Yanni12 (5/5)

Brake hard

"Great, it brakes really well. The only problem is that after two weeks of use, the lever broke—something inside snapped... so the brake is out of commission. I'm waiting to send it in under warranty and, more importantly, to receive a goodwill gesture."

D4rkxd3ad (3/5)

Quick installation, effective braking

"I bought this item three weeks ago and have already tested it on four rides. Replacing my Formula RX brakes, these XT brakes mounted on my 180mm rotors do the job just fine."

Tropstunt (5/5)

Powerful braking, but. . . .

"I installed this caliper with the Human RT86 disc (recommended) in 180mm and with the adapter from the same brand. Like many other users, when installing it, the top of the disc rubs against the caliper... Fortunately, I had the right washers, which allowed me to raise the adapter, but whether the problem stems from the adapter or the rotor, I find this unacceptable for a brand like Shimano, especially in this price range... Once installed, the braking performance is very good."

Rock82400 (4/5)

Powerful and durable

"Installed as 200mm front and rear on an AE mountain bike (you need that much to stop the combined 130 kg of the bike and rider), with discs from the same series, after several rides, no fading, no overheating even at the end of a (long) descent. The bite is sharp but progressive—it’s not ON/OFF—but be careful not to go in too aggressively, or you’re guaranteed to slide. Although it’s widely touted that bleeding isn’t necessary when adjusting the line length, a good bleed (using the essential funnel tool) helped eliminate the slightly spongy feel at the end of the ride."

Galak (5/5)

f

"I bought these brakes two weeks ago to replace my Formula Oro K18s, which were very spongy. I'm really happy with the Shimano XT—they brake very well, bleeding the lines is easy, and the reach adjustment is convenient, which I didn't have on my Formulas."

Sullivan (4/5)

Excellent quality

"Shimano quality as expected, beautiful finish, and excellent braking performance—quite progressive. Not quite as aggressive as my old Formula CR3 brakes, but maybe they just need a bit more break-in time. . . The 170 cm hose is a bit long even for my size L 29er mountain bike, but it’s easy to trim. As for the website, it’s always top-notch—the package was shipped the same day and arrived in Corsica two days later. Very satisfied, as usual."

Ghju (5/5)
