SHIMANO

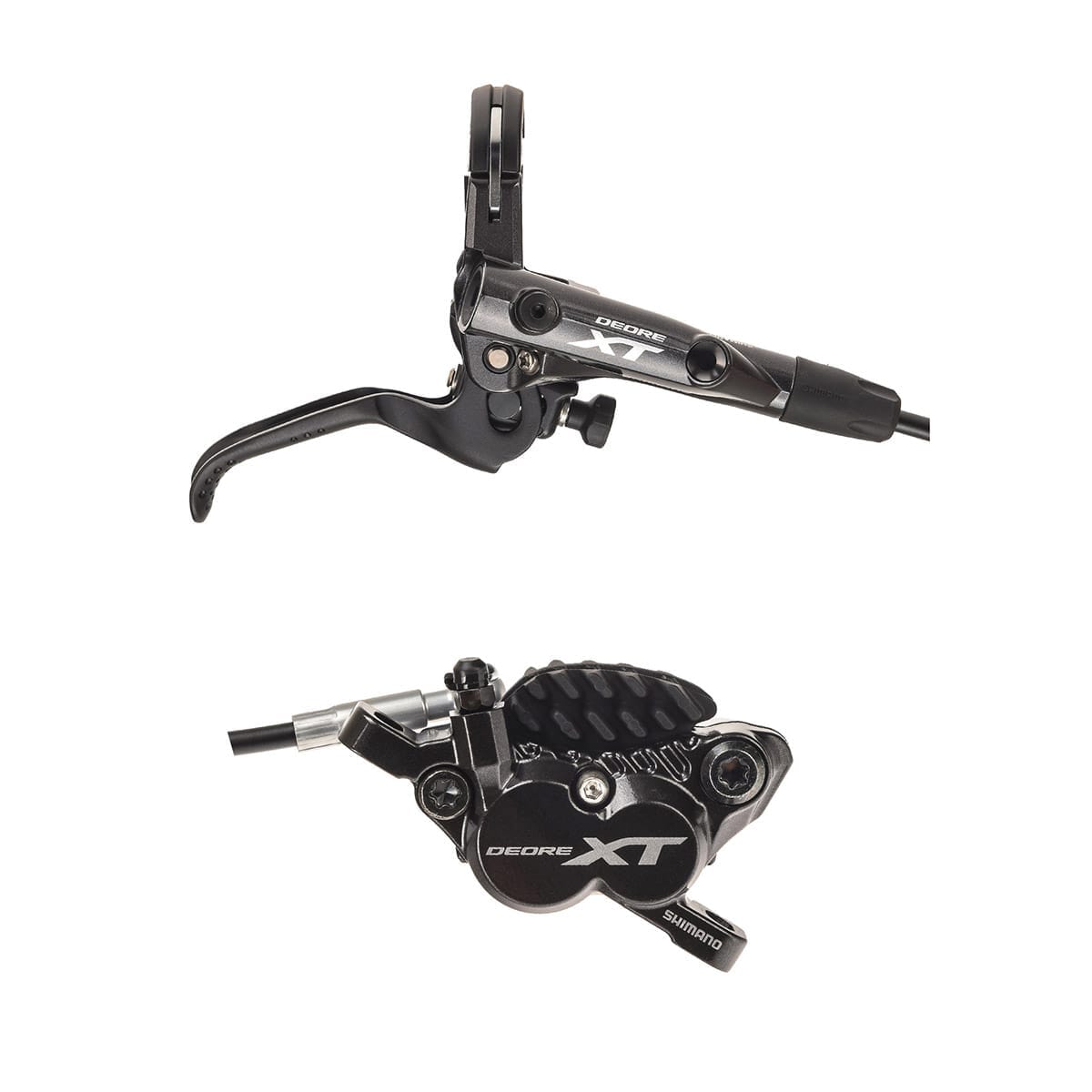

Rear brake SHIMANO XT M8020 4 Pistons J-KIT Discless

In this new version, the SHIMANO rear brake Deore XT M8020 REAR BRAKE back to its roots! It features a 4-piston caliper that increases... Read more

Recommanded price: 194,99 €

179,90 €
179,90 €
View full details

Description

In this new version, the SHIMANO rear brake Deore XT M8020 REAR BRAKE back to its roots! It features a 4-piston caliper that increases braking power by 20% compared to the 2-piston XT caliper. Ever more versatile, it's equally at home in tough Cross Country or hard-core All Mountain/Enduro riding!

The caliper benefits from a solid aluminum design, adding just 30 grams to the previous 2-piston model. The ceramic pistons are extremely efficient, and the One-Way bleeding system, with banjo coupling, is very practical.

The aluminum lever is identical to the previous XT version: it features an ergonomic "2-finger" desgin, and can be easily adjusted (no tools required). It also benefits from Servo-Wave technology, which ensures a short stroke to find a point of contact on the disc almost instantaneously, thus ensuring excellent responsiveness!

Ref: 7977571713190

Points forts

The new, more powerful 4-piston caliper!

Ergonomic lever ;

Short-stroke Servo Wave mechanism;

Easy, tool-free guard adjustment;

Single-outlet bleed system for easy maintenance;

Compatible with I-Spec II systems: a single clamp for brake lever and shifter.

Caractéristiques

Model year : 2018

Color : Black

Disc : Not supplied

Brake fluid : Mineral

Hose length : Rear 170 cm

Lever material : Aluminum

Brake Pads Organic : Brake Pads Organic

Practice : All Mountain

Practice : Cross Country

Practice : Enduro

Caliper type : Rear

Hose type : Standard

Brake type : Rear

Informations techniques

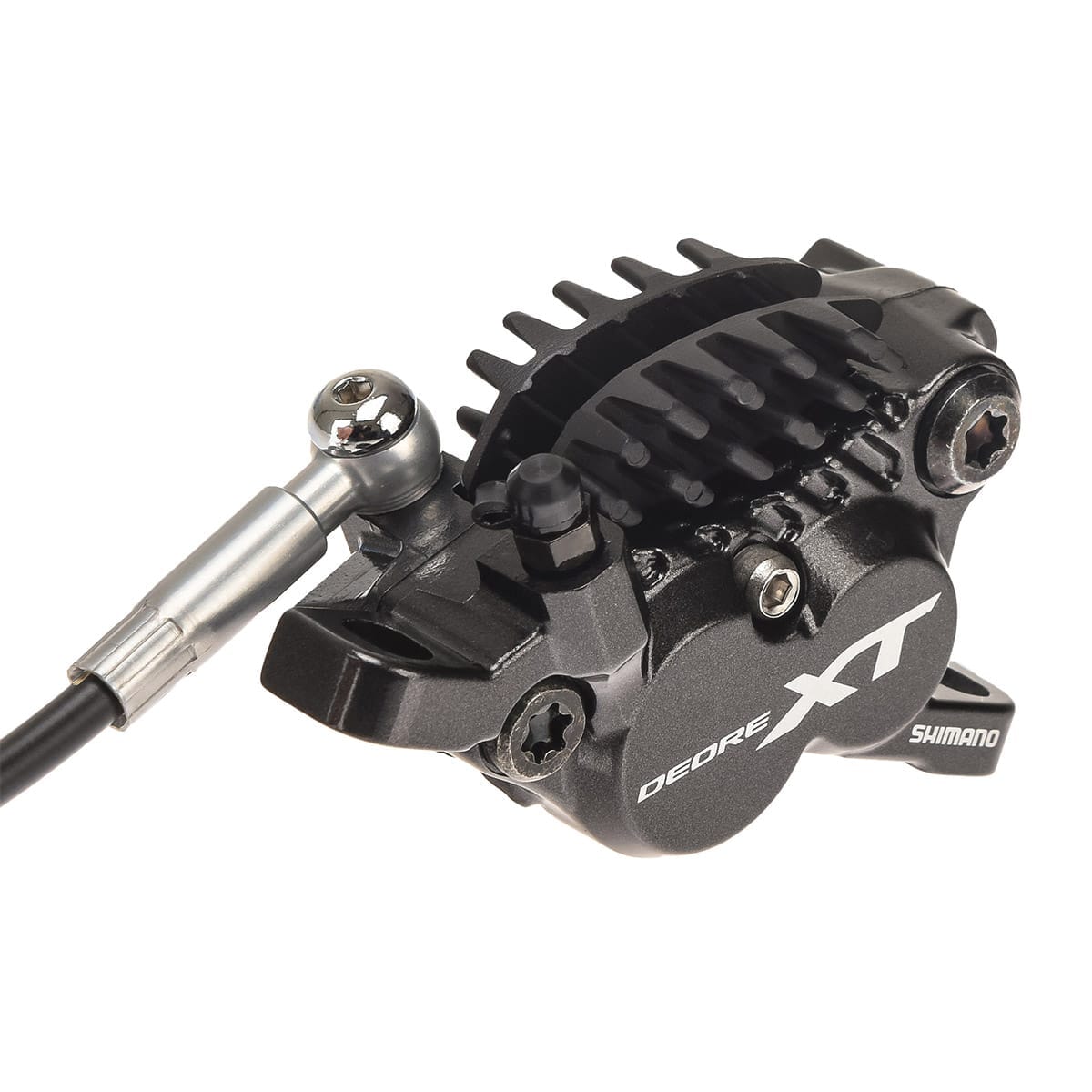

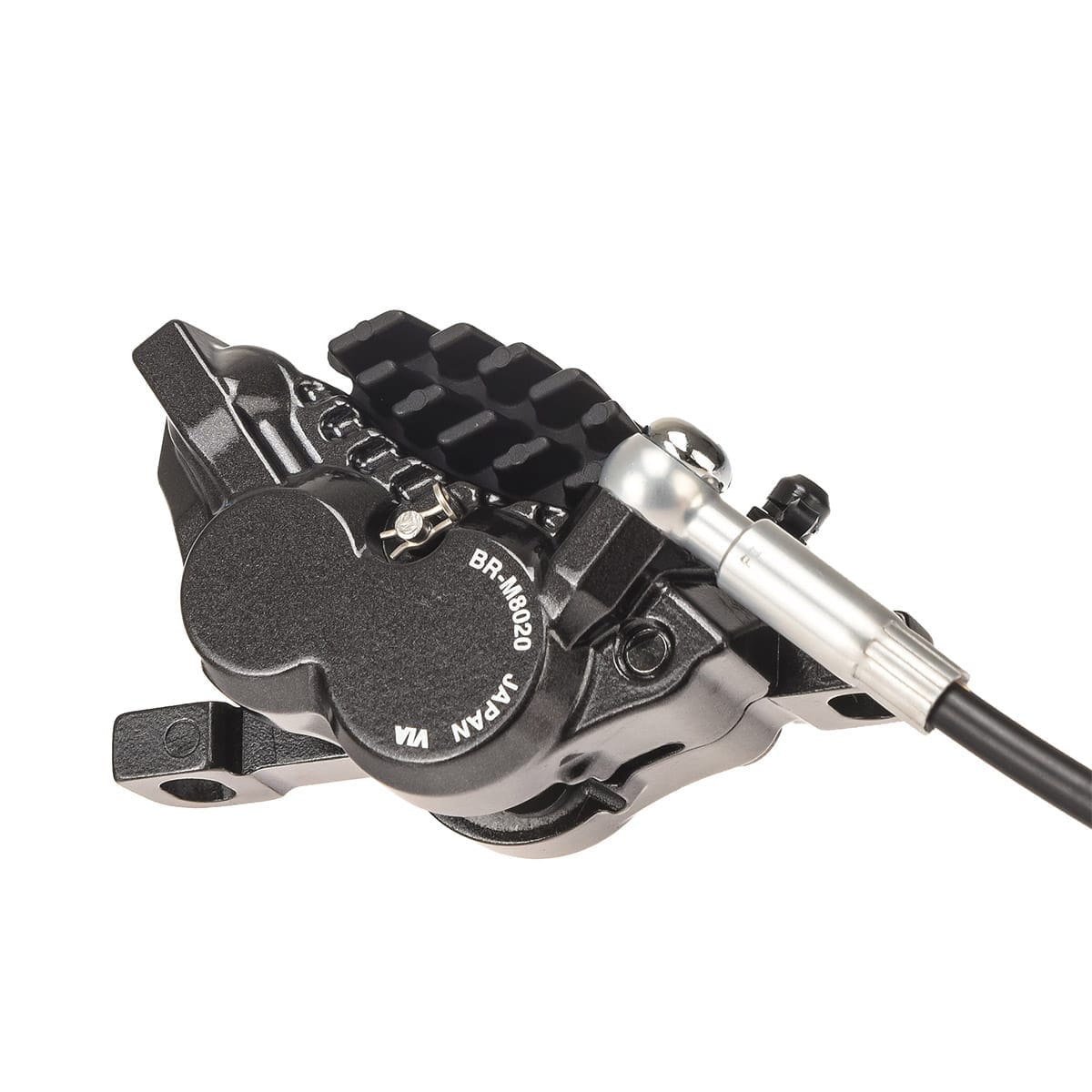

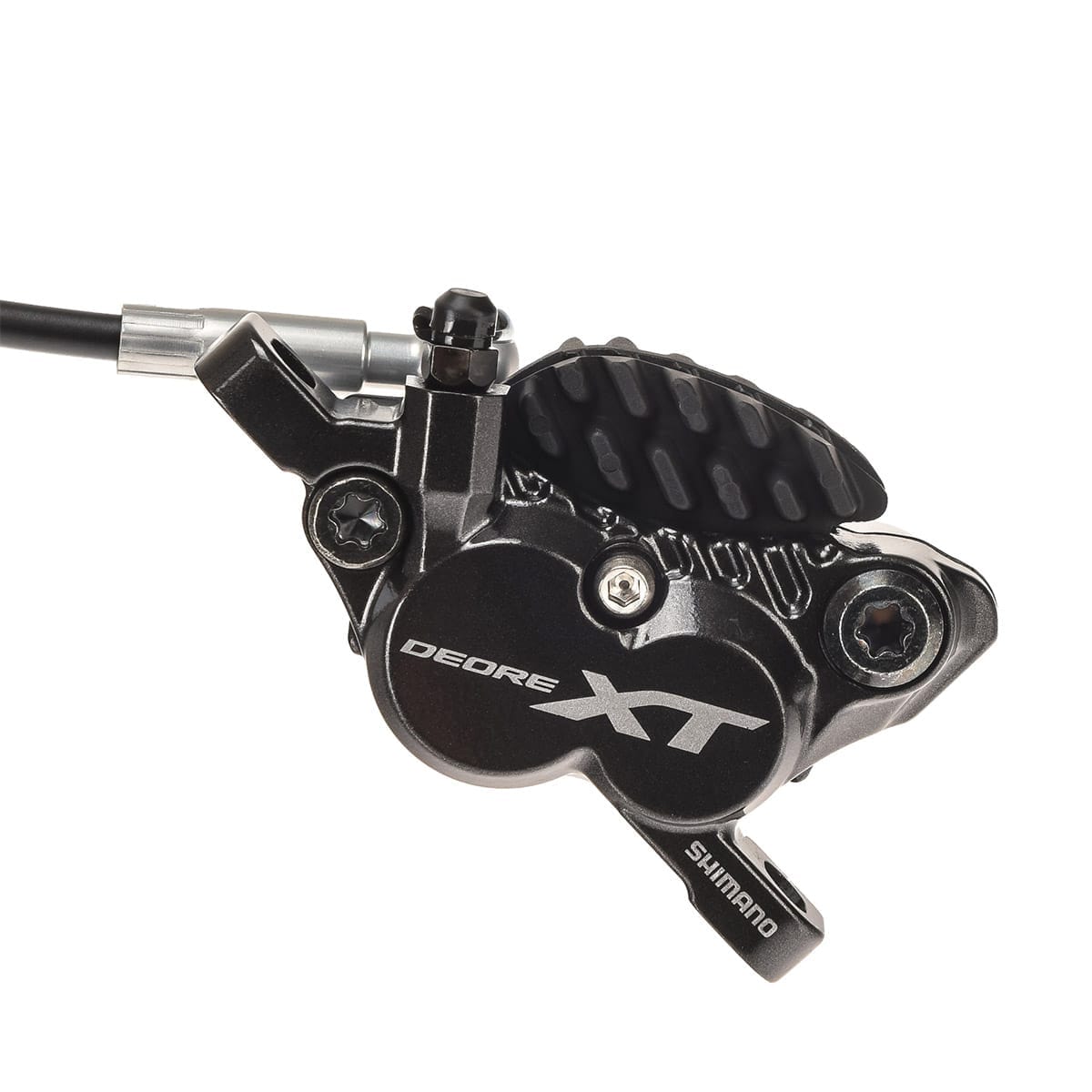

Brake caliper Deore XT BR-M8020 :
Aluminum caliper ;
4 ceramic pistons;
One Way Bleeding system;
SM-BH90-SBLS hose;
Recommended disks: SM-RT81, SM-RT99, RT-EM800, RT-EM900.

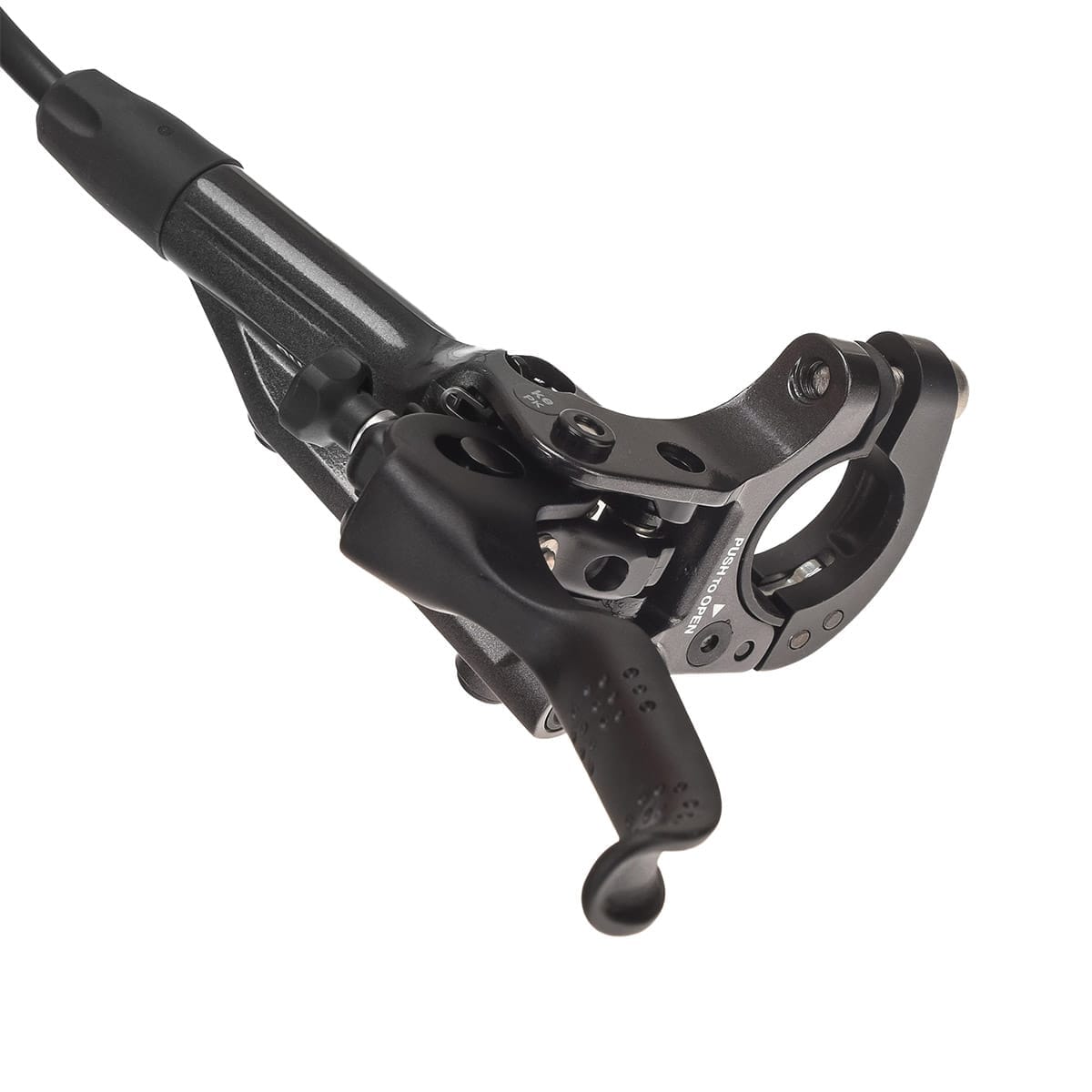

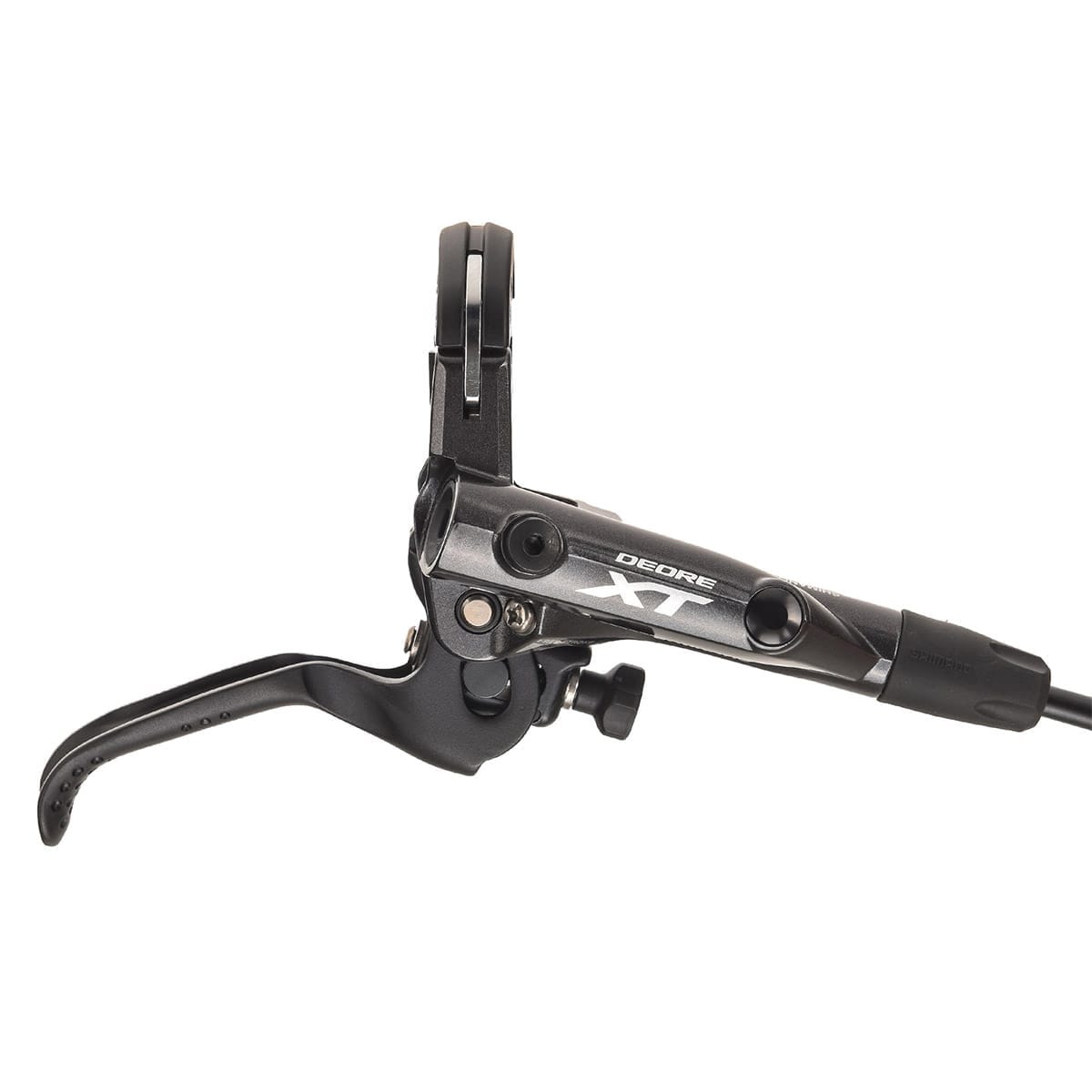

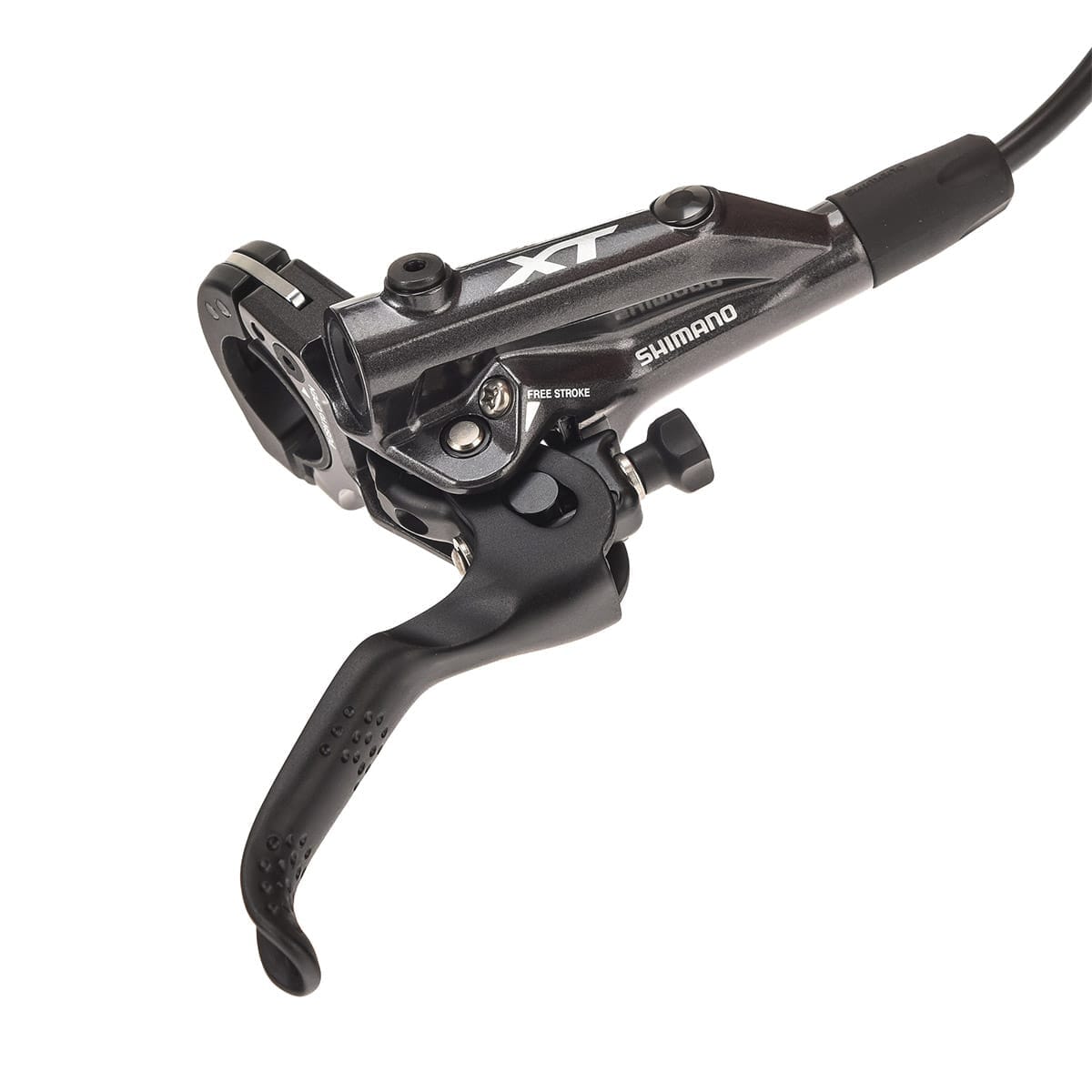

Lever Deore XT BL-M8000 :
Ergonomic 2-finger lever in anodized aluminum;
I-Spec II attachment;
Weight (manufacturer): 402.5 g (lever).
Brake delivered drained and ready to use.

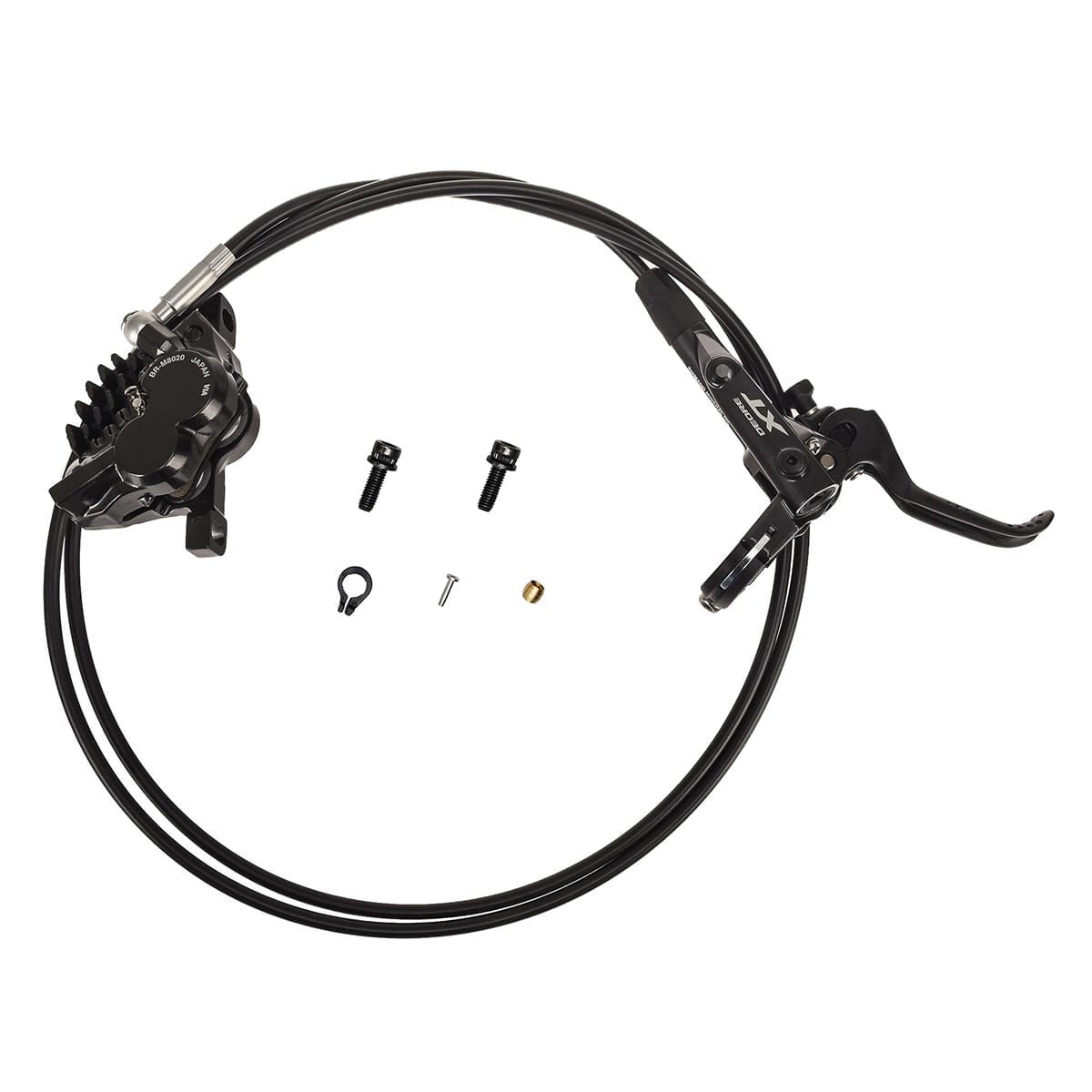

J-Kit brake assembly:
- Position your brake lever on the handlebar of the bike
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.

Informations prix

Recommended retail price February 2024
