ROCKSHOX

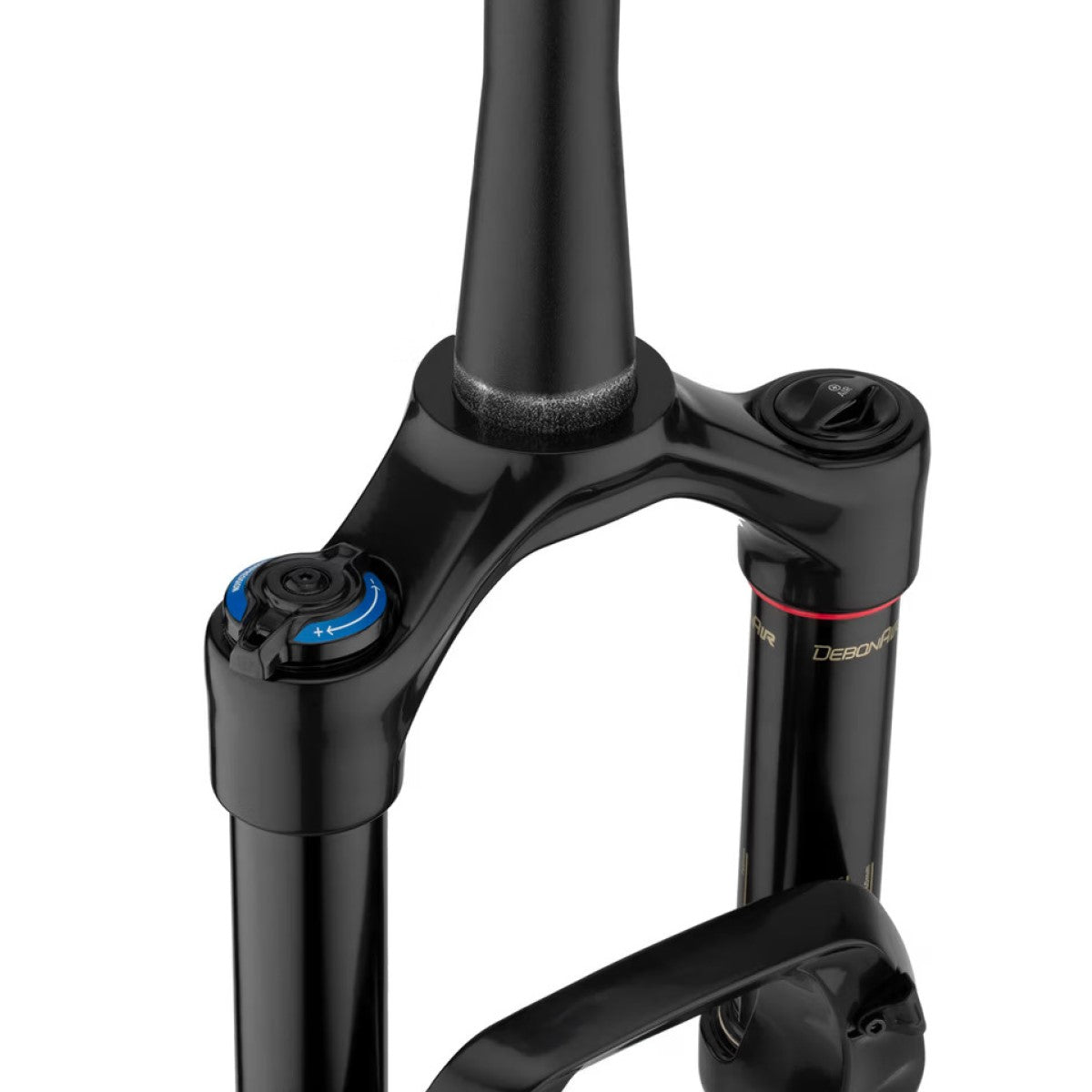

ROCKSHOX REVELATION RC 27.5 DebonAir Conical Fork Axle 15x110 mm Boost Black

With 120 mm of travel and new 35 mm steerer tubes, the ROCKSHOX Revelation RC DebonAir fork forks are the ideal all-rounders for your outings. MTB... Read more

Recommanded price: 603,00 €

399,90 €
399,90 €
View full details

Description

With 120 mm of travel and new 35 mm steerer tubes, the ROCKSHOX Revelation RC DebonAir fork forks are the ideal all-rounders for your outings. MTB All Mountain. Ultra-rigid, its new frame is inspired by that of the Pike, and its format Boost format allows tires up to 2.8" in diameter to be fitted, providing solid support on aggressive rides!

The Revelation integrates the shock absorber system Motion Control RC shock absorber system, which specifically meets the demands of all-mountain riding, with adjustable rebound and compression at low speeds, and a locking mode. In addition, the Revelation also benefits from the air spring DebonAir air spring, which offers more support throughout the travel, a more linear action for greater control, and is highly responsive to small shocks.

Ref: 9357156712797

Points forts

Linear Debonair spring, sensitive to small shocks and offering better support over the entire travel range

Motion Control RC technology

Bottomless tokens to adjust air volume

Superior chassis rigidity in Boost for greater control

Boost format.

Informations techniques

Practice: All Mountain
T: Simple
Wheel size: 27.5"
Front wheel axle: 15x110 mm (Boost)
Locking: None
Color: Black
Travel: 140 mm
Variable wheelbase: No
Offset: 46 mm
Max. disc diameter: 220 mm
Mini disc diameter: 180 mm
Pivot diameter: Tapered 1.5"-1"1/8
Plunger diameter: 35 mm
Brake mounting: Postmount
Fork height :
532 mm
Pivot length: 265 mm (can be recut)
Pivot material: Aluminum
Plungers: Aluminium Fast Black treatment
Sheaths: Magnesium
Adjustable air volume: Yes

Linear Debonair spring, sensitive to small shocks and offering better support throughout the entire travel range.
Motion Control RC cartridge
Bottomless tokens to adjust air volume
Maxle Stealth axle

Low Speed Compression setting: Yes
High Speed Compression setting : No
Low speed rebound/relaxation setting : Yes
High speed rebound/relaxation setting : No
Preload setting : Yes
Spring : Air

VTTAE compatible
Tire compatibility: up to 2.8" cross-section in 27.5" without mudguard

Manufacturer reference :
00.4020.562.002
