ROCKSHOX

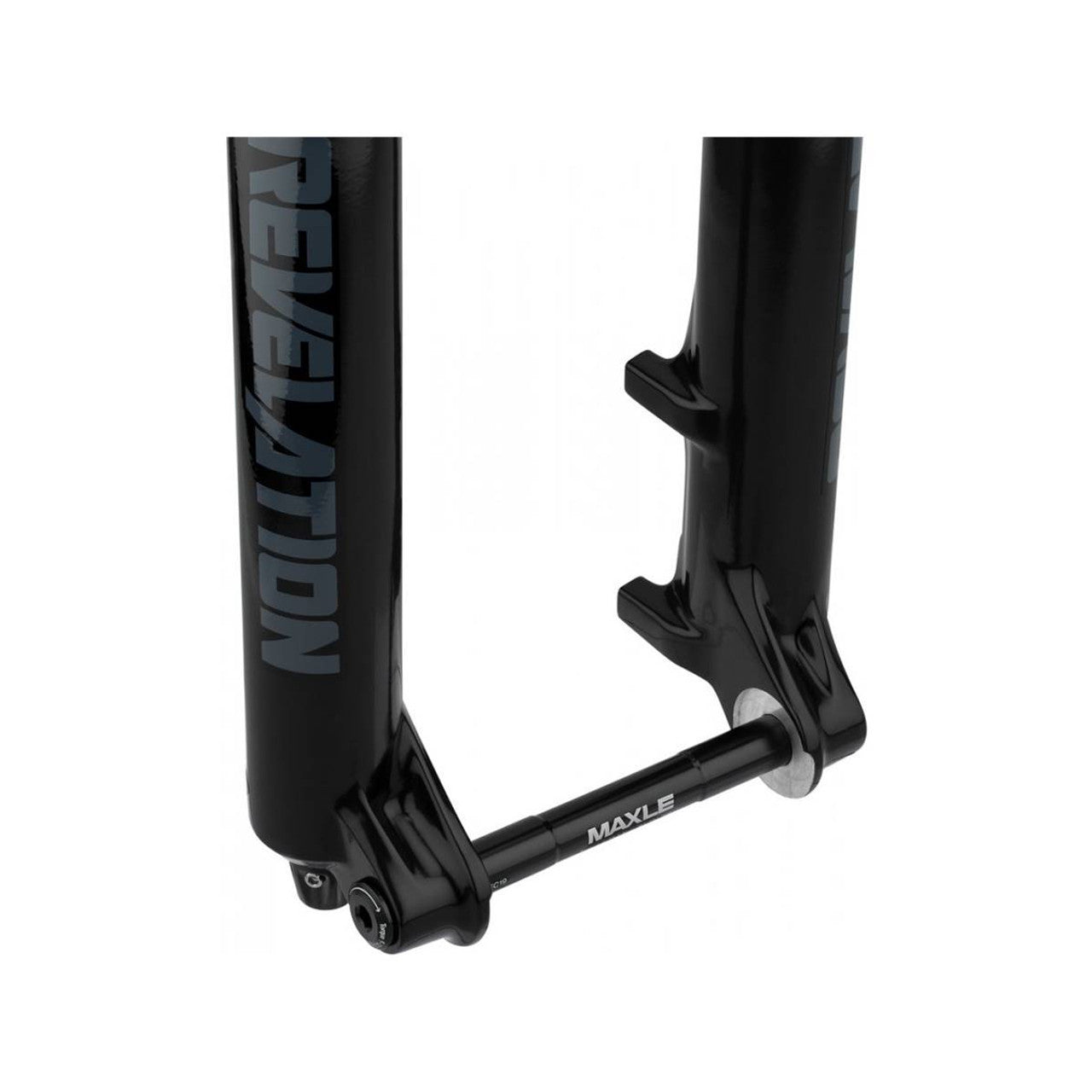

Fork ROCKSHOX REVELATION RC 29 DebonAir Tapered Axle 15x110mm Boost Black

Réf. fabricant : 00.4020.562.006
With its travel and new 35 mm stanchions, the ROCKSHOX Revelation RC DebonAir fork is a versatile model to prioritise for Trail/All Mountain MTB... Read more
399,90 €
399,90 €
View full details

Description

With its travel and new 35 mm stanchions, the ROCKSHOX Revelation RC DebonAir fork is a versatile model to prioritise for Trail/All Mountain MTB rides. Ultra rigid, its new chassis is inspired by that of the Pike, and its boost format allows fitting tyres up to 2.8" in section, all providing very solid support on aggressive rides!

The Revelation integrates the Motion Control RC damper system which specifically meets the demands of Trail/All Mountain riding and offers rebound and low-speed compression adjustment, as well as a lockout mode. Furthermore, the Revelation also benefits from the large-volume DebonAir air spring, which provides more support throughout the travel, a more linear action for greater control and is very responsive to small impacts

Ref: 9357156548957

Points forts

The new linear Debonair 2021 spring, sensitive to small impacts and offering better support throughout the travel

The Motion Control RC damper

Bottomless Tokens to adjust air volume

Superior chassis stiffness

Informations techniques

Discipline: Trail/All Mountain
T: Single
Wheel Sizes: 29"
Front Wheel Axle: 15x110 mm Boost
Lockout: None
Colour: Black
Travel: 130 mm
Variable Travel: No
Offset: 42 mm
Max Disc Diameter: 220 mm
Min Disc Diameter: 180 mm
Steerer Diameter: Tapered 1.5"-1"1/8
Stanchion Diameter: 35 mm
Brake Mount: Postmount
Fork Height: 541 mm
Steerer Length: 265 mm (cuttable)
Steerer Material: Aluminium
Stanchions: Aluminium Fast Black Black treatment
Lowers: Magnesium
Adjustable Air Volume: Yes

DebonAir pneumatic spring
Motion Control RC damper
Maxle Stealth axle
Bottomless Tokens

Low-Speed Compression Adjustment: Yes
High-Speed Compression Adjustment: No
Low-Speed Rebound Adjustment: Yes
High-Speed Rebound Adjustment: No
Preload Adjustment: Yes
Spring: Air

E-MTB Compatible
Tyre compatibility: up to 2.8" width in 29" without mudguard

Manufacturer reference:
00.4020.562 006
;

Informations prix

*Supplier recommended retail price in February 2024
