ROCKSHOX

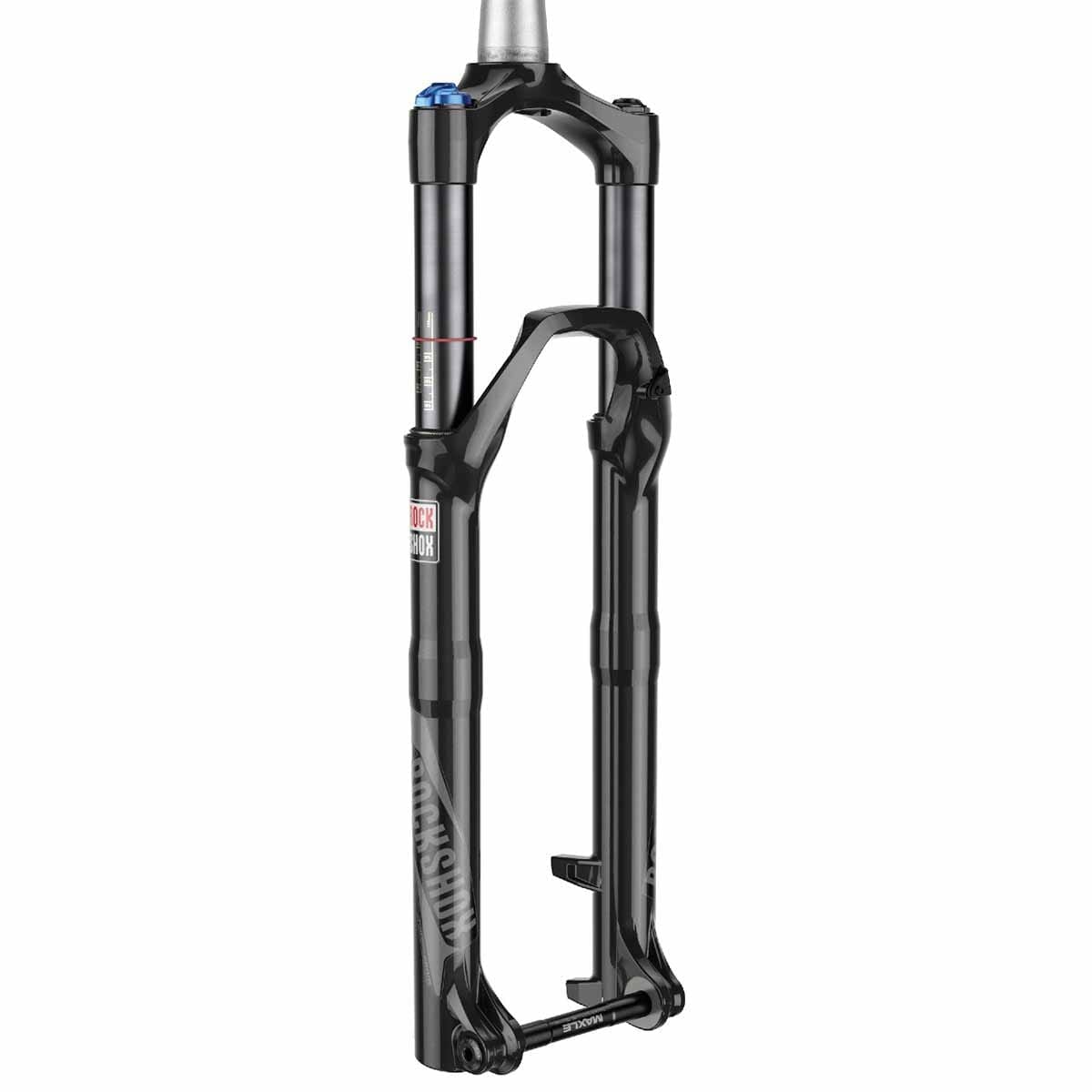

ROCKSHOX REVELATION RC 29 DebonAir Conical Fork Axle 15x110mm Boost Black

With its extended travel and new 35 mm steerer tubes, the ROCKSHOX Revelation RC DebonAir fork fork is a versatile model, ideal for outings MTB Trail/All... Read more

Recommanded price: 603,00 €

Regular price 399,90 €
Regular price Sale price 399,90 €
View full details

Description

With its extended travel and new 35 mm steerer tubes, the ROCKSHOX Revelation RC DebonAir fork fork is a versatile model, ideal for outings MTB Trail/All Mountain. Ultra-rigid, its new frame is inspired by that of the Pike, and its format boost format allows tires up to 2.8" in diameter to be fitted, providing solid support on aggressive rides!

The Revelation integrates the shock absorber system Motion Control RC shock absorber system, specifically designed for the demands of Trail/All Mountain with adjustable rebound and compression at low speeds, and a locking mode. In addition, the Revelation also benefits from the air spring DebonAir air spring, which offers more support throughout the travel, a more linear action for greater control, and is highly responsive to small shocks.

Ref: 9357156974941

Points forts

The new Debonair 2021 spring is linear and sensitive to small shocks and offers better support throughout the entire travel range.

Motion Control RC shock absorber

Bottomless tokens to adjust air volume

Superior chassis rigidity

Informations techniques

Practical : Trail/All Mountain
T: Simple
Wheel Sizes: 29
Front wheel axle: 15x110 mm Boost
Locking: None
Color: Black
Travel: 140 mm
Variable wheelbase: No
Offset: 42 mm
Max. disc diameter: 220 mm
Mini disc diameter: 180 mm
Pivot diameter: Tapered 1.5"-1"1/8
Plunger diameter: 35 mm
Brake mounting: Postmount
Fork height: 551 mm
Pivot length: 265 mm (can be recut)
Pivot material: Aluminum
Plungers: Aluminium Fast Black treatment
Sheaths: Magnesium
Adjustable air volume: Yes

DebonAir air spring
Motion Control RC shock absorber
Maxle Stealth axle
Bottomless Tokens

Low Speed Compression Setting: Yes
High Speed Compression setting : No
Low speed rebound/relaxation setting : Yes
High speed rebound/relaxation setting : No
Preload setting : Yes
Spring : Air

VTTAE compatible
Tire compatibility: up to 2.8" section in 29" without mudguard

Manufacturer reference :
00.4020.562 007

Informations prix

Recommended retail price February 2024
