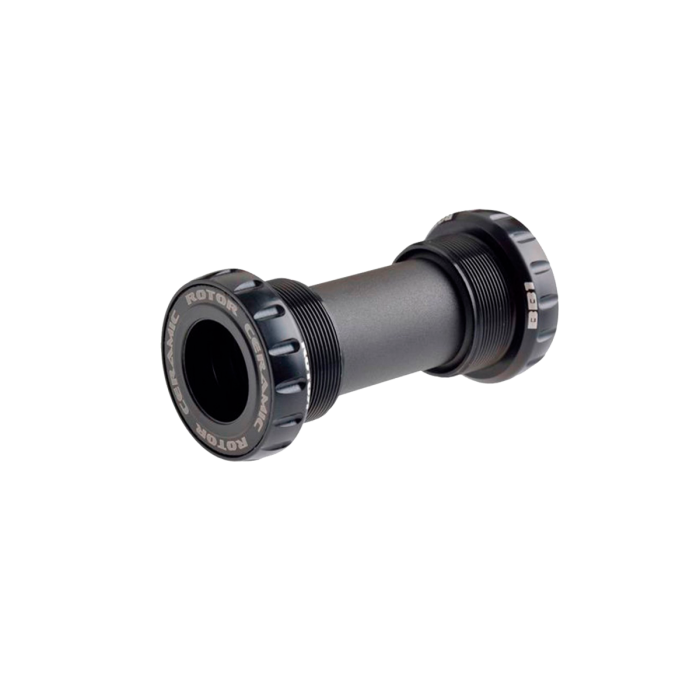

ROTOR BB1 BSA 68 mm Road Ceramic Bottom Bracket

The ROTOR BB1 68 mm Ceramic bottom bracket is designed for a road frame with BSA standard and a width of 68 mm. Your crankset with a 24 mm axle will fit perfectly.

It is built around a high-quality aluminium shell (7075 T6, heat-treated) and features ceramic ball bearings. The very low friction coefficient of these balls ensures greater smoothness, excellent power transfer and a longer bearing lifespan! Furthermore, the threaded system guarantees good air sealing, and a seal protects the bearings from moisture and mud.

A very high-quality technology at the service of your pleasure and performance.

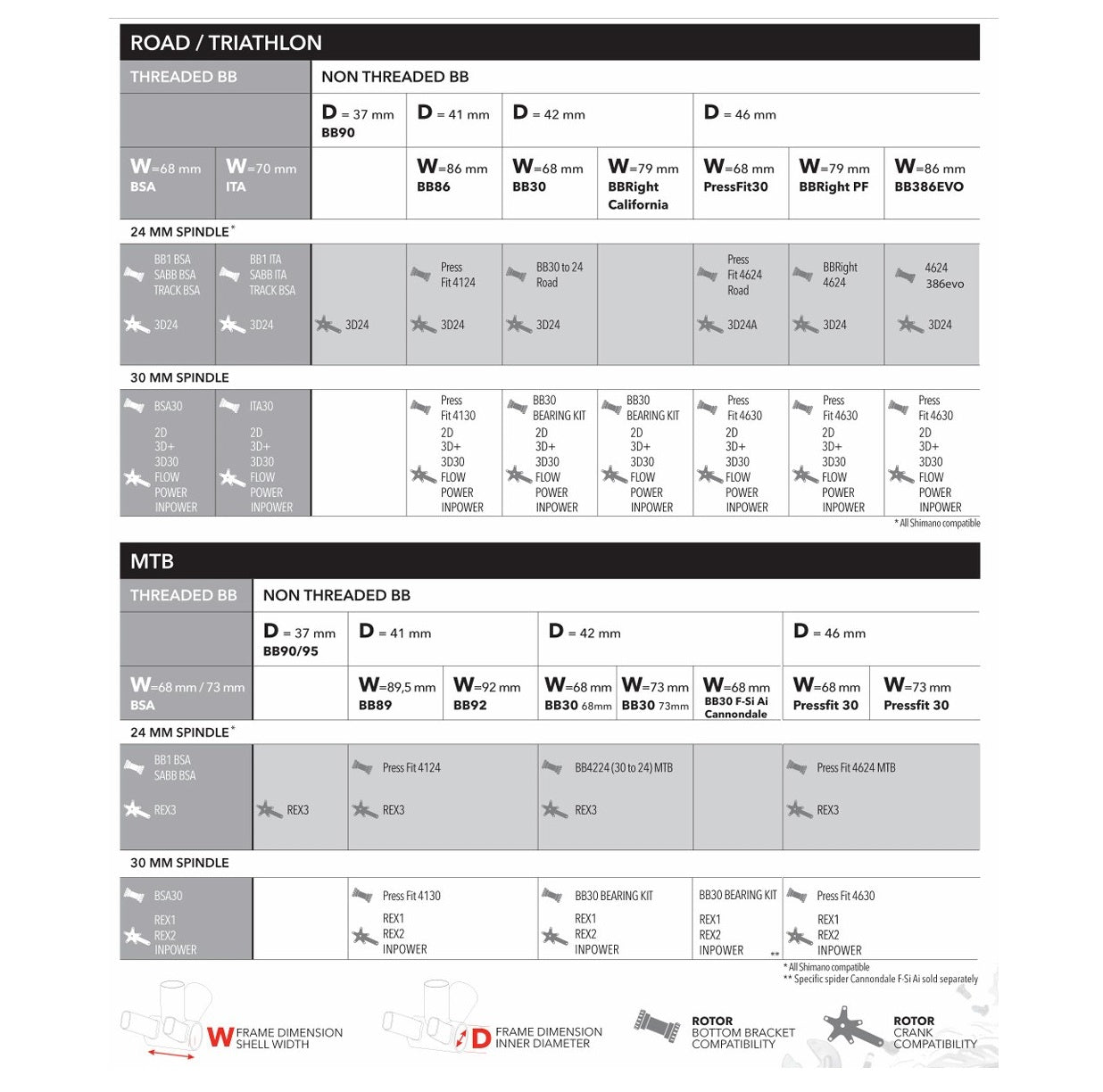

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	threaded	BSC / BSA
34,8	73	threaded	BSC / BSA
34,8	83	threaded	BSC / BSA
34,8	100	threaded	BSC / BSA
27	95,5	press-fit	BB 96 (Trek)
41	92	press-fit	PF 92
42	68	press-fit	BB 30
42	73	press-fit	BB 30
46	68	press-fit	PF 30
46	73	press-fit	PF 30

Ref: 14727421329757
