ROTOR

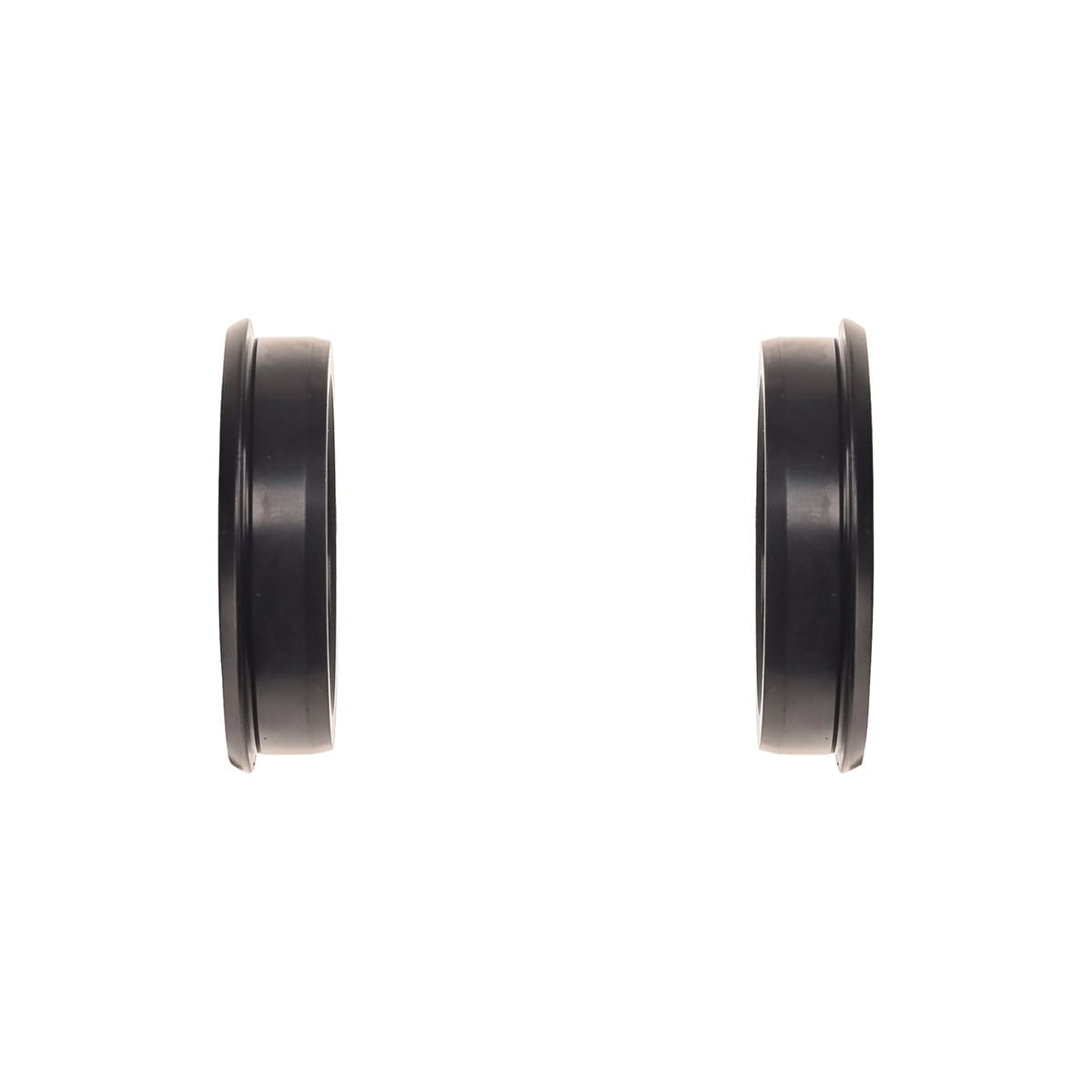

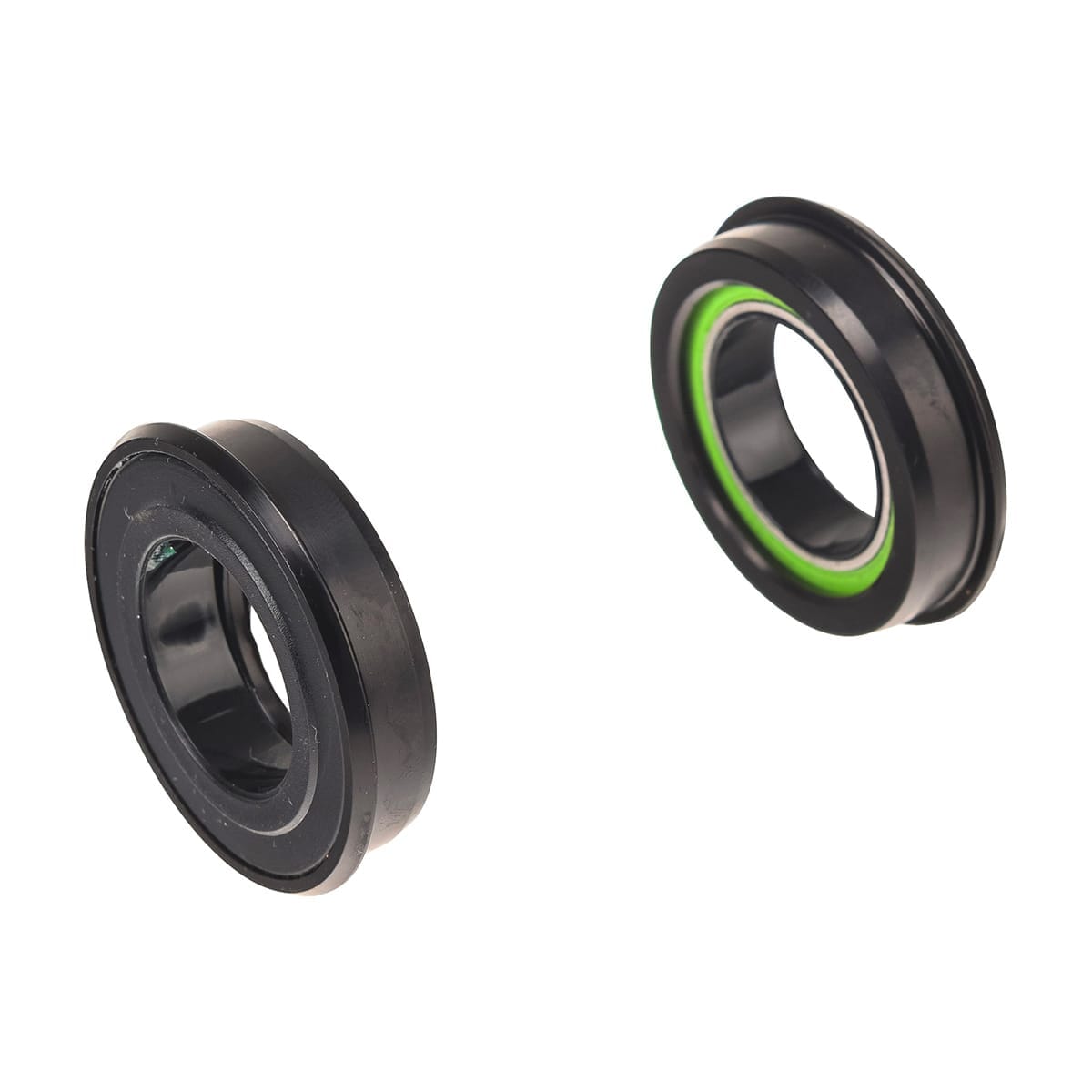

ROTOR PRESS FIT 41-24 Bottom Bracket

The ROTOR Press Fit 41-24 bottom bracket uses new non-contact labyrinth seals that provide exceptional smoothness and unrivalled protection against dust, water and mud.... Read more
Regular price 49,99 €
Regular price Sale price 49,99 €
View full details

Description

The ROTOR Press Fit 41-24 bottom bracket uses new non-contact labyrinth seals that provide exceptional smoothness and unrivalled protection against dust, water and mud.

The ultra-rigid plastic covers also improve lateral compression and resistance to deformation.

Compatibility chart
A - Diameter (mm) B - Width (mm) Assembly Standard
34,8 68 threaded BSC / BSA
34,8 73 threaded BSC / BSA
34,8 83 threaded BSC / BSA
34,8 100 threaded BSC / BSA
27 95,5 to insert BB 96 (Trek)
41 92 to insert PF 92
42 68 to insert BB 30
42 73 to insert BB 30
46 68 to insert PF 30
46 73 to insert PF 30

Ref: 7967905480870

Caractéristiques

Axle Diameter : 24 mm

Bearing Material : Steel

Axle Type : Through-Axle

Bottom Bracket Type : Press-Fit

Informations techniques

CNC machined 7075 aluminium.
Compatible with frames using the Shimano Press Fit standard (41mm) and 24mm axle bottom brackets: BB89, BB86, BB92.
Weight (manufacturer): 63 g.

Informations prix

*Supplier recommended retail price in February 2024

Overall rating: 4.3333335 / 5 from 6 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

I was looking for a waterproof case,

"I was looking for a waterproof case and chose this one. Just assembled, remains to be seen in use."

arnaud c. (5/5)

rotor housing

"Very good box, very easy to assemble, have in time".

Mimire51 (5/5)

12,000 km trouble-free

"After 13,000 km, I'm still driving with this box. I was thinking of changing it as a preventive measure, but as the gearbox has retained its fluidity, I'm still driving with it."

Rld (4/5)

Not so good!

"One bearing seized around 5000Km, the other bearing was scratching... . (I don't ride in the rain). Replaced by Shimano"

Joe (2/5)

Very good

"Easy assembly, quite fluid, mounted with an Ultegra 6800 nickel crankset."

Olive133 (5/5)

perfect

"Easy to assemble and simple in design! We'll see how long the bearings last over time! And of course Probike is always on top!"

Wiwi88 (5/5)
