REVERSE COMPONENTS

REVERSE COMPONENTS 2.0 SAG Indicator for Coil Spring Damper

Réf. fabricant : 01240
SAG REVERSE COMPONENTS 2.0 Coil Shock Indicator is a tuning tool designed to exploit the full potential of coil shocks. Coil shocks offer exceptional... Read more
34,99 €
34,99 €
View full details

Description

SAG REVERSE COMPONENTS 2.0 Coil Shock Indicator is a tuning tool designed to exploit the full potential of coil shocks. Coil shocks offer exceptional sensitivity, maximum traction and excellent ground tracking, but fine-tuning them can be complex. This indicator allows you to see exactly how much travel is being used, and to optimize the SAG setting for optimum performance.

Thanks to an external pin fitted with an O-ring, the Travel & Sag Indicator measures in millimeters the travel actually used while riding. Combined with the online calculators on the brand's website, it facilitates calculation of the SAG percentage and analysis of suspension behavior. This data is used to evaluate spring stiffness, compression and damping settings.

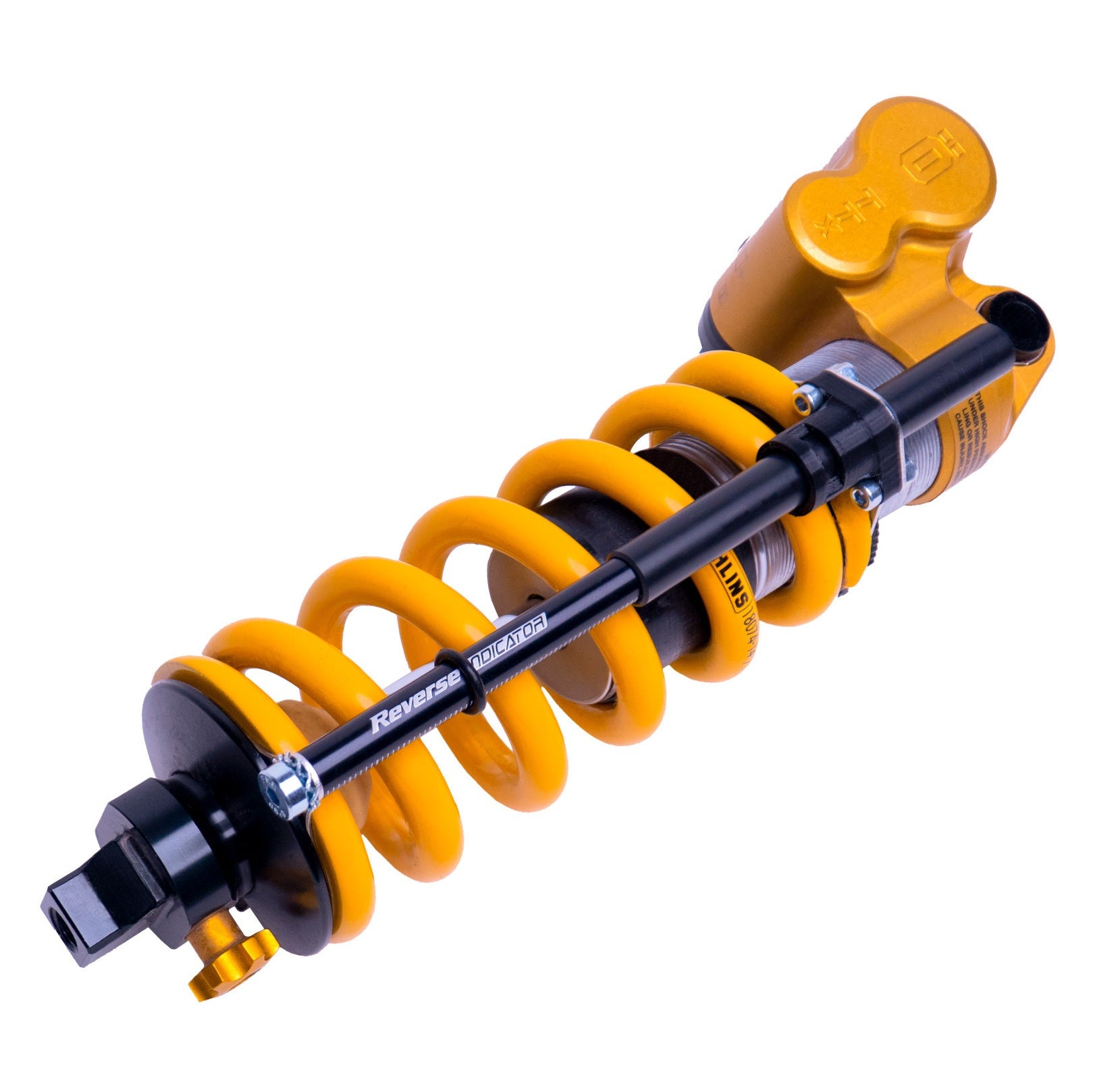

Version V2.0 adopts a new top and bottom spring mounting system, ensuring extended compatibility with standard coil, inline or remote reservoir shock absorbers. Side-mounted, the indicator offers quick and easy reading, ideal for tuning, racing optimization or fine-tuning a new mountain bike.

User's manual.

Ref: 15789167149436

Informations techniques

Poids : 40 g (+/- 5 % de tolérance au poids)
Matériau : aluminium / plastique

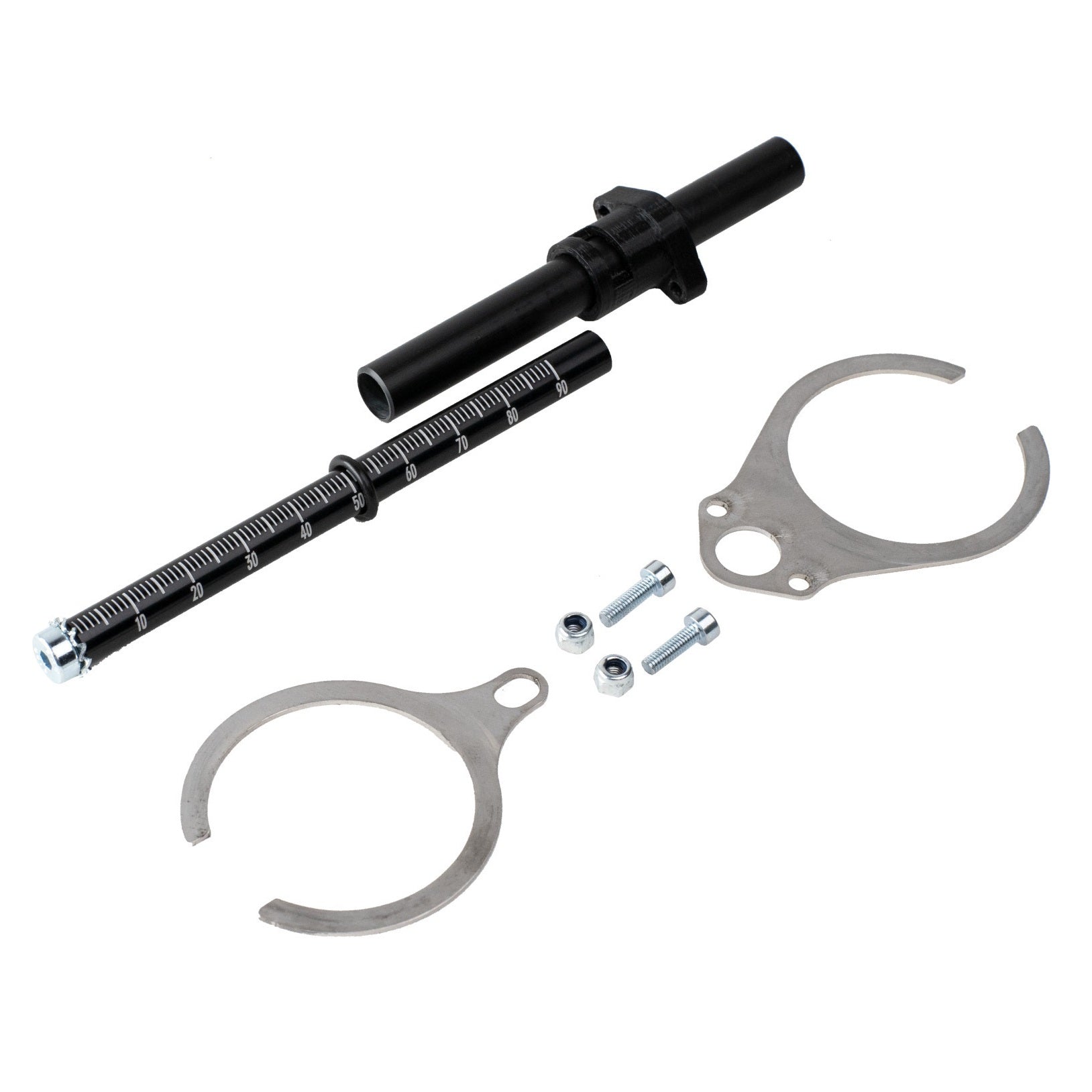

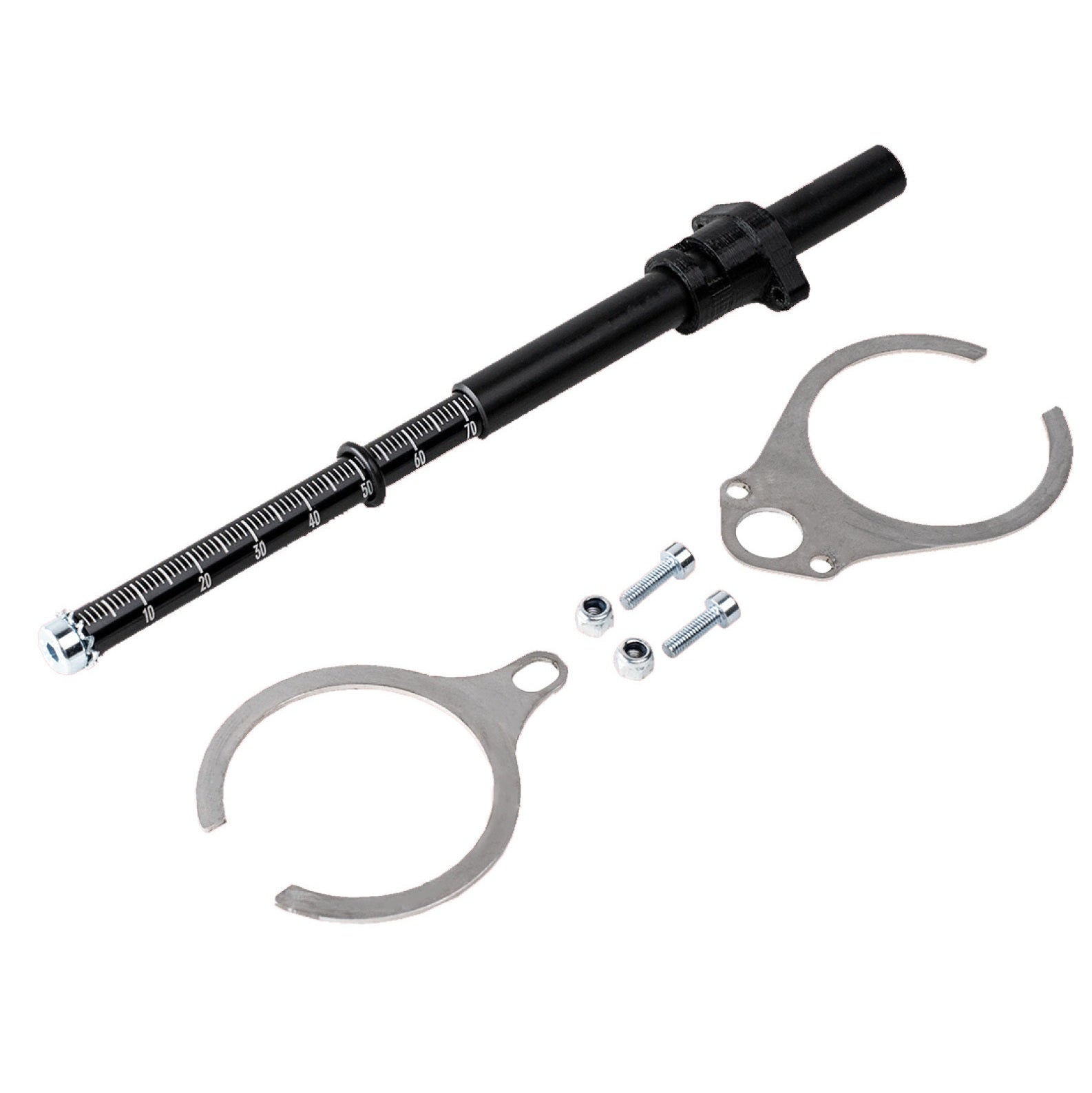

Contenu :
- 1x attache de plaque de ressort supérieure
- 1x fixation de plaque de ressort inférieure
- 1x support pour l’indicateur
- 1x manchon télescopique
- 1x échelle graduée
- 2x vis M3
- 2x écrou auto-verrouillant M3
- 1x rondelle crantée M5
- 1x vis M5
- 1x joint torique

Attention : Le Travel & SAG Indicator 2.0 n’est compatible qu’avec des ressorts ne dépassant pas 180 mm de longueur, qu’ils soient comprimés ou non.
Si c’est le cas, nous recommandons la version 1.0 avec l’attache au piggy back/réservoir externe.
Amortisseur non inclus dans la livraison
;
