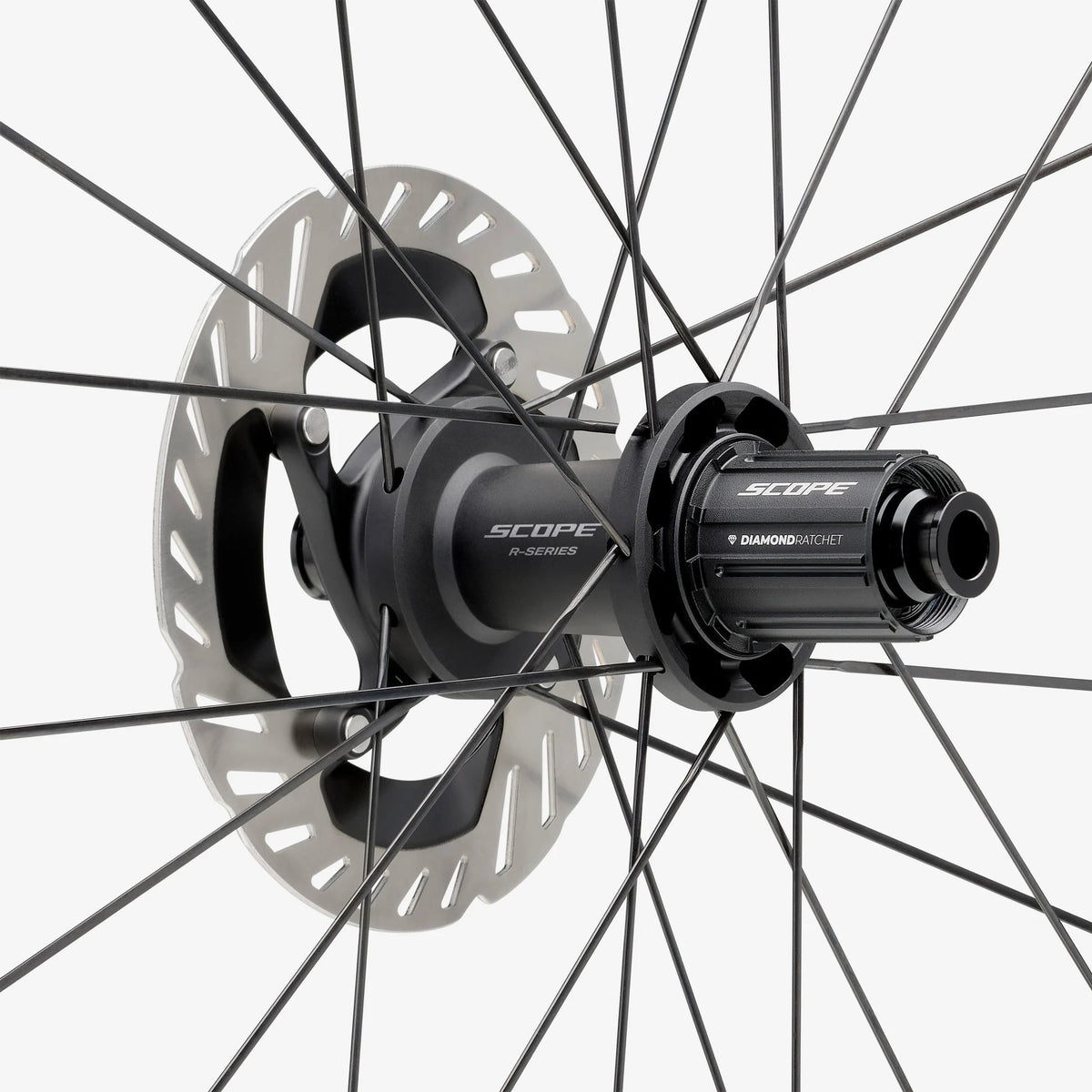

  • Race Series Hub

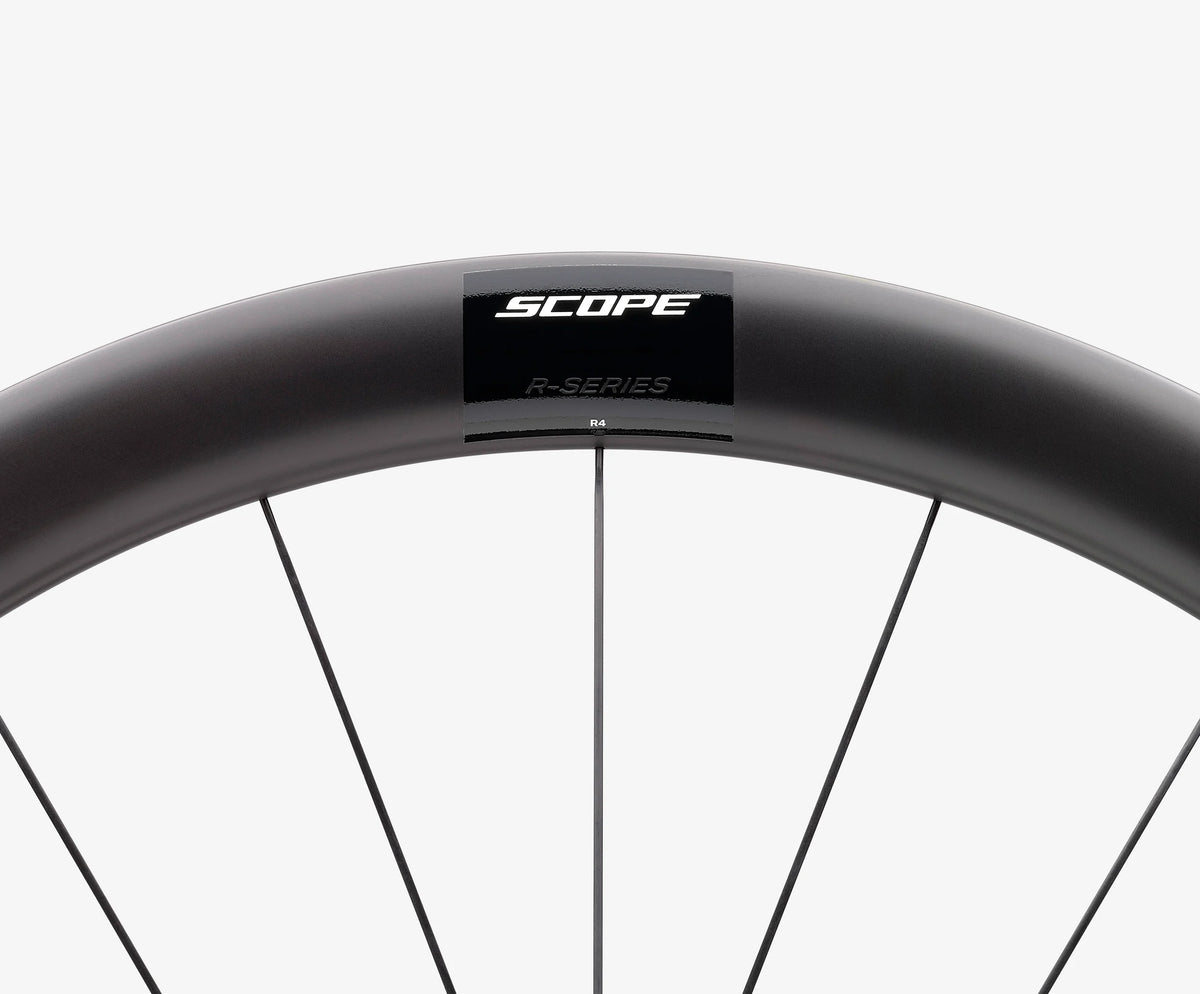

  • SCOPE Race R4 - top view
1 5
SCOPE

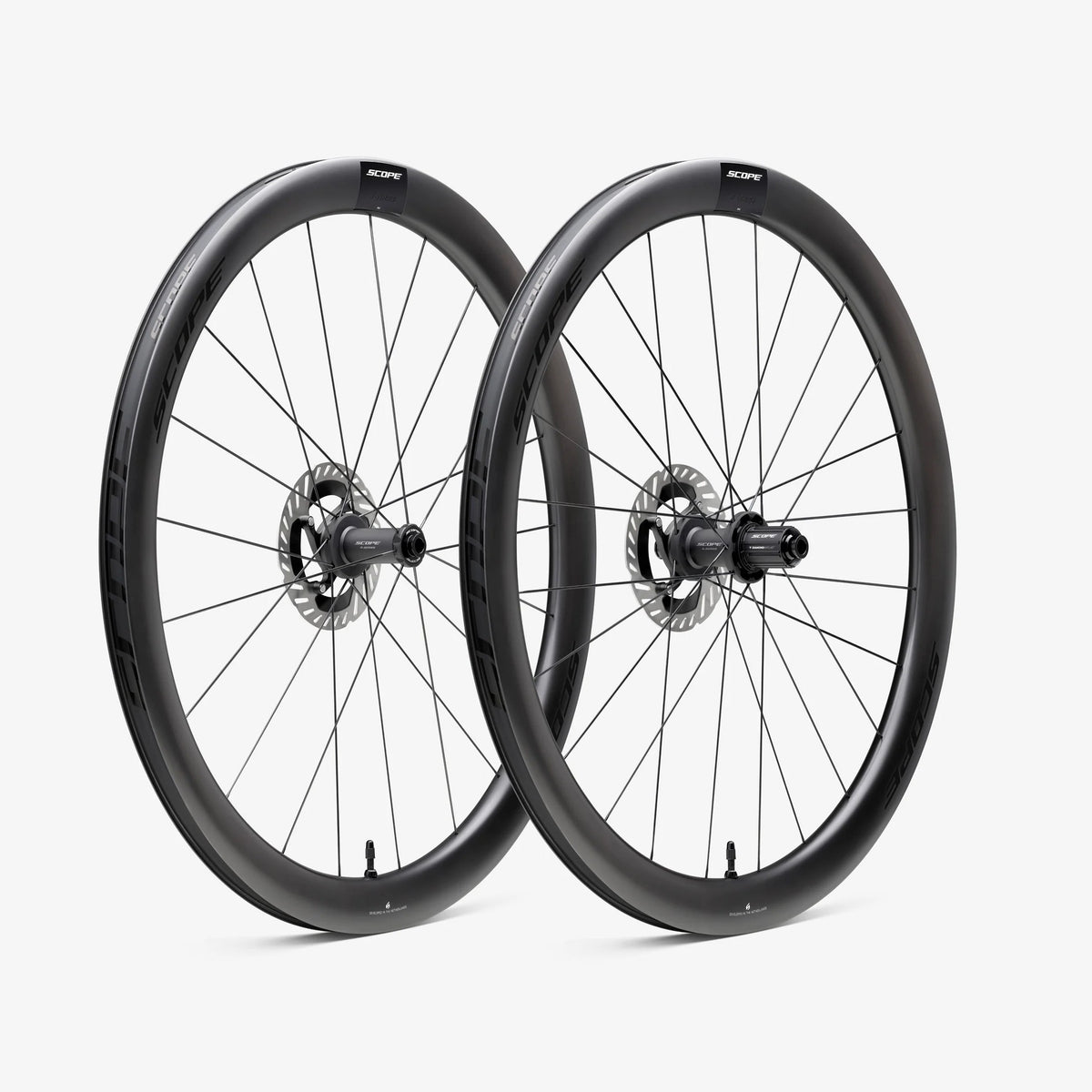

SCOPE Race R4 Tubeless Ready (Centerlock) Wheelset Black

The SCOPE Race R4 Wheelset directly inherits the technical DNA of the Artech range. This wheel delivers first-class aerodynamics, race-ready weight and durability built... Read more
1.689,90 €
1.689,90 €
View full details

Description

The SCOPE Race R4 Wheelset directly inherits the technical DNA of the Artech range. This wheel delivers first-class aerodynamics, race-ready weight and durability built to last.

By adopting the proven rim profile of the Artech line, without the Aeroscales, the R4 delivers wind tunnel-tested aerodynamic performance. With steel spokes and a total weight of just 1349 grams, it is the ultimate versatile climbing wheel, built to excel both in competition and daily training.

Beyond its lightness and aerodynamic advantage, the R4 combines high lateral stiffness with uncompromised durability. Its hooked rim with a 23 mm internal width is optimised for 28 mm clincher and tubeless tyres, providing the perfect balance between rolling resistance, efficiency and comfort.

The mechanical labyrinth system of the R-Series hub effectively blocks dirt ingress and ensures long-term reliability, while the titanium Diamond Ratchet SL system ensures direct engagement.

Ref: 16111185887612

Technical information

GENERAL
Total set weight: 1349 g (measured without rim tape or tubeless valves, ± 5% variation possible)
Maximum rider weight: no limit
Maximum tyre pressure: 8.6 bar / 125 psi

Carbon RIMS (front / rear)
Rim depth: 45 mm / 45 mm
External width: 31 mm / 31 mm
Internal width: 23 mm / 23 mm
Tubeless ready: Yes / Yes
Hooked rim: Yes / Yes
Optimum tyre width: 28 mm / 28 mm
Tyre compatibility: 28 - 65 mm / 28 - 65 mm

HUBS (front / rear)
Hub: Scope R-Series / Scope R-Series
Bearings: 2 x 61803 SKF / 3 x 61803 + 1 x 61903 SKF
Engagement system: - / 36-tooth Diamond Ratchet SL
Axle system: 12 x 100 mm / 12 x 142 mm
Braking interface: Centerlock / Centerlock
Labyrinth system: Yes / Yes

SPOKES (front / rear)
Spoke count: 21 / 24
Spoke type: Sapim CX-Ray / Sapim CX-Ray

Warranty: 3 years
Manufacturing: developed in the Netherlands

SCOPE TECHNOLOGIES
- Algorithm Enhanced Aerodynamics (AEA): rim profile inherited from the Artech range, optimised by algorithm
- Local Reinforcement: localised carbon reinforcement around spoke holes, reduced weight without loss of stiffness
- Scope Tubeless System: easy mounting, direct tyre seating, long-lasting seal
- Diamond Ratchet SL: diamond-like carbon coated titanium ratchet, direct engagement, increased durability
- Labyrinth system: mechanical hub protection against dirt ingress
- Sapim CX-Ray spokes

IN THE BOX
- Pair of tubeless valves (pre-installed)
- Tubeless rim tape (pre-installed)
- 3-year warranty
- Lifetime crash replacement

Rotors not included
;

Price information

*Recommended retail price from supplier in August 2026
