SHIMANO

SHIMANO Road Brake Bleed Funnel

Réf. fabricant : Y13000090
The SHIMANO Road Brake Bleed Funnel is specially designed for bleeding Shimano disc brake systems equipped with ST brake/gear levers, commonly used on road... Read more
Regular price 11,99 €
Regular price Sale price 11,99 €
View full details

Description

The SHIMANO Road Brake Bleed Funnel is specially designed for bleeding Shimano disc brake systems equipped with ST brake/gear levers, commonly used on road bikes. It is compatible with bleed screws with M7 thread. Unlike older models, this TL-BR002 funnel attaches directly after removing the O-ring, with no need for an adapter. The funnel, spacious and made from resistant synthetic material, comes with a lid and an oil plug to prevent leaks during bleeding.

Ref: 7970449129638

Informations techniques

Size: M7 x 0.75 mm
Compatibility:
Shimano hydraulic brake levers with M7 bleed screw
Dura-Ace:
ST-R9270
ST-R9120
ST-R9170
ST-R9180
Ultegra:
ST-R8170
ST-R8020
ST-R8025
ST-R8070
105:
ST-R7120
ST-R7170
ST-R7020
ST-R7025
Tiagra:
ST-4720
ST-4725
GRX:
ST-RX820
ST-RX820-LA
ST-RX815
ST-RX810(-LA/-LE)
ST-RX610
ST-RX600
ST-RX400
BL-RX820
BL-RX810-L(-LE)
BL-RX610-L
BL-RX600-L
Others:
ST-RS685
ST-R785
ST-RS505
ST-RS405
Manufacturer References: TL-BR002 / WP-Y13000090

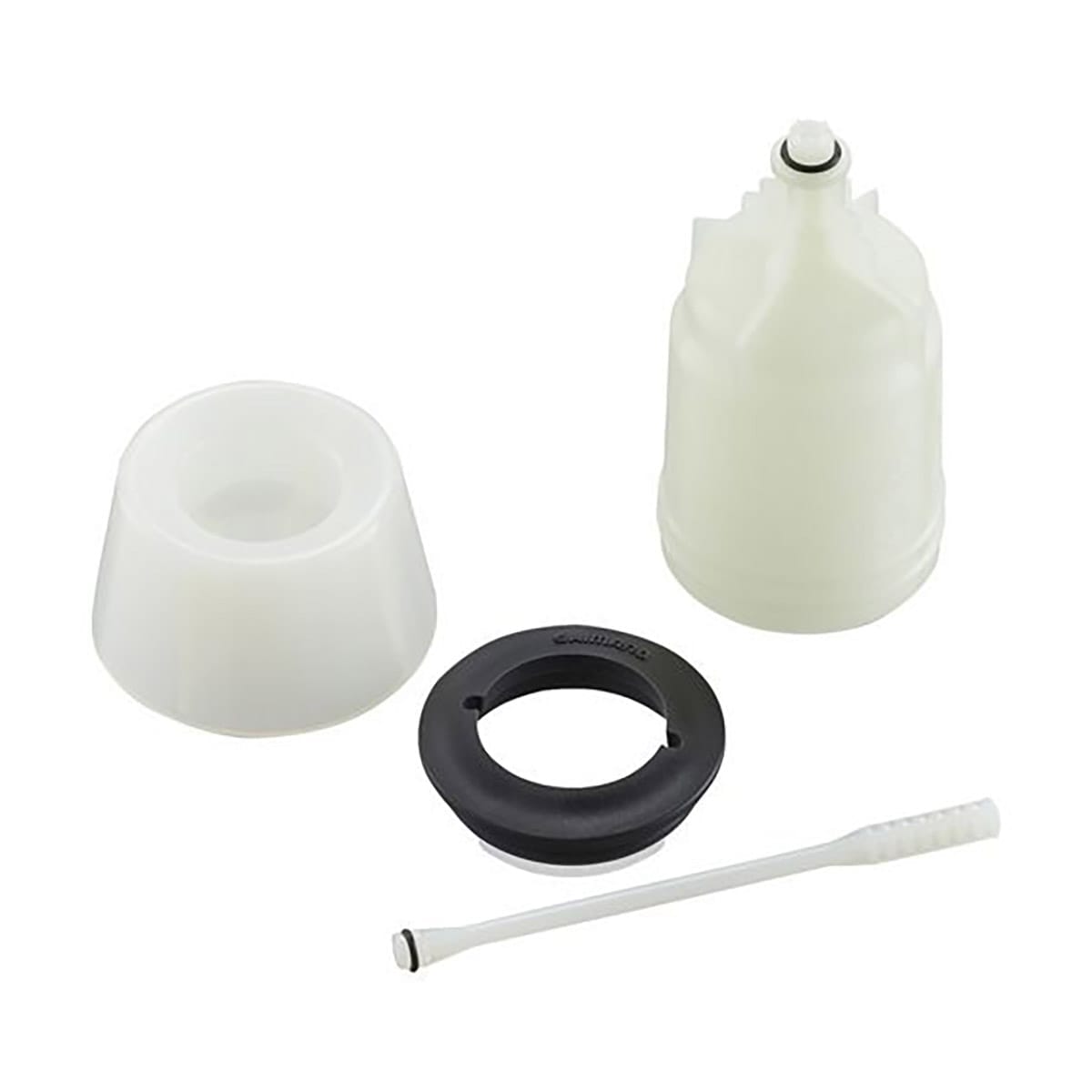

Kit contents:
- 1 oil funnel
- 1 funnel base
- 1 funnel cap
- 1 oil plug

Informations prix

*Supplier recommended retail price in February 2024

Overall rating: 4.5 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

As described and

"As described and easy to use".

Damien T. (5/5)

Purchased in addition to the funnel

"Bought to complement the SHIMANO funnel I already had to drain my Shimano XT brakes but which is incompatible with ULTEGRA brakes. This one does the job very well for draining ultegra di2 12v brakes, but... ... it's not compatible with XTs because the screw diameter on the lever isn't the same... ... . The black washer keeps the funnel's obturation rod in a vertical position. It's not essential, but it's handy ;-) Well, in the end ... that's +/-30 € for 2 little plastic funnels, each of which will only be used once or twice a year ... it's a pity SHIMANO didn't manage to pool the same funnel for all its road and MTB disc brakes ..."

Bruno C. (4/5)
