SHIMANO BT-EN806 Integrated Battery (630 Wh) Generation 2

The SHIMANO BT-EN806 Generation 2 is an integrated down tube battery offering a capacity of 630 Wh (36 V / 17.5 Ah), ideal for... Read more
499,90 €
499,90 €
View full details

Description

The SHIMANO BT-EN806 Generation 2 is an integrated down tube battery offering a capacity of 630 Wh (36 V / 17.5 Ah), ideal for extending e-bike rides between charges. Its compact format promotes a lowered centre of gravity, ensuring more natural handling and better balance.

Designed for bikes equipped with a second-generation integrated battery mount, it integrates seamlessly into the frame while maintaining a clean aesthetic. Its robust construction benefits from IPX5 certification, ensuring excellent resistance to water and low-pressure washing.

Built to last, this battery retains more than 60% of its capacity after 1,000 full charge cycles. It fully recharges in approximately 6 hours with the Shimano EC-E8004 charger, offering a reliable solution for demanding users.

Ref: 16046014595452

Informations techniques

Model: SHIMANO BT-EN806
Type: Integrated battery for down tube
Generation: 2nd generation
Technology: Li-Ion battery
Energy capacity: 630 Wh
Nominal voltage: 36 V
Capacity: 17.5 Ah
Nominal capacity: 16.2 Ah (583 Wh)
Full charge time: 6 hours with the EC-E8004 charger
Lifespan: more than 60% capacity retained after 1,000 full charges
Water resistance: IPX5
Charging temperature: 0 °C to +40 °C
Operating temperature: -10 °C to +50 °C
Battery Management System: Second generation

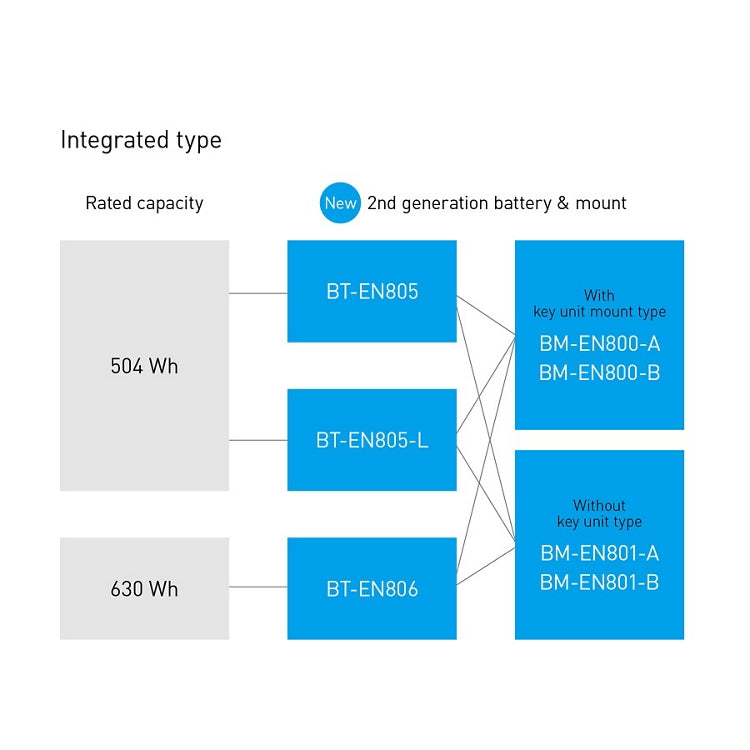

Compatible with battery mounts:
BM-EN800-A
BM-EN800-B
BM-EN801-A
BM-EN801-B
Compatible chargers:
EC-E6002
EC-E8004
Compatible charging adapter: SM-BTE80
Integrated on/off switch
Charge level indicator
Integrated error signal
Average weight: 3.6 kg
Same mounting bracket as the BT-EN805 and BT-EN805-L
Same external design as the BT-EN805-L.
;

Informations prix

*Supplier recommended retail price in March 2026
