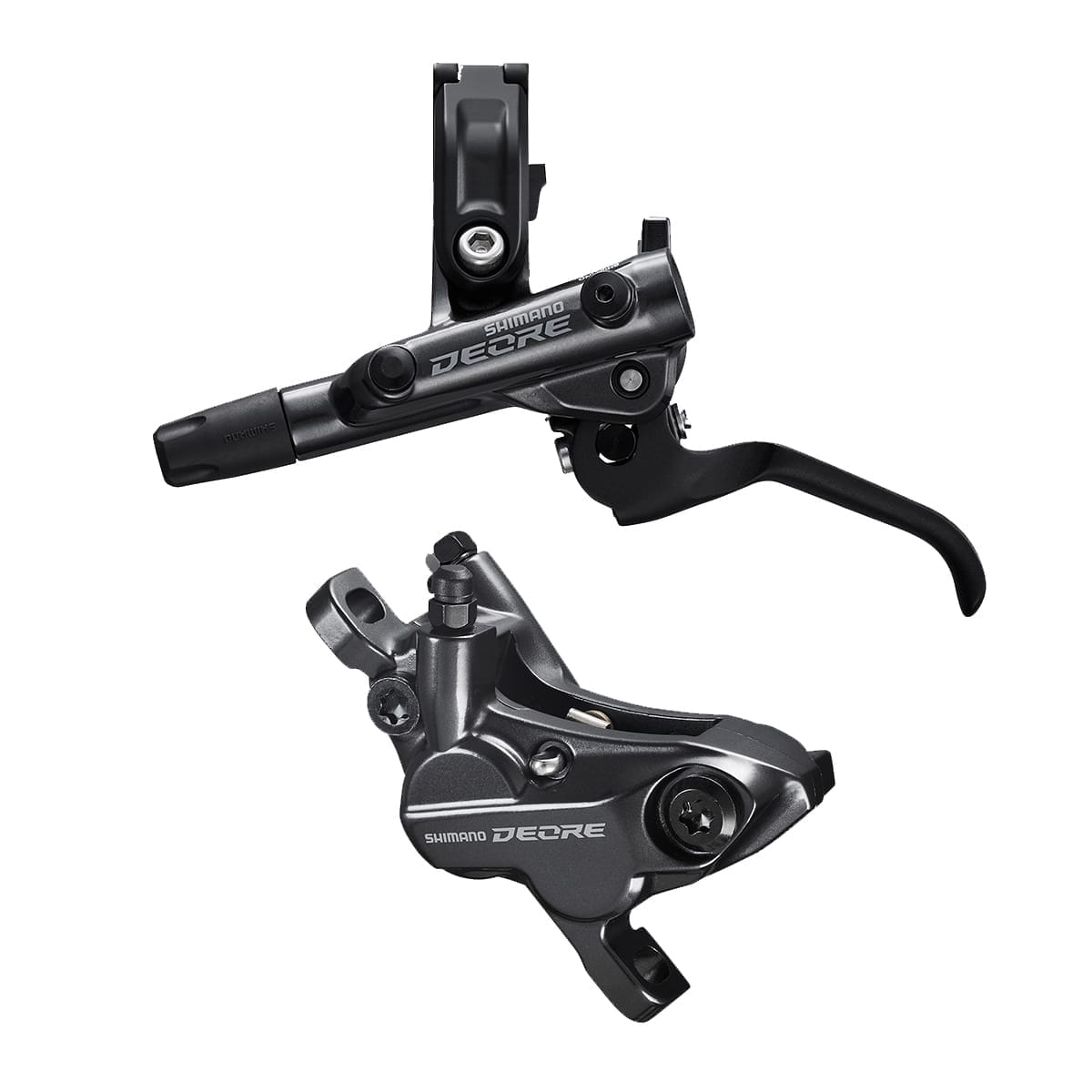

SHIMANO DEORE M6120 4 Piston J-KIT Discless Front Brake

The front brake SHIMANO Deore M6120 allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This versatile model, ideal... Read more

Recommanded price: 159,99 €

Regular price 107,90 €
Regular price Sale price 107,90 €
View full details

Description

The front brake SHIMANO Deore M6120 allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This versatile model, ideal for leisure riding MTB, can be used on all types of outings (from Trail toEnduro). Simple and practical to install, it is supplied here in a Junction-Kit designed above all for frames with internal ducting.

The ergonomic lever incorporates Servo Wave technology, which provides precise, almost instantaneous braking. It also features handlebar, an additional contact point to stiffen the whole and ensure a precise feel. The refined design, particularly of the clamp, is inspired by top-of-the-range Shimano models.

As for the BR-M6120 caliper, based on a reliable and efficient four-piston system in two different sizes. It features a light, rigid design, designed for a smooth attack on the brake pedal. Brake Pads on the disc, but also to ensure a large contact surface for reduced noise, a clean feel and easy power metering.

Ref: 7977572335782

Points forts

Versatility and power

Lightweight, rigid caliper

Servo Wave mechanism for precise, powerful metering with a short stroke

One-Way bleed system and mineral oil for easy maintenance

Compatible with I-Spec EV systems: a single clamp for brake lever and shifter

Caractéristiques

Model year : 2020

Color : Gray

Disc : Not supplied

Warranty : 2 ans

Brake fluid : Mineral

Hose length : Front 100 cm

Lever Material : Aluminum

Brake Pads Organic : Brake Pads Organic

Practice : All Mountain

Practice : Enduro

Caliper type : 160 PM Avant

Hose type : Standard

Brake type : Front

Informations techniques

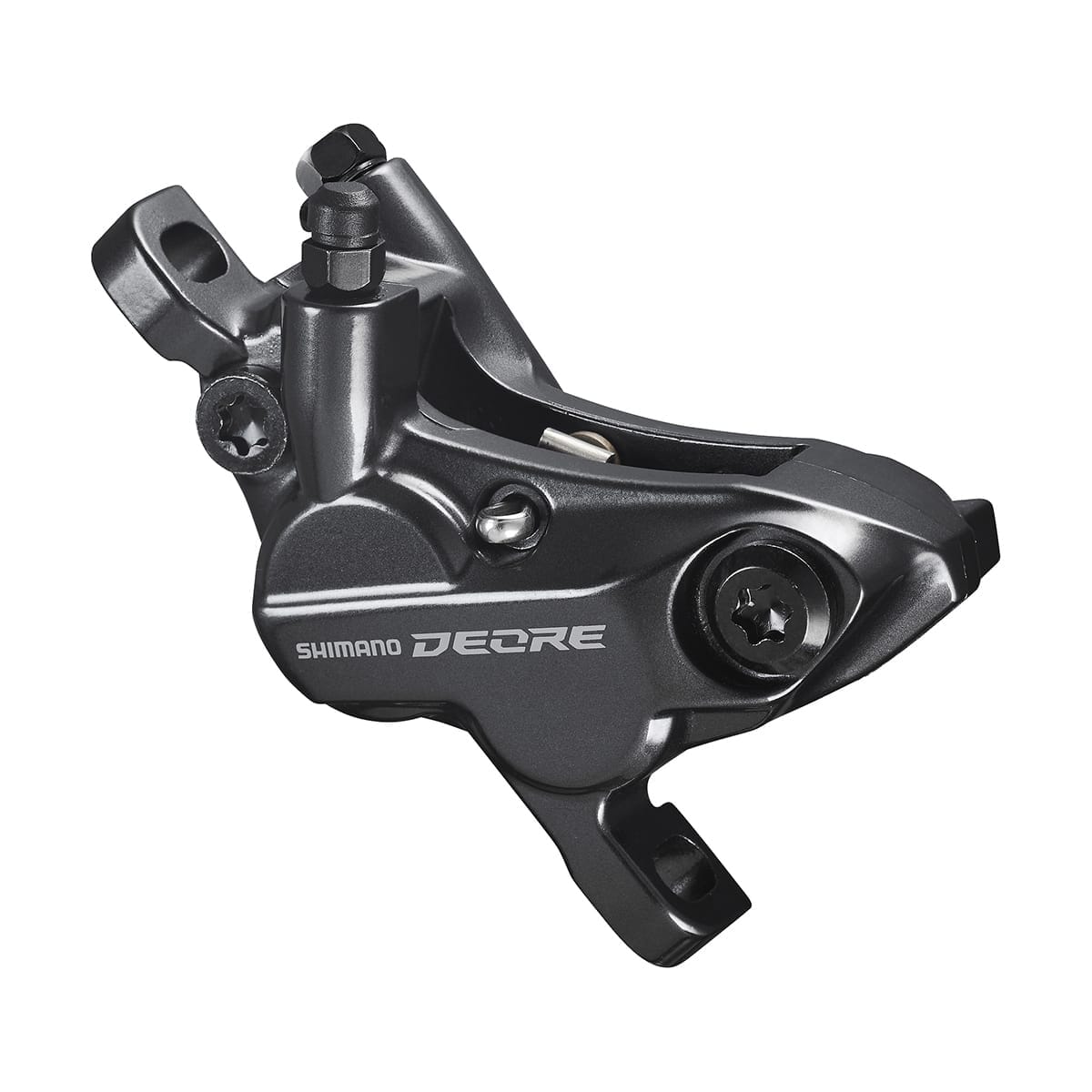

Brake caliper Deore BR-M6120 :
Aluminum caliper Ice Technologies ;
4-piston ;
Brake Pads original: G02S (organic) ;
Brake Pads compatible: G03S / J02A / J03A (organic) and G04S (metal) ;
Compatible Brake Pads Ice-Tech ventilated ;
One Way Bleeding system;
SM-BH90-SBLS hose;
Recommended disks: SM-RT64, SM-RT66, SM-RT54 and SM-RT56.

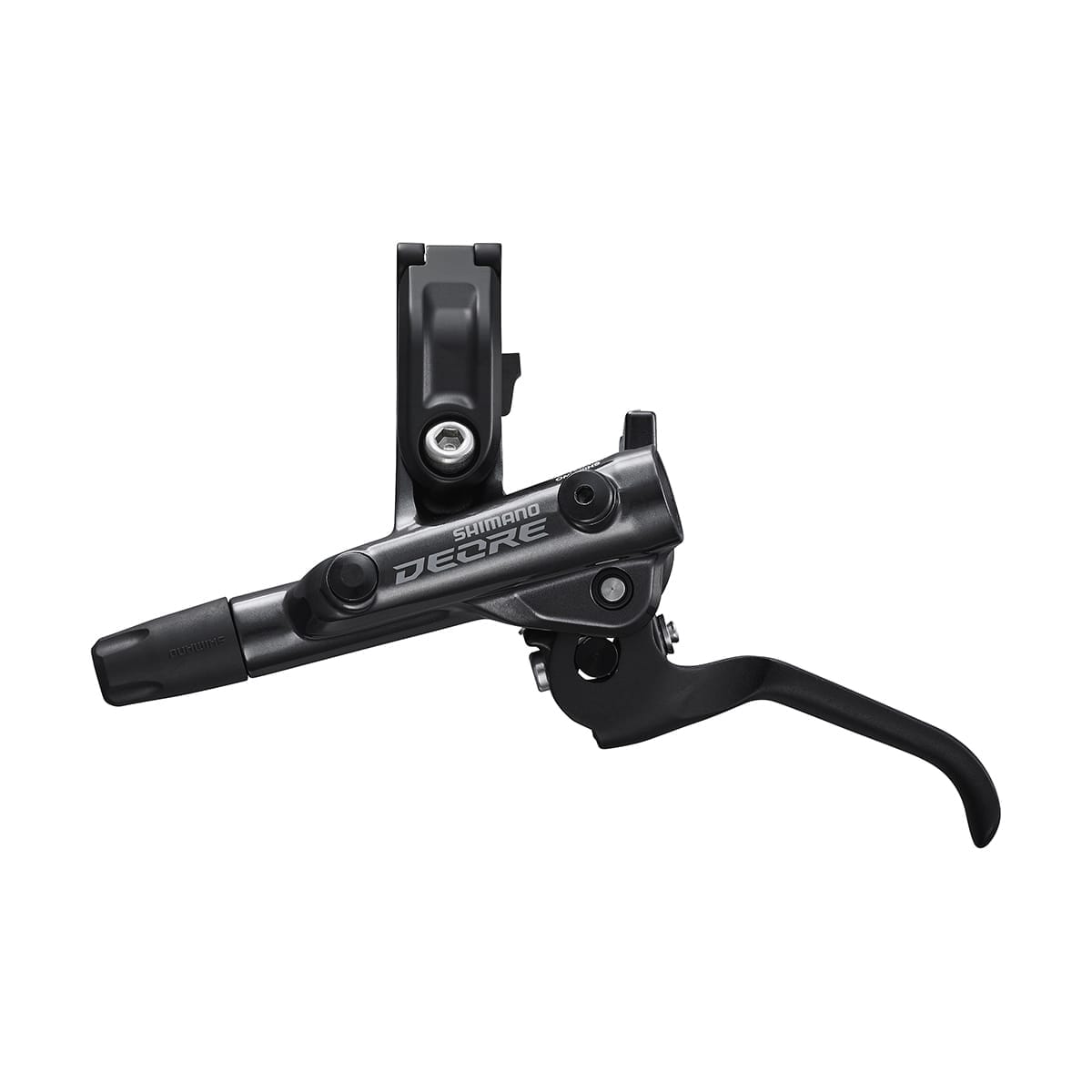

Lever Deore BL-M6100 :
Ergonomic 2-finger, non-slip aluminium lever;
Servo Wave mechanism;
Guard adjustment with tool;
I-Spec EV mounting.

Installation of J-Kit brakes:
- Position your brake lever on the handlebar of the bike
- Mount your brake caliper on the fork and/or frame
- Pass the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.

Informations prix

Recommended retail price February 2024
