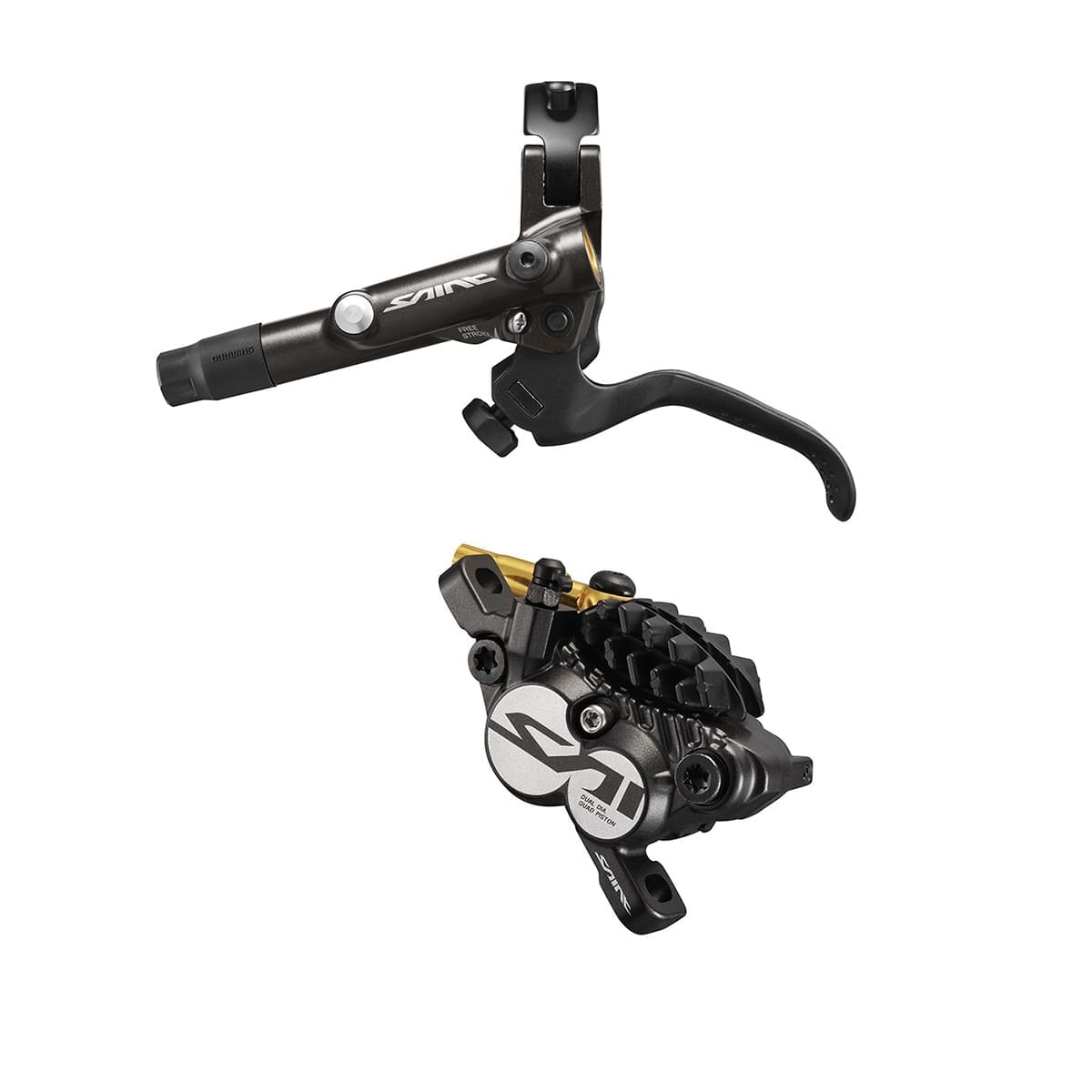

SHIMANO SAINT M820 J-KIT Discless Front Brake

Réf. fabricant : IM820BJLFPNA100
Designed to attack downhill, the SHIMANO front brake Saint M820 J-Kit is designed for Gravity riders who like powerful, precise braking. Simple and practical to... Read more

Recommanded price: 274,99 €

216,90 €
216,90 €
View full details

Description

Designed to attack downhill, the SHIMANO front brake Saint M820 J-Kit is designed for Gravity riders who like powerful, precise braking. Simple and practical to install, it comes here in a Junction-Kit version designed above all for frames with internal cable routing.

The aluminum lever features an ergonomic 2-finger desgin and a textured coating that improves grip in wet conditions. It's easy to adjust the shift and attack without tools. It also benefits from Servo-Wave technology, which ensures a short stroke to find a precise contact point on the disc, thus ensuring excellent responsiveness, as well as great power!

The caliper features a solid aluminum body, which perfectly manages heat thanks to Ice Technologie's design. The four ceramic pistons are highly efficient, while the One-Way bleeding system ensures quick and easy bleeding.

Ref: 7977572106406

Points forts

4-piston ceramic caliper

Ergonomic, honeycombed lever

Servo Wave mechanism for precise, powerful metering with a short stroke

Tool-free adjustment of guard and stroke

One-Way bleed system and mineral oil for easy maintenance;

Compatible with I-Spec B systems: a single clamp for brake lever and shifter.

Caractéristiques

Model year : 2020

Color : Black

Disc : Not supplied

Warranty : 2 ans

Brake fluid : Mineral

Hose length : Front 100 cm

Lever Material : Aluminum

Brake Pads Metallic : Brake Pads Metallic

Practice : Downhill

Practice : Enduro

Practice : Freeride

Caliper type : 160 PM Avant

Hose type : Standard

Brake type : Front

Informations techniques

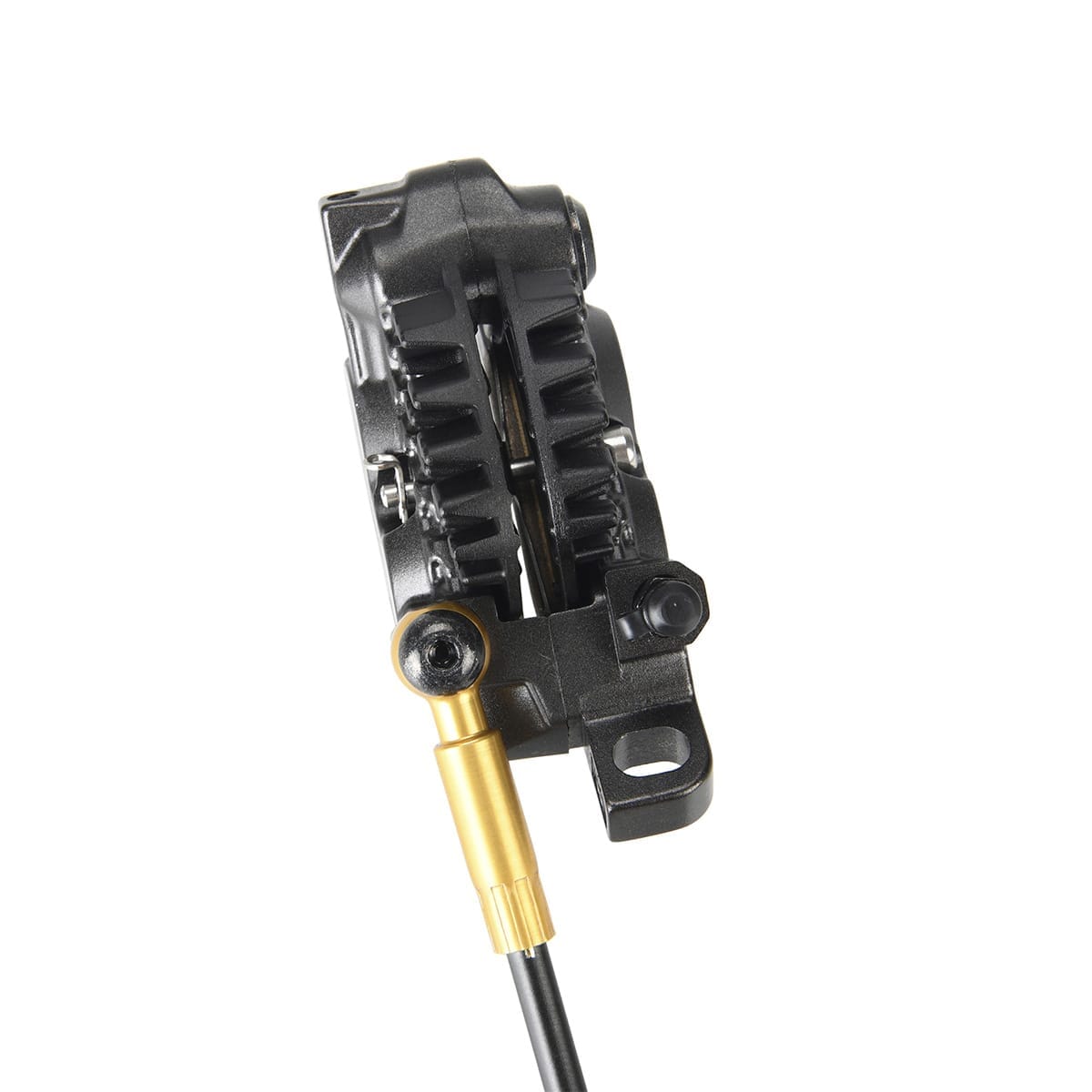

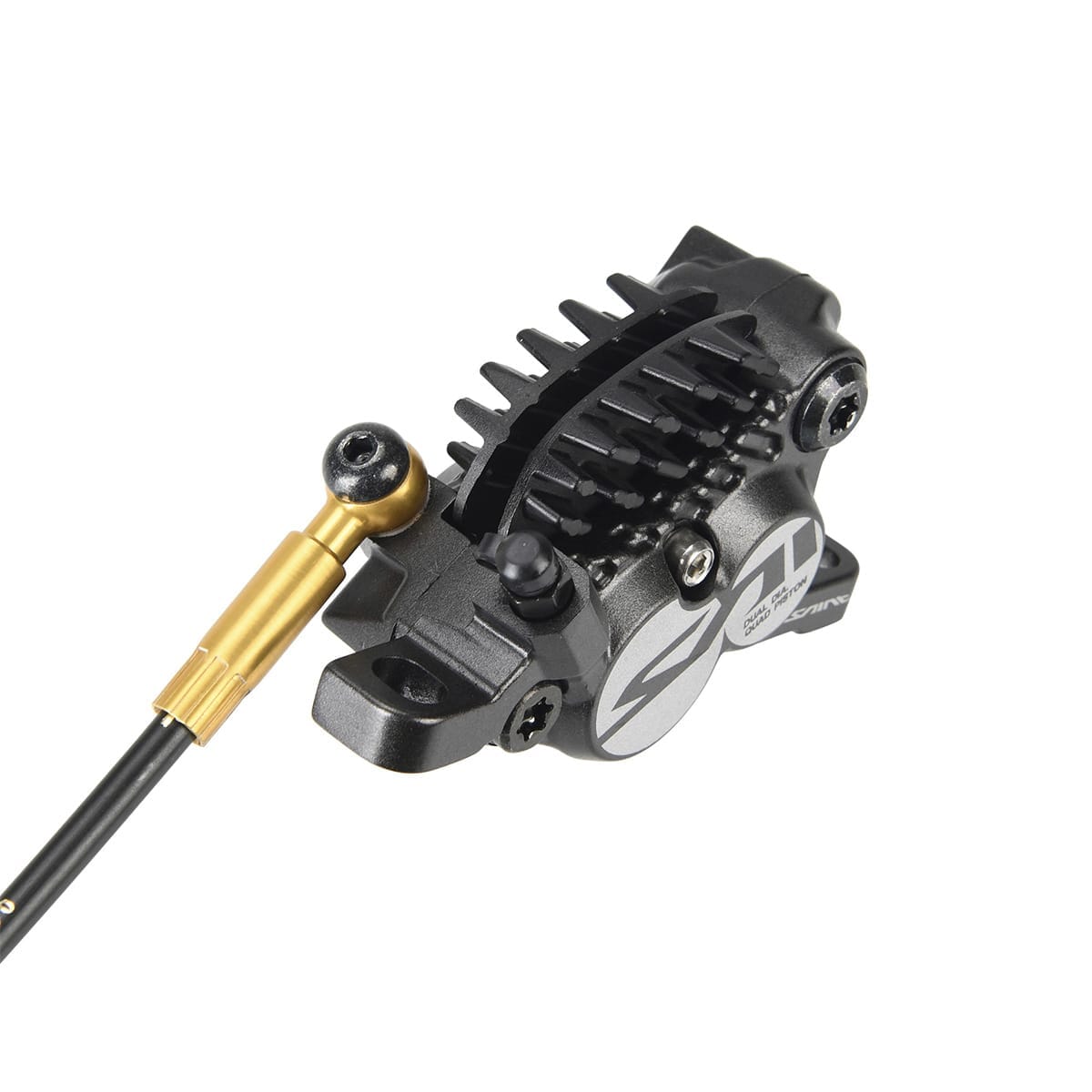

Brake caliper Saint BR-M820 :
Aluminum caliper Ice Technologies ;
4 ceramic pistons;
Brake Pads H03C
One Way Bleeding system ;

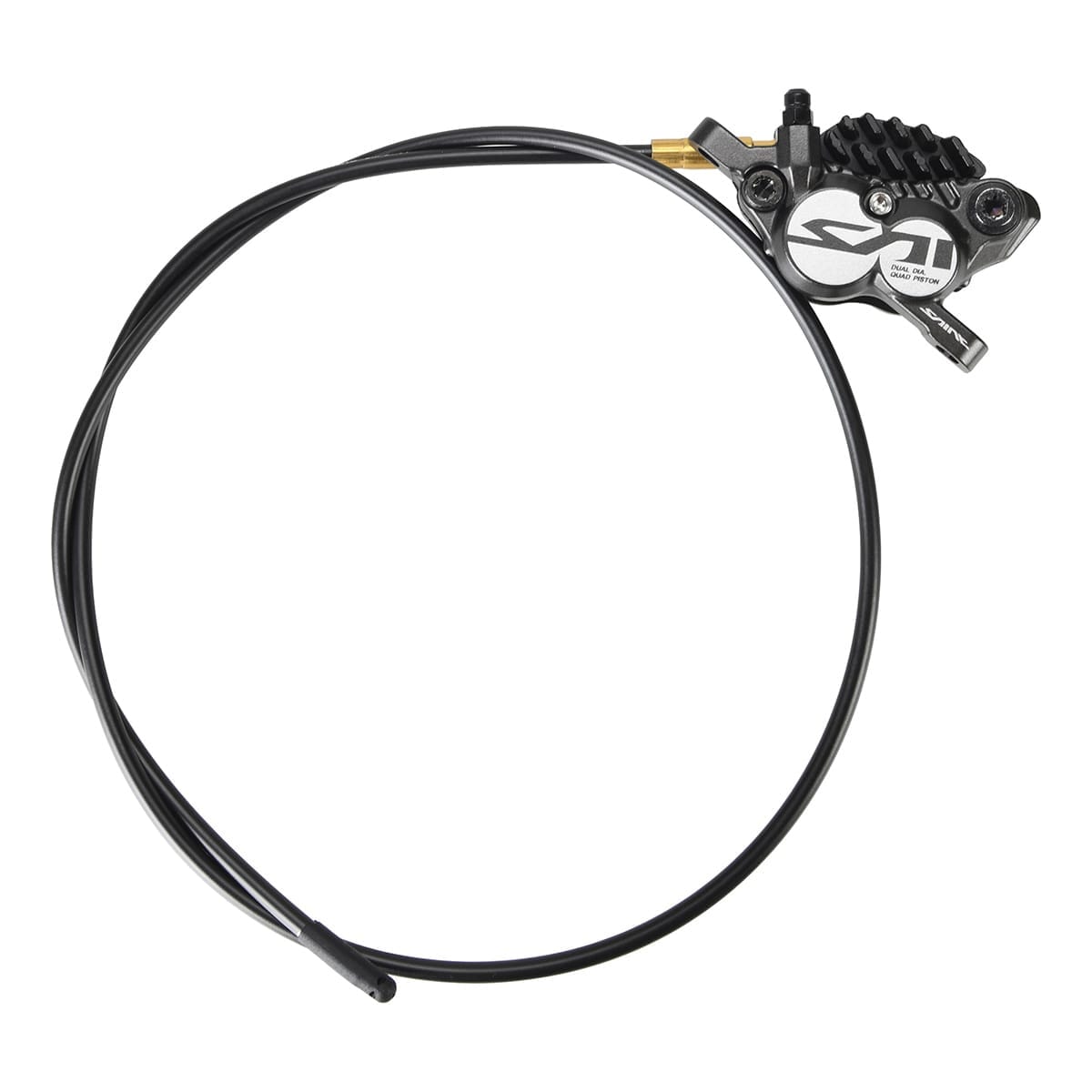

SM-BH90-SBLS hose;
Recommended disks: SM-RT99, SM-RT86.
Weight (manufacturer): 306 g (lever).

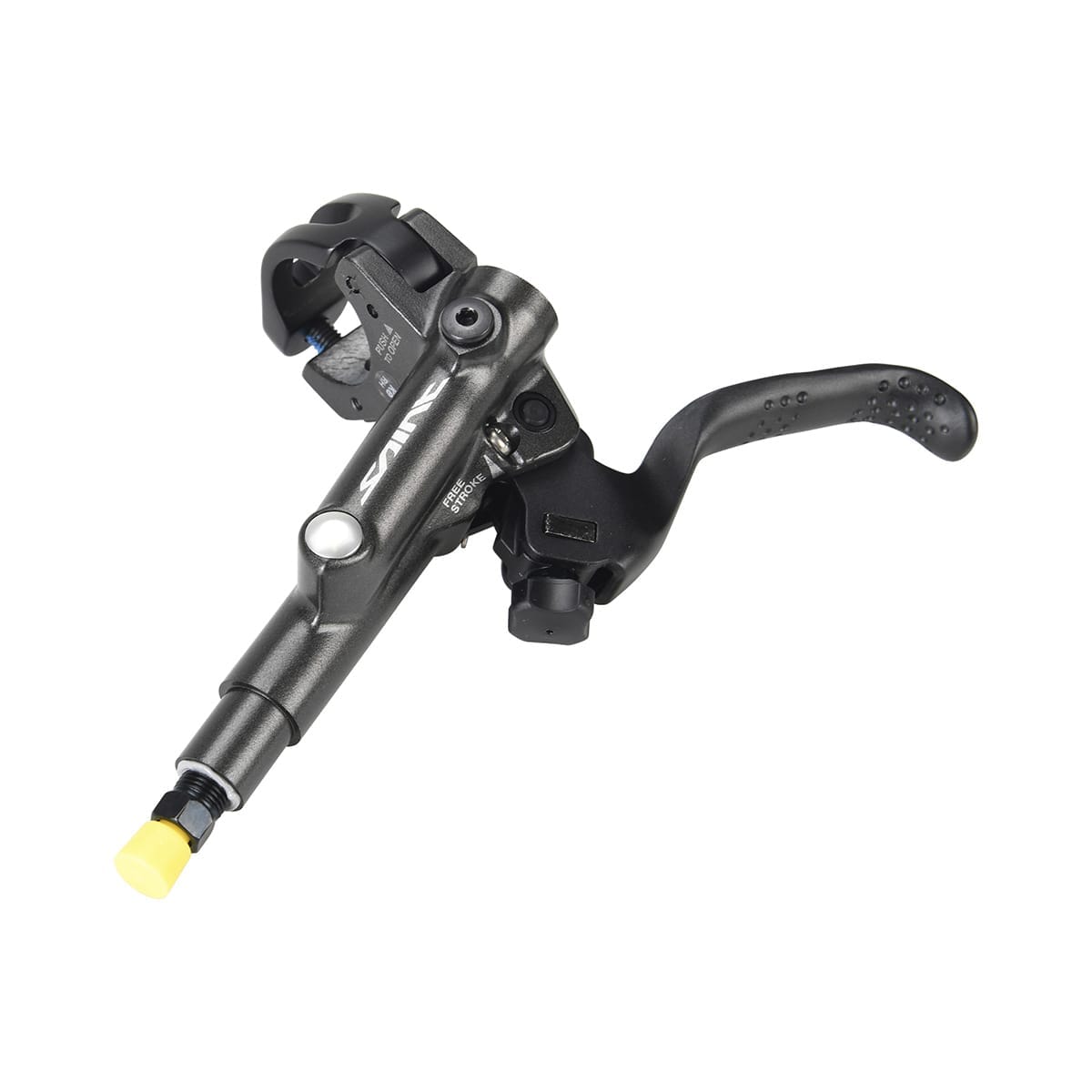

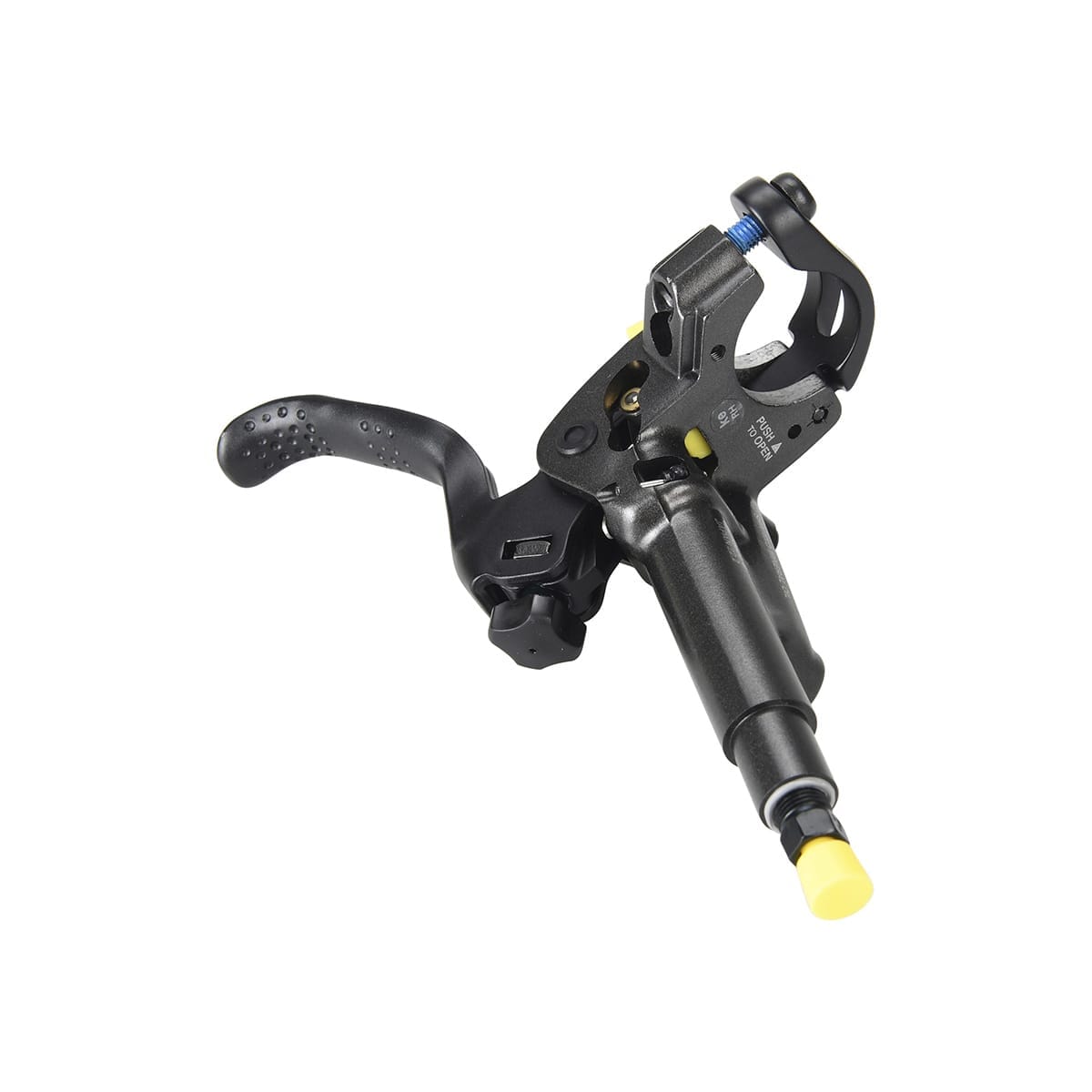

Lever Saint BL-M820- B:
Ergonomic 2-finger, non-slip aluminium lever;
Servo Wave mechanism;
Tool-free stroke and guard adjustment;
Free Stroke: insert/disc contact point adjustment with screwdriver;
I-Spec B mounting;
Weight (manufacturer): 103.2 g (lever).

J-Kit brake mounting:
- Position your brake lever on the handlebar of the bike
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.
