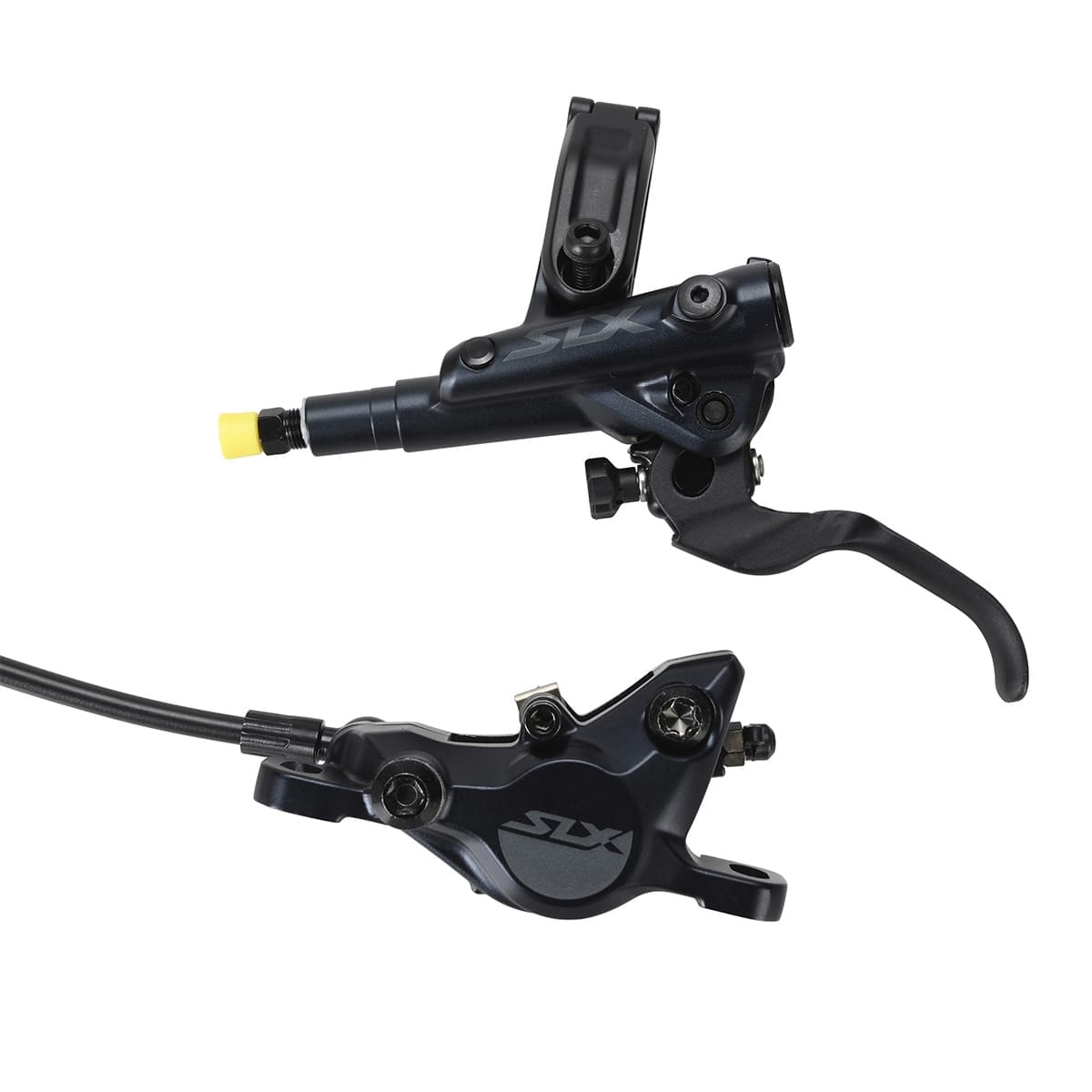

SHIMANO SLX M7100 J-KIT Discless Front Brake

Réf. fabricant : IM7100JLFPRA100
The front brake SLX M7100 from SHIMANO offers a very good price/performance ratio. It guarantees stable, efficient braking in all weather conditions. The housing is solidly built and well-ventilated to... Read more

Recommanded price: 129,99 €

90,90 €
90,90 €
View full details

Description

The front brake SLX M7100 from SHIMANO offers a very good price/performance ratio. It guarantees stable, efficient braking in all weather conditions.

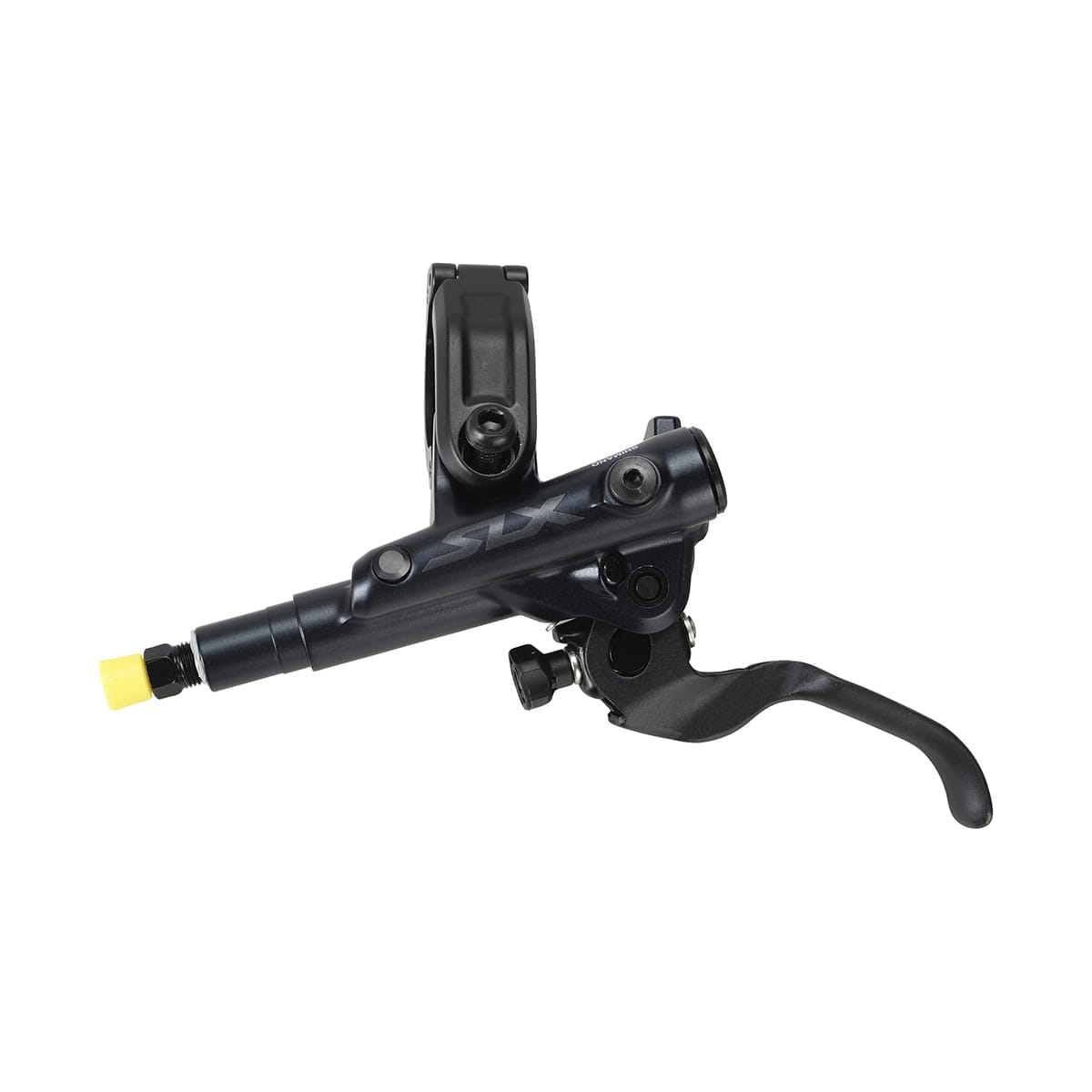

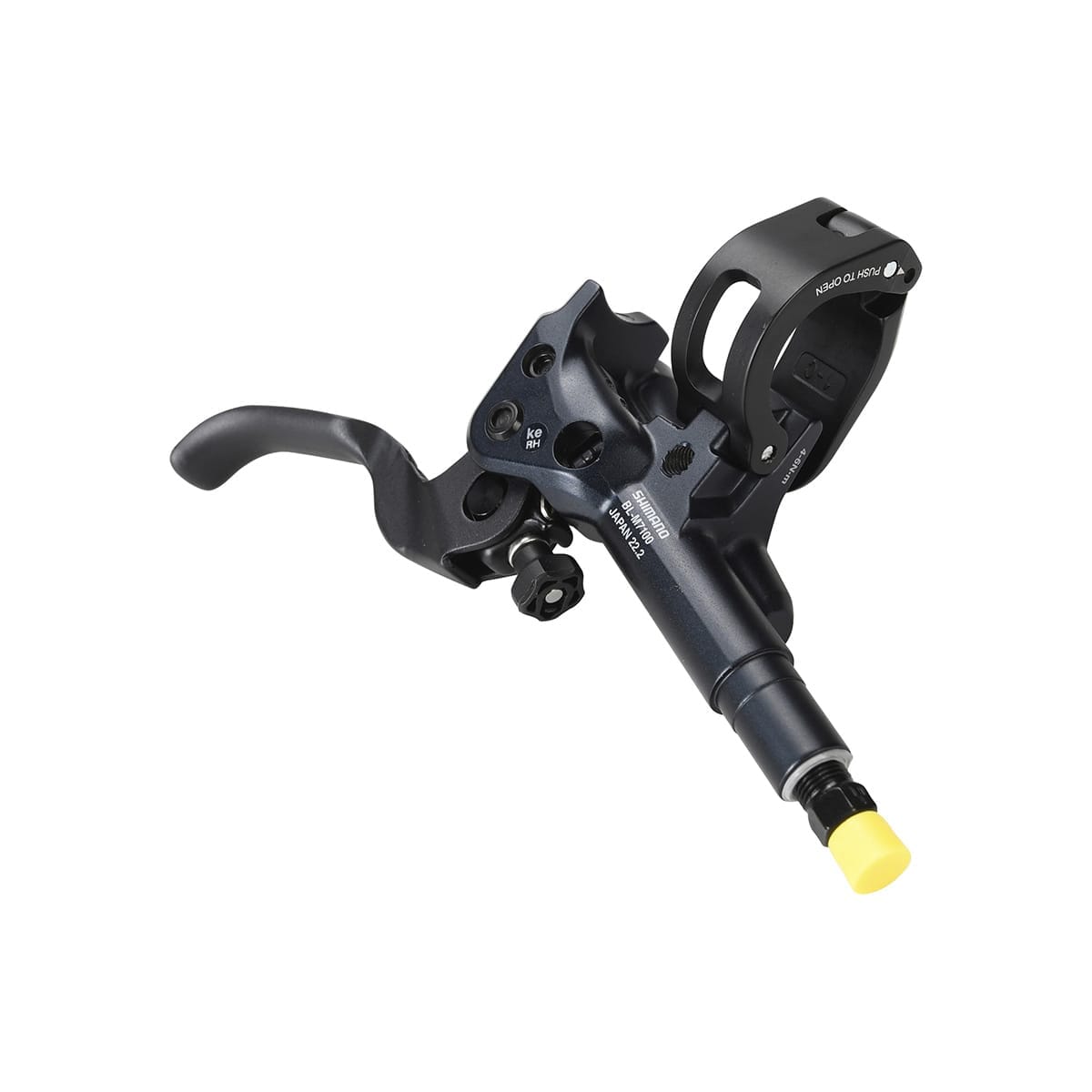

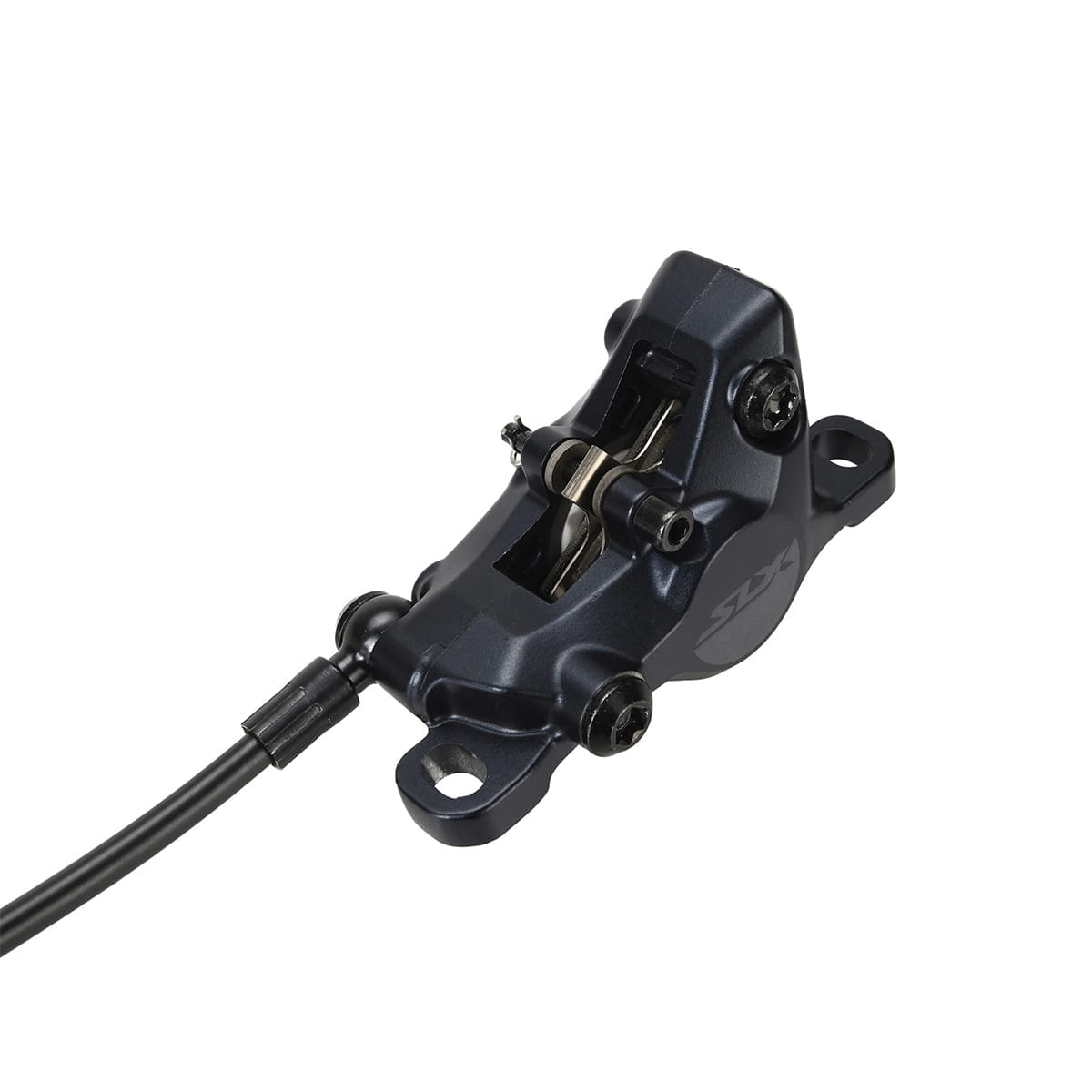

The housing is solidly built and well-ventilated to prevent overheating. The ceramic pistons are formidable, and the One-Way bleeding system is very practical. The master cylinder features an ergonomic aluminum lever with adjustable stroke and 2 points of support on the lever. handlebar, for a more direct braking feel. What's more, Servo-Wave technology ensures a short stroke for a close contact point and excellent responsiveness.

An excellent choice for all-round use!

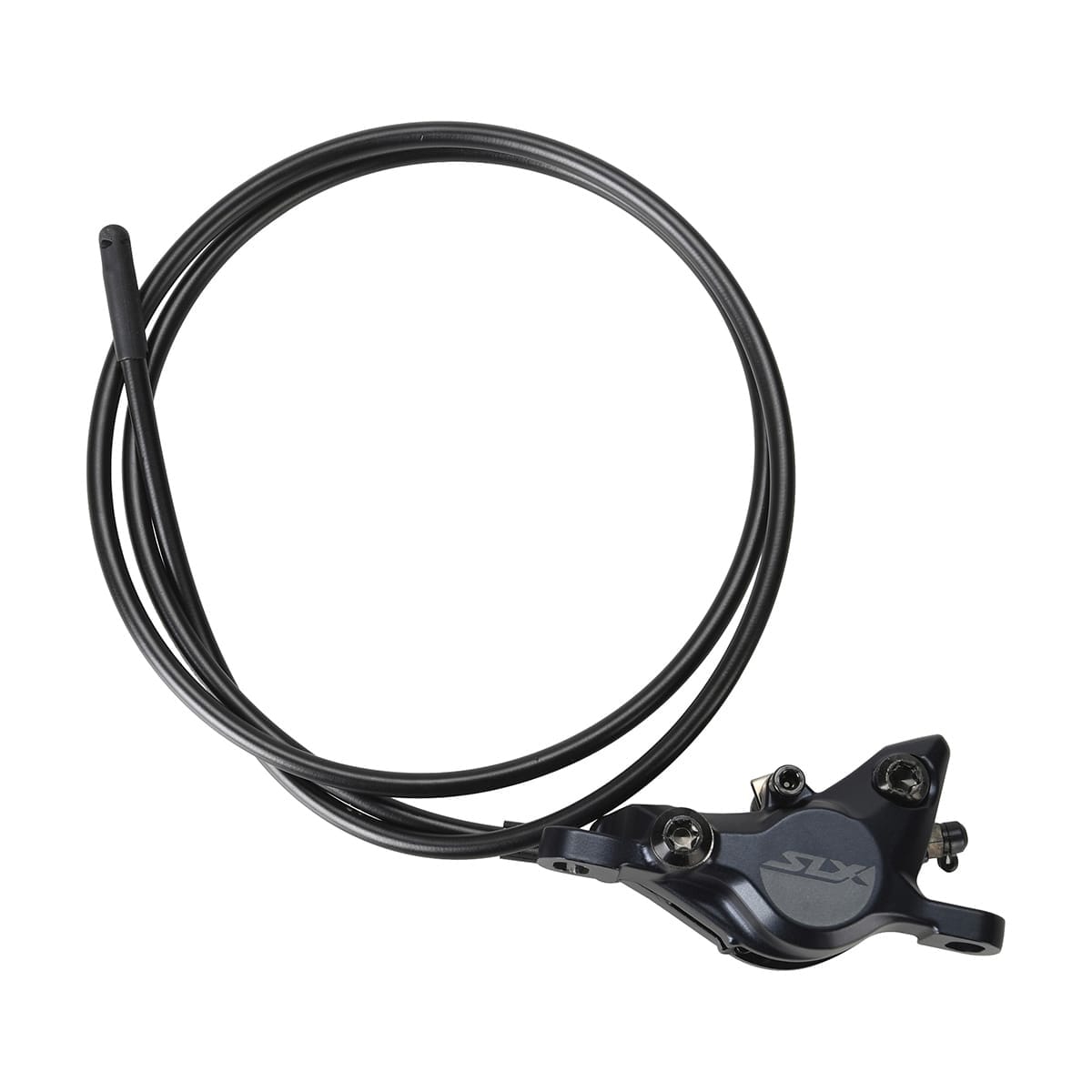

ATTENTION This pair of brakes is supplied in the J-KIT for Junction-Kit (simplified assembly): The principle of the J-Kit system is to facilitate the passage of the brake hose inside the frame (for frames with internal hose/cable passage). The hose is connected to the caliper, but not to the lever, to facilitate installation, and the hose insert with olive is pre-mounted. Installation of these brakes is nonetheless very simple.

Ref: 7977572171942

Points forts

Short-stroke Servo Wave mechanism for faster brake engagement ;

Easy adjustment of the brake clearance;

Single-outlet bleed system for easy maintenance;

Compatible with I-Spec EV systems: a single clamp for brake lever and shifter;

10% stiffer than M7000 even in high-temperature conditions

Caractéristiques

Model year : 2020

Color : Gray

Color : Black

Disc : Not supplied

Warranty : 2 ans

Brake fluid : Mineral

Hose length : Front 100 cm

Lever Material : Aluminum

Brake Pads Organic : Brake Pads Organic

Practice : Cross Country

Caliper type : 160 PM Avant

Hose type : Standard

Brake type : Front

Informations techniques

One Way Bleeding system;
SM-BH90-SBM hose;
I-Spec EV mounting ;
Pre-assembled hose / olive insert ;
Brake supplied bled and ready to use (J-Kit).

Installation of J-Kit brakes:
- Position your brake lever on the handlebar of the bike
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.

Informations prix

Recommended retail price February 2024
