SHIMANO

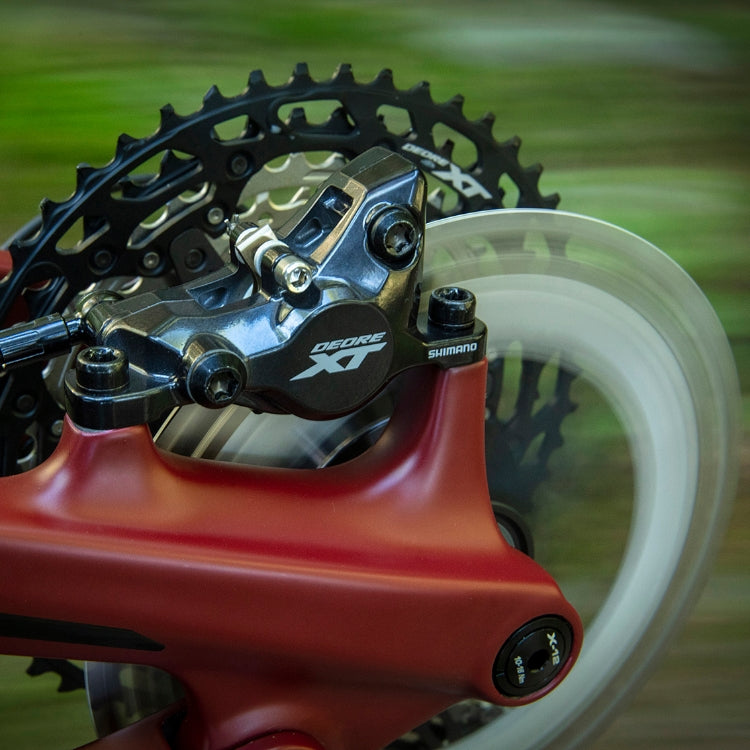

SHIMANO XT M8100 Front Brake J-KIT

Manufacturer reference: IM8100JLFPRA100
The SHIMANO XT M8100 Front Brake combines light weight and stopping power, ideal from cross-country to All Mountain/Trail. The BL-M8100 lever offers intuitive modulation,... Read more
79,99 €
79,99 €
View full details

Description

The SHIMANO XT M8100 Front Brake combines light weight and stopping power, ideal from cross-country to All Mountain/Trail. The BL-M8100 lever offers intuitive modulation, allowing cyclists to push their limits with confidence. Its optimised position and refined ergonomics, with I-SPEC EV technology, ensure intuitive and versatile braking suited to all terrain.

The M8100 calliper, although lightweight, delivers reliable stopping power in all conditions. It is 10% stiffer than the M8000, even at high temperatures, with fast brake engagement thanks to a shorter stroke. Tool-free reach and stroke adjustment allow total adaptability for every rider.

The fast piston return and two-piston design offer superior modulation for better control. Installation is quick and easy thanks to the banjo connection and internal cable routing, making this pair of brakes a high-performance and practical choice for demanding cyclists.

An excellent choice for versatile riding!

► Manufacturer Manual

Ref: 16059794522492

Technical information

╝KEY HIGHLIGHTS
► Lightweight and Powerful: Tailored for cross-country with intuitive modulation
► Intuitive Braking: Optimised lever position and refined ergonomics
► Increased Stiffness: 10% stiffer than M8000, even under high temperatures
► Easy Assembly: Banjo connection and internal routing for quick installation.
► J-KIT: The J-Kit system simplifies internal brake hose routing through the frame, with an easy caliper connection and pre-installed olive for quick, hassle-free installation
► I-SPEC EV: The I-SPEC EV mounting standard provides a clean cockpit, adaptable to all riders thanks to a wide adjustment range, enhancing comfort and focus with ergonomic design and increased stiffness for optimal control
► REACH ADJUST: The brake lever with reach adjust allows you to set the distance from the handlebar grip to the lever, suiting all hand sizes and riding preferences for optimal braking and shifting
► SERVOWAVE ACTION: The SERVOWAVE lever delivers quick initial pad-to-rotor contact, then increases braking power for enhanced control with less lever travel
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring quick and clean bleeding thanks to a one-way oil routing and a funnel tool
► FREE STROKE: Adjust the distance from the initial lever position to the pad contact point according to hand size, riding style, and personal preference╔

┘GENERAL
• Series: Deore XT
• Manufacturer Reference:
_Lever: BL-M8100
_Caliper: BR-M8100
• Weight:
_Lever: 105g
_Caliper: 121g
_Lever/Caliper/Hose Set: 374g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Caliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Shifter Integration: I-SPEC EV
• Lever Length: 2-Finger
• I-SPEC EV Adjustment Angle: 20°
• Number of Pistons: 2
• Caliper Mount: PostMount (PM)
• Brake Pads: G05A-RX, G04S-MX, J05A-RF, J04C-MF
• Recommended Brake Fluid: Shimano mineral oil
• Hoses: 1000mm - SM-BH90-SBM - Banjo fitting
• Min./Max. Rotor Ø: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: RT-MT800 (not included)
• Supplied as pre-bled J-Kit setup ready to connect.
;

Price information

*Supplier recommended retail price in February 2024

Overall rating: 5.0 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["fingers","braking","brakes","adjustment","handling"].

Review highlights

Reviews

Frein comme prévu

"En remplacement de la pièce d'origine ok. Par contre contraint d'acheter un j-kit car levier seule introuvable."

— Walker64 (5/5)

Super produit

"Freinage puissant et bien dosable, après un détour chez Sram je reviens chez Shimano le meilleur rapport qualité finition puissance prix et facilité de mise en oeuvre"

— Rvdn (5/5)

Xt 2 pistons

"Meilleur rapport qualité prix depuis longtemps touché, puissance, maintenance, remplacement des plaquettes. . ."

— Markus (5/5)

Frein puissant, utilisation tres agreable.

"Très satisfait , installation très facile à réaliser en suivant les explications ( je n'ai pas eu a recouper la gaine car la longueur de gaine etait compatible avec mon vtt). Ne pas oublier de maintenir la poignée fermement tout en positionnant le bouchon jaune vers le haut avant de l'oter. Continuer à maintenir la poignee tout en introduisant la gaine dans l'orifice (sans oter la membrane qui assure l'étanchéité de la gaine). Installation terminée ce frein assure une grosse puissance de freinage facile à doser. Poignée tres agreable . Deux doigts suffisent pour un freinage au top."

— Anonymous (5/5)

Parfait

"Facile à monter. Purge non nécessaire. Freine fort avec un seul doigt, une fois les plaquettes rodées. Bref, je suis ravi !"

— Oliveraie34 (5/5)

Super touché

"La durite est un poil trop longue (fourche en 29 pouces et guidon de 670 de large). Obligation de réduire la durite."

— Moi25 (5/5)

frein au top super puissant

"frein shimano au top frein super puissant avec un seul doigt sans forcer on bloque les roues ,réglage du levier trop bien et réglage des plaques de frein très pratique, le doigt ne glisse pas du tout du levier de frein très bonne accroche . montage simple et rapide"

— Rud. G. (5/5)
