• SHIMANO XTR M9120 4-Piston Front Brake J-KIT (Without Rotor)
1 1
SHIMANO

SHIMANO XTR M9120 4 Piston Front Brake J-Kit Ventilated Resin Pads

Réf. fabricant : IM9120JLFPSA100
The SHIMANO XTR M9120 Front Brake combines the lever XTR Trail lever with a new 4-piston caliper, offering optimized braking power for modern mountain... Read more
249,90 €
249,90 €
View full details

Description

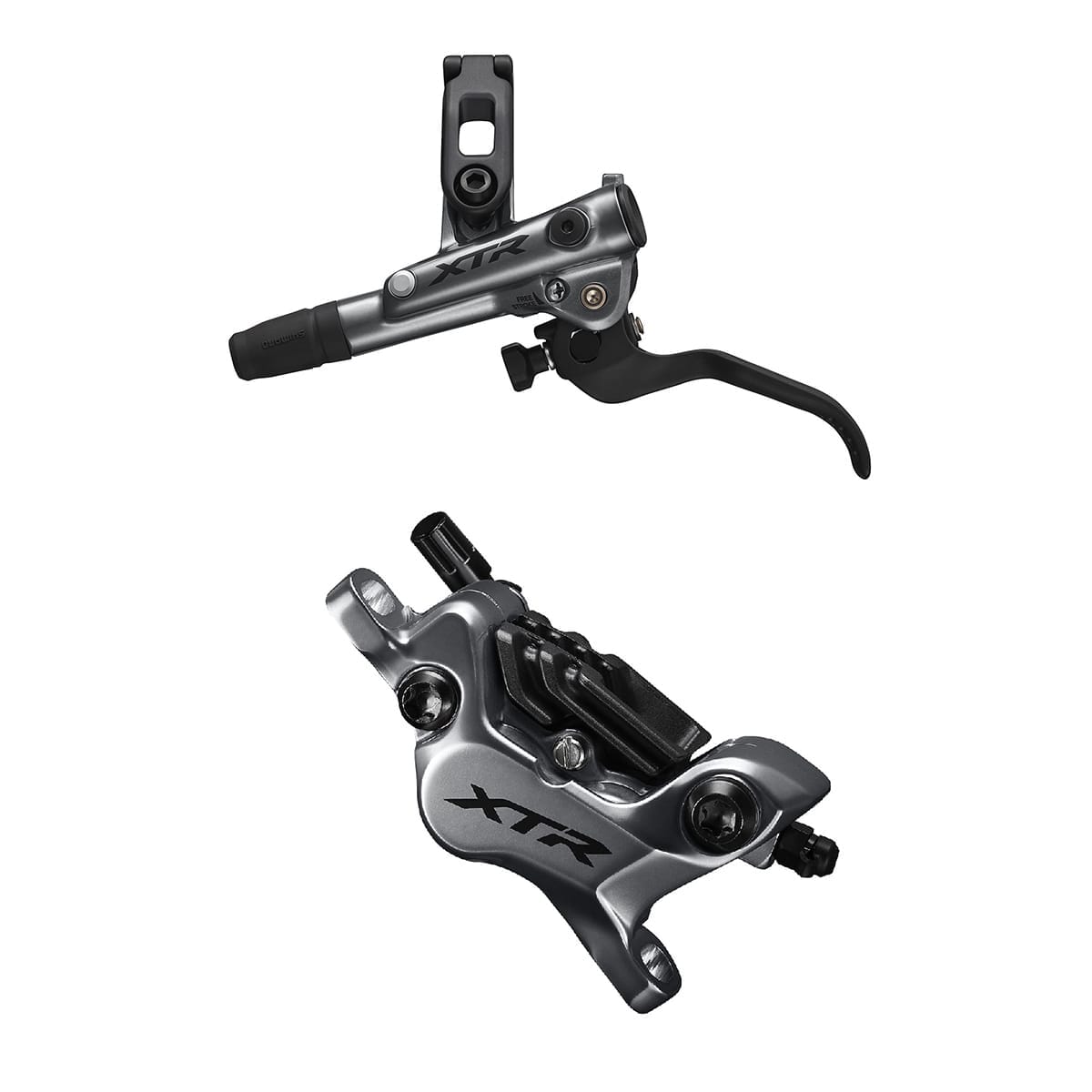

The SHIMANO XTR M9120 Front Brake combines the lever XTR Trail lever with a new 4-piston caliper, offering optimized braking power for modern mountain bikes. Tool-free reach adjustment and standard I-SPEC EV allow custom configuration and seamless integration.

The BL-M9120 lever lever ensures smooth operation, with rapid rebound between actions, allowing the rider to remain focused. Its modified shape and 8% greater rigidity than the M9000, even in high-temperature conditions, guarantee consistent performance.

The XTR M9120 calipermachined in MONO-BODYThe M9000 maximizes rigidity with four ceramic pistons, offering braking power to suit all riding styles. Braking force is higher with reduced effort, offering linear response and a shorter stroke, reduced by 30% compared to the M9000.

The system offers 10% more braking power than the M9020, with a banjo connection and internal cable routing for clean, efficient installation.

► Manufacturer's manual

Ref: 7977572532390

Informations techniques

╝FEATURES
► Optimized power: 4-piston caliper for high-performance mountain bikes
► Smooth operation: Quick bounce for better concentration
► Increased rigidity: 8% stiffer than the M9000, even at high temperatures
► MONO-BODY design: Maximizes rigidity with ceramic pistons
► High braking force: 30% reduction in stroke and return stroke
► J-KIT: The J-Kit system facilitates the passage of the brake hose inside the frame, with a simplified connection to the caliper and a pre-mounted olive, for quick and easy installation
► ACTION SERVOWAVE: The SERVOWAVE lever enables rapid contact of the pads with the rotor, then multiplies braking power for increased control with less lever movement
► REACH AJUST: Brake lever with reach adjustment allows you to adjust the distance between handle and lever, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► I-SPEC EV: The I-SPEC EV mounting standard offers a streamlined cockpit, adaptable to all pilots thanks to a generous adjustment range, improving comfort and concentration with ergonomic design and increased rigidity for optimal control
► ICE TECHNOLOGIES: Shimano ICE TECHNOLOGIES components reduce heat build-up, ensuring constant braking and preventing slack during intense, prolonged descents╔

┘GENERAL
- Series: XTR
- Part Number Manufacturer :
Lever: BL-M9120
Stirrup: BR-M9120
- Weight :
Lever: 97g
Stirrup: 131g
Lever/caliper/hose assembly: 359g (average weight for a front brake with 800mm hose)
- Materials :
Levers: Aluminum
Caliper: Aluminium body, Titanium screws
Pistons: Ceramic┌

┘FEATURES
- Shift/brake lever integration: I-SPEC EV
- Lever length: 2 Fingers
- I-SPEC EV adjustment angle: 60°.
- Number of pistons: 4
- Stirrup mounting: PostMount (PM)
- Inserts: resin with fin
- Recommended Brake Fluid: Shimano mineral oil
- Hoses: 1000mm - SM-BH90-SBM - Banjo fitting
- Ø Discs min./max. 160mm to 220mm (combined with required adapters)
- Recommended disk: SM-MT900 (not supplied)
- J-Kit pre-purge : Yes┌
;
