SRAM DUB PRESS FIT 86.5mm crankset
Couldn't load pickup availability

Description

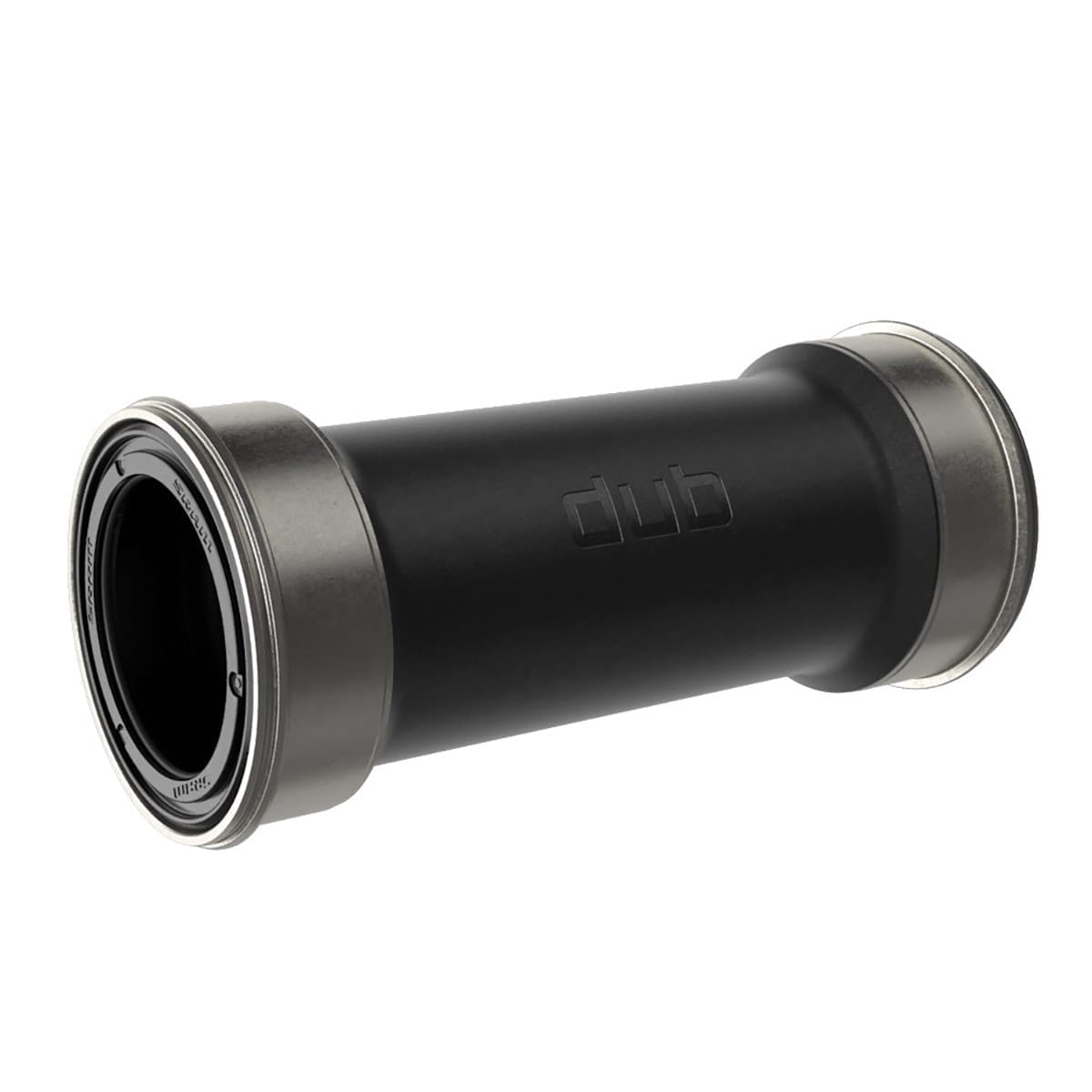

Designed for use with Sram or Truvativ cranksets featuring Dub technology, the SRAM Dub bottom bracket shell is offered here in a version for frames with the Press Fit 86.5mm bottom bracket standard.
Designed to simplify and increase the reliability of the frame/bottom bracket interface, the Dub concept makes it possible to fit your Sram or Truvativ crankset featuring this technology to virtually any frame on the market, thanks to its universal system. These cranksets are in fact compatible with all major bottom bracket standards, the only adjustment variable being the housing.
In addition to this practical and economical aspect, this housing boasts incredible rigidity, guaranteeing better bearing operation and longer life
SRAM DUB bottom bracket compatibility.
A - Diameter (mm) | B - Width (mm) | Assembly | Standard |
34,8 | 68 | screw-on | BSC / BSA |
34,8 | 73 | screw-in | BSC / BSA |
34,8 | 83 | screw-in | BSC / BSA |
34,8 | 100 | screw-in | BSC / BSA |
27 | 95,5 | insert | BB 96 (Trek) |
41 | 92 | insert | PF 92 |
42 | 68 | insert | BB 30 |
42 | 73 | insert | BB 30 |
46 | 68 | insert | PF 30 |
46 | 73 | insert | PF 30 |
![]() |
Ref: 8014462681254
