SRAM

SRAM MAVEN ULTIMATE B1 rear brake Black

Réf. fabricant : 00.5018.259.001
The SRAM MAVEN ULTIMATE B1 brake is the power reference for modern gravity practices. Designed to offer confidence and commitment on demanding terrain, it... Read more
Regular price 299,90 €
Regular price Sale price 299,90 €
View full details

Description

The SRAM MAVEN ULTIMATE B1 brake is the power reference for modern gravity practices. Designed to offer confidence and commitment on demanding terrain, it delivers extreme braking force while maintaining precise control at high speed. This performance makes it possible to attack harder downhill, while retaining controlled modulation to adjust power according to the needs of the course.

At the heart of the system, the optimized SwingLink architecture delivers smooth power with reduced kick-in force, limiting hand fatigue. The rigid 4-piston 18 mm caliper efficiently manages heat to maintain braking consistency from the first to the last corner. Compatibility with different brake pads and disc sizes offers extensive customization, suitable for gravity, VTTAE, enduro or trail bikes.

The high-end finish combines Ultimate carbon levers and titanium screws for a modern, durable design. Toolless guard adjustment and contact point adjustment simplify set-up. Running on Maxima mineral oil, this brake guarantees low maintenance and reliable performance on all outings.

Ref: 15893107376508

Informations techniques

Model code: DB-MVN-ULT-B1 ;
Use: Enduro and DH/Freeride ;
Brake type: Hydraulic ;

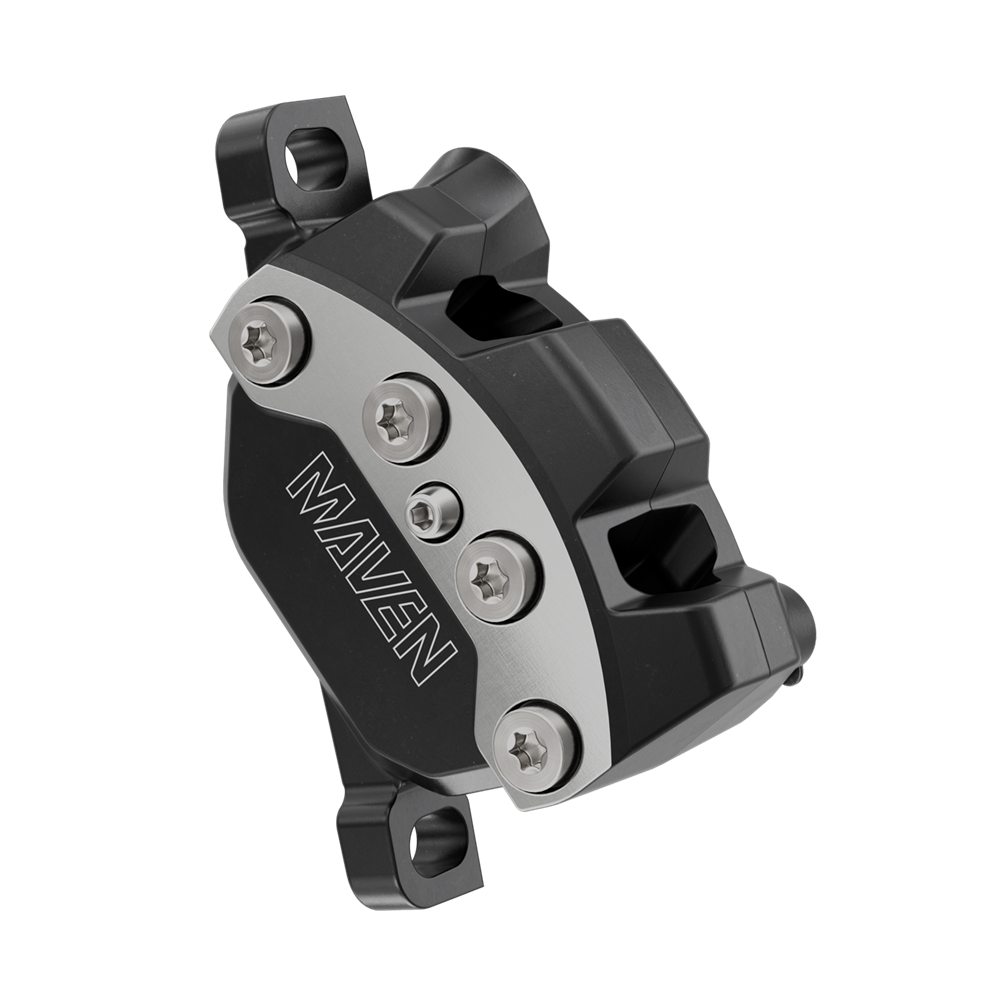

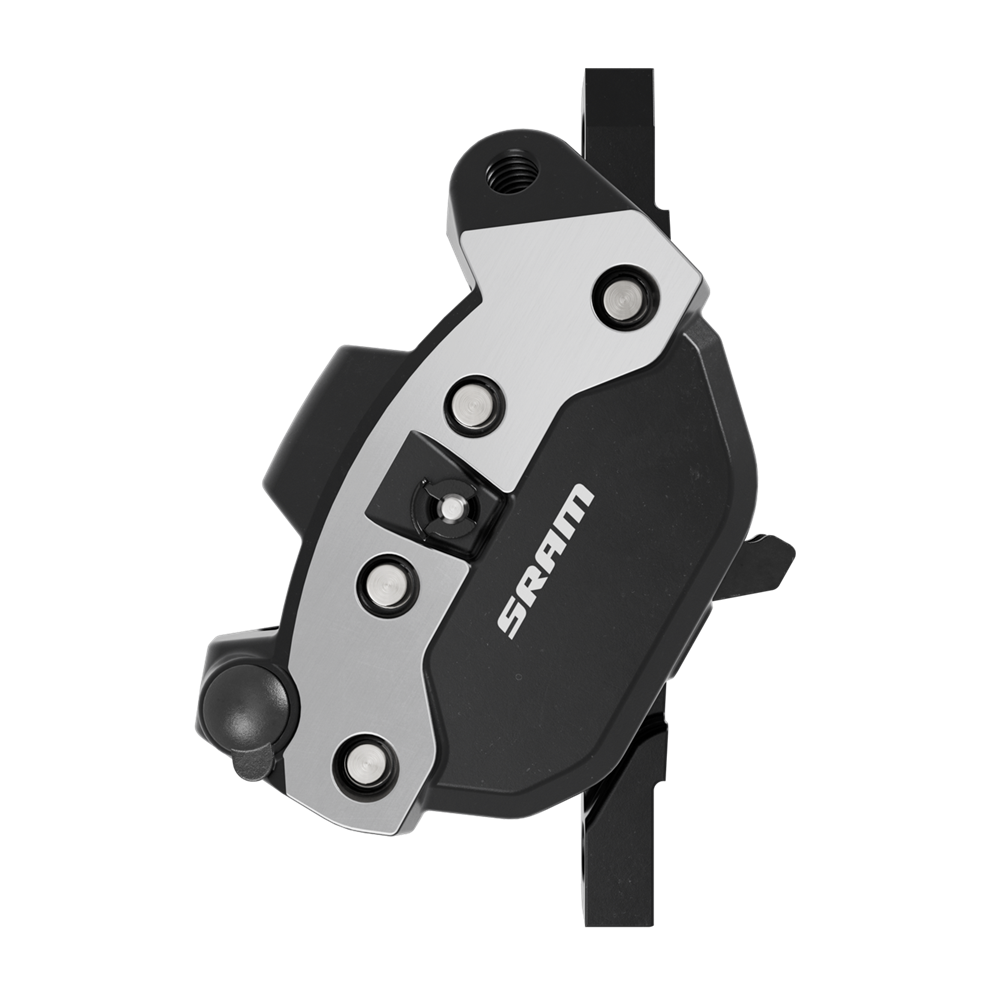

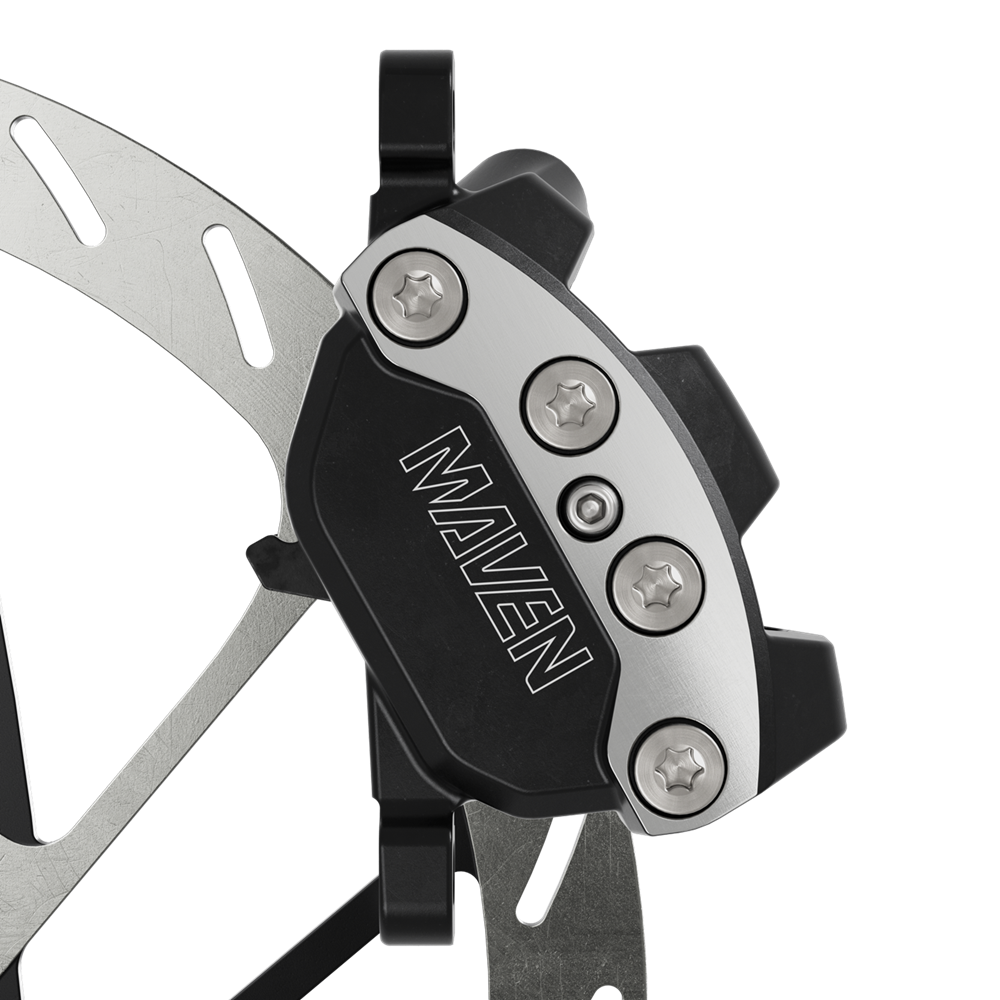

Forged aluminum caliper with 4 18 mm pistons;
Phenolic plastic pistons ;
Montage PM ;
Titanium caliper screws ;

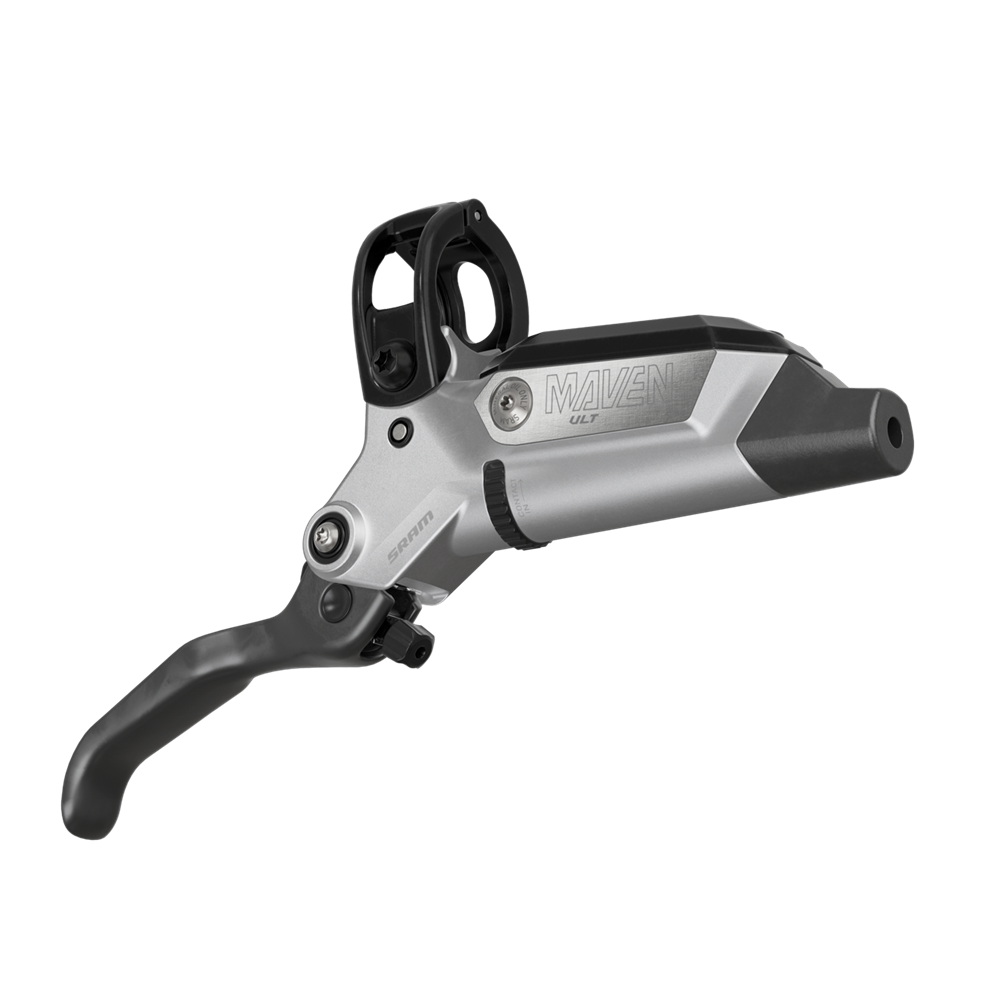

Carbon lever with bearing pivot ;
Lever body material
Forged aluminum ;
SwingLink technology revisited from A1 model;
Hose length: 2000mm ;
Clear anodized finish ;
Insert type:
Organic / Steel plate ;
Toolless lever guard adjustment ;
Contact point adjustment ;
Bleeding Edge orifice ;
SRAM mineral oil ;
Designed for use with the SRAM mineral oil drain kit;
Ambidextrous brake: The brake lever can be positioned on either the left or right side of the handlebars;
Recommended disc: Sram HS2 ;
Type of leverage ratio: Progressive ;
Stroke initiation force: 4.25 N ;
MMX necklace;
Weight (manufacturer): 363g.

Informations prix

*Supplier suggested retail price in February 2026
