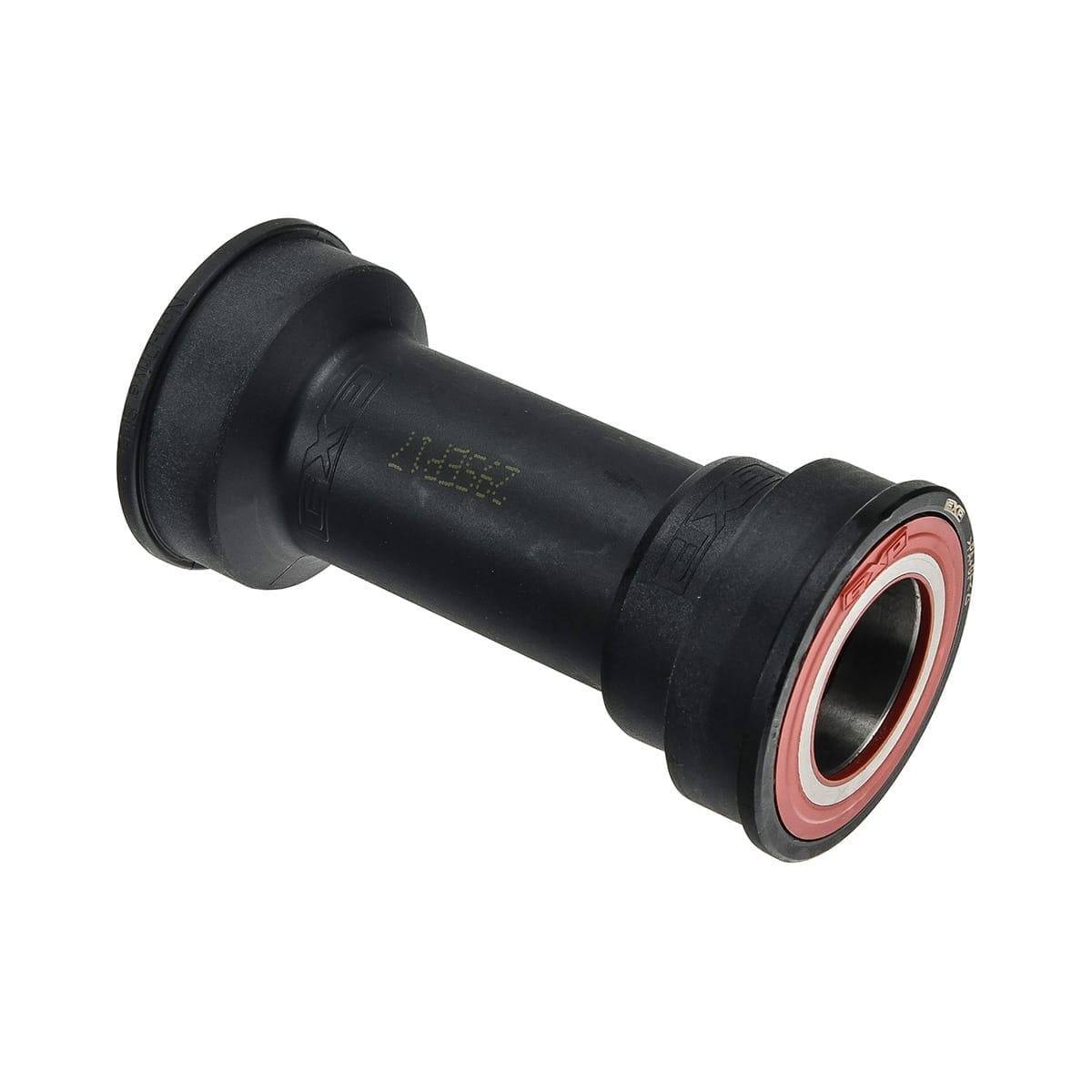

SRAM PRESSFIT GXP crankset

A variant of the external GXP, the bottom bracket SRAM PressFit GXP bottom bracket saves 40 grams in weight, and makes installation easier by simply pressing the bearing cups into the frame, rather than inserting them by hand.

There's no need to change the diameter or length of the crankset axle.

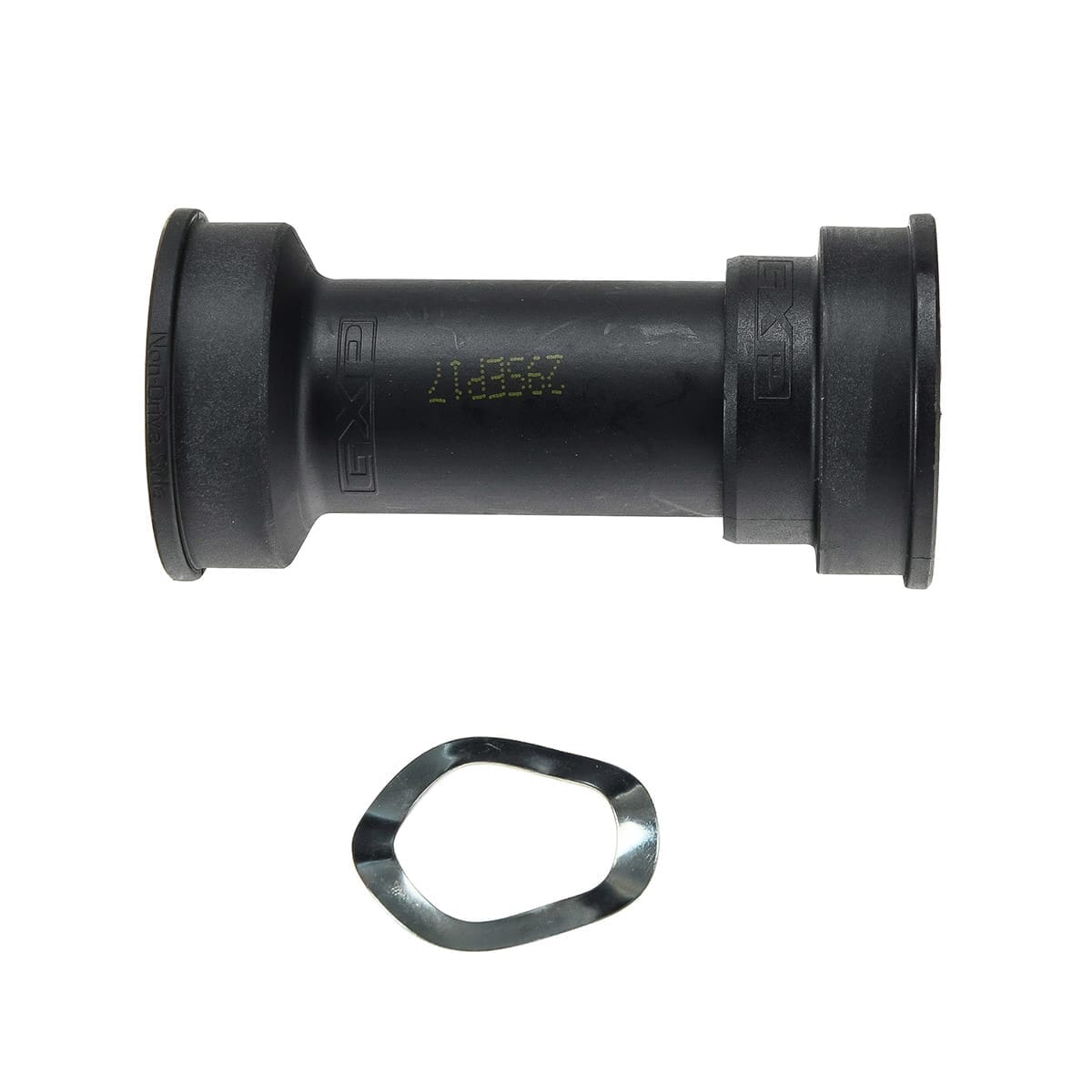

Comprising left and right bearings, this GXP BB86 housing is designed for bottom brackets with 86 mm frame widths.

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	screw-on	BSC / BSA
34,8	73	screw-in	BSC / BSA
34,8	83	screw-in	BSC / BSA
34,8	100	screw-in	BSC / BSA
27	95,5	insert	BB 96 (Trek)
41	92	insert	PF 92
42	68	insert	BB 30
42	73	insert	BB 30
46	68	insert	PF 30
46	73	insert	PF 30

Ref: 9208857592157
