DEDA

Stem DEDA SUPERBOX DCR POB finish

The system Deda Superbox® system offers an exclusive solution with two mounting options for internal cable routing. Full internal cable routing (DCR) or semi-internal... Read more

Recommanded price: 142,00 €

Regular price 102,90 €
Regular price Sale price 102,90 €
View full details

Description

The system Deda Superbox® system offers an exclusive solution with two mounting options for internal cable routing. Full internal cable routing (DCR) or semi-internal cable routing (S-DCR) through a cover allowing installation, adjustment or maintenance without unnecessary complications for electronic cables and hydraulic sheaths.

The Superbox® operates with a standard 1-1/8" fork, and the Stem is compatible with a 46 mm (for 1-1/8" bearings) or 56 mm (for 1.5" bearings) top steerer tube.

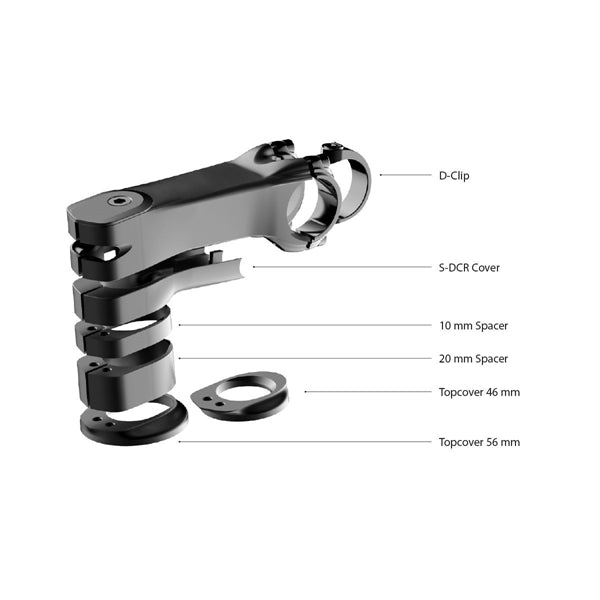

The Stem package includes special spacers providing passages for the Outer casing. The spacers and nylon cover are designed with slots that allow them to be opened, and they can be added or removed for precise adjustment without having to remove all the cables.

Ref: 7967907152038

Informations techniques

Material: Alloy 6061
Angle: 82
Diameter of handlebar Diameter: 31.7 mm
Fork steerer tube: 1 1/8" (28.6 mm)
Weight: 175 g (110 mm)
Color: POB (Polish on Black)
Accessories included:

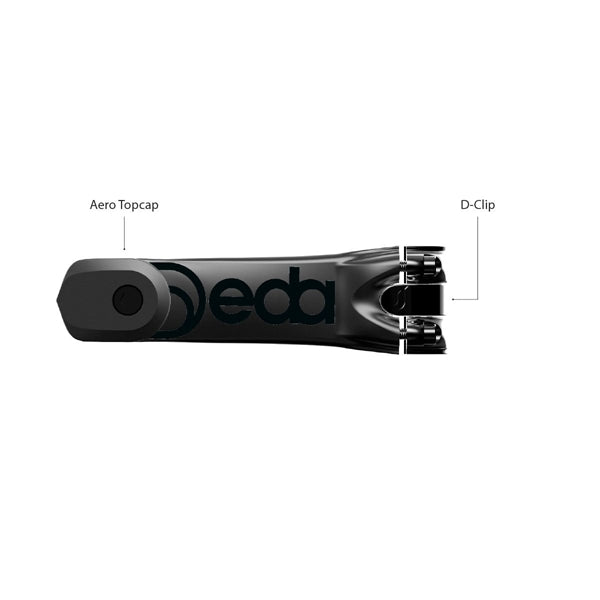

integrated top cap, headset spacers and top cap for 56 mm and 46 mm head tubes, D-fastening insert.
Note:
Internal cable routing (DCR) is only suitable for electronic groupsets (up to 3 cables), semi-integrated cable routing (S-DCR) is suitable for all bike and group configurations (up to 4 cables).

Sizes :
70 mm (SBOXDCR-POB070)
80 mm (SBOXDCR-POB080)
90 mm (SBOXDCR-POB090)
100 mm (SBOXDCR-POB100)
110 mm (SBOXDCR-POB110)
120 mm (SBOXDCR-POB120)
130 mm (SBOXDCR-POB130)
140 mm (SBOXDCR-POB140)

Informations prix

Recommended retail price February 2024
