ENVE

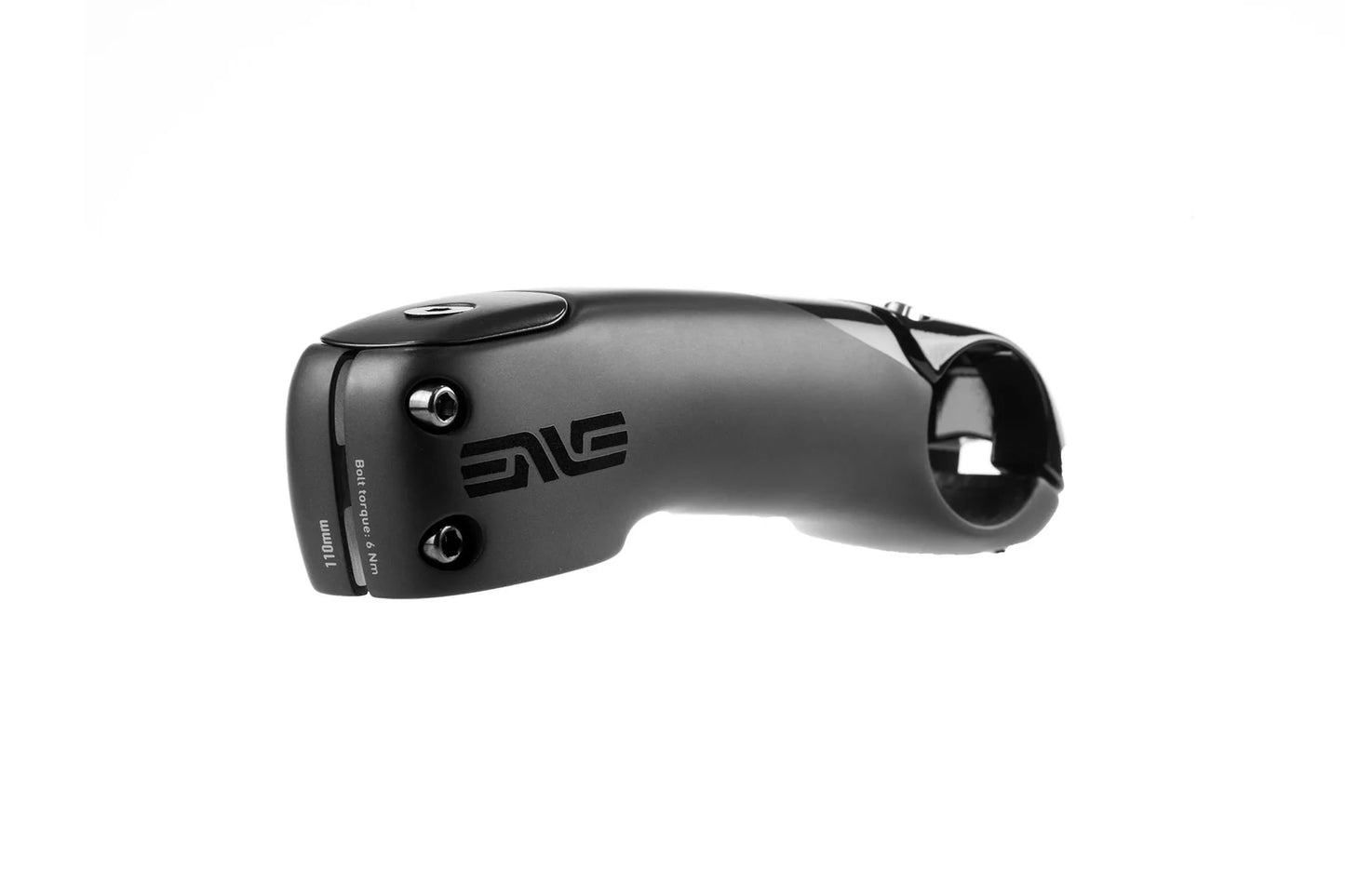

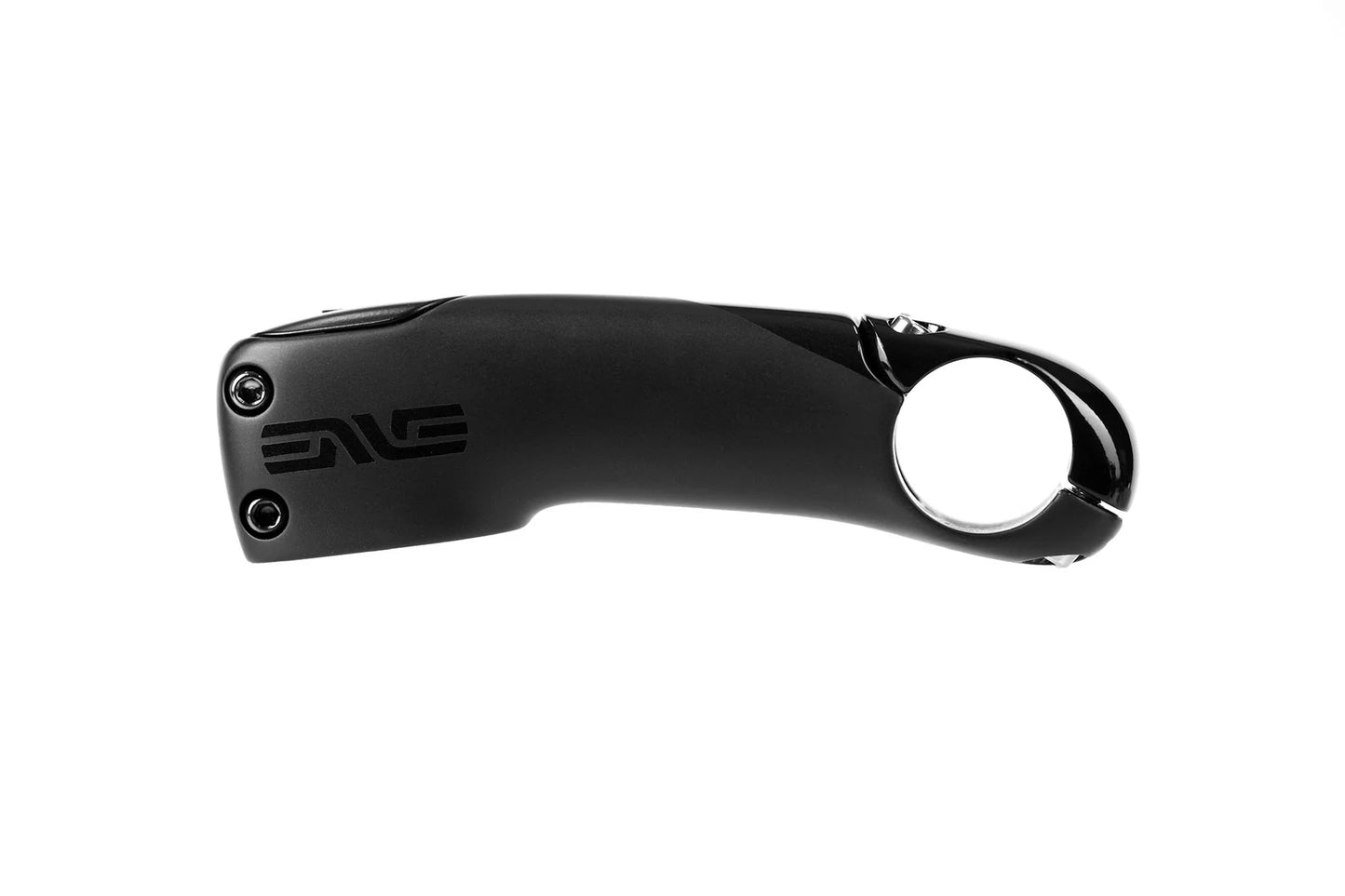

Stem ENVE Aero Passage Interne

La Stem ENVE Aero Passage Interne is designed with the same approach as the handlebar SES Aero Compact, with which it will form a lightweight,... Read more

Recommanded price: 429,00 €

Regular price 399,90 €
Regular price Sale price 399,90 €
View full details

Description

La Stem ENVE Aero Passage Interne is designed with the same approach as the handlebar SES Aero Compact, with which it will form a lightweight, aerodynamically perfect unit.

Assembly instructions

Cable routing instructions

Length Reach (mm) Extension (mm) Weight (g) Reference ENVE
80mm 79,8 12,5 170 300-1029-028
90mm 89,7 10,4 176 300-1029-029
100mm 99,5 8,2 177 300-1029-030
110mm 109,3 5,8 179 300-1029-031
120mm 119,1 3,4 190 300-1029-032
130mm 128,9 0,8 194 300-1029-033



Ref: 9205467775325

Informations techniques

Material: Carbon
Faceplate material: Aluminium
Screw material: Titanium

Ø Fork pivot : 1" 1/8
Ø handlebar diameter : 31,8mm
Rise/Angle: -7

Tightening torque :
- Au handlebar : 5.5nm
- Au pivot: 5.5nm
Max. spacer height: 40mm

► Internal cable entry

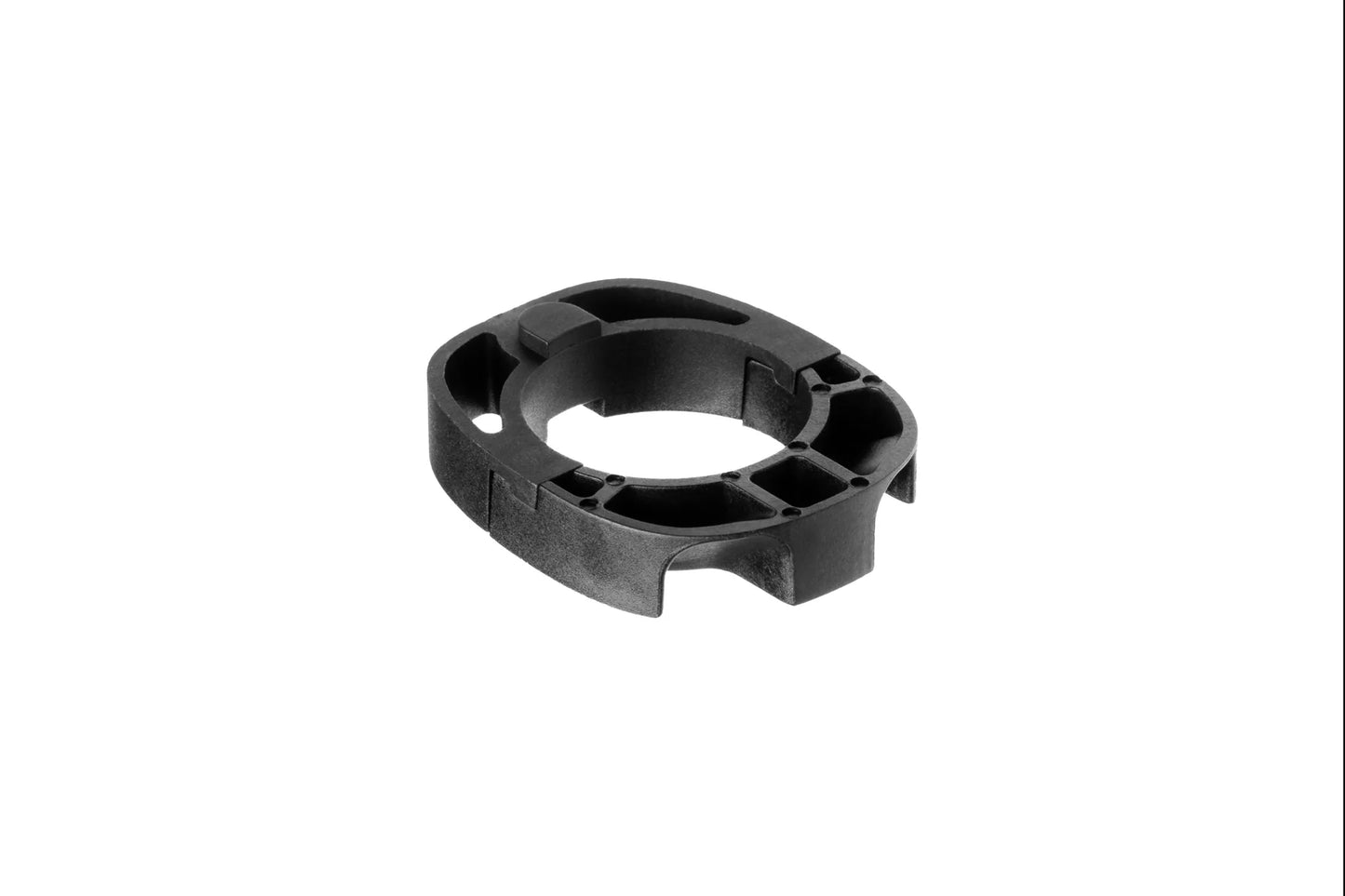

► Round spacers
► Compatible with ENVE K Edge Aero Road GPS bracket

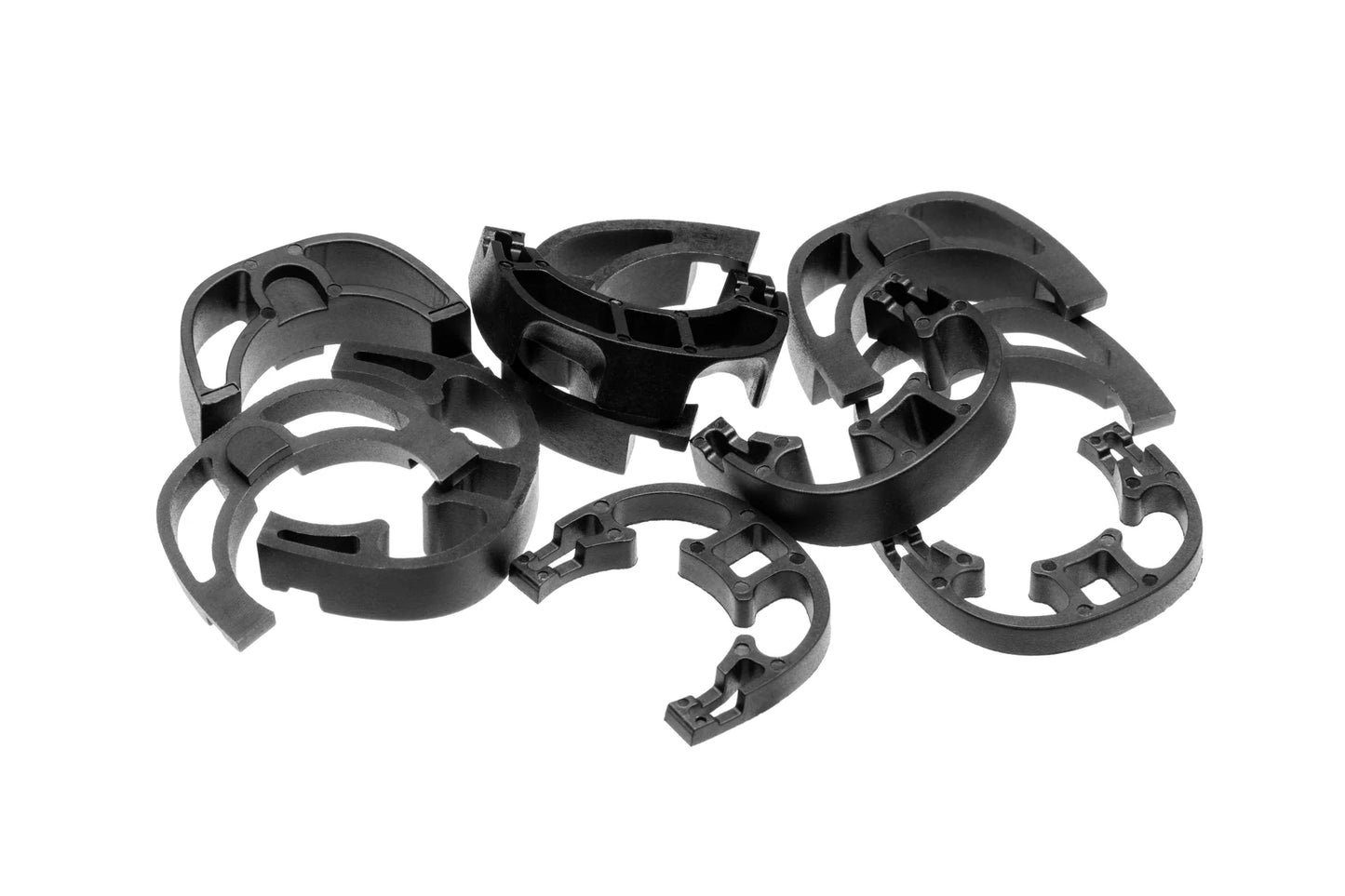

Supplied with directional spacers: 3x10mm, 2x5mm, 1x10mm bypass.

Informations prix

Recommended retail price February 2024
