ENVE

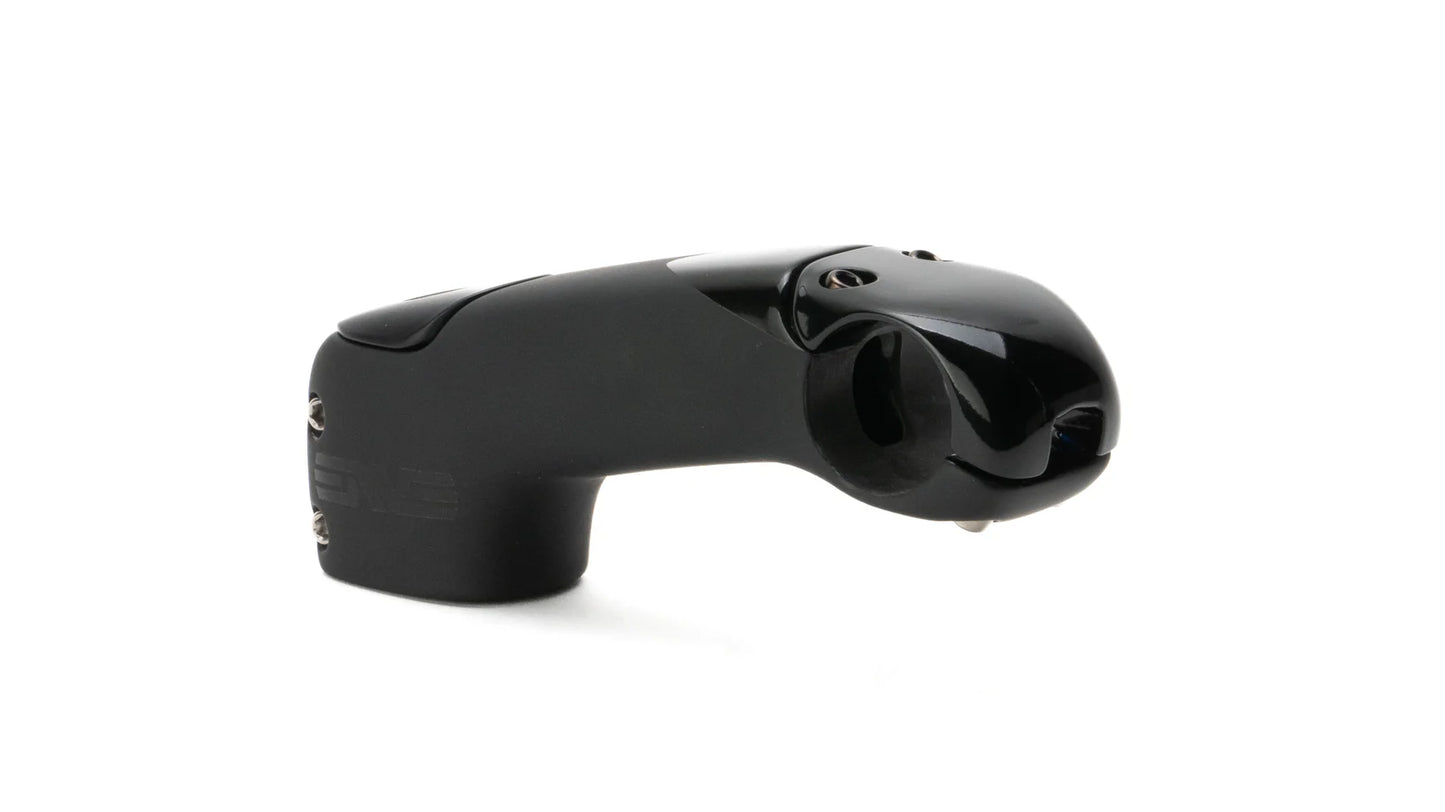

Stem ENVE Passage Interne High Rise

La Stem ENVE Internal Passage High Rise allows a more comfortable position without adding Headset Spacers. In addition to a positive chis Stem can... Read more

Recommanded price: 409,00 €

Regular price 348,90 €
Regular price Sale price 348,90 €
View full details

Description

La Stem ENVE Internal Passage High Rise allows a more comfortable position without adding Headset Spacers. In addition to a positive chis Stem can provide 43.5 to 49 mm of lift.

Assembly instructions

Cable routing instructions

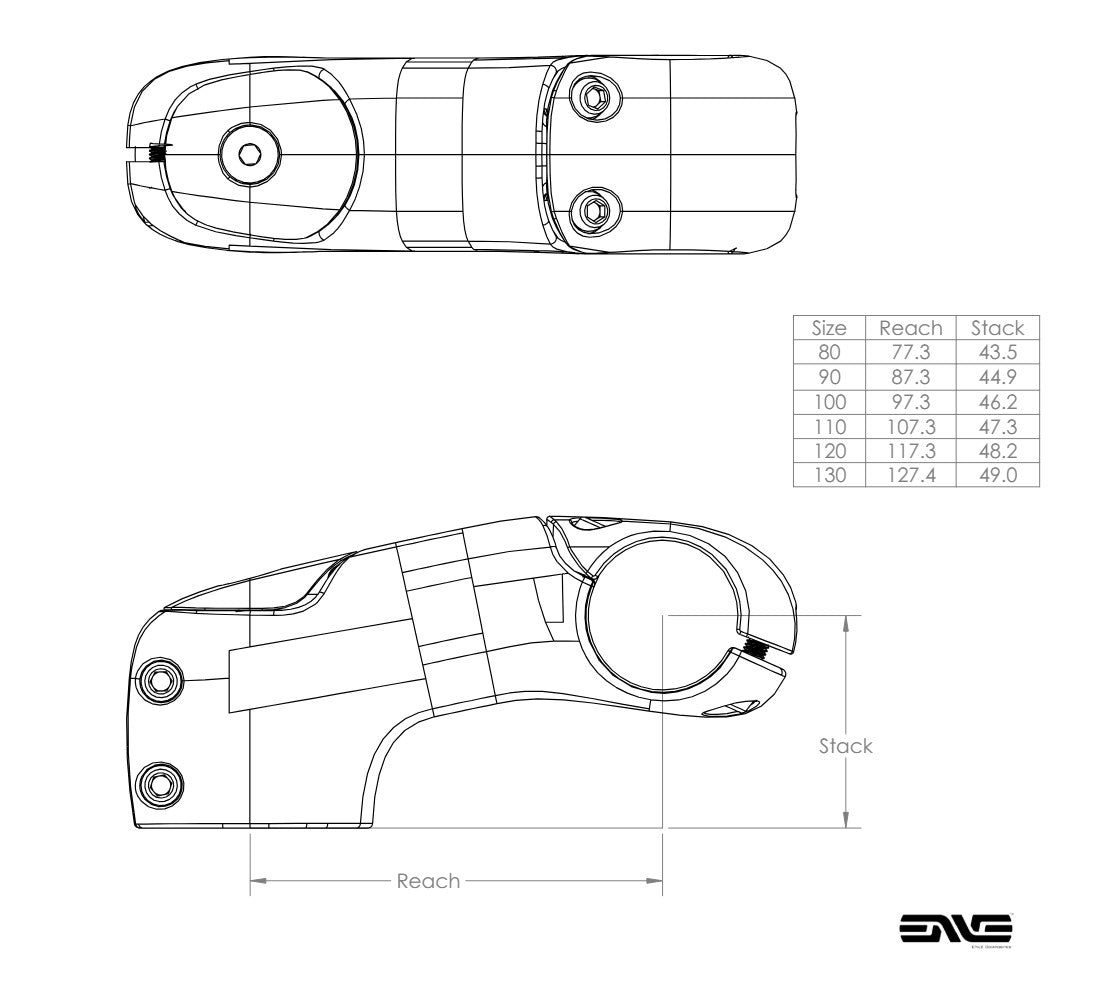

Length Reach (mm) Extension (mm) Weight (g) Reference ENVE
80mm 77,3 43,5 175g 300-1036-101
90mm 87,3 44,9 173g 300-1036-102
100mm 97,3 46,2 179g 300-1036-103
110mm 107,3 47,3 185g 300-1036-104
120mm 117,3 48,2 188g 300-1036-105
130mm 127,3 49 197g 300-1036-106

Ref: 9205467840861

Informations techniques

Material: Carbon
Faceplate material: Aluminium
Screw material: Titanium

Ø Fork pivot : 1" 1/8
Ø handlebar diameter : 31,8mm
Rise/Angle: +12

Tightening torque :
- Au handlebar : 5.5nm
- Au pivot: 5.5nm
Max. spacer height: 40mm

► Internal cable entry

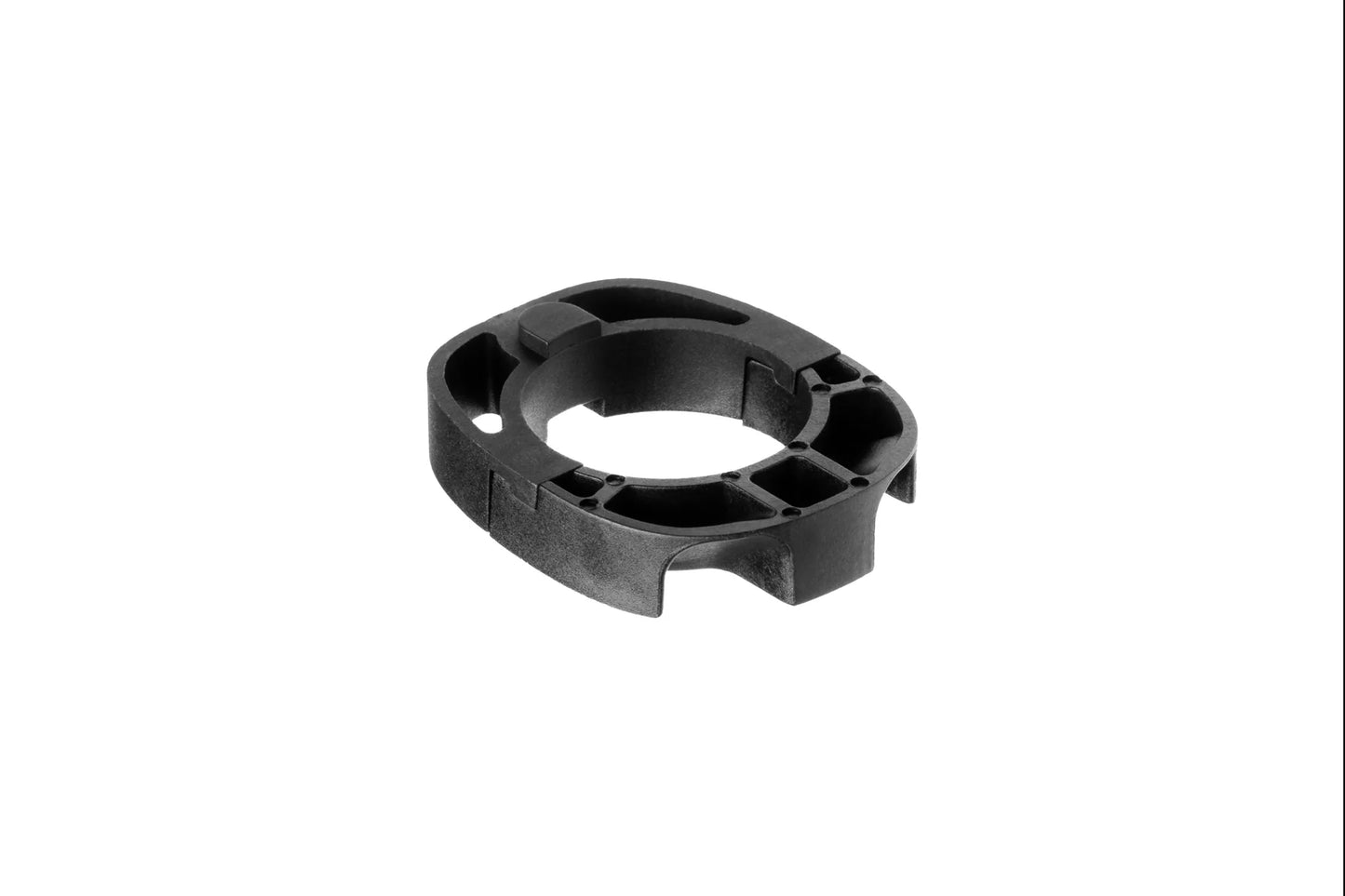

► Round spacers

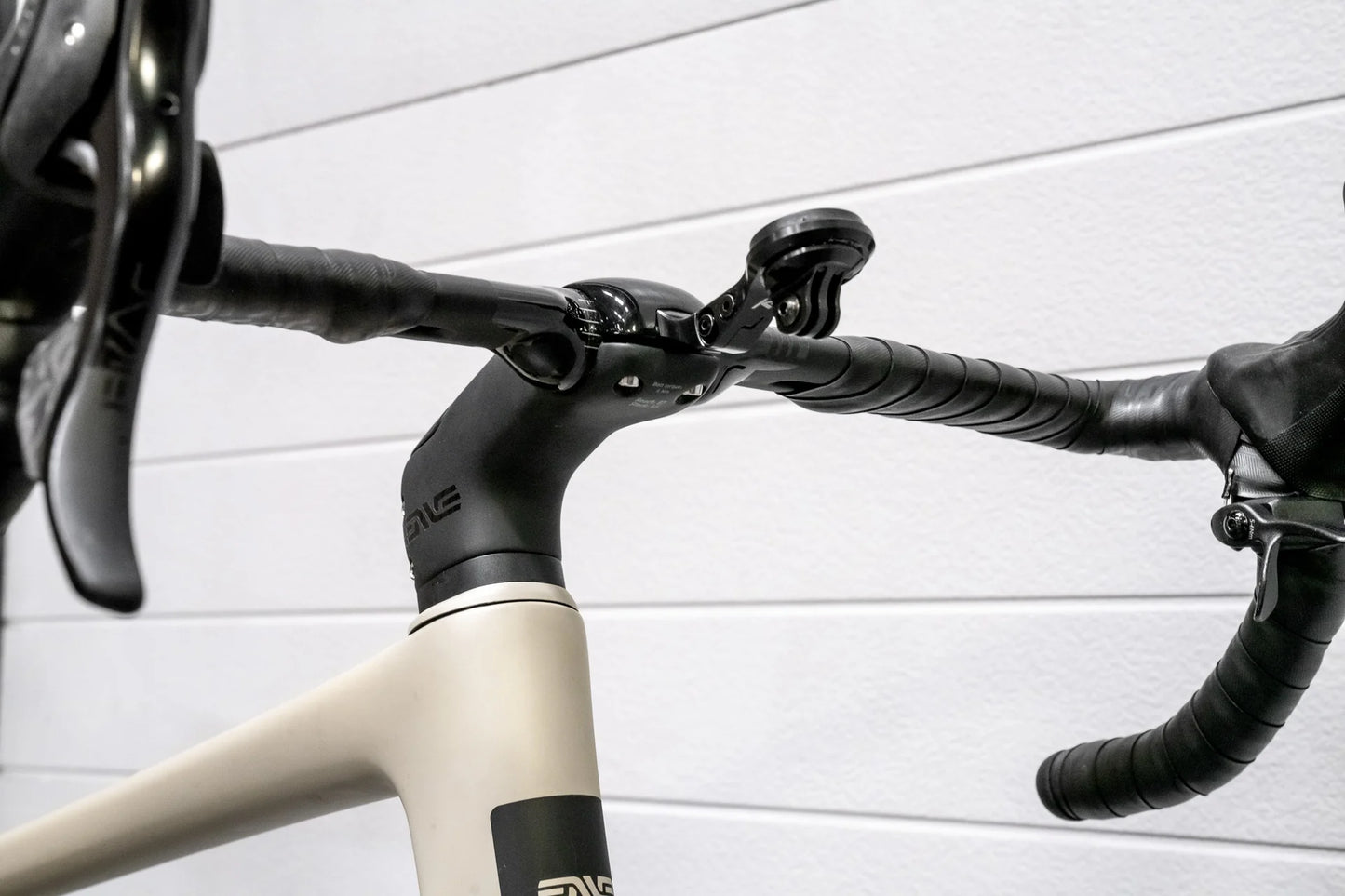

► Compatible with ENVE K Edge Aero Road GPS bracket

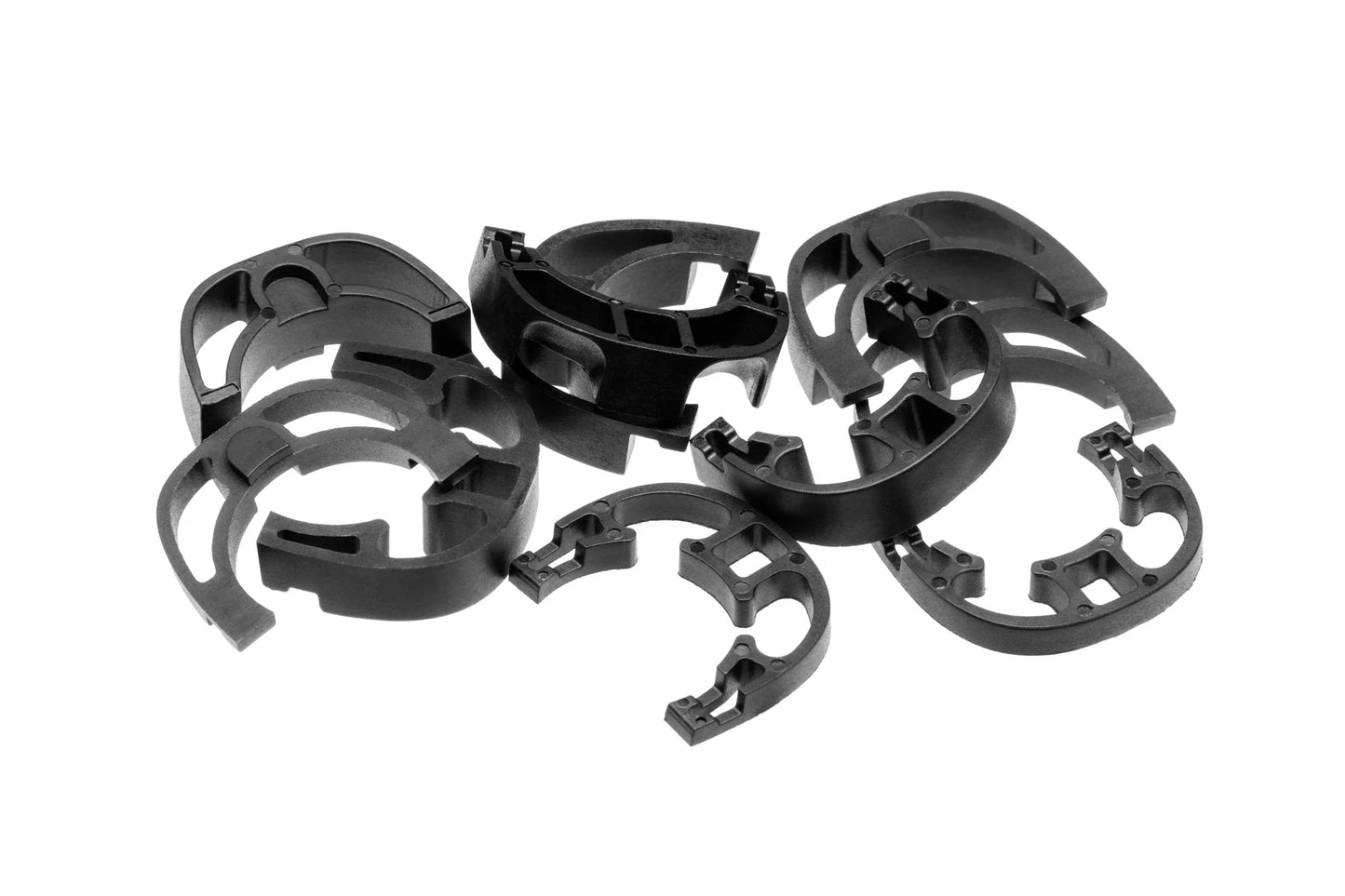

Supplied with directional spacers: 3x10mm, 2x5mm, 1x10mm bypass.

Informations prix

Recommended retail price February 2024
