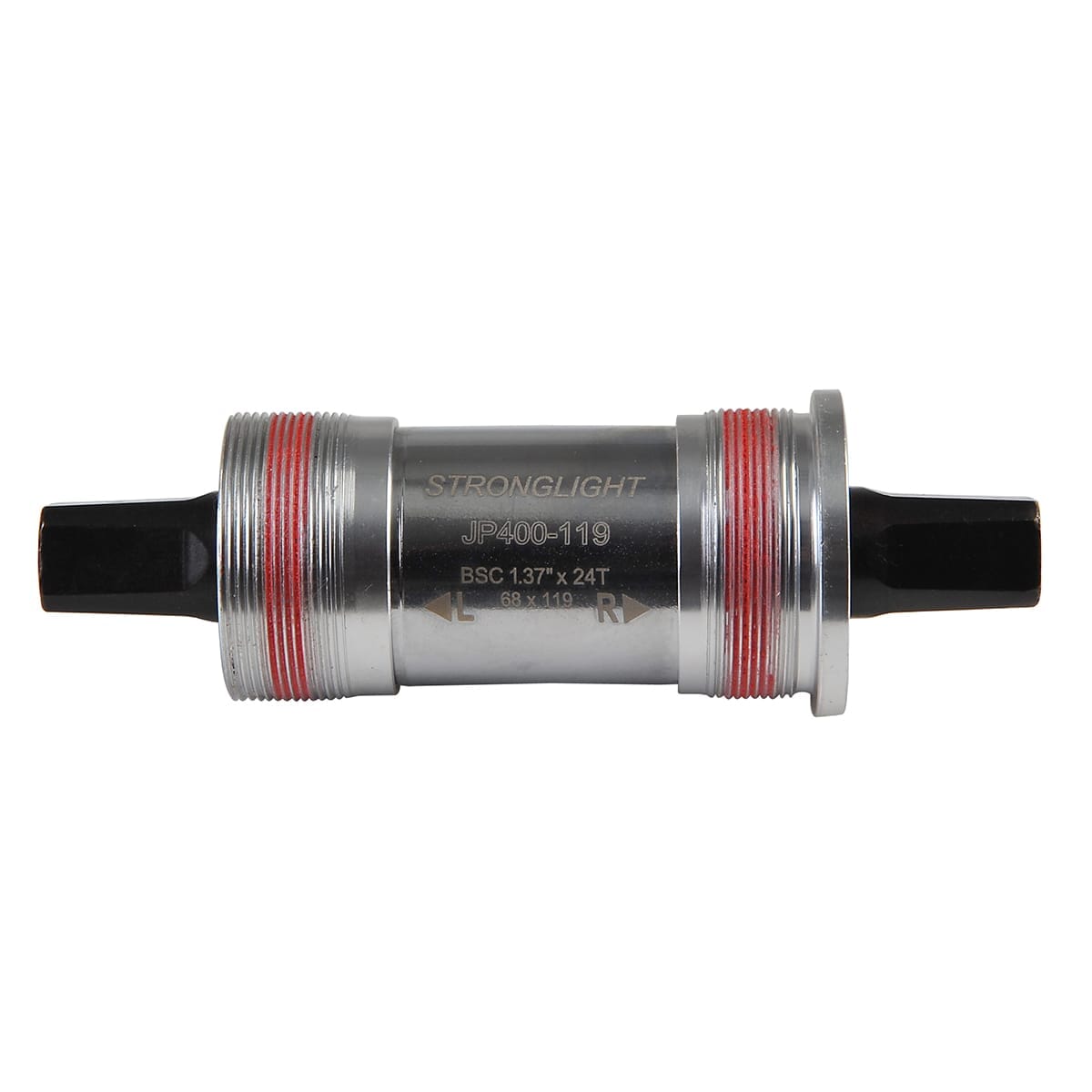

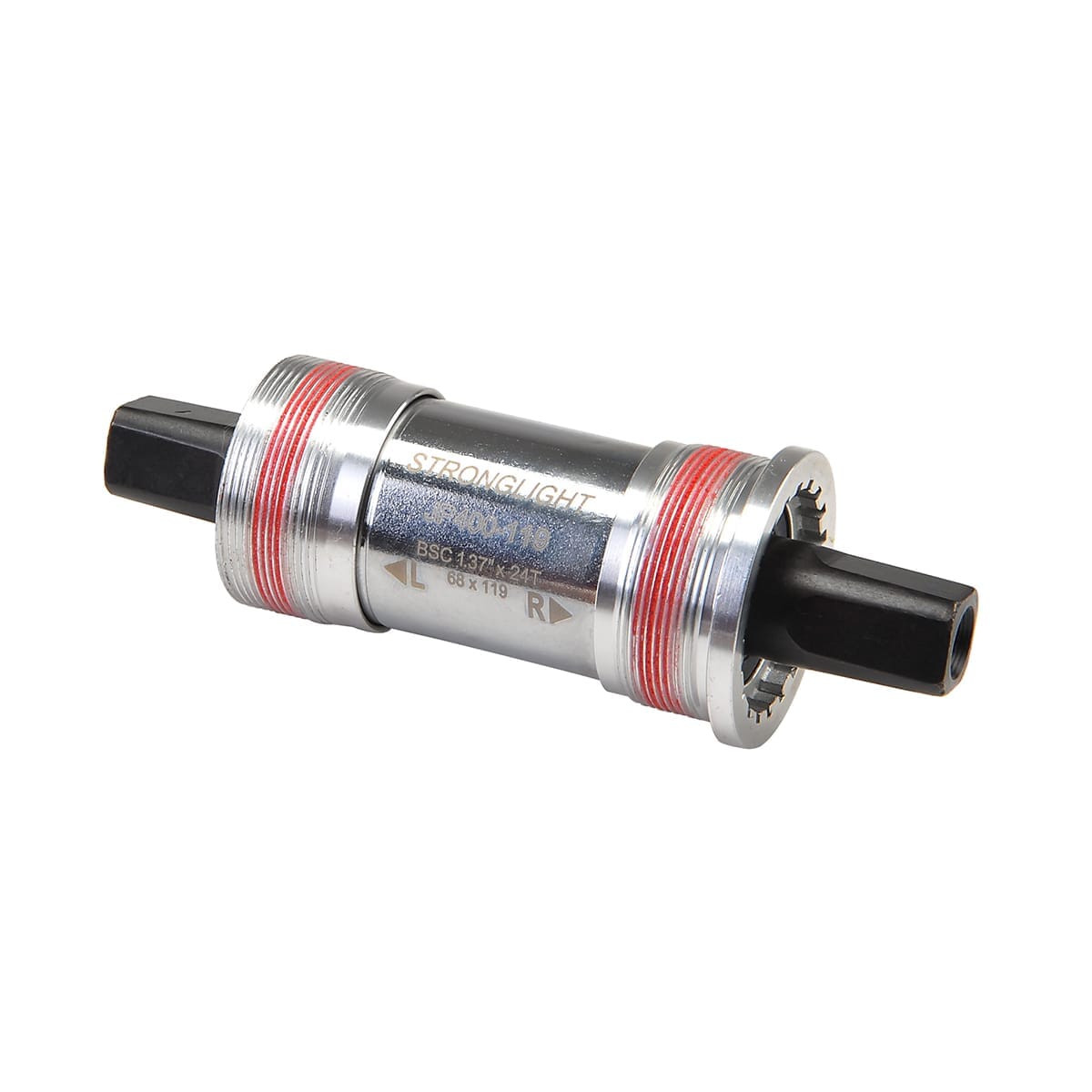

STRONGLIGHT JP400 BSC crankset Alu cups

Designed for frames with English/BSC threads, the bottom bracket STRONGLIGHT JP400 BSC bottom bracket is an inexpensive yet effective solution for refurbishing your bike.

The bottom bracket body is made of sturdy steel, as are the bearing balls. The cups are made of lighter aluminum. This model features a "JIS" tapered square hollow axle (M8 screw), available in 107, 110, 113, 115, 118 and 122 mm versions.

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	screw-on	BSC / BSA
34,8	73	screw-in	BSC / BSA
34,8	83	screw-in	BSC / BSA
34,8	100	screw-in	BSC / BSA
27	95,5	insert	BB 96 (Trek)
41	92	insert	PF 92
42	68	insert	BB 30
42	73	insert	BB 30
46	68	insert	PF 30
46	73	insert	PF 30

Ref: 9223659356509
