VAR Steering and Bearing Press DR-03500

Réf. fabricant : DR-03500
The VAR DR-03500 steering and bearing cup press is a precision tool designed to easily press steering cups of various sizes, from 1" to... Read more

Recommanded price: 202,99 €

182,90 €
182,90 €
View full details

Description

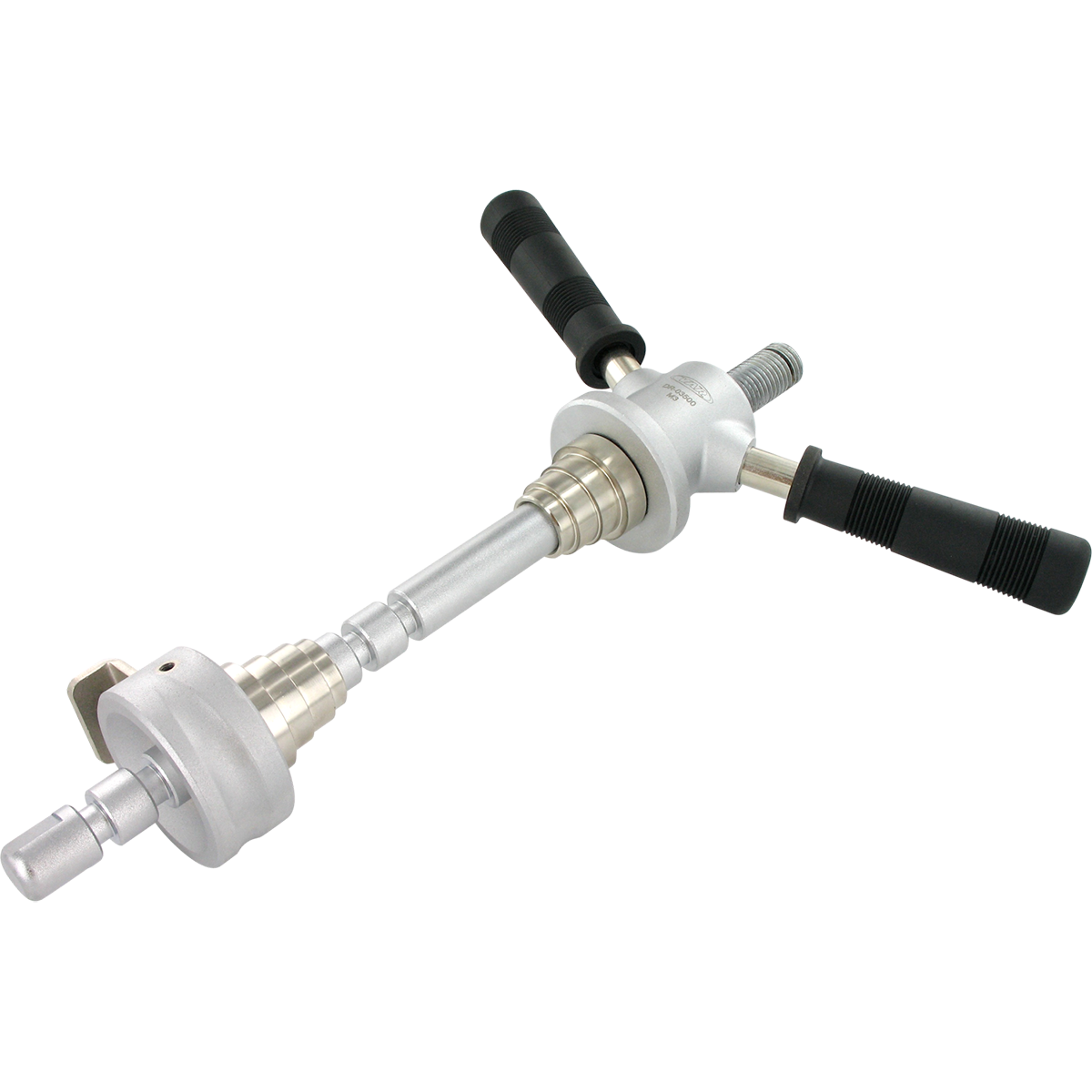

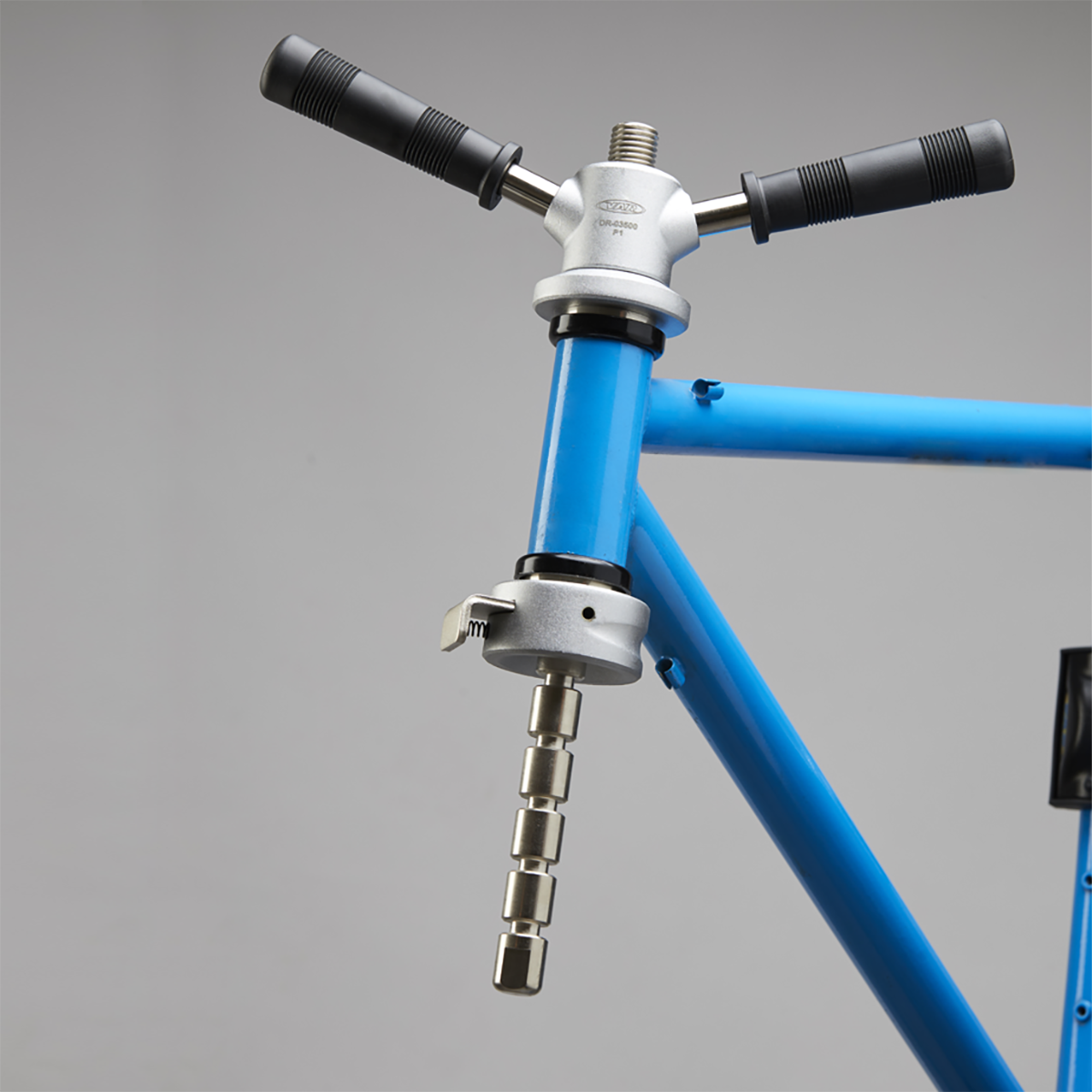

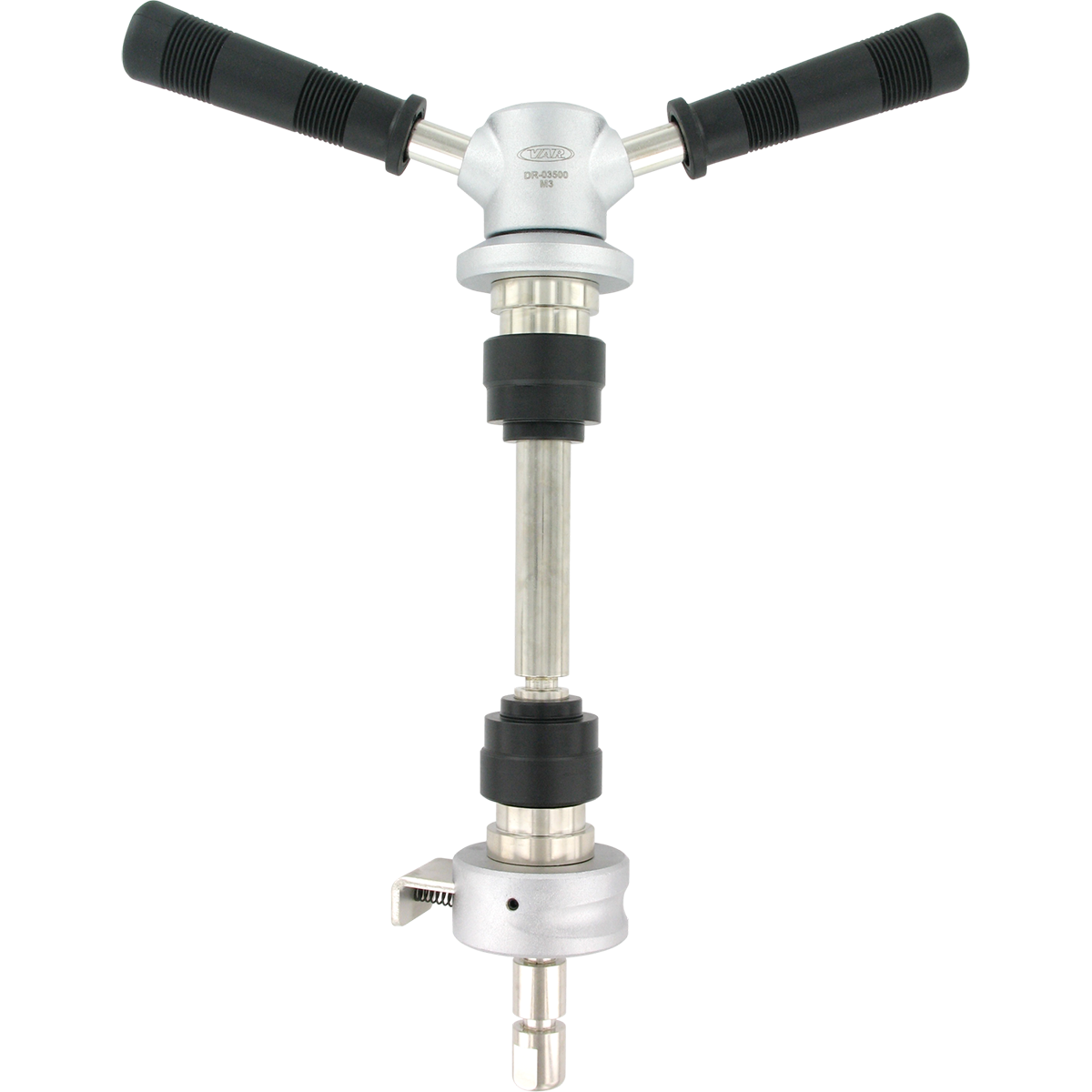

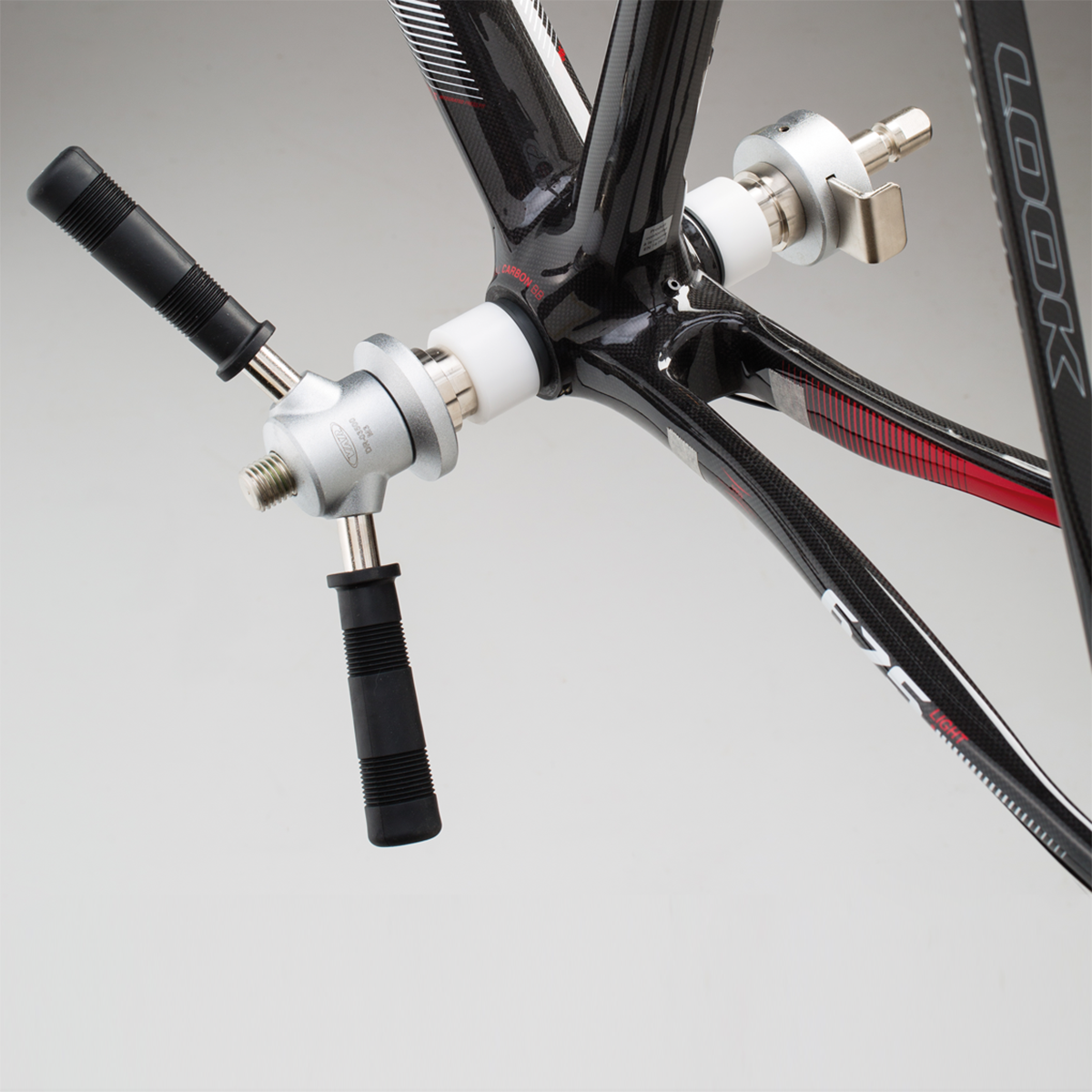

The VAR DR-03500 steering and bearing cup press is a precision tool designed to easily press steering cups of various sizes, from 1" to 1.5". It can also be used to mount BB30 bearings as well as Press Fit and Press Fit 30 cups with the appropriate adapters (not supplied).

Thanks to its quick-lock slider, use of this tool is fast and efficient. The long 30 cm handles provide excellent leverage, facilitating the application of force.

Precision CNC machining ensures a perfect fit of the stepped pressure rings, guaranteeing optimal, long-lasting component installation.

Instructions and exploded view.

Ref: 15017404498300

Informations techniques

Tool for accurately pressing 1", 1 1/8", 1 1/4", 1.5" steering cups into the steering bush. Also for fitting BB30 bearings and Press Fit and Press Fit 30 cups with PE-13800-BB30 , PE-13800-PF and PE-13800-PF30 adapters. Quick operation thanks to quick-lock slider. Long handles (30 cm) for excellent leverage. Precision CNC machining for accurate fitting of stepped pressure rings

Informations prix

Supplier suggested retail price in January 2025
