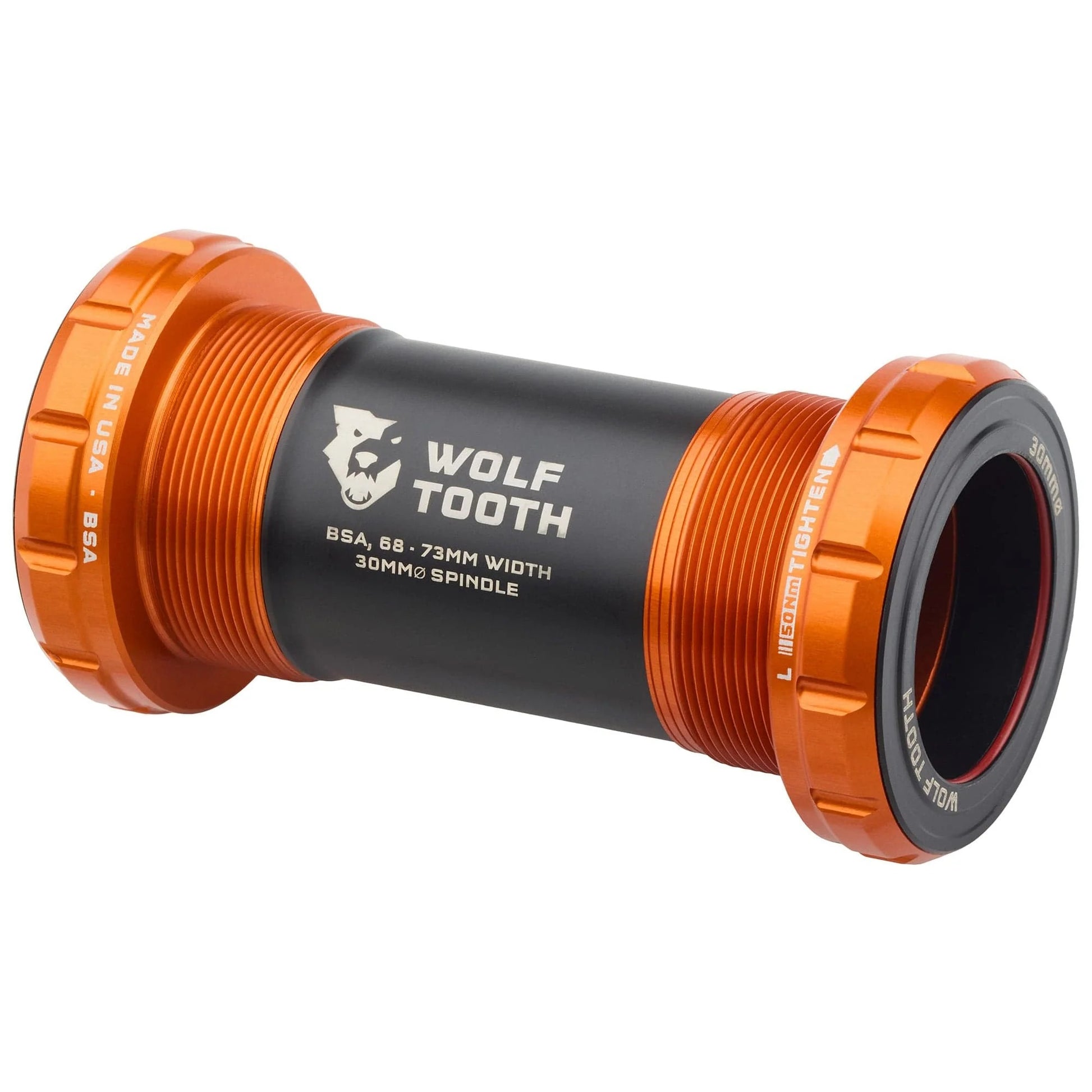

WOLFTOOTH BSA 30mm Bottom Bracket Orange

Réf. fabricant : W_WBB-BSA-30-ORG
Give your bike a solid and high-performing base with the WOLFTOOTH BSA bottom bracket for a 30mm axle. Designed for cyclists seeking exceptional pedalling... Read more
164,90 €
164,90 €
View full details

Description

Give your bike a solid and high-performing base with the WOLFTOOTH BSA bottom bracket for a 30mm axle. Designed for cyclists seeking exceptional pedalling smoothness and unrivalled durability, this premium component is the ultimate upgrade for your drivetrain. Thanks to its meticulous design and ultra-effective seals, it guarantees consistent performance regardless of conditions.

Whether you are clocking up kilometres on the road, exploring gravel paths or pushing your limits on the MTB, this bottom bracket is made for you. Its robustness and reliability make it a top-tier choice across all disciplines, ensuring optimal power transfer and enhanced resistance to wear, even on the most demanding rides.

Equipped with premium sealed cartridge bearings, this bottom bracket minimises friction for incredibly smooth rotation. Precision CNC-machined aluminium cups and a multi-lip seal system create an impenetrable barrier against water and dirt, extending bearing life. Installation is simple and straightforward, allowing you to spend more time on the bike.



Ref: 15611318108540

Informations techniques

Standard: BSA (threaded)
Axle Compatibility: 24 mm, 29 mm (DUB), 30 mm
Supported Shell Widths: 68–73 mm (adjustable internal sleeve), 83 mm and 100 mm options via dedicated sleeves
Materials: CNC-machined 6061-T6 aluminium cups, glass-filled nylon inner sleeve, NBR/EPDM/urethane seals, sealed cartridge bearings (AISI 52100 bearing steel balls and races with ACOSUR ZNA coating)
Sealing: Multi-barrier system: axle O-ring, channel seals, internal/external seals, shell O-rings and labyrinth end caps
Weight: 24 mm • 83 g | 29 mm (DUB) • 87 g | 30 mm • 82 g
Required Tools: Splined tool 44-16 for 24 mm; tool 46-12 for 29 mm (DUB) & 30 mm; grease recommended
Available Colours: Black, Orange, Ultraviolet Purple, Raw Silver

Pack Contents: 1x complete bottom bracket (cups + bearings), spacers/adapters if applicable
Made in the USA
;
