WOLFTOOTH

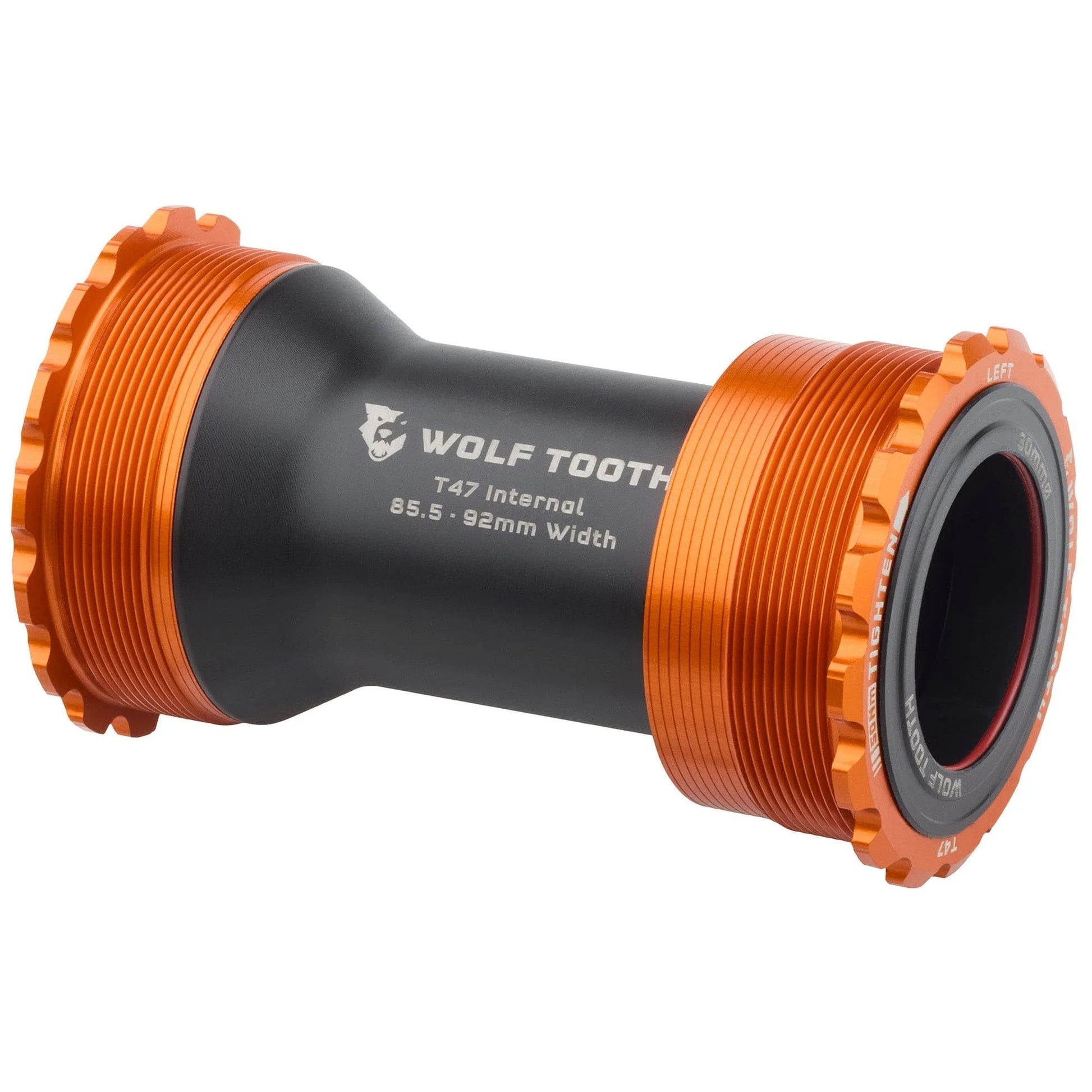

WOLFTOOTH T47i Internal Bottom Bracket 29mm SRAM DUB Orange

Réf. fabricant : W_WBB-T47I-29-ORG
Optimise your SRAM DUB crankset with the WOLFTOOTH T47 internal bottom bracket. Designed for uncompromising smoothness, longevity and sealing, this high-precision component delivers incredibly... Read more
159,90 €
159,90 €
View full details

Description

Optimise your SRAM DUB crankset with the WOLFTOOTH T47 internal bottom bracket. Designed for uncompromising smoothness, longevity and sealing, this high-precision component delivers incredibly smooth rotation and maximum protection against external elements. It is the perfect investment for cyclists looking to maximise their pedalling efficiency and drivetrain reliability.

 Ideal for T47 frames, this bottom bracket is a top-tier choice for MTB, gravel and road. Its robust construction guarantees optimal power transfer and unwavering durability, even in the muddiest or dustiest conditions. You benefit from consistent performance, ride after ride.

The secret lies in its custom bearings, isolated from the axle by polymer bushings that prevent any creaking. CNC-machined aluminium cups ensure a perfect fit, while the multi-barrier seal system creates an impenetrable defence against water and contaminants. Installation is straightforward with standard tools, allowing you to upgrade your bike without any complications.



Ref: 15611318468988

Informations techniques

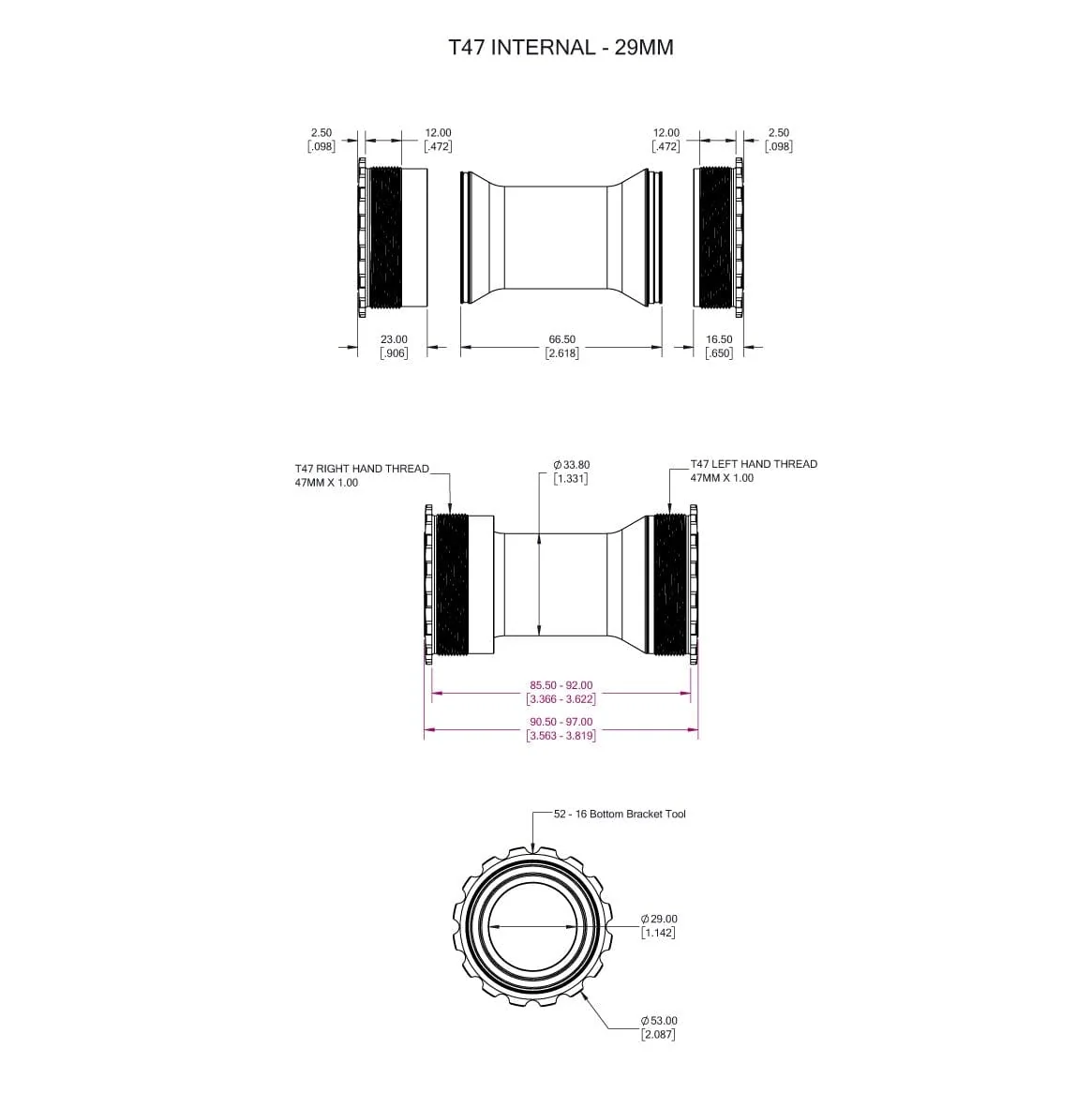

Standard: T47 Internal
Axle Compatibility: 29 mm (SRAM DUB)
Supported Shell Widths: 85.5–92 mm (via adjustable internal sleeve)
Materials: CNC machined 6061-T6 aluminium cups; glass-filled nylon inner sleeve; NBR/EPDM/urethane seals; AISI 52100 steel bearings (balls Rc 61–66, races Rc 60–65) with ACOSUR ZNA coating
Sealing: Axle O-ring, bearing/race groove seals, low-friction inner/outer seals, shell O-rings, and labyrinth-type end caps
Weight: 29 mm • 96 g (complete assembly without spacers)
Required Tools: Standard 52-16 splined tool + assembly grease
Available Colours: Black, Orange, Ultraviolet Purple, Raw Silver

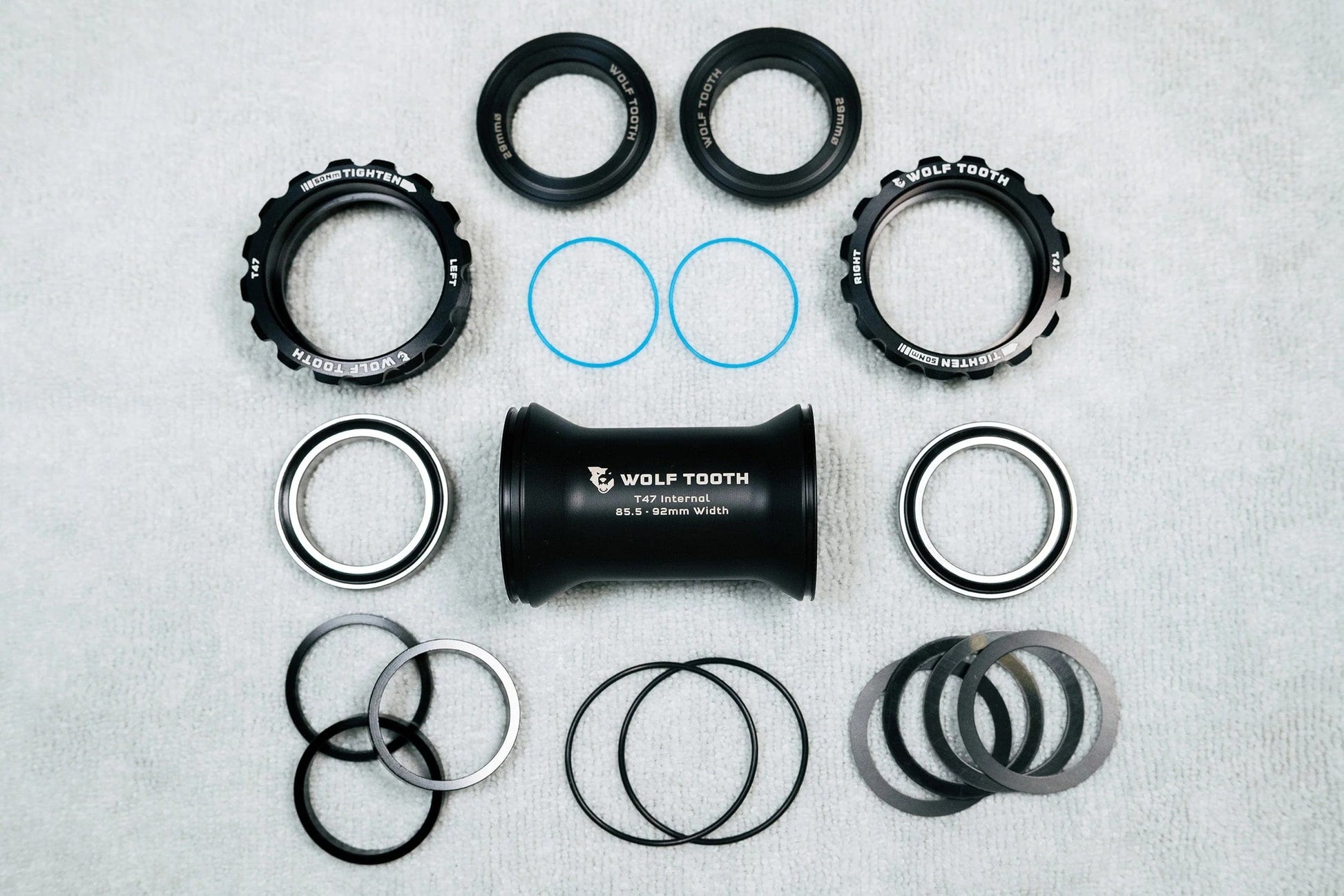

Pack Contents: 1x complete bottom bracket (cups + bearings), 2x 2.5 mm shell spacers, axle spacers (0.5 mm, 1 mm, 3 mm, 5 mm, 7.5 mm) for 29 mm
Made in the USA
;
