WOLFTOOTH

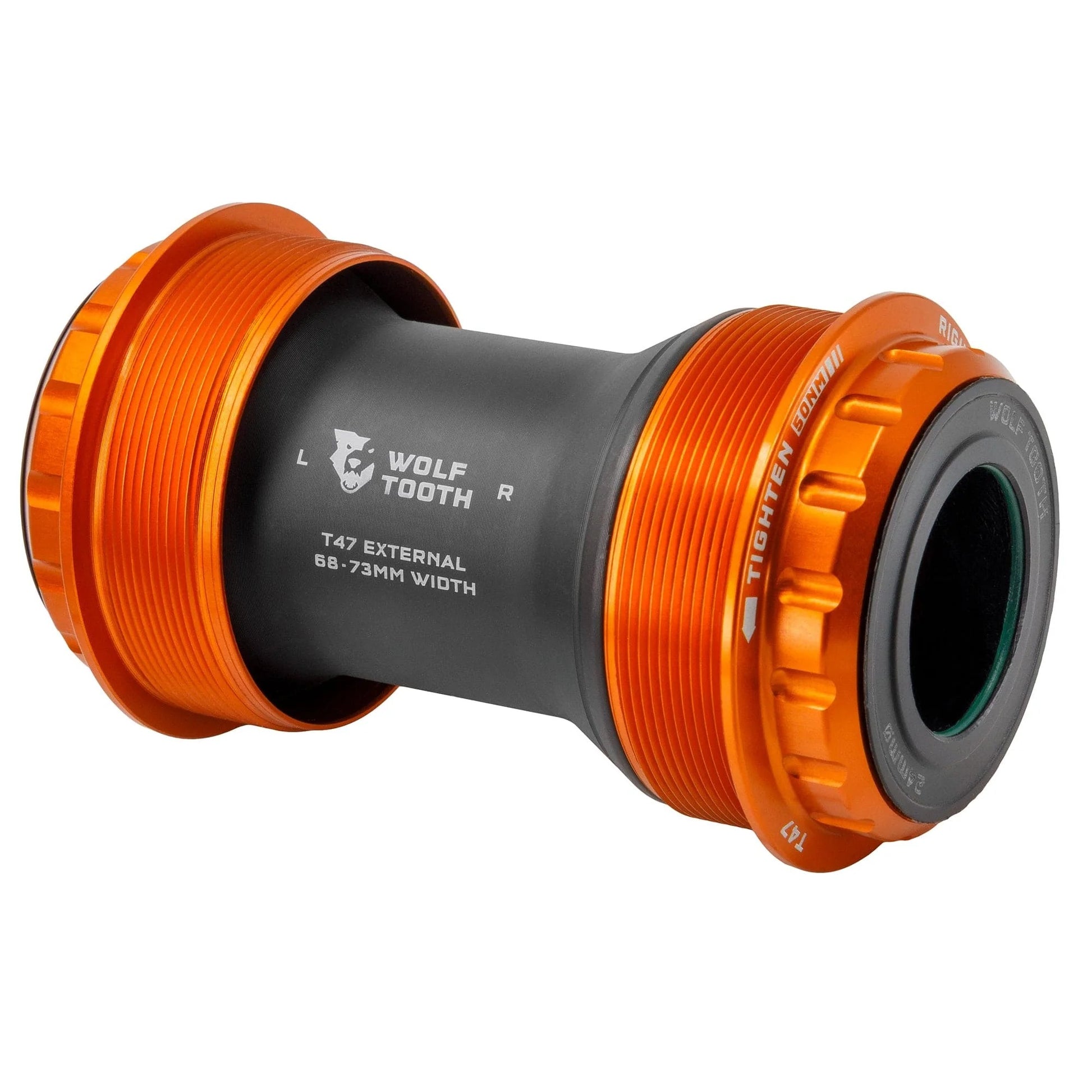

WOLFTOOTH T47 External 24mm Orange Bottom Bracket

Réf. fabricant : WBB-T47E-24-ORG
Enjoy exceptional pedalling smoothness and unwavering durability with the WOLFTOOTH T47 External bottom bracket. Designed for demanding cyclists, it combines top-class sealing with minimal... Read more
169,90 €
169,90 €
View full details

Description

Enjoy exceptional pedalling smoothness and unwavering durability with the WOLFTOOTH T47 External bottom bracket. Designed for demanding cyclists, it combines top-class sealing with minimal friction, guaranteeing optimal and lasting performance. This bottom bracket is the ideal solution for converting the power of your legs into pure speed, with no energy loss.

Whether you are a road competitor, a gravel adventurer or a committed MTB rider, this bottom bracket is designed to excel in all conditions. Its robust construction and high-performance seals protect it from mud, water and dust, ensuring bulletproof reliability no matter where your bike takes you.

The heart of this bottom bracket lies in its high-end custom bearings, separated from the axle by polymer bushings that eliminate creaking. The CNC-machined aluminium cups, combined with a multi-barrier sealing system, ensure smooth and silent operation. Installation is simplified through the use of standard tools, making this upgrade accessible to everyone.



Ref: 15615576867196

Informations techniques

Standard: T47 External
Axle compatibility: 24 mm (Shimano)
Supported housing widths: 68-73 mm (via adjustable internal sleeve)
Materials: CNC-machined 6061-T6 aluminum cups; glass-filled nylon inner sleeve; NBR/EPDM/urethane seals; AISI 52100 steel bearings (Rc 61-66 balls, Rc 60-65 races) with ACOSUR ZNA coating
Sealing: axle O-rings, bearing/ring gutter seals, low-friction internal/external seals, shell O-rings, and labyrinth-type end caps
Weight: 24 mm - 96 g (complete set without spacers)
Required tools: Standard spline tool 44-16 for 24 mm + grease
Available colors: Black, Orange, Ultraviolet Purple, Raw Silver
Pack contents: 1x complete bottom bracket (cups + bearings), 2x shell spacers 2.5 mm, axle spacers (0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm) for 24 mm
Made in the USA
;
