WOLFTOOTH

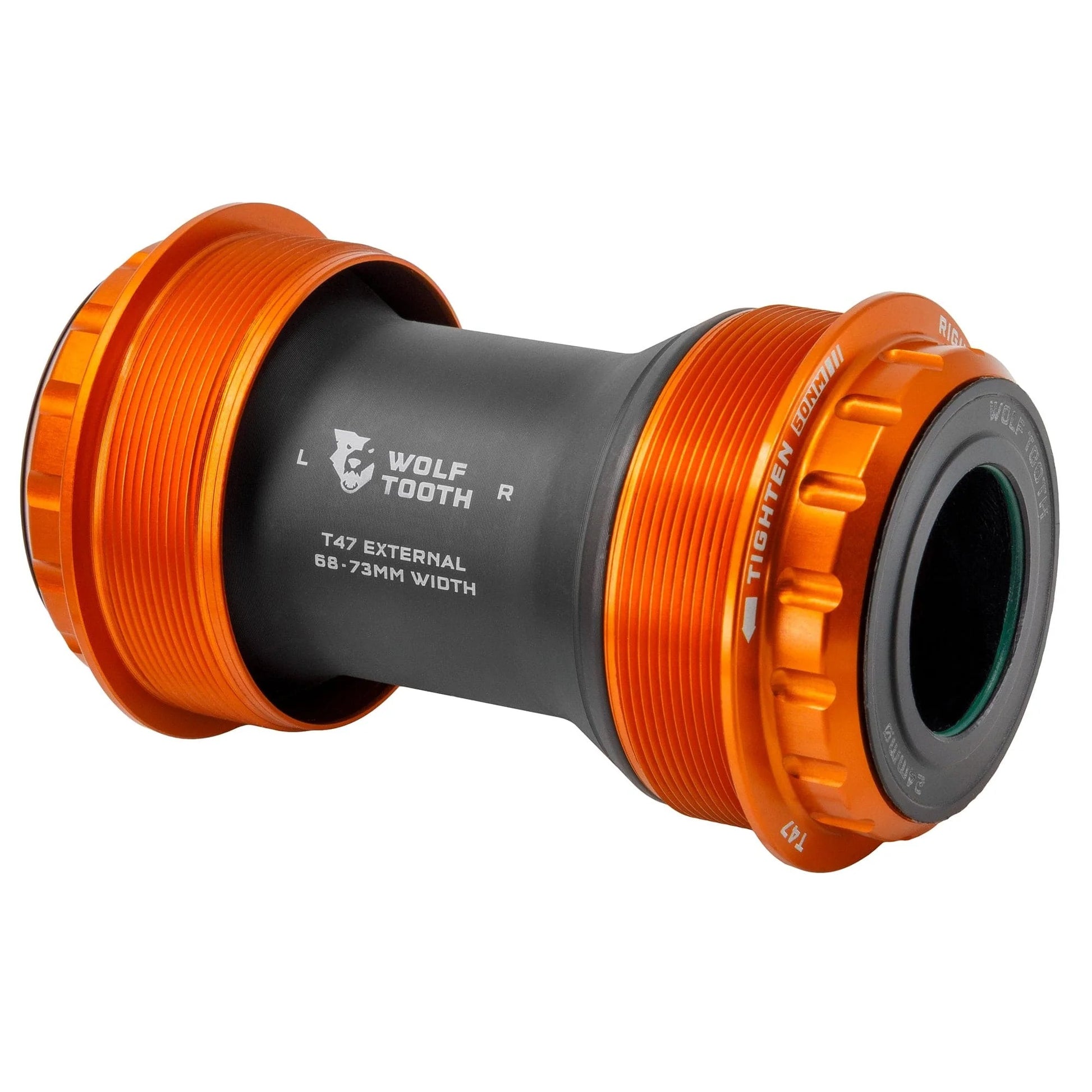

WOLFTOOTH T47 External 30mm Orange Bottom Bracket Shell

Réf. fabricant : WBB-T47E-30-ORG
Give your bike the ultimate in performance with the WOLFTOOTH T47 External bottom bracket shell for 30 mm axles. Engineered for unrivalled rotational smoothness,... Read more
169,90 €
169,90 €
View full details

Description

Give your bike the ultimate in performance with the WOLFTOOTH T47 External bottom bracket shell for 30 mm axles. Engineered for unrivalled rotational smoothness, superior longevity and hermetic protection against the elements, this bottom bracket is the ultimate upgrade for cyclists who make no compromises. It guarantees direct, friction-free power transmission for maximum efficiency.

Whether you are descending mountain bike trails, exploring gravel paths or chasing seconds on the road, this bottom bracket shell is your ally. Its ultra-robust construction and advanced sealing system deliver unwavering reliability, allowing you to focus on your performance whatever the weather or terrain.

The ingenious design relies on custom bearings and polymer bushings that eliminate creaking by preventing metal-to-metal contact. The CNC-machined aluminium cups with surgical precision, combined with multi-barrier seals, create an impenetrable fortress. Installation is simple and quick, thanks to the use of standard tools.



Ref: 15615576899964

Informations techniques

Standard: T47 External
Axle Compatibility: 30 mm
Supported Shell Widths: 68–73 mm (via adjustable internal sleeve)
Materials: CNC-machined 6061-T6 aluminium cups; glass-filled nylon inner sleeve; NBR/EPDM/urethane seals; AISI 52100 steel bearings (balls Rc 61–66, races Rc 60–65) with ACOSUR ZNA coating
Sealing: Axle O-ring, seals on bearing/cup groove, low-friction internal/external seals, shell O-rings, and labyrinth-type end caps
Weight: 30 mm • 91 g (complete assembly without spacers)
Required Tools: Standard 46-12 splined tool for 30 mm + grease
Available Colours: Black, Orange, Ultraviolet Purple, Raw Silver
Pack Contents: 1x complete bottom bracket (cups + bearings), 2x 2.5 mm shell spacers, axle spacers (0.5 mm, 1 mm, 2 mm, 3 mm, 5 mm) for 30 mm
Made in the USA
;
