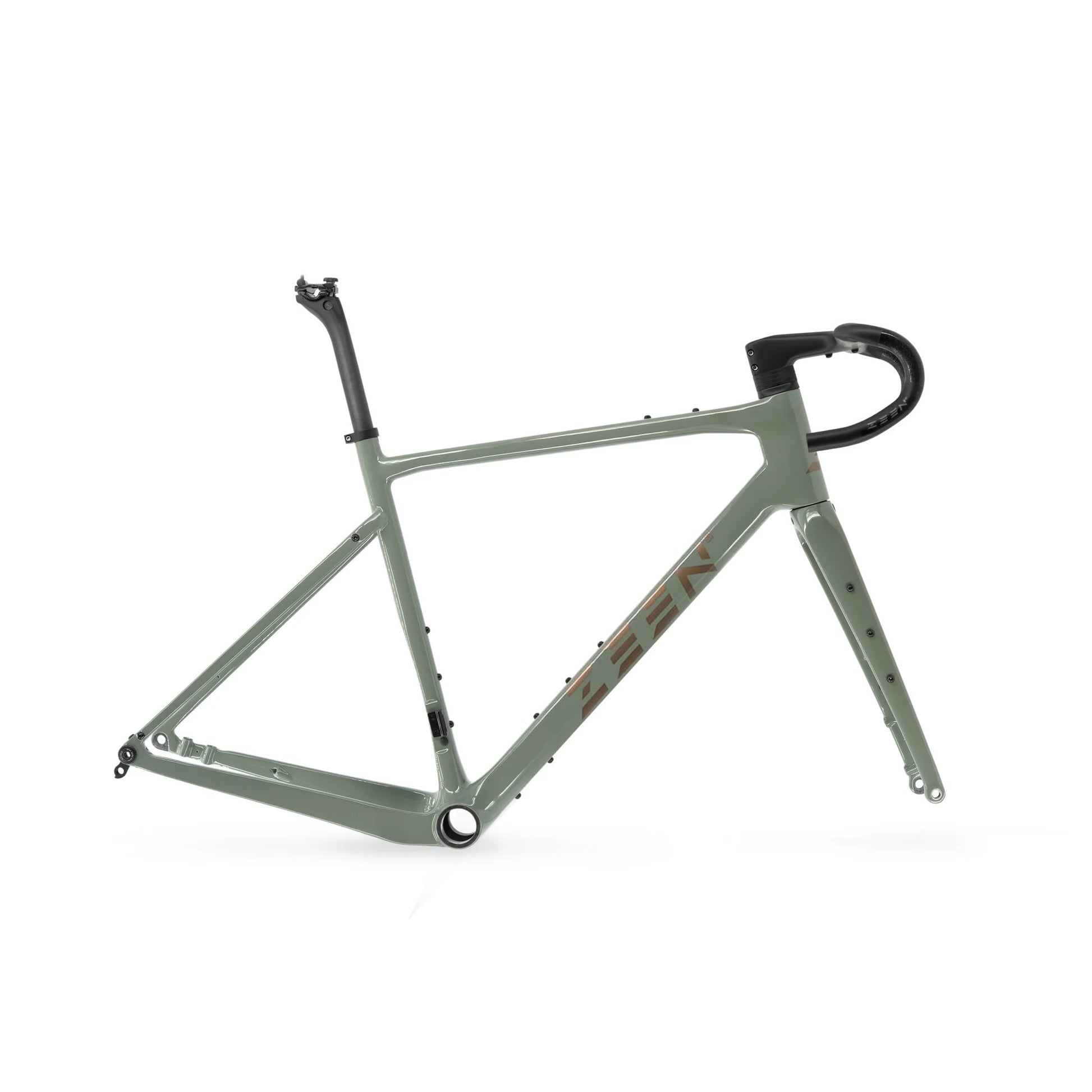

ZEEN EXPLORER Frame Kit+ZEEN GRAVEL COMBO Handlebar

The ZEEN EXPLORER Frame embodies the most open vision of gravel according to Zeen. Designed as a true all-rounder, it is aimed at long... Read more
1.499,80 €
1.499,80 €
View full details

Description

The ZEEN EXPLORER Frame embodies the most open vision of gravel according to Zeen. Designed as a true all-rounder, it is aimed at long distances, fondo and ultra formats, as well as all adventures where comfort, stability and accessible reliability become essential. Every detail aims for a fluid, reassuring and lasting experience.

Its carbon frame, born from Asian expertise and Japanese Torayca® fibres, offers excellent vibration absorption. The reassuring geometry and elongated rear stays enhance stability, even on degraded terrain. The behaviour remains predictable and forgiving, guaranteeing comfortable handling over long hours in the saddle.

Designed for travel, the ZEEN EXPLORER integrates bikepacking mounts for total versatility as well as dynamo system routing. It adopts modern standards such as the T47 bottom bracket, robust and silent, and the UDH derailleur hanger, ensuring compatibility and reliability on all terrains.

Subjected to rigorous tests and certified, it prioritises durability and peace of mind. More than a frame, it is an adventure companion designed to explore without constraints, with a balanced performance and total freedom on road as well as on path.

Ref: 15964816867708

Ref: 16047995224444

Points forts

Gravel / bikepacking / long-distance versatility

Torayca® Japanese carbon fibre frame absorbing vibrations

Stable geometry with extended chainstays

Modern T47 and UDH standards

Quality and reliability certification

Informations techniques

► DETAILS ◄

○ Usage: Adventure / endurance / exploration
○ Carbon type: Toray 18% T800 - 82% T700
○ Tested by the German TÜV laboratory
○ Warranty: 2 years

► WEIGHT ◄

○ Maximum load weight: 110 kg
○ Frame weight (Size M without seatpost): 1090 g
○ Fork weight: 437 g

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

► STANDARDS ◄

∟ Frame

○ Bottom bracket: T47 internal not included
○ Headset: integrated 1-1/2"/1-1/2" supplied with 1"1/8 expander and headset spacers compatible with integrated stem
○ UDH derailleur hanger supplied
○ Brazed fixing for mounting an anti-derailment tab or front derailleur
○ Bikepacking bag mounts on frame and fork
○ Mudguard and rack mounts
○ Cable routing for dynamo

∟ Axles

○ Front wheel axle: 12x100 mm supplied
○ Rear wheel axle: 12x142 mm supplied

∟ Drivetrain

○ Rear derailleur compatibility: electronic or cable
○ Front derailleur compatibility: electronic only
○ Internal cable routing

∟ Tyres

○ Maximum tyre size: 700x45

∟ Components

○ Seatpost clamp: 31.8 mm
○ Seatpost: 27.2 mm supplied

∟ Brakes

○ Braking: Flatmount disc
○ Minimum rotor diameter 160 mm front and 140 mm rear

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

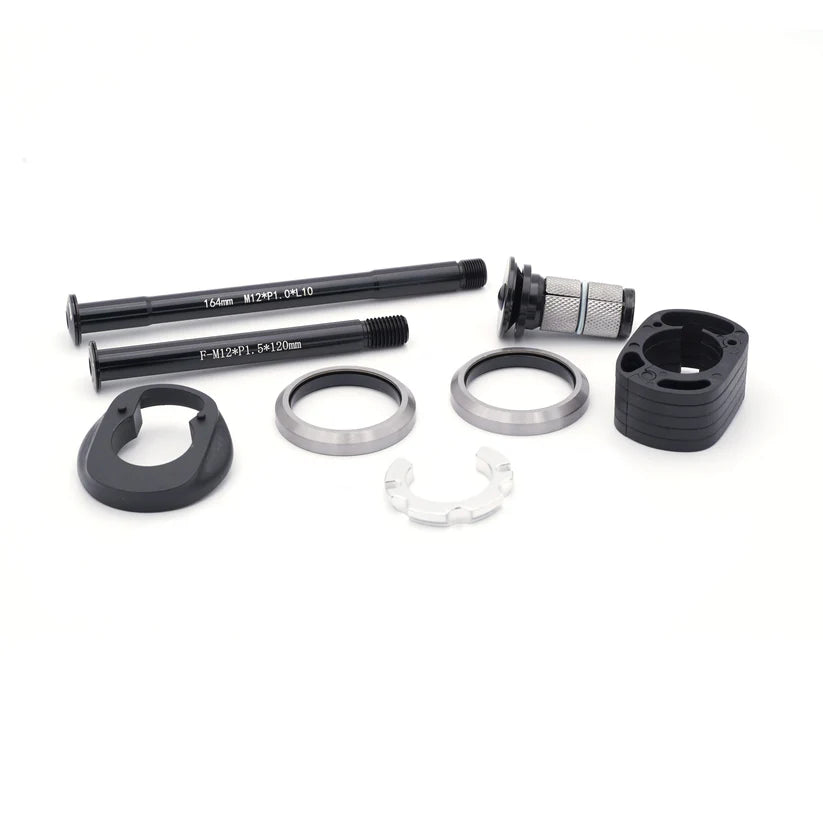

► INCLUDED ◄

○ ZEEN 27.2 mm seatpost supplied
○ ZEEN EXPLORER carbon fork
○ Headset bearings
○ Headset spacer set
○ Expander
○ UDH hanger
○ Front and rear axles

Handlebar: Construction: Japanese Torayca® carbon fibre
Full monocoque carbon
Geometry:
Compact shape, Reach of 81.5 mm
Drop of 138.7 mm
Flare of 13°
Angle of -5°
Stem diameter:
1"1/8
Stem length:
90 to 130 mm
Handlebar width:
375 mm, 385 mm, 415 mm, 435 mm
Features:
Designed specifically for gravel bikes with internal cable routing
Integrated cables for electronic and mechanical drivetrains
Weight: N/A
;

Informations prix

*Supplier recommended retail price in May 2026
