ZEEN SUPERLITE Frame Kit+ZEEN ROAD COMBO Handlebar

Designed for cyclists seeking maximum efficiency, the ZEEN SUPERLITE Frame embodies a modern vision of road performance. Its monocoque design and particularly low weight... Read more
1.999,80 €
1.999,80 €
View full details

Description

Designed for cyclists seeking maximum efficiency, the ZEEN SUPERLITE Frame embodies a modern vision of road performance. Its monocoque design and particularly low weight deliver dynamic and precise handling on all road profiles. Every detail of the frame has been developed to optimise efficiency, lightness and riding sensations on the most demanding rides.

With its rigid and racy structure, the ZEEN SUPERLITE promotes direct power transfer. This controlled stiffness ensures efficient acceleration, sharp bursts of speed and excellent stability on high-intensity climbs. Its lively and precise handling perfectly meets the expectations of riders seeking a bike oriented towards pure performance.

The frame benefits from Zeen's technical expertise and a demanding selection of premium materials. Japanese Torayca® fibres along with the T1100, T800 and T700 composites guarantee an excellent balance between lightness and stiffness. The attention to finish reflects a design conceived without compromise.

Equipped with the T47 standard and the UDH derailleur hanger, this frame also prioritises durability, compatibility and ease of maintenance. It offers a reliable and confident experience on all roads.

Ref: 15964816638332

Ref: 16048017768828

Points forts

Lightweight and high-performance monocoque construction

Premium Japanese Torayca® carbon fibres

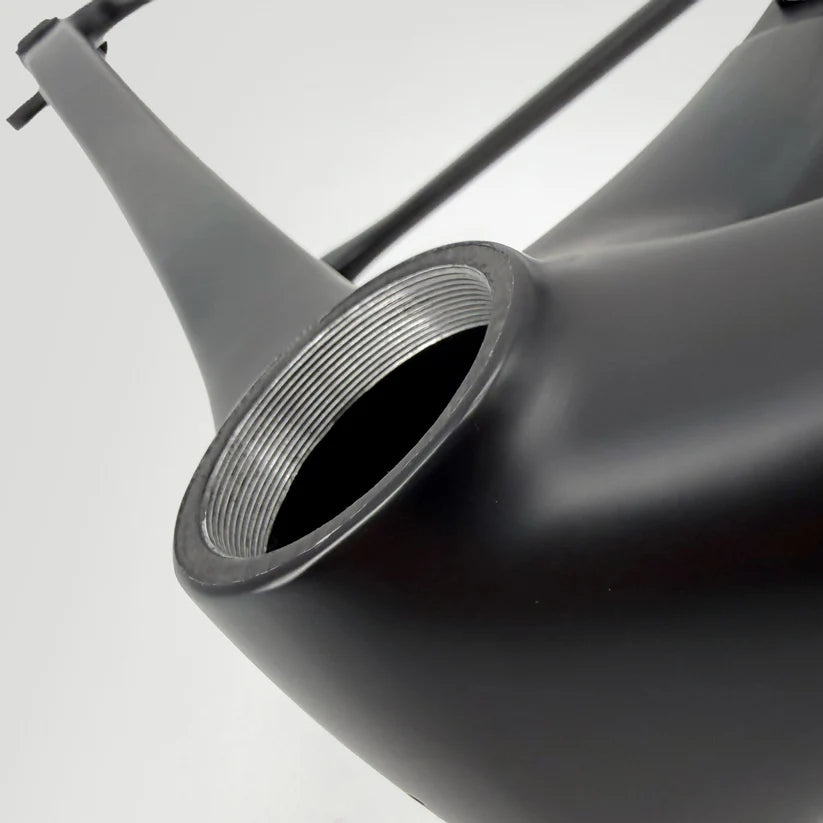

Reliable and stiff T47 bottom bracket shell

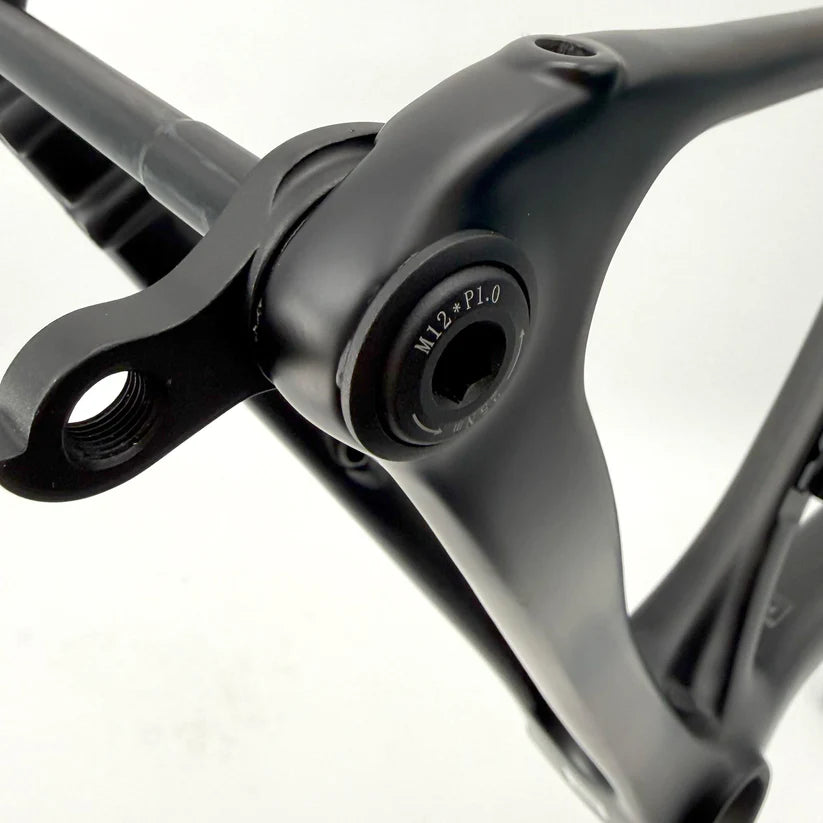

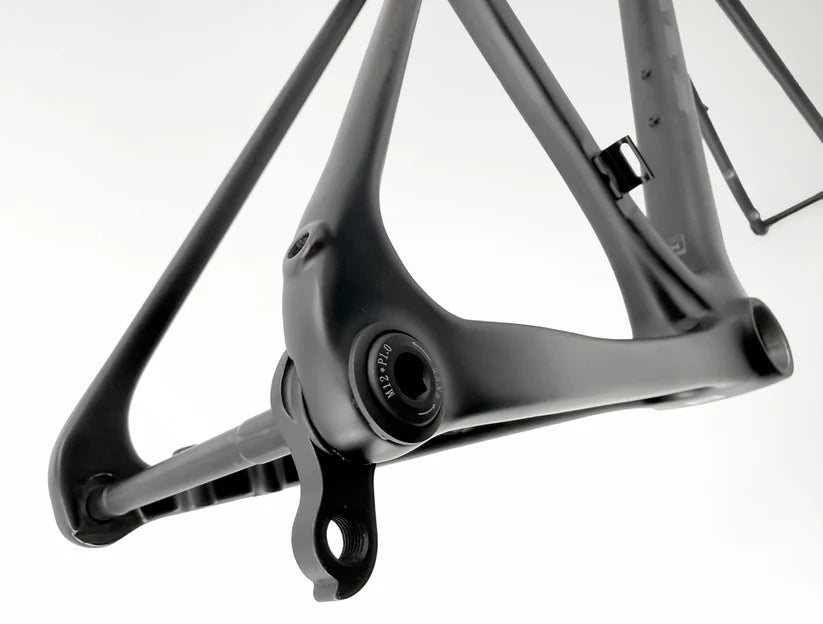

Durable and compatible UDH universal derailleur hanger

Informations techniques

► DETAILS ◄

○ Usage: Long rides and cyclosportives
○ Carbon type: Toray 38% T1100 - 52% T800 - 12% T700
○ Tested by the German laboratory TÜV
○ Warranty: 2 years

► WEIGHT ◄

○ Maximum load weight: 110 kg
○ Frame weight (Size M without seatpost): 910 g
○ Fork weight: 400 g

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

► STANDARDS ◄

∟ Frame

○ Bottom bracket: T47 internal not included
○ Headset: integrated 1-1/2"/1-1/2" supplied with 1"1/8 expander and headset spacers compatible with integrated stem
○ UDH derailleur hanger included
○ Braze-on fitting for mounting a chain guide tab or front derailleur

∟ Axles

○ Front wheel axle: 12x100 mm included
○ Rear wheel axle: 12x142 mm included

∟ Drivetrain

○ Rear derailleur compatibility: electronic or cable
○ Front derailleur compatibility: electronic only
○ Internal cable routing

∟ Tyres

○ Maximum tyre size: 700x34

∟ Components

○ Seatpost clamp: integrated into the frame
○ Seatpost: included and specific to round carriage only

∟ Brakes

○ Braking: Flatmount Disc
○ Minimum rotor diameter 160 mm front and 140 mm rear

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

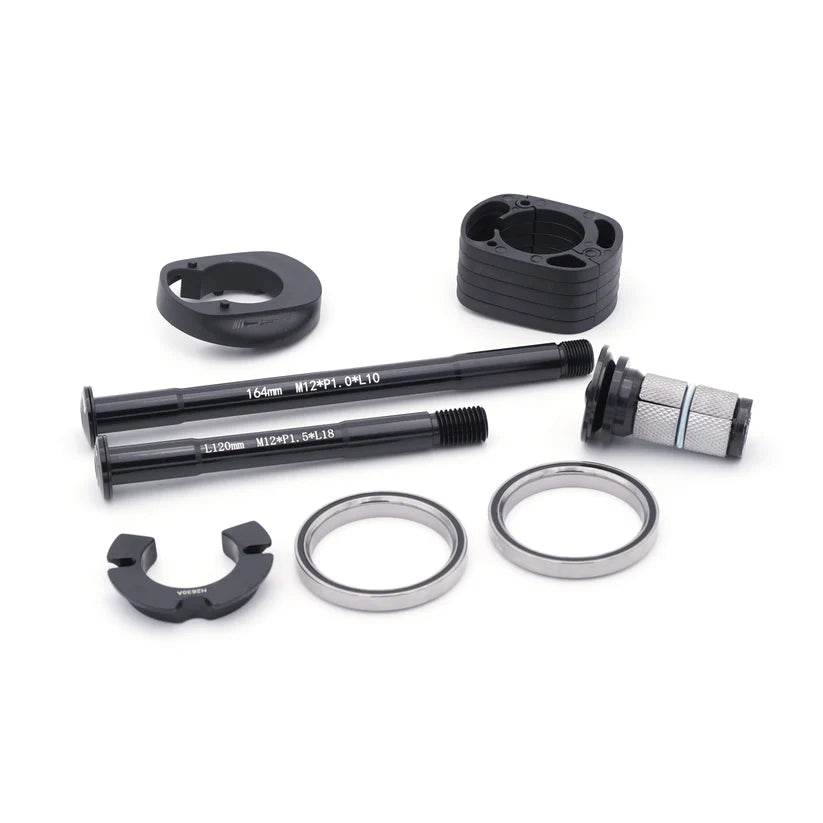

► INCLUDED ◄

○ ZEEN carbon profiled seatpost
○ ZEEN SUPERLITE carbon fork
○ Headset bearings
○ Headset spacer set
○ Expander
○ Front and rear axles

Handlebar: Construction: Japanese Torayca® Carbon Fibre
Full monocoque carbon
Geometry:
Compact shape, 70 mm reach
125 mm drop
3° flare
-5° angle
Steerer diameter:
1"1/8
Stem length:
90 to 130 mm
Handlebar width:
370 mm, 380 mm, 410 mm, 430 mm
Features:
Specifically designed for Gravel bikes with internal cable routing
Integrated cables for electronic and mechanical drivetrains
Weight: N/A
;

Informations prix

*Supplier recommended retail price in May 2026
