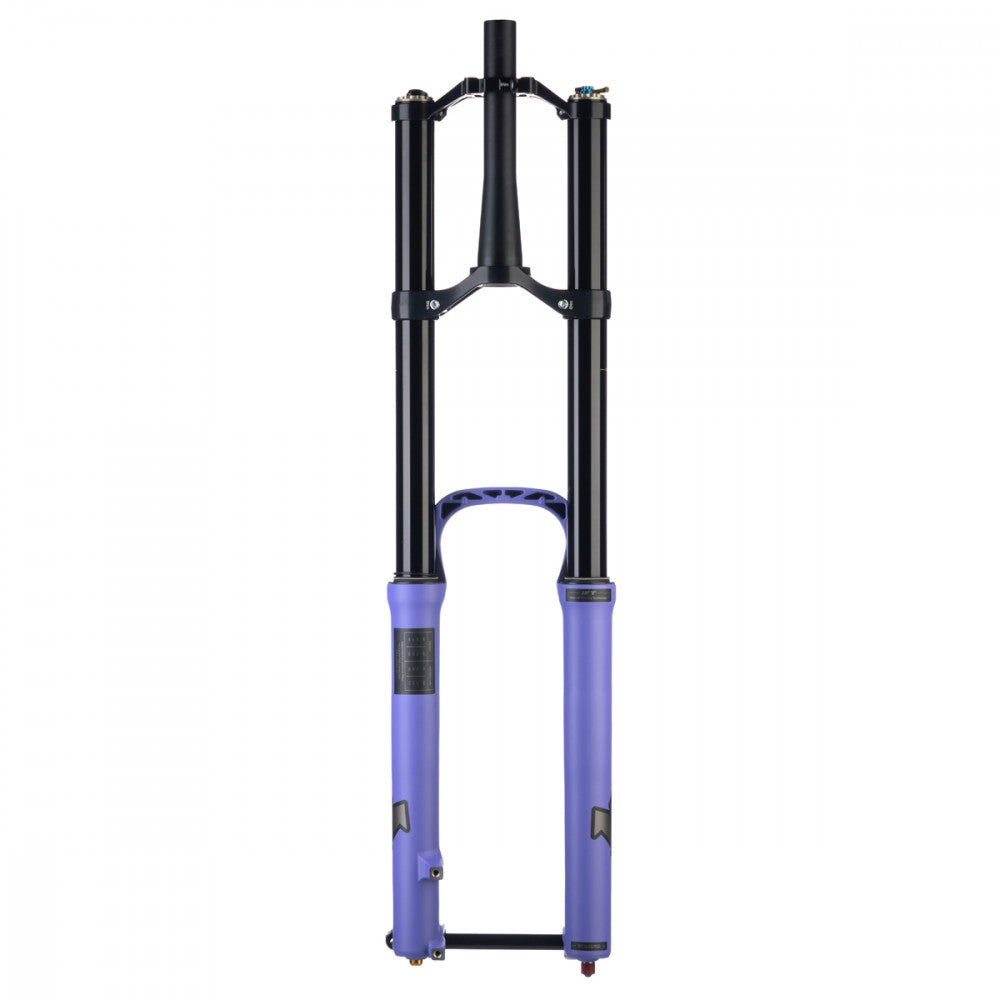

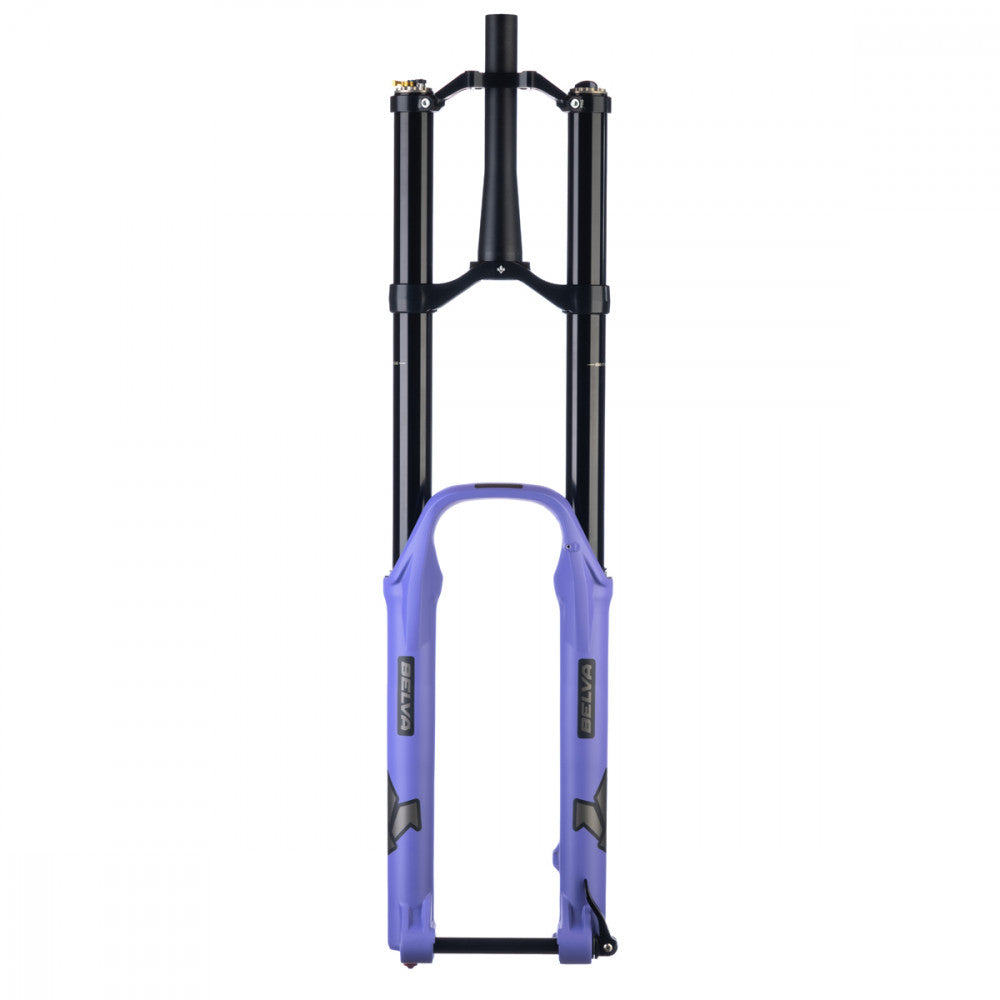

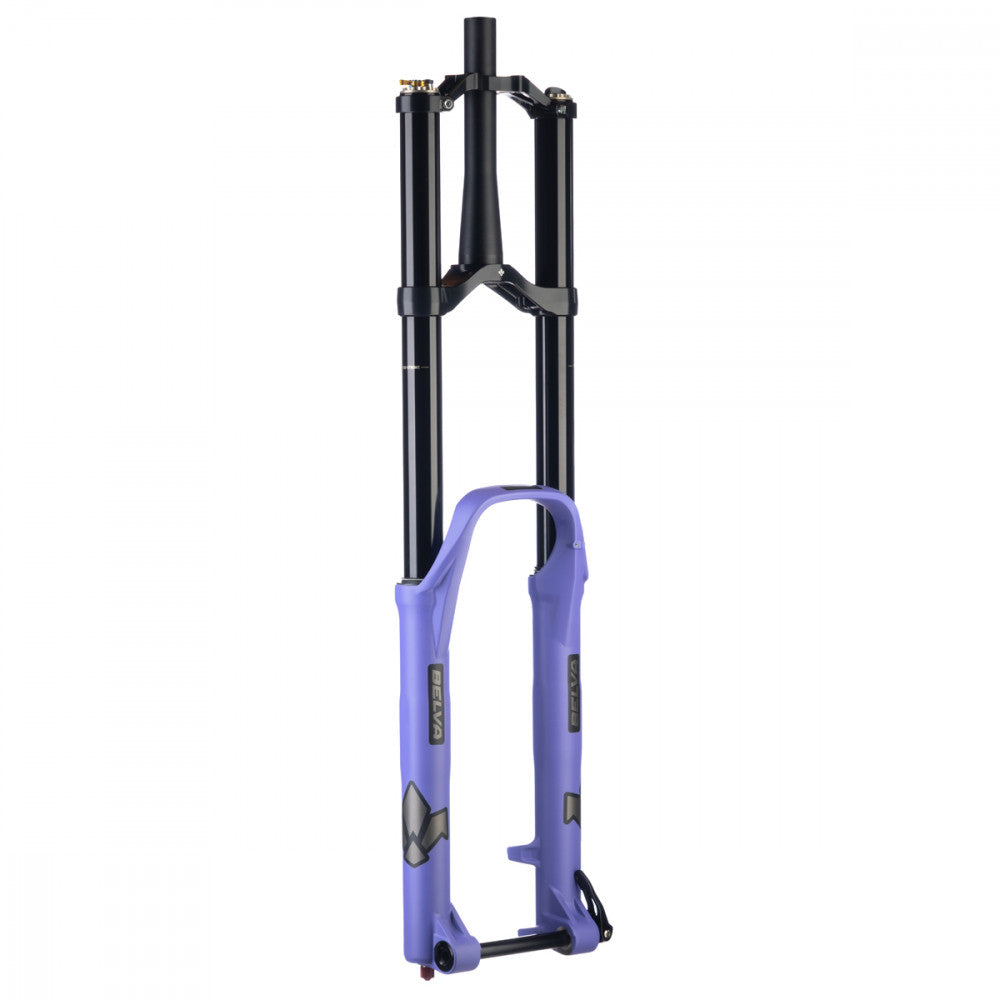

FORMULA BELVA 29" Axle 15x110mm Boost Ultraviolet fork

The FORMULA Belva was born of a simple idea: to create the ultimate enduro fork, the one Formula engineers dreamed of riding. Designed to... Read more
Regular price 1.499,90 €
Regular price Sale price 1.499,90 €
View full details

Description

The FORMULA Belva was born of a simple idea: to create the ultimate enduro fork, the one Formula engineers dreamed of riding. Designed to push the limits of control and stiffness, it adopts a double-tee design, the most effective solution for delivering unrivalled stability and precision on the most committed terrain.

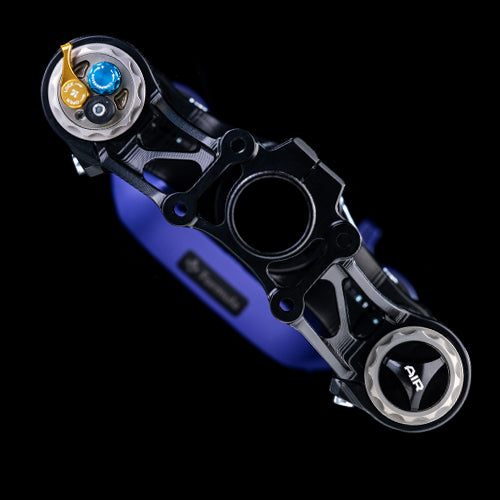

Unlike a simply adapted downhill fork, the Belva has been entirely developed for enduro riding. Its CNC-machined tees, 35 mm plungers, 43 mm offset, tapered steerer tube and 15 mm through-axle make this fork both lightweight and formidably rigid. With a weight of 2,370 g, it rivals 38 mm single-tee forks, while offering unrivalled steering precision.

The Belva is not just a demonstration of raw rigidity: it has been designed to retain flex where it's needed. By combining the lower legs from the Selva with the stability of the double tee and a direct-fit stem, it guarantees a perfect balance of control, comfort and traction. You get precise handling, maximum confidence and exceptional grip on the most technical terrain.

Thanks to the Compression Tuning System (CTS), hydraulic behavior is fully customizable via interchangeable valves, while Neopos ensure smooth, progressive support in mid-stroke.

Finally, the Belva incorporates Hexagon Design, IFT (Internal Floating Technology) and ILS (Integrated Locking System) technologies, reducing friction and preserving the chassis' natural suppleness. A true mythical beast inspired by Dante, the Belva is cut to devour trails with power, precision and elegance.

User manual

Neopros manual

>CTS manual

Ref: 15581037658492

Informations techniques

Débattement :
170 à 180 mm (réglage interne)

Géométrie :
Axe à té 575mm-585mm en 170mm
Axe à té 585mm-595mm en 180mm
Déport (rake) : 43 mm
Disque de frein max. : 220 mm
Pivot Conique 1 1/8" – 1.5"

Finition anodisée
Té couleur Noir mat
Matériau : Aluminium forgé creux
Fourreaux Noir mat ou Ultraviolet mat

Dropout : 15x110mm QR BOOST

Axe : Système ILS (Integrated Locking System)

Plongeurs :
Diamètre : Ø 35 mm
Matériau : Aluminium 7075
Finition : Anodisation dure noire

Réglages :
Rebond : 18 clics
Compression : Basse et haute vitesse – 12 clics
Blocage : Au té
RCC (Remote Cartridge Control) : Optionnel

Pour roues 29" (max 2.5" de large)
Toutes tailles supérieures à 2.35 pouces de large doivent
être vérifiées avec la fourche complètement compressée
Pour roues 27.5 (max 3.0" de large)
Toutes tailles supérieures à 2.70 pouces de large doivent
être vérifiées avec la fourche complètement compressée.

Poids (fabricant) : 2370g
Fabrication : Made in Italy
Garantie 10 ans par la marque (pièces et service)

Usage : Enduro / All-Mountain / E-Bike

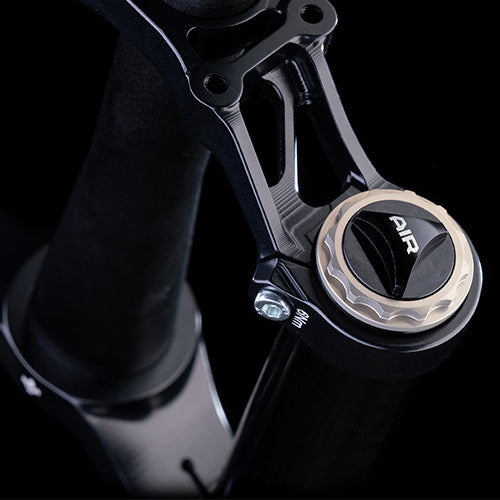

Technologie Air simple valve
Ressort négatif acier

Damping : CTS (Compression Tuning System) – valves interchangeables (Gold & Blue incluses)
Ressort pneumatique : Compatible Neopos pour un soutien progressif et fluide
Option : RCC (Remote Cartridge Control) – réglage de compression au guidon (13 positions)

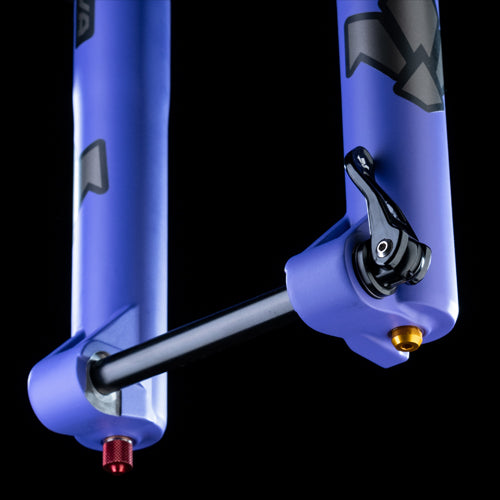

Système d’axe : ILS (Integrated Locking System) – levier amovible pour axe 15 mm
Technologie interne : IFT (Internal Floating Technology) – réduction des frictions et meilleure sensibilité

Vendu avec : pompe, huiles d’entretien (Ballistol 50 ml et OJ 250 ml), entretoises de débattement, étoile de direction, valve CTS bleu (medium), outil CTS, outil pour chambre d’air, 1 sticker de fourche.
