FORMULA BELVA 29" Fork Axle 15x110mm Boost Black

The FORMULA Belva was born of a simple idea: to create the ultimate enduro fork, the one Formula engineers dreamed of riding. Designed to... Read more
1.499,90 €
1.499,90 €
View full details

Description

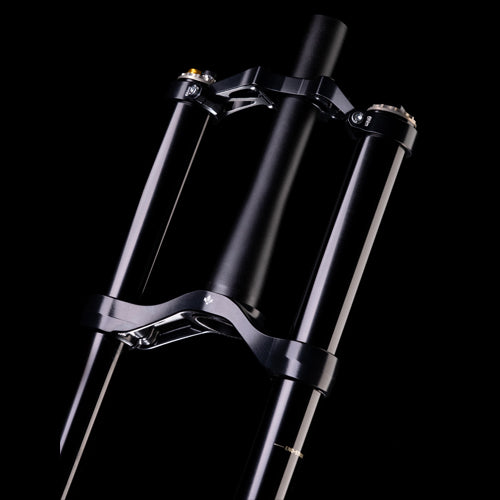

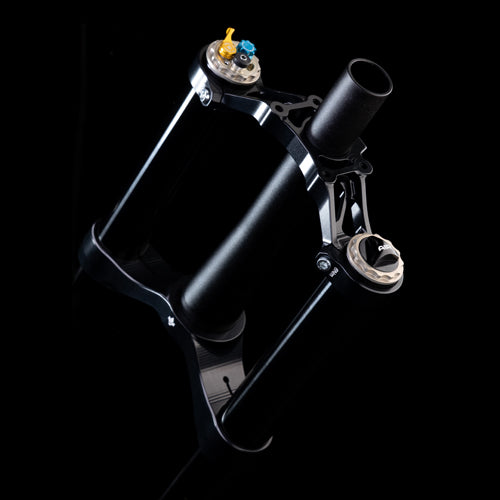

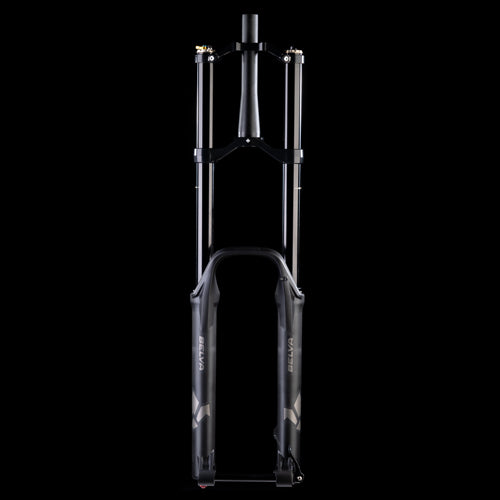

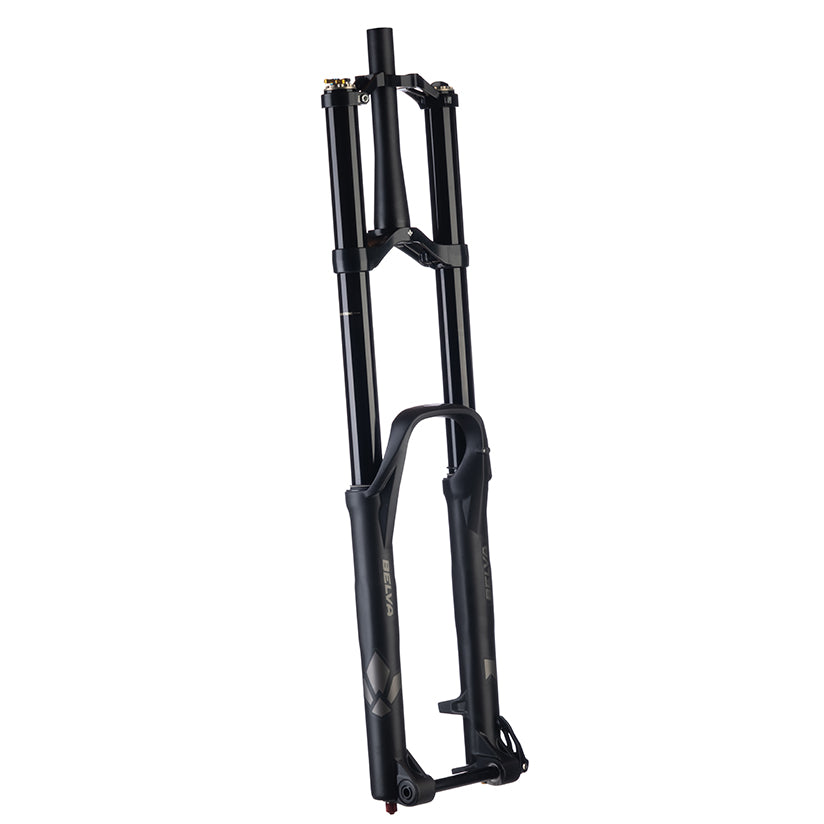

The FORMULA Belva was born of a simple idea: to create the ultimate enduro fork, the one Formula engineers dreamed of riding. Designed to push the limits of control and rigidity, it adopts a double-tee design, the most effective solution for delivering unrivalled stability and precision on the most committed terrain.

Unlike a simply adapted downhill fork, the Belva has been entirely developed for enduro riding. Its CNC-machined tees, 35 mm plungers, 43 mm offset, tapered steerer tube and 15 mm through-axle make this fork both lightweight and formidably rigid. With a weight of 2,370 g, it rivals 38 mm single-tee forks, while offering unrivalled steering precision.

The Belva is not just a demonstration of raw rigidity: it has been designed to retain flex where it's needed. By combining the lower legs from the Selva with the stability of the double tee and a direct-fit stem, it guarantees a perfect balance of control, comfort and traction. You get precise handling, maximum confidence and exceptional grip on the most technical terrain.

Thanks to the Compression Tuning System (CTS), hydraulic behavior is fully customizable via interchangeable valves, while Neopos ensure smooth, progressive support in mid-stroke.

Finally, the Belva incorporates Hexagon Design, IFT (Internal Floating Technology) and ILS (Integrated Locking System) technologies, reducing friction and preserving the chassis' natural suppleness. A true mythical beast inspired by Dante, the Belva is cut to devour trails with power, precision and elegance.

User manual

Neopros manual

>CTS manual

Ref: 15581051257212

Informations techniques

Clearance :
170 to 180 mm (internally adjustable)

Geometry :
575mm-585mm tee axle in 170mm
585mm-595mm 180mm tee axle
Offset (rake): 43 mm
Brake disc max. 220 mm
1 1/8" - 1.5" Tapered Pivot

Anodized finish
Matte black tee
Material: Hollow forged aluminum
Matte black or matte ultraviolet sheaths

Dropout: 15x110mm QR BOOST

Axis: ILS (Integrated Locking System)

Divers :
Diameter: Ø 35 mm
Material: Aluminium 7075
Finish: Black hard anodizing

Settings :
Bounce: 18 clicks
Compression: Low and high speed - 12 clicks
Blocking: To the tee
RCC (Remote Cartridge Control): Optional

For 29" wheels (max 2.5" wide)
All sizes over 2.35 inches wide must be
be checked with the fork fully compressed
For 27.5 wheels (max 3.0" wide)
All sizes greater than 2.70 inches wide must be
be checked with the fork fully compressed.

Weight (manufacturer): 2370g
Manufacture: Made in Italy
10-year brand warranty (parts and service)

Usage: Enduro / All-Mountain / E-Bike

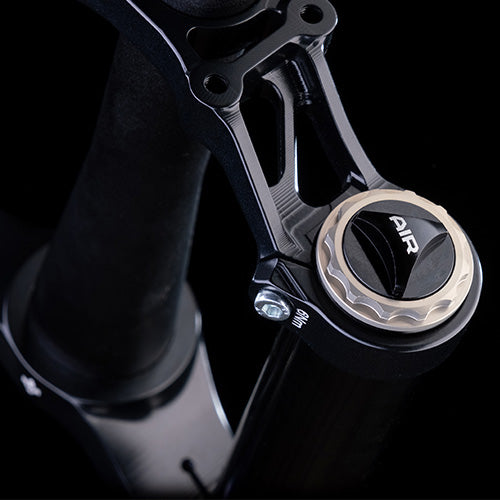

Single-valve Air technology
Steel negative spring

Damping: CTS (Compression Tuning System) - interchangeable valves (Gold & Blue included)
Air spring: Neopos-compatible for smooth, progressive support
Option: RCC (Remote Cartridge Control) - handlebar-mounted compression adjustment (13 positions)
Axle system: ILS (Integrated Locking System) - removable lever for 15 mm axle
Internal technology: IFT (Internal Floating Technology) - reduced friction and improved sensitivity

Sold with: pump, maintenance oils (Ballistol 50 ml and OJ 250 ml), travel spacers, steering star, blue CTS valve (medium), CTS tool, inner tube tool, 1 fork sticker.
;
