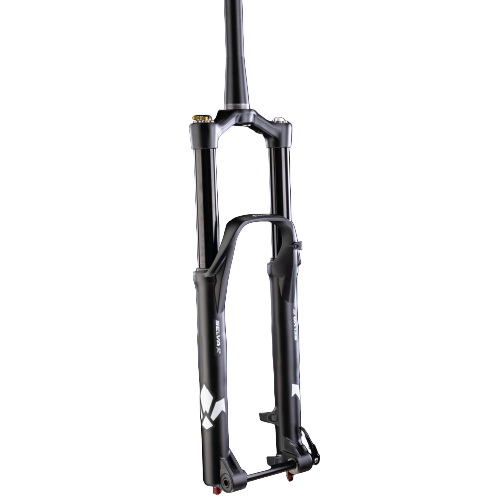

FORMULA SELVA R 29" Fork 15x110mm Boost Axle Black

The FORMULA SELVA R fork embodies the pinnacle of customisation for high-end MTB forks in Enduro and All Mountain. Thanks to 2Air technology, you... Read more
1.199,90 €
1.199,90 €
View full details

Description

The FORMULA SELVA R fork embodies the pinnacle of customisation for high-end MTB forks in Enduro and All Mountain. Thanks to 2Air technology, you can independently adjust the positive (Silver) and negative (Bronze) air chambers, allowing extremely precise tuning between support and sensitivity. The result: a suspension perfectly tailored to your weight, your style and your terrain.

The CTS Technology (Compression Tuning System) offers near-infinite tuning potential. Supplied with two CTS valves (Gold installed and Blue as an option), it allows compression to be adjusted in moments to suit your riding style. With the Neopos (included), a spongy insert replacing traditional tokens, progressivity is consistent and comfort unmatched, with no harsh bottom-out effect.

Designed for performance, the Selva R integrates the Hexagon Design, an architecture that perfectly balances rigidity and flexibility, guaranteeing precision, safety and control, even in the most demanding conditions.

Finally, innovations such as the ILS (Integrated Locking System) and IFT (Internal Floating Technology) technology ensure smooth operation and uncompromising reliability. The Selva R is not just a fork: it is a bespoke riding experience.

User manual

2Air Manual

Neopros Manual

CTS Manual

Ref: 15581038084476

Informations techniques

Travel:
Standard: 140 to 160 mm (internal adjustment)
Optional: 120 to 130 mm
Extended version: 160 to 170 mm in 29" (internal adjustment)

Geometry:
Crown-to-axle (160 mm): 565 mm ± 5 mm
Crown-to-axle (170 mm): 575 mm ± 5 mm
Offset (rake): 43 mm
Max. brake disc: 220 mm
Tapered steerer 1 1/8" – 1.5"

Anodised finish
Crown colour: Matt Black
Material: Hollow forged aluminium
Lowers: Matt Black or Matt Ultraviolet

Dropout: 15x110mm QR BOOST (standard) / 20QR BOOST (option)

Axle: ILS (Integrated Locking System)

Stanchions:
Diameter: Ø 35 mm
Material: 7075 Aluminium
Finish: Black hard anodising

Adjustments:
Rebound: 21 clicks
Compression: Low and high speed – 12 clicks
Lockout: At the crown
RCC (Remote Cartridge Control): Optional

For 29" wheels (max 2.5" wide)
All sizes wider than 2.35 inches must
be checked with the fork fully compressed
For 27.5 wheels (max 3.0" wide)
All sizes wider than 2.70 inches must
be checked with the fork fully compressed.

Weight (manufacturer): 1980g
Manufacturing: Made in Italy
10-year brand warranty (parts and service)

Use: Enduro / All-Mountain

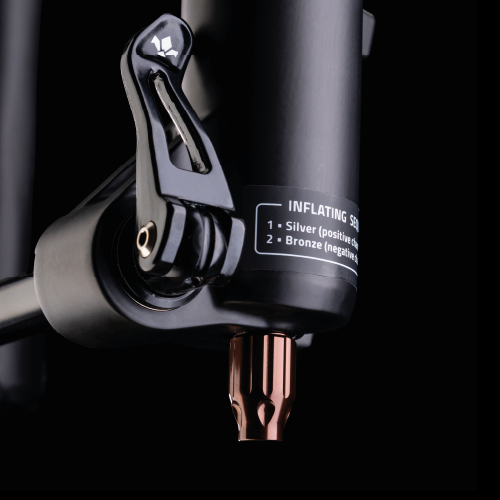

Air technology: 2Air System – independent positive (Silver) and negative (Bronze) air chambers
Damping: CTS (Compression Tuning System) – interchangeable valves (Gold & Blue included)
Air spring: Neopos compatible (1 included) for progressive and smooth support
Option: RCC (Remote Cartridge Control) – handlebar compression adjustment (13 positions)
Design: Hexagon Design – optimised stiffness, maximum precision
Axle system: ILS (Integrated Locking System) – removable lever for 15 mm axle
Internal technology: IFT (Internal Floating Technology) – reduced friction and improved sensitivity
;
