FORMULA

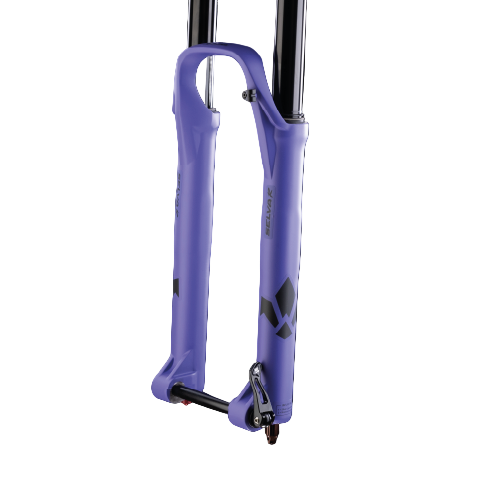

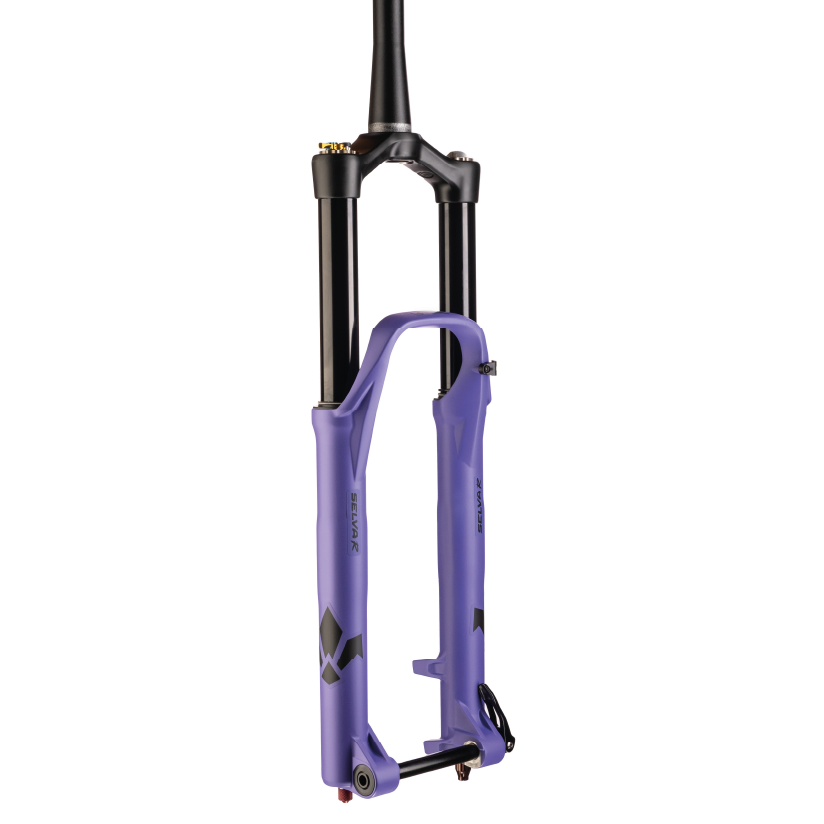

FORMULA SELVA R 29" Axle 15x110mm Boost Ultraviolet fork

The FORMULA SELVA R fork embodies customization excellence for high-end Enduro and All Mountain mountain bike forks. Thanks to 2Air technology, you can adjust... Read more
Regular price 1.199,90 €
Regular price Sale price 1.199,90 €
View full details

Description

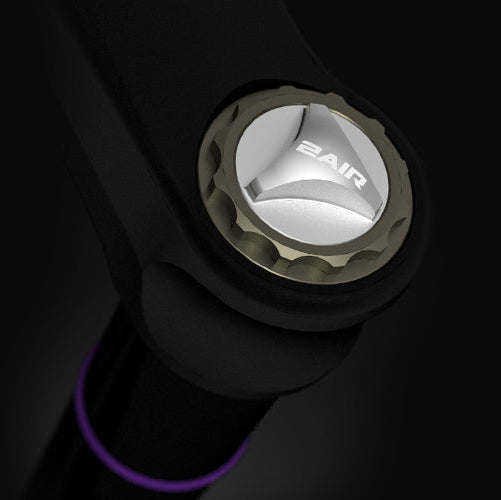

The FORMULA SELVA R fork embodies customization excellence for high-end Enduro and All Mountain mountain bike forks. Thanks to 2Air technology, you can adjust the positive (Silver) and negative (Bronze) air chambers separately, enabling extremely precise adjustment between support and sensitivity. The result: a suspension perfectly adapted to your weight, style and terrain.

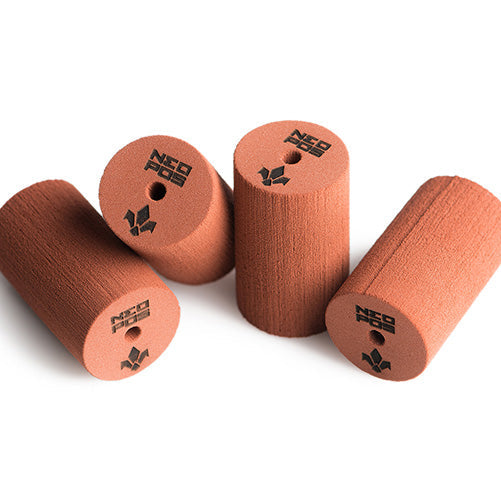

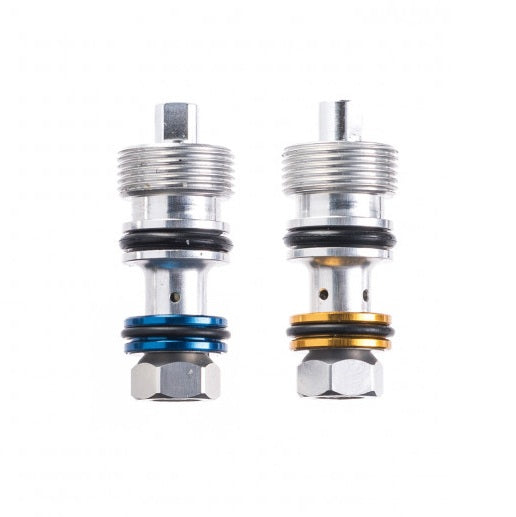

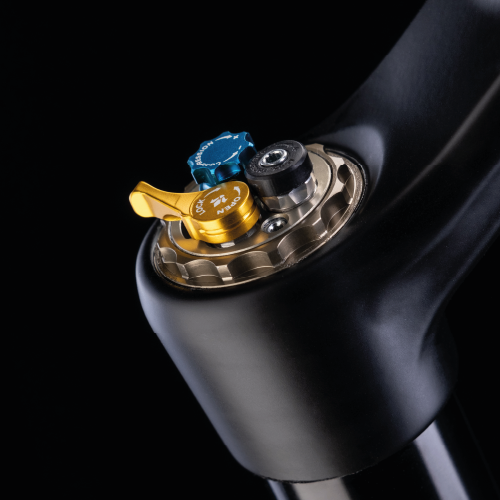

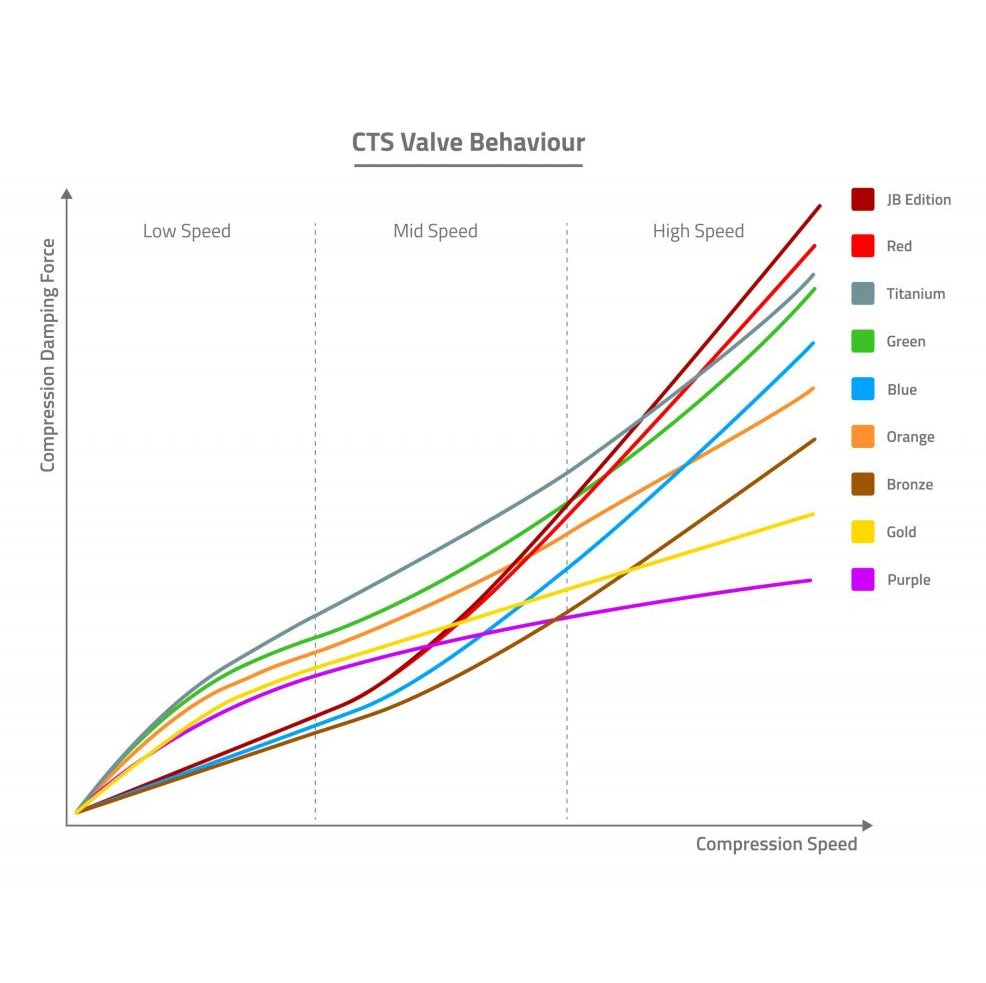

CTS Technology (Compression Tuning System) offers almost infinite tuning potential. Supplied with two CTS valves (Gold installed and Blue optional), it allows you to adjust compression in a matter of moments to suit your riding style. With Neopos (included), a spongy insert that replaces conventional tokens, progressiveness is constant and comfort unequalled, with no sudden stop effect.

Designed for performance, the Selva R incorporates Hexagon Design, an architecture that perfectly balances rigidity and flexibility, guaranteeing precision, safety and control, even in the most demanding conditions.

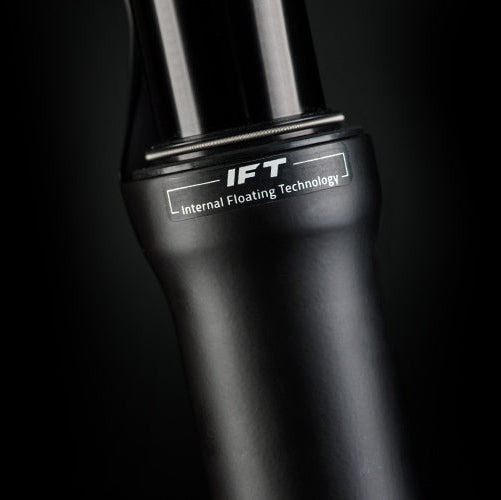

Innovations such as theILS (Integrated Locking System) and IFT (Internal Floating Technology) ensure smooth running and uncompromising reliability. The Selva R is more than just a fork: it's a tailor-made riding experience.

User manual

2Air manual

Neopros manual

CTS manual

Ref: 15581037887868

Informations techniques

Débattement :
Standard : 140 à 160 mm (réglage interne)
En option : 120 à 130 mm
Version étendue : 160 à 170 mm en 29" (réglage interne)

Géométrie :
Axe à té (160 mm) : 565 mm ± 5 mm
Axe à té (170 mm) : 575 mm ± 5 mm
Déport (rake) : 43 mm
Disque de frein max. : 220 mm
Pivot Conique 1 1/8" – 1.5"

Finition anodisée
Té couleur Noir mat
Matériau : Aluminium forgé creux
Fourreaux Noir mat ou Ultraviolet mat

Dropout : 15x110mm QR BOOST (standard) / 20QR BOOST (option)

Axe : Système ILS (Integrated Locking System)

Plongeurs :
Diamètre : Ø 35 mm
Matériau : Aluminium 7075
Finition : Anodisation dure noire

Réglages :
Rebond : 21 clics
Compression : Basse et haute vitesse – 12 clics
Blocage : Au té
RCC (Remote Cartridge Control) : Optionnel

Pour roues 29" (max 2.5" de large)
Toutes tailles supérieures à 2.35 pouces de large doivent
être vérifiées avec la fourche complètement compressée
Pour roues 27.5 (max 3.0" de large)
Toutes tailles supérieures à 2.70 pouces de large doivent
être vérifiées avec la fourche complètement compressée.

Poids (fabricant) : 1980g
Fabrication : Made in Italy
Garantie 10 ans par la marque (pièces et service)

Usage : Enduro / All-Mountain
Technologie Air : 2Air System – chambres positive (Silver) et négative (Bronze) indépendantes
Damping : CTS (Compression Tuning System) – valves interchangeables (Gold & Blue incluses)
Ressort pneumatique : Compatible Neopos (1 inclus) pour un soutien progressif et fluide
Option : RCC (Remote Cartridge Control) – réglage de compression au guidon (13 positions)
Design : Hexagon Design – rigidité optimisée, précision maximale

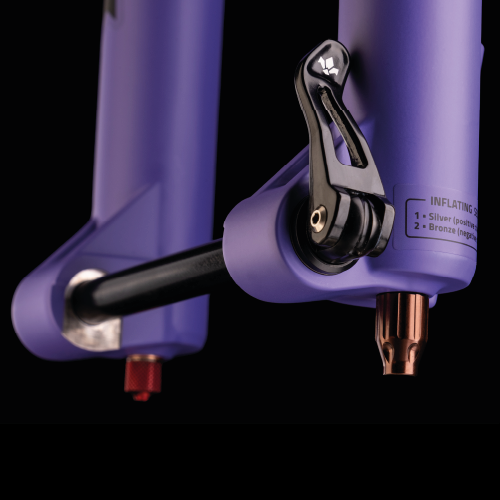

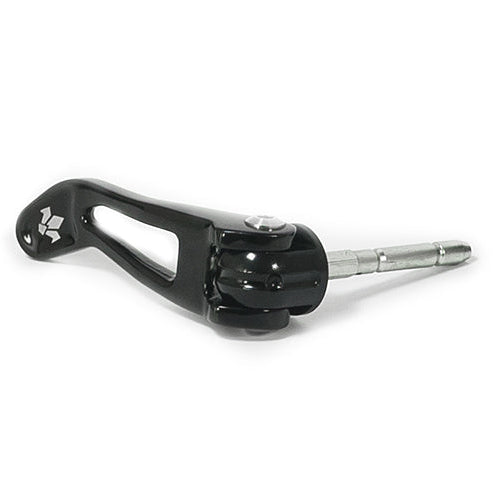

Système d’axe : ILS (Integrated Locking System) – levier amovible pour axe 15 mm
Technologie interne : IFT (Internal Floating Technology) – réduction des frictions et meilleure sensibilité
