HOPE

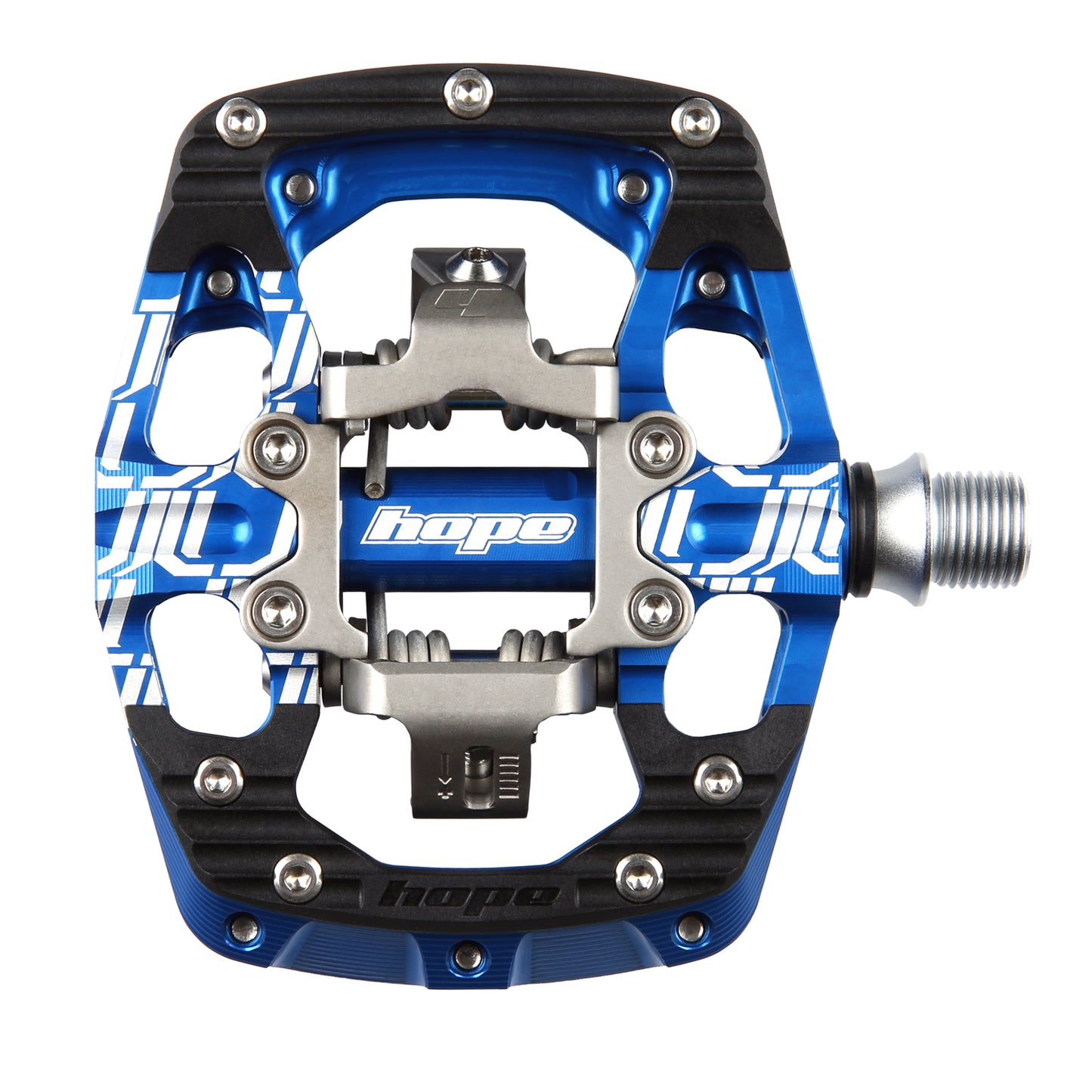

HOPE UNION GRAVITY pedals Blue

The construction of the Hope Union Gravity GC pedal is ultra-robust, with a shape designed for maximum resistance and grip. The 7 replaceable and... Read more

Recommanded price: 195,00 €

Regular price 169,90 €
Regular price Sale price 169,90 €
View full details

Description

The construction of the Hope Union Gravity GC pedal is ultra-robust, with a shape designed for maximum resistance and grip. The 7 replaceable and adjustable pins on each side are resistant and easily interchangeable, even when damaged.

Their operation is based on stainless steel wedges and a double interlocking mechanism that reduces the effort required to clip, providing a firmer hold and quicker release.

Their use is durable over time, since the multiplication of sealed ring bearings distributes the load exerted admirably.

Fully repairable

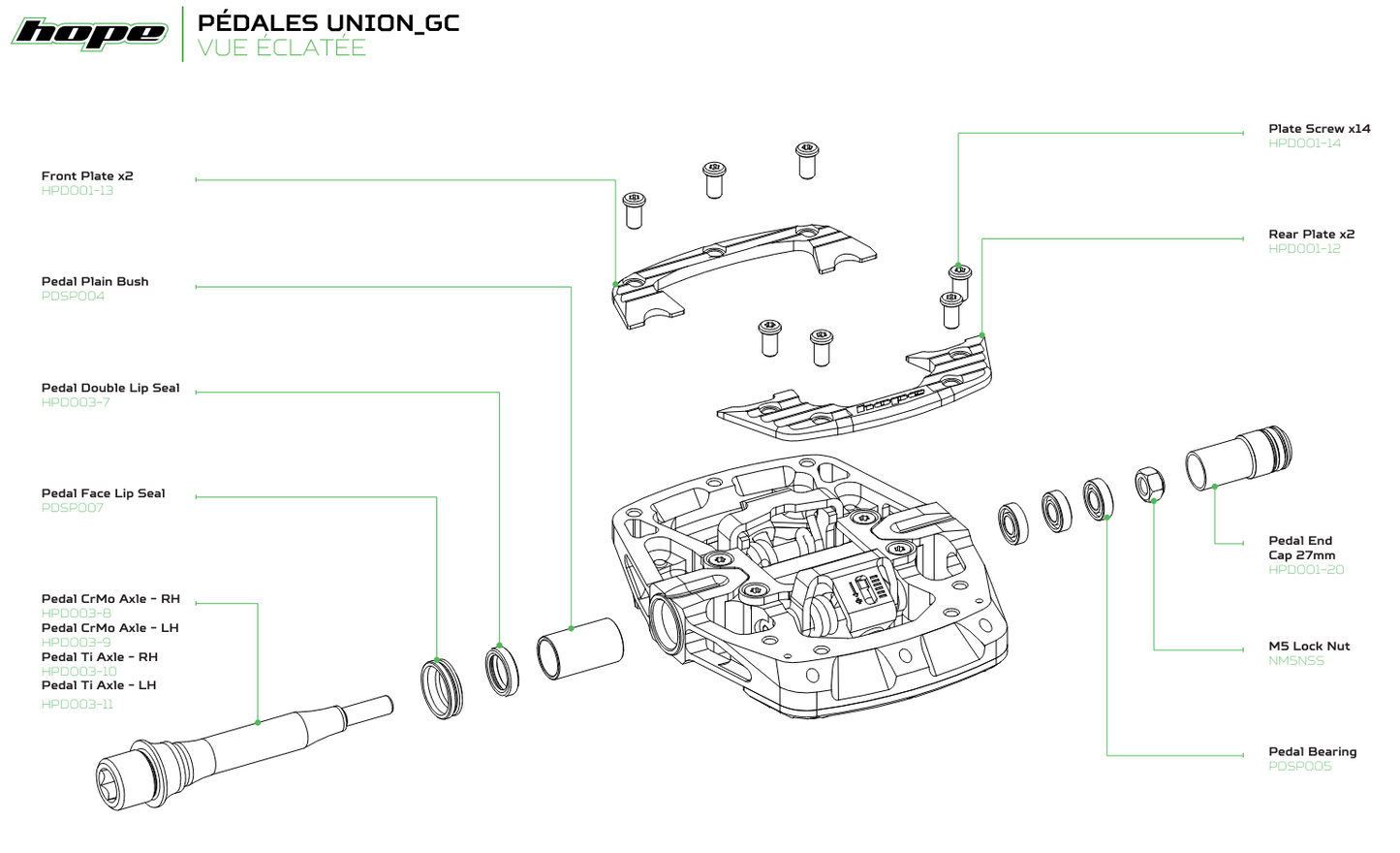

Download technical documentation here

Ref: 8083258704038

Points forts

Completely CNC-machined aluminum body;

Double interlocking mechanism for ease of use and safety;

14 pins per pedal;

Two sets of wedges included;

Can be fully maintained and repaired.

Caractéristiques

Wedges supplied : Yes

Warranty : 2 years

Axle material : Chromoly steel

Platform material : Aluminum

Adjustable Spring Tension : Yes

Pedal Type : Automatic

Bearing Type : Annular

Informations techniques

Robust CNC-machined body in 2014 T6 aluminum;
Chromoly steel axle with high-strength heat treatment;
7 screw-in pins per side, i.e. 14 per pedal;
3 ring bearings + 1 Norglide ring for low maintenance and excellent reliability;
8 platform wedges + 8 platform extensions;
2 sets of shims :
N°4 - 4° angular freedom - 12° release - 2mm lateral freedom ;
N°5 - Angular freedom 5° - releases at 13° - Lateral freedom 2mm;
4 shim extensions: 2x0.5 mm + 2x1 mm ;
2 shim plates ;
Measuring jig ;
Weight (manufacturer): 498 g.

Informations prix

Recommended retail price February 2024
